| 出品公司: | Invitrogen |
|---|---|
| 别名: | pTrcHis2B、 pTrcHis2 B |
| 质粒类型: | 大肠杆菌表达载体 |
| 表达水平: | 高拷贝 |
| 启动子: | Trc |
| 克隆方法: | 多克隆位点，限制性内切酶 |
| 载体大小: | 4404 bp |
| 5' 测序引物及序列: | pTrcHis-F: gaggtatatattaatgtatcg |
| 3' 测序引物及序列: | pTrcHis-R:GATTTAATCTGTATCAGG |
| 载体标签: | C-His, C-Myc |
| 载体抗性: | Ampicillin |
| 备注: |
Hosts: E.coli NM522, E.coli INValphaF'. Related vectors: pSE420.
|
| 产品目录号: | V365-20 |
| 稳定性: | 瞬时表达 Transient |
| 组成型: | 组成型 Constitutive |
| 病毒/非病毒: | 非病毒 |
买家导航
pTrcHis2 B载体 pTrcHis2B质粒基本信息

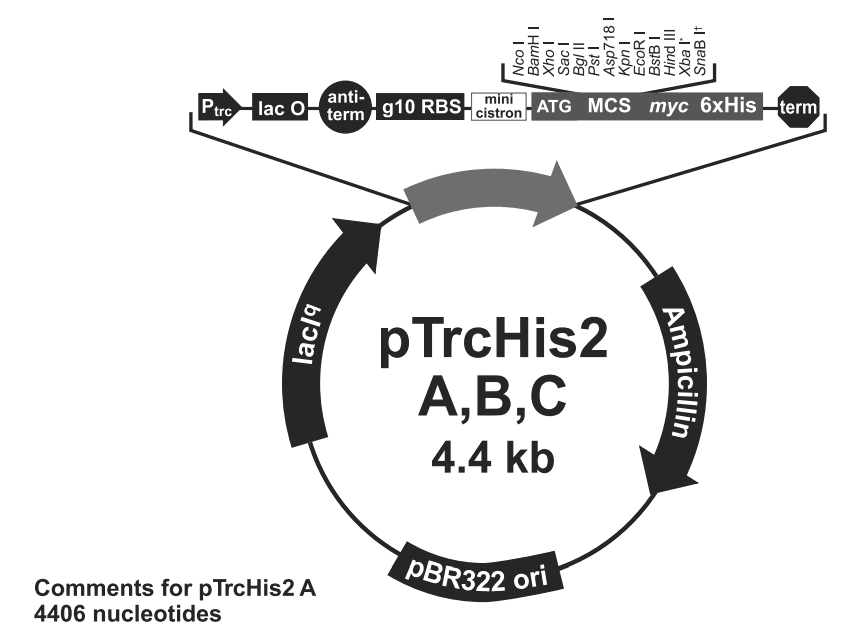

pTrcHis2 B质粒图谱 pTrcHis2B载体图谱和pTrcHis2 B载体序列 pTrcHis2B质粒序列多克隆位点信息
pTrcHis2 B质粒 pTrcHis2B载体简介
The pTrcHis2 plasmids are pBR322-derived expression vectors designed for efficient recombinant protein expression and purification in E. coli. High levels of expression are possible using the trc (trp-lac) promoter (Egon et al., 1983) and the rrnB anti-termination region (Li et al., 1984). The trc promoter contains the –35 region of the trp promoter together with the –10 region of the lac promoter (Brosius et al., 1985; Egon et al., 1983; Mulligan et al., 1985). To regulate expression, the gene encoding Lac repressor (lacIq) is provided in the pTrcHis2 vectors, allowing regulation of the trc promoter regardless of whether the host strain contains a gene encoding the Lac repressor.
Isopropyl-Beta-D-thiogalactopyranoside (IPTG) is used to induce expression of your gene. Translation is enhanced by the bacteriophage T7 gene 10 translation enhancer and a minicistron that provides highly efficient translational restart into the open reading frame of the multiple cloning site. DNA inserts are positioned downstream and in frame with the initiation ATG and a C-terminal fusion peptide. The C-terminal peptide encodes the myc epitope and six histidine residues that function as a metal binding site in the expressed protein.
pTrcHis2 B质粒序列 pTrcHis2B载体序列
LOCUS pTrcHis2\B 4404 bp DNA circular SYN 7-JUL-2013
DEFINITION pTrcHis2 B.
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
COMMENT http://www.biofeng.com/
COMMENT This file is created by Vector NTI
http://www.invitrogen.com/
COMMENT ORIGDB|GenBank
COMMENT VNTNAME|pTrcHis2 B|
COMMENT VNTOAUTHORNAME|biofeng.com|
FEATURES Location/Qualifiers
source 1..4404
/organism="pTrcHis2 A"
/mol_type="other DNA"
/vntifkey="98"
misc_feature 235..257
/vntifkey="21"
/label=M13_pUC_rev_primer
misc_feature 264..333
/vntifkey="21"
/label=rrnB_ATS
misc_feature 370..390
/vntifkey="21"
/label=pTrcHis_fwd_primer
misc_feature 383..409
/vntifkey="21"
/label=minicis
misc_feature complement(587..604)
/vntifkey="21"
/label=pBAD_rev_primer
misc_feature complement(587..604)
/vntifkey="21"
/label=pTrcHis_rev_primer
terminator 637..794
/vntifkey="43"
/label=rrnB_terminator
terminator 760..803
/vntifkey="43"
/label=rrnB_T1_terminator
terminator 935..962
/vntifkey="43"
/label=rrnB_T2_terminator
promoter 1004..1032
/vntifkey="30"
/label=AmpR_promoter
gene 1074..1934
/gene="Ampicillin"
/vntifkey="60"
CDS 1074..1934
/vntifkey="4"
/label=ORF\frame\2
rep_origin 2089..2708
/vntifkey="33"
/label=pBR322_origin
misc_feature 3105..3127
/vntifkey="21"
/label=pGEX_3_primer
misc_feature 3274..4365
/vntifkey="21"
/label=lacI
CDS 3406..4365
/vntifkey="4"
/label=ORF\frame\3
BASE COUNT 1091 a 1098 c 1160 g 1055 t
ORIGIN
1 gtttgacagc ttatcatcga ctgcacggtg caccaatgct tctggcgtca ggcagccatc
61 ggaagctgtg gtatggctgt gcaggtcgta aatcactgca taattcgtgt cgctcaaggc
121 gcactcccgt tctggataat gttttttgcg ccgacatcat aacggttctg gcaaatattc
181 tgaaatgagc tgttgacaat taatcatccg gctcgtataa tgtgtggaat tgtgagcgga
241 taacaatttc acacaggaaa cagcgccgct gagaaaaagc gaagcggcac tgctctttaa
301 caatttatca gacaatctgt gtgggcactc gaccggaatt atcgattaac tttattatta
361 aaaattaaag aggtatatat taatgtatcg attaaataag gaggaataaa ccatggatcc
421 gagctcgaga tctgcagctg gtaccatatg ggaattcgaa gctttctaga acaaaaactc
481 atctcagaag aggatctgaa tagcgccgtc gaccatcatc atcatcatca ttgagtttaa
541 acggtctcca gcttggctgt tttggcggat gagagaagat tttcagcctg atacagatta
601 aatcagaacg cagaagcggt ctgataaaac agaatttgcc tggcggcagt agcgcggtgg
661 tcccacctga ccccatgccg aactcagaag tgaaacgccg tagcgccgat ggtagtgtgg
721 ggtctcccca tgcgagagta gggaactgcc aggcatcaaa taaaacgaaa ggctcagtcg
781 aaagactggg cctttcgttt tatctgttgt ttgtcggtga acgctctcct gagtaggaca
841 aatccgccgg gagcggattt gaacgttgcg aagcaacggc ccggagggtg gcgggcagga
901 cgcccgccat aaactgccag gcatcaaatt aagcagaagg ccatcctgac ggatggcctt
961 tttgcgtttc tacaaactct ttttgtttat ttttctaaat acattcaaat atgtatccgc
1021 tcatgagaca ataaccctga taaatgcttc aataatattg aaaaaggaag agtatgagta
1081 ttcaacattt ccgtgtcgcc cttattccct tttttgcggc attttgcctt cctgtttttg
1141 ctcacccaga aacgctggtg aaagtaaaag atgctgaaga tcagttgggt gcacgagtgg
1201 gttacatcga actggatctc aacagcggta agatccttga gagttttcgc cccgaagaac
1261 gttttccaat gatgagcact tttaaagttc tgctatgtgg cgcggtatta tcccgtgttg
1321 acgccgggca agagcaactc ggtcgccgca tacactattc tcagaatgac ttggttgagt
1381 actcaccagt cacagaaaag catcttacgg atggcatgac agtaagagaa ttatgcagtg
1441 ctgccataac catgagtgat aacactgcgg ccaacttact tctgacaacg atcggaggac
1501 cgaaggagct aaccgctttt ttgcacaaca tgggggatca tgtaactcgc cttgatcgtt
1561 gggaaccgga gctgaatgaa gccataccaa acgacgagcg tgacaccacg atgcctgtag
1621 caatggcaac aacgttgcgc aaactattaa ctggcgaact acttactcta gcttcccggc
1681 aacaattaat agactggatg gaggcggata aagttgcagg accacttctg cgctcggccc
1741 ttccggctgg ctggtttatt gctgataaat ctggagccgg tgagcgtggg tctcgcggta
1801 tcattgcagc actggggcca gatggtaagc cctcccgtat cgtagttatc tacacgacgg
1861 ggagtcaggc aactatggat gaacgaaata gacagatcgc tgagataggt gcctcactga
1921 ttaagcattg gtaactgtca gaccaagttt actcatatat actttagatt gatttaaaac
1981 ttcattttta atttaaaagg atctaggtga agatcctttt tgataatctc atgaccaaaa
2041 tcccttaacg tgagttttcg ttccactgag cgtcagaccc cgtagaaaag atcaaaggat
2101 cttcttgaga tccttttttt ctgcgcgtaa tctgctgctt gcaaacaaaa aaaccaccgc
2161 taccagcggt ggtttgtttg ccggatcaag agctaccaac tctttttccg aaggtaactg
2221 gcttcagcag agcgcagata ccaaatactg tccttctagt gtagccgtag ttaggccacc
2281 acttcaagaa ctctgtagca ccgcctacat acctcgctct gctaatcctg ttaccagtgg
2341 ctgctgccag tggcgataag tcgtgtctta ccgggttgga ctcaagacga tagttaccgg
2401 ataaggcgca gcggtcgggc tgaacggggg gttcgtgcac acagcccagc ttggagcgaa
2461 cgacctacac cgaactgaga tacctacagc gtgagctatg agaaagcgcc acgcttcccg
2521 aagggagaaa ggcggacagg tatccggtaa gcggcagggt cggaacagga gagcgcacga
2581 gggagcttcc agggggaaac gcctggtatc tttatagtcc tgtcgggttt cgccacctct
2641 gacttgagcg tcgatttttg tgatgctcgt caggggggcg gagcctatgg aaaaacgcca
2701 gcaacgcggc ctttttacgg ttcctggcct tttgctggcc ttttgctcac atgttctttc
2761 ctgcgttatc ccctgattct gtggataacc gtattaccgc ctttgagtga gctgataccg
2821 ctcgccgcag ccgaacgacc gagcgcagcg agtcagtgag cgaggaagcg gaagagcgcc
2881 tgatgcggta ttttctcctt acgcatctgt gcggtatttc acaccgcata tggtgcactc
2941 tcagtacaat ctgctctgat gccgcatagt taagccagta tacactccgc tatcgctacg
3001 tgactgggtc atggctgcgc cccgacaccc gccaacaccc gctgacgcgc cctgacgggc
3061 ttgtctgctc ccggcatccg cttacagaca agctgtgacc gtctccggga gctgcatgtg
3121 tcagaggttt tcaccgtcat caccgaaacg cgcgaggcag cagatcaatt cgcgcgcgaa
3181 ggcgaagcgg catgcattta cgttgacacc atcgaatggt gcaaaacctt tcgcggtatg
3241 gcatgatagc gcccggaaga gagtcaattc agggtggtga atgtgaaacc agtaacgtta
3301 tacgatgtcg cagagtatgc cggtgtctct tatcagaccg tttcccgcgt ggtgaaccag
3361 gccagccacg tttctgcgaa aacgcgggaa aaagtggaag cggcgatggc ggagctgaat
3421 tacattccca accgcgtggc acaacaactg gcgggcaaac agtcgttgct gattggcgtt
3481 gccacctcca gtctggccct gcacgcgccg tcgcaaattg tcgcggcgat taaatctcgc
3541 gccgatcaac tgggtgccag cgtggtggtg tcgatggtag aacgaagcgg cgtcgaagcc
3601 tgtaaagcgg cggtgcacaa tcttctcgcg caacgcgtca gtgggctgat cattaactat
3661 ccgctggatg accaggatgc cattgctgtg gaagctgcct gcactaatgt tccggcgtta
3721 tttcttgatg tctctgacca gacacccatc aacagtatta ttttctccca tgaagacggt
3781 acgcgactgg gcgtggagca tctggtcgca ttgggtcacc agcaaatcgc gctgttagcg
3841 ggcccattaa gttctgtctc ggcgcgtctg cgtctggctg gctggcataa atatctcact
3901 cgcaatcaaa ttcagccgat agcggaacgg gaaggcgact ggagtgccat gtccggtttt
3961 caacaaacca tgcaaatgct gaatgagggc atcgttccca ctgcgatgct ggttgccaac
4021 gatcagatgg cgctgggcgc aatgcgcgcc attaccgagt ccgggctgcg cgttggtgcg
4081 gatatctcgg tagtgggata cgacgatacc gaagacagct catgttatat cccgccgtca
4141 accaccatca aacaggattt tcgcctgctg gggcaaacca gcgtggaccg cttgctgcaa
4201 ctctctcagg gccaggcggt gaagggcaat cagctgttgc ccgtctcact ggtgaaaaga
4261 aaaaccaccc tggcgcccaa tacgcaaacc gcctctcccc gcgcgttggc cgattcatta
4321 atgcagctgg cacgacaggt ttcccgactg gaaagcgggc agtgagcgca acgcaattaa
4381 tgtgagttag cgcgaattga tctg
//
