| 出品公司: | Clontech |
|---|---|
| 载体名称: | pISRE-TA-Luc |
| 质粒类型: | 信号通路报告系统载体 |
| 高拷贝/低拷贝: | -- |
| 启动子: | -- |
| 克隆方法: | 多克隆位点，限制性内切酶 |
| 载体大小: | 4.9kb |
| 5' 测序引物及序列: | -- |
| 3' 测序引物及序列: | -- |
| 载体标签: | -- |
| 载体抗性: | Ampicillin |
| 筛选标记: | -- |
| 备注: | -- |
| 产品目录号: | 631915 |
| 稳定性: | -- |
| 组成型: | -- |
| 病毒/非病毒: | -- |
买家导航
pISRE-TA-Luc载体质粒基本信息

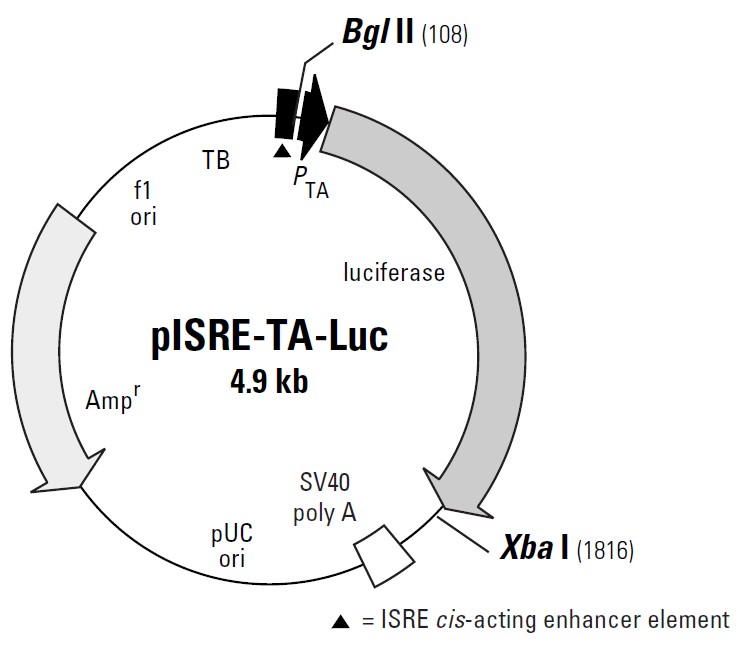

pISRE-TA-Luc质粒图谱载体图谱和pISRE-TA-Luc载体序列质粒序列多克隆位点信息
pISRE-TA-Luc质粒载体简介
pISRE-TA-Luc is designed for monitoring the induction of the STAT1 and STAT2 components of Jak/STAT-mediated signal
transduction pathways. Signaling molecules, including type I(IFN-α and -β) and type II (IFN-γ) interferons (1), induce
signalling by binding receptors and causing receptor dimerization at the cell surface. This dimerization causes the receptor
itself to be phosphorylated and act as a docking site for transcription factors, including STAT1 and STAT2. The STAT proteins
are then phosphorylated, dimerize and translocate to the nucleus, where the STAT1 and STAT2 heterodimer regulates transcription by binding to the IFN-stimulated response element (ISRE; 2). pISRE-TA-Luc contains five copies of the ISRE enhancer element,
located upstream of the minimal TA promoter, the TATA box from the herpes simplex virus thymidine kinase promoter (PTA).
Located downstream of the PTA is the firefly luciferase gene (luc). Upon binding of the STAT1 and STAT2 heterodimer to the
cis-acting ISRE enhancer element, transcription is induced and the reporter gene is activated.
The luciferase coding sequence is followed by the SV40 late polyadenylation signal to ensure proper, efficient processing of
the luciferase transcript in eukaryotic cells. A synthetic transcription blocker (TB) is located upstream of the cis-acting
enhancer element. It is composed of adjacent polyadenylation and transcription pause sites for blocking nonspecific
transcription (3). The vector backbone also contains an f1 origin for single-stranded DNA production, a pUC origin of
replication, and an ampicillin resistance gene for propagation and selection in E. coli.
