pLVX-PAmCherry-N1

价格:2000元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pLVX-PAmCherry-N1载体质粒基本信息

出品公司: Clontech
载体名称: pLVX-PAmCherry-N1
质粒类型: 慢病毒载体;哺乳动物细胞表达载体;荧光报告载体
高拷贝/低拷贝: 高拷贝
启动子: CMV
克隆方法: 多克隆位点,限制性内切酶
载体大小: 8777 bp
5' 测序引物及序列: CMV-F: CGCAAATGGGCGGTAGGCGTG (Invitrogen)
3' 测序引物及序列: --
载体标签: PAmCherry(C-端)
载体抗性: 氨苄青霉素
筛选标记: 嘌呤霉素(Puromycin)
克隆菌株: Stbl3
备注: pLVX-PAmCherry-N1载体表达的目的蛋白C端融PAmCherry荧光蛋白;
CMV启动子驱动目的蛋白的过表达;
可用流式细胞仪筛选。
产品目录号: 632586
稳定性: 稳表达
组成型: 组成型
病毒/非病毒: 慢病毒

pLVX-PAmCherry-N1质粒图谱载体图谱和pLVX-PAmCherry-N1载体序列质粒序列多克隆位点信息

pLVX-PAmCherry-N1载体图谱

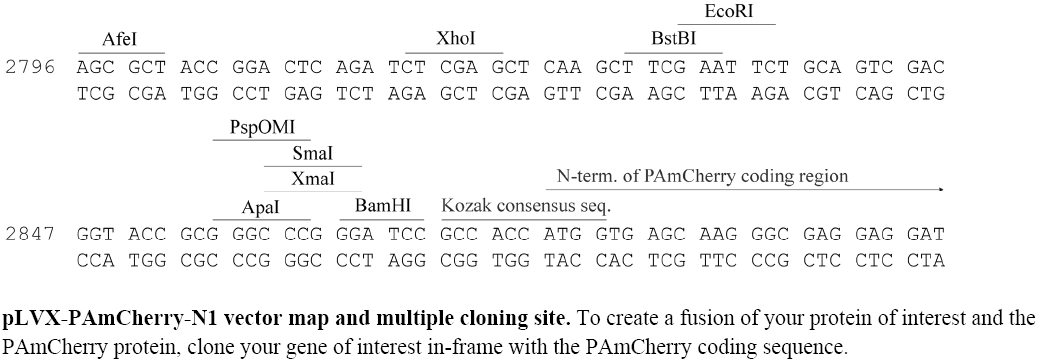

pLVX-PAmCherry-N1多克隆位点

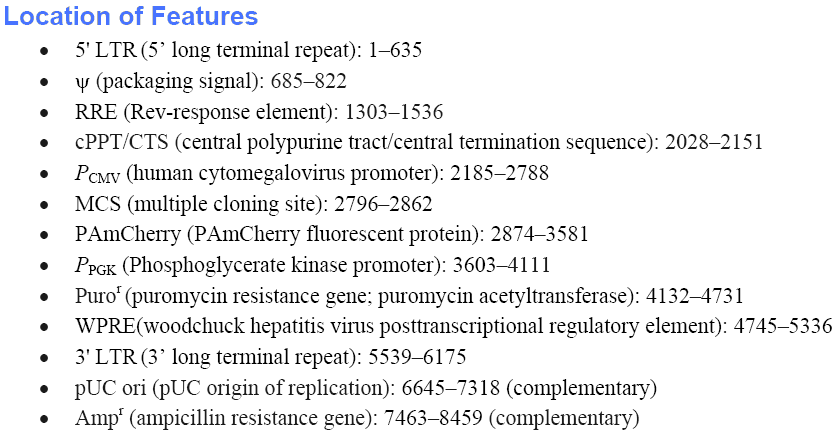

pLVX-PAmCherry-N1载体特征

pLVX-PAmCherry-N1质粒载体简介

pLVX-PAmCherry-N1质粒序列载体序列

LOCUS       pLVX-PAmCherry-N1   8777 bp    DNA   circular  SYN        8-AUG-2011
COMMENT     Created by Clontech Laboratories Inc.
COMMENT     Cat. No.632586
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     source          1..8777
                     /organism="recombinant plasmid"
                     /mol_type="other DNA"
     LTR             1..635
                     /label=5'\LTR
                     /note="color: #000080"
     misc_feature    685..822
                     /label=Packaging\signal
                     /note="color: #66cc99"
     misc_binding    1303..1536
                     /label=RRE
                     /note="color: #009966"
     misc_feature    2796..2862
                     /label=MCS
                     /note="color: #3366cc"
     CDS             2874..3581
                     /label=PAmCherry
                     /note="color: #ff9966"
     promoter        3603..4111
                     /label=PGK\promoter
                     /note="color: #66cc99"
     CDS             4132..4731
                     /label=Puro(R)
                     /note="color: #ff9966"
     misc_feature    4745..5336
                     /label=WPRE
                     /note="color: #66cc99"
     LTR             5539..6175
                     /label=3'\LTR
                     /note="color: #000080"
     CDS             complement(7463..8459)
                     /label=Amp(R)
                     /note="color: #ff9966"
     misc_feature    2028..2151
                     /label=CTS/cPPT\(DNA\flap)
     promoter        2185..2788
                     /label=CMV
     rep_origin      complement(6645..7318)
                     /label=pUC\ori
BASE COUNT     2180 a      2267 c      2332 g      1998 t
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccttt aaaagaaaag
     2041 gggggattgg ggggtacagt gcaggggaaa gaatagtaga cataatagca acagacatac
     2101 aaactaaaga attacaaaaa caaattacaa aaattcaaaa ttttcgggtt tattacaggg
     2161 acagcagaga tccagtttat cgataagctt gggagttccg cgttacataa cttacggtaa
     2221 atggcccgcc tggctgaccg cccaacgacc cccgcccatt gacgtcaata atgacgtatg
     2281 ttcccatagt aacgccaata gggactttcc attgacgtca atgggtggag tatttacggt
     2341 aaactgccca cttggcagta catcaagtgt atcatatgcc aagtacgccc cctattgacg
     2401 tcaatgacgg taaatggccc gcctggcatt atgcccagta catgacctta tgggactttc
     2461 ctacttggca gtacatctac gtattagtca tcgctattac catggtgatg cggttttggc
     2521 agtacatcaa tgggcgtgga tagcggtttg actcacgggg atttccaagt ctccacccca
     2581 ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg ggactttcca aaatgtcgta
     2641 acaactccgc cccattgacg caaatgggcg gtaggcgtgt acggtgggag gtctatataa
     2701 gcagagctcg tttagtgaac cgtcagatcg cctggagacg ccatccacgc tgttttgacc
     2761 tccatagaag acaccgactc tactagagga tcgctagcgc taccggactc agatctcgag
     2821 ctcaagcttc gaattctgca gtcgacggta ccgcgggccc gggatccgcc accatggtga
     2881 gcaagggcga ggaggataac atggccatca ttaaggagtt catgcgcttc aaggtgcaca
     2941 tggaggggtc cgtgaacggc cacgtgttcg agatcgaggg cgagggcgag ggccgcccct
     3001 acgagggcac ccagaccgcc aagctgaagg tgaccaaggg tggccccctg cccttcacct
     3061 gggacatcct gtcccctcaa ttcatgtacg gctccaatgc ctacgtgaag caccccgccg
     3121 acatccccga ctactttaag ctgtccttcc ccgagggctt caagtgggag cgcgtgatga
     3181 aattcgagga cggcggcgtg gtgaccgtga cccaggactc ctccctgcag gacggtgagt
     3241 tcatctacaa ggtgaagctg cgcggcacca acttcccctc cgacggcccc gtaatgcaga
     3301 agaagaccat gggctgggag gccctctccg agcggatgta ccccgaggac ggcgccctga
     3361 agggcgaggt caagccgaga gtgaagctga aggacggcgg ccactacgac gctgaggtca
     3421 agaccaccta caaggccaag aagcccgtgc agctgcccgg cgcctacaac gtcaaccgca
     3481 agttggacat cacctcacac aacgaggact acaccatcgt ggaacagtac gaacgtgccg
     3541 agggccgcca ctccaccggc ggcatggacg agctgtacaa gtaagcggcc gcgactctag
     3601 ataattctac cgggtagggg aggcgctttt cccaaggcag tctggagcat gcgctttagc
     3661 agccccgctg ggcacttggc gctacacaag tggcctctgg cctcgcacac attccacatc
     3721 caccggtagg cgccaaccgg ctccgttctt tggtggcccc ttcgcgccac cttctactcc
     3781 tcccctagtc aggaagttcc cccccgcccc gcagctcgcg tcgtgcagga cgtgacaaat
     3841 ggaagtagca cgtctcacta gtctcgtgca gatggacagc accgctgagc aatggaagcg
     3901 ggtaggcctt tggggcagcg gccaatagca gctttgctcc ttcgctttct gggctcagag
     3961 gctgggaagg ggtgggtccg ggggcgggct caggggcggg ctcaggggcg gggcgggcgc
     4021 ccgaaggtcc tccggaggcc cggcattctg cacgcttcaa aagcgcacgt ctgccgcgct
     4081 gttctcctct tcctcatctc cgggcctttc gacctgcagc ccaagcttac catgaccgag
     4141 tacaagccca cggtgcgcct cgccacccgc gacgacgtcc ccagggccgt acgcaccctc
     4201 gccgccgcgt tcgccgacta ccccgccacg cgccacaccg tcgatccgga ccgccacatc
     4261 gagcgggtca ccgagctgca agaactcttc ctcacgcgcg tcgggctcga catcggcaag
     4321 gtgtgggtcg cggacgacgg cgccgcggtg gcggtctgga ccacgccgga gagcgtcgaa
     4381 gcgggggcgg tgttcgccga gatcggcccg cgcatggccg agttgagcgg ttcccggctg
     4441 gccgcgcagc aacagatgga aggcctcctg gcgccgcacc ggcccaagga gcccgcgtgg
     4501 ttcctggcca ccgtcggcgt ctcgcccgac caccagggca agggtctggg cagcgccgtc
     4561 gtgctccccg gagtggaggc ggccgagcgc gccggggtgc ccgccttcct ggagacctcc
     4621 gcgccccgca acctcccctt ctacgagcgg ctcggcttca ccgtcaccgc cgacgtcgag
     4681 gtgcccgaag gaccgcgcac ctggtgcatg acccgcaagc ccggtgcctg accgcgtctg
     4741 gaacaatcaa cctctggatt acaaaatttg tgaaagattg actggtattc ttaactatgt
     4801 tgctcctttt acgctatgtg gatacgctgc tttaatgcct ttgtatcatg ctattgcttc
     4861 ccgtatggct ttcattttct cctccttgta taaatcctgg ttgctgtctc tttatgagga
     4921 gttgtggccc gttgtcaggc aacgtggcgt ggtgtgcact gtgtttgctg acgcaacccc
     4981 cactggttgg ggcattgcca ccacctgtca gctcctttcc gggactttcg ctttccccct
     5041 ccctattgcc acggcggaac tcatcgccgc ctgccttgcc cgctgctgga caggggctcg
     5101 gctgttgggc actgacaatt ccgtggtgtt gtcggggaag ctgacgtcct ttccatggct
     5161 gctcgcctgt gttgccacct ggattctgcg cgggacgtcc ttctgctacg tcccttcggc
     5221 cctcaatcca gcggaccttc cttcccgcgg cctgctgccg gctctgcggc ctcttccgcg
     5281 tcttcgcctt cgccctcaga cgagtcggat ctccctttgg gccgcctccc cgcctggaat
     5341 taattctgca gtcgagacct agaaaaacat ggagcaatca caagtagcaa tacagcagct
     5401 accaatgctg attgtgcctg gctagaagca caagaggagg aggaggtggg ttttccagtc
     5461 acacctcagg tacctttaag accaatgact tacaaggcag ctgtagatct tagccacttt
     5521 ttaaaagaaa agaggggact ggaagggcta attcactccc aacgaagaca agatatcctt
     5581 gatctgtgga tctaccacac acaaggctac ttccctgatt agcagaacta cacaccaggg
     5641 ccaggggtca gatatccact gacctttgga tggtgctaca agctagtacc agttgagcca
     5701 gataaggtag aagaggccaa taaaggagag aacaccagct tgttacaccc tgtgagcctg
     5761 catgggatgg atgacccgga gagagaagtg ttagagtgga ggtttgacag ccgcctagca
     5821 tttcatcacg tggcccgaga gctgcatccg gagtacttca agaactgctg atatcgagct
     5881 tgctacaagg gactttccgc tggggacttt ccagggaggc gtggcctggg cgggactggg
     5941 gagtggcgag ccctcagatc ctgcatataa gcagctgctt tttgcctgta ctgggtctct
     6001 ctggttagac cagatctgag cctgggagct ctctggctaa ctagggaacc cactgcttaa
     6061 gcctcaataa agcttgcctt gagtgcttca agtagtgtgt gcccgtctgt tgtgtgactc
     6121 tggtaactag agatccctca gaccctttta gtcagtgtgg aaaatctcta gcagtagtag
     6181 ttcatgtcat cttattattc agtatttata acttgcaaag aaatgaatat cagagagtga
     6241 gaggccttga cattgctagc gttttaccgt cgacctctag ctagagcttg gcgtaatcat
     6301 ggtcatagct gtttcctgtg tgaaattgtt atccgctcac aattccacac aacatacgag
     6361 ccggaagcat aaagtgtaaa gcctggggtg cctaatgagt gagctaactc acattaattg
     6421 cgttgcgctc actgcccgct ttccagtcgg gaaacctgtc gtgccagctg cattaatgaa
     6481 tcggccaacg cgcggggaga ggcggtttgc gtattgggcg ctcttccgct tcctcgctca
     6541 ctgactcgct gcgctcggtc gttcggctgc ggcgagcggt atcagctcac tcaaaggcgg
     6601 taatacggtt atccacagaa tcaggggata acgcaggaaa gaacatgtga gcaaaaggcc
     6661 agcaaaaggc caggaaccgt aaaaaggccg cgttgctggc gtttttccat aggctccgcc
     6721 cccctgacga gcatcacaaa aatcgacgct caagtcagag gtggcgaaac ccgacaggac
     6781 tataaagata ccaggcgttt ccccctggaa gctccctcgt gcgctctcct gttccgaccc
     6841 tgccgcttac cggatacctg tccgcctttc tcccttcggg aagcgtggcg ctttctcata
     6901 gctcacgctg taggtatctc agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc
     6961 acgaaccccc cgttcagccc gaccgctgcg ccttatccgg taactatcgt cttgagtcca
     7021 acccggtaag acacgactta tcgccactgg cagcagccac tggtaacagg attagcagag
     7081 cgaggtatgt aggcggtgct acagagttct tgaagtggtg gcctaactac ggctacacta
     7141 gaagaacagt atttggtatc tgcgctctgc tgaagccagt taccttcgga aaaagagttg
     7201 gtagctcttg atccggcaaa caaaccaccg ctggtagcgg tggttttttt gtttgcaagc
     7261 agcagattac gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt tctacggggt
     7321 ctgacgctca gtggaacgaa aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa
     7381 ggatcttcac ctagatcctt ttaaattaaa aatgaagttt taaatcaatc taaagtatat
     7441 atgagtaaac ttggtctgac agttaccaat gcttaatcag tgaggcacct atctcagcga
     7501 tctgtctatt tcgttcatcc atagttgcct gactccccgt cgtgtagata actacgatac
     7561 gggagggctt accatctggc cccagtgctg caatgatacc gcgagaccca cgctcaccgg
     7621 ctccagattt atcagcaata aaccagccag ccggaagggc cgagcgcaga agtggtcctg
     7681 caactttatc cgcctccatc cagtctatta attgttgccg ggaagctaga gtaagtagtt
     7741 cgccagttaa tagtttgcgc aacgttgttg ccattgctac aggcatcgtg gtgtcacgct
     7801 cgtcgtttgg tatggcttca ttcagctccg gttcccaacg atcaaggcga gttacatgat
     7861 cccccatgtt gtgcaaaaaa gcggttagct ccttcggtcc tccgatcgtt gtcagaagta
     7921 agttggccgc agtgttatca ctcatggtta tggcagcact gcataattct cttactgtca
     7981 tgccatccgt aagatgcttt tctgtgactg gtgagtactc aaccaagtca ttctgagaat
     8041 agtgtatgcg gcgaccgagt tgctcttgcc cggcgtcaat acgggataat accgcgccac
     8101 atagcagaac tttaaaagtg ctcatcattg gaaaacgttc ttcggggcga aaactctcaa
     8161 ggatcttacc gctgttgaga tccagttcga tgtaacccac tcgtgcaccc aactgatctt
     8221 cagcatcttt tactttcacc agcgtttctg ggtgagcaaa aacaggaagg caaaatgccg
     8281 caaaaaaggg aataagggcg acacggaaat gttgaatact catactcttc ctttttcaat
     8341 attattgaag catttatcag ggttattgtc tcatgagcgg atacatattt gaatgtattt
     8401 agaaaaataa acaaataggg gttccgcgca catttccccg aaaagtgcca cctgacgtcg
     8461 acggatcggg agatcaactt gtttattgca gcttataatg gttacaaata aagcaatagc
     8521 atcacaaatt tcacaaataa agcatttttt tcactgcatt ctagttgtgg tttgtccaaa
     8581 ctcatcaatg tatcttatca tgtctggatc aactggataa ctcaagctaa ccaaaatcat
     8641 cccaaacttc ccaccccata ccctattacc actgccaatt acctgtggtt tcatttactc
     8701 taaacctgtg attcctctga attattttca ttttaaagaa attgtatttg ttaaatatgt
     8761 actacaaact tagtagt
//

pLVX-PAmCherry-N1载体图谱质粒图谱pdf版和pLVX-PAmCherry-N1载体序列质粒序列等相关资料下载

pLVX-PAmCherry-N1质粒载体应用举例

分享到:

全部质粒载体分类

相关质粒载体

相关质粒载体文章

相关载体质粒问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
