出品人: | Bob Weinberg |
---|---|
载体名称: | pBABE-GFP |
质粒类型: | 逆病毒载体 |
高拷贝/低拷贝: | 高拷贝 |
克隆方法: | 限制性内切酶,多克隆位点 |
启动子: | MSCV |
载体大小: | 5183 bp |
5' 测序引物及序列: | pBABE 5' primer 5'CTTTATCCAGCCCTCAC3' |
3' 测序引物及序列: | pBABE 3' primer 5'ACCCTAACTGACACACATTCC3' |
载体标签: | 无 |
载体抗性: | 氨苄青霉素 |
筛选标记: | hrGFP |
克隆菌株: | DH5α、HB101等 |
宿主细胞(系): | 常规哺乳动物细胞系 |
备注: |
推荐使用逆病毒包装载体:pUMVC、pCMV-VSV-G 。 |
产品目录号: | addgene #10668 |
稳定性: | 稳表达 |
组成型/诱导型: | 组成型 |
病毒/非病毒: | 逆转录病毒 |
买家导航
pBABE-GFP载体质粒基本信息

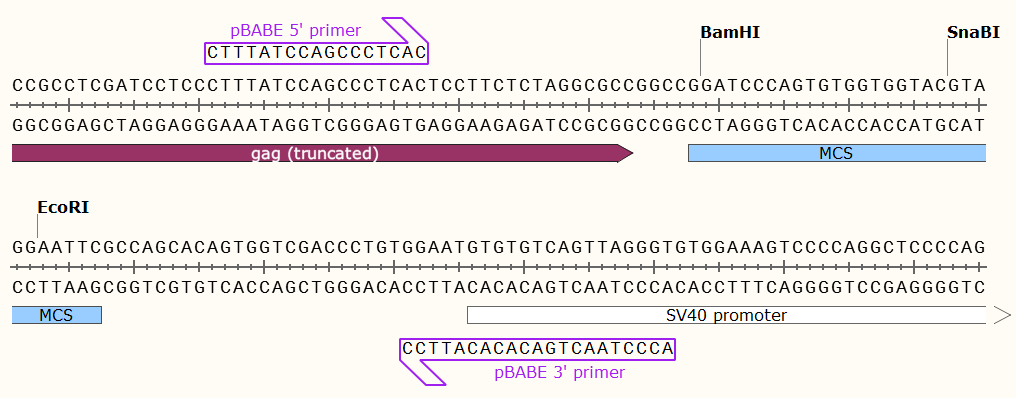

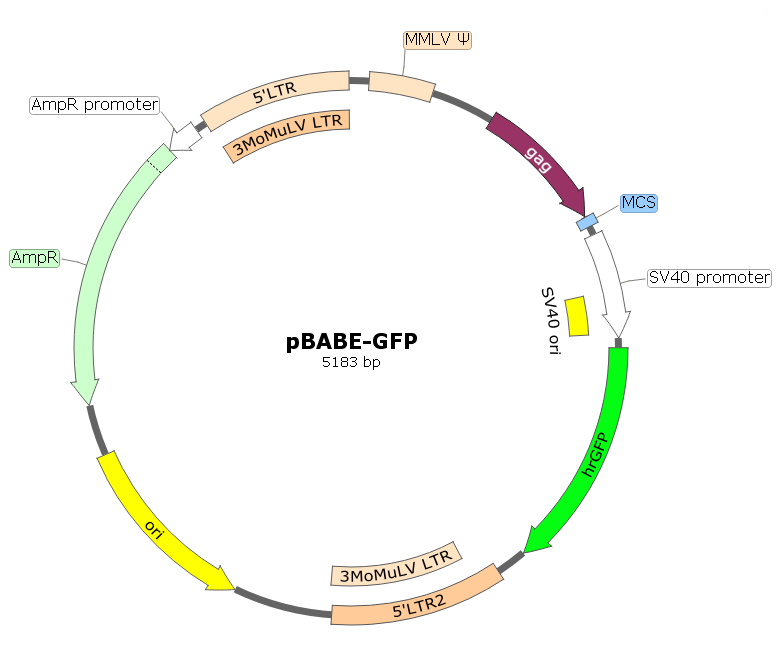

pBABE-GFP质粒图谱载体图谱和pBABE-GFP载体序列质粒序列多克隆位点信息
pBABE-GFP质粒载体简介
pBABE-GFP质粒序列载体序列
LOCUS pBABE GFP Sequencing Result 5183 bp DNA SYN DEFINITION pBABE GFP Sequencing Result ACCESSION KEYWORDS SOURCE ORGANISM other sequences; artificial sequences; vectors. FEATURES Location/Qualifiers source 1..5183 /organism="pBABE GFP Sequencing Result" /mol_type="other DNA" misc_feature 64..873 /label="psi_plus_pack" misc_feature 460..867 /label="gag" misc_feature 803..825 /label="MSCV_primer" misc_feature 803..825 /label="pLXSN_5_primer" misc_feature 841..857 /label="pBABE_5_primer" misc_feature complement(931..951) /label="pBABE_3_primer" misc_feature complement(937..1313) /label="SV40_enhancer" promoter 949..1217 /label="SV40_promoter" rep_origin 1116..1193 /label="SV40_origin" misc_feature 1178..1197 /label="SV40pro_F_primer" misc_feature complement(1275..1291) /label="pBluescriptKS_primer" CDS 1296..2015 /label="ORF frame 3" /translation="MVSKQILKNTGLQEIMSFKVNLEGVVNNHVFTMEGCGKGNILFG NQLVQIRVTKGAPLPFAFDILSPAFQYGNRTFTKYPEDISDFFIQSFPAGFVYERTLR YEDGGLVEIRSDINLIEEMFVYRVEYKGRNFPNDGPVMKKTITGLQPSFEVVYMNDGV LVGQVILVYRLNSGKFYSCHMRTLMKSKGVVKDFPEYHFIQHRLEKTYVEDGGFVEQH ETAIAQLTSLGKPLGSLHEWV*" misc_feature 2112..2651 /label="5_LTR2" /translation="MVSKQILKNTGLQEIMSFKVNLEGVVNNHVFTMEGCGKGNILFG NQLVQIRVTKGAPLPFAFDILSPAFQYGNRTFTKYPEDISDFFIQSFPAGFVYERTLR YEDGGLVEIRSDINLIEEMFVYRVEYKGRNFPNDGPVMKKTITGLQPSFEVVYMNDGV LVGQVILVYRLNSGKFYSCHMRTLMKSKGVVKDFPEYHFIQHRLEKTYVEDGGFVEQH ETAIAQLTSLGKPLGSLHEWV*" gene complement(3710..4570) /label="Ampicillin" /gene="Ampicillin" /translation="MVSKQILKNTGLQEIMSFKVNLEGVVNNHVFTMEGCGKGNILFG NQLVQIRVTKGAPLPFAFDILSPAFQYGNRTFTKYPEDISDFFIQSFPAGFVYERTLR YEDGGLVEIRSDINLIEEMFVYRVEYKGRNFPNDGPVMKKTITGLQPSFEVVYMNDGV LVGQVILVYRLNSGKFYSCHMRTLMKSKGVVKDFPEYHFIQHRLEKTYVEDGGFVEQH ETAIAQLTSLGKPLGSLHEWV*" CDS complement(3710..4570) /label="ORF frame 2" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA EIGASLIKHW*" promoter complement(4612..4640) /label="AmpR_promoter" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA EIGASLIKHW*" misc_feature 4710..5177 /label="5_LTR2" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA EIGASLIKHW*" misc_feature 4716..5177 /label="3MoMuLV_LTR" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA EIGASLIKHW*" ORIGIN 1 CTCGTCCGGG ATCGGGAGAC CCCTGCCCAG GGACCACCGA CCCACCACCG GGAGGCAAGC 61 TGGCCAGCAA CTTATCTGTG TCTGTCCGAT TGTCTAGTGT CTATGACTGA TTTTATGCGC 121 CTGCGTCGGT ACTAGTTAGC TAACTAGCTC TGTATCTGGC GGACCCGTGG TGGAACTGAC 181 GAGTTCTGAA CACCCGGCCG CAACCCTGGG AGACGTCCCA GGGACTTTGG GGGCCGTTTT 241 TGTGGCCCGA CCTGAGGAAG GGAGTCGATG TGGAATCCGA CCCCGTCAGG ATATGTGGTT 301 CTGGTAGGAG ACGAGAACCT AAAACAGTTC CCGCCTCCGT CTGAATTTTT GCTTTCGGTT 361 TGGAACCGAA GCCGCGCGTC TTGTCTGCTG CAGCGCTGCA GCATCGTTCT GTGTTGTCTC 421 TGTCTGACTG TGTTTCTGTA TTTGTCTGAA AATTAGGGCC AGACTGTTAC CACTCCCTTA 481 AGTTTGACCT TAGGTCACTG GAAAGATGTC GAGCGGATCG CTCACAACCA GTCGGTAGAT 541 GTCAAGAAGA GACGTTGGGT TACCTTCTGC TCTGCAGAAT GGCCAACCTT TAACGTCGGA 601 TGGCCGCGAG ACGGCACCTT TAACCGAGAC CTCATCACCC AGGTTAAGAT CAAGGTCTTT 661 TCACCTGGCC CGCATGGACA CCCAGACCAG GTCCCCTACA TCGTGACCTG GGAAGCCTTG 721 GCTTTTGACC CCCCTCCCTG GGTCAAGCCC TTTGTACACC CTAAGCCTCC GCCTCCTCTT 781 CCTCCATCCG CCCCGTCTCT CCCCCTTGAA CCTCCTCGTT CGACCCCGCC TCGATCCTCC 841 CTTTATCCAG CCCTCACTCC TTCTCTAGGC GCCGGCCGGA TCCCAGTGTG GTGGTACGTA 901 GGAATTCGCC AGCACAGTGG TCGACCCTGT GGAATGTGTG TCAGTTAGGG TGTGGAAAGT 961 CCCCAGGCTC CCCAGCAGGC AGAAGTATGC AAAGCATGCA TCTCAATTAG TCAGCAACCA 1021 GGTGTGGAAA GTCCCCAGGC TCCCCAGCAG GCAGAAGTAT GCAAAGCATG CATCTCAATT 1081 AGTCAGCAAC CATAGTCCCG CCCCTAACTC CGCCCATCCC GCCCCTAACT CCGCCCAGTT 1141 CCGCCCATTC TCCGCCCCAT GGCTGACTAA TTTTTTTTAT TTATGCAGAG GCCGAGGCCG 1201 CCTCGGCCTC TGAGCTATTC CAGAAGTAGT GAGGAGGCTT TTTTGGAGGC CTAGGCTTTT 1261 GCAAAAAGCT TATCGATACC GTCGACCTCG AGACCATGGT GAGCAAGCAG ATCCTGAAGA 1321 ACACCGGCCT GCAGGAGATC ATGAGCTTCA AGGTGAACCT GGAGGGCGTG GTGAACAACC 1381 ACGTGTTCAC CATGGAGGGC TGCGGCAAGG GCAACATCCT GTTCGGCAAC CAGCTGGTGC 1441 AGATCCGCGT GACCAAGGGC GCCCCCCTGC CCTTCGCCTT CGACATCCTG AGCCCCGCCT 1501 TCCAGTACGG CAACCGCACC TTCACCAAGT ACCCCGAGGA CATCAGCGAC TTCTTCATCC 1561 AGAGCTTCCC CGCCGGCTTC GTGTACGAGC GCACCCTGCG CTACGAGGAC GGCGGCCTGG 1621 TGGAGATCCG CAGCGACATC AACCTGATCG AGGAGATGTT CGTGTACCGC GTGGAGTACA 1681 AGGGCCGCAA CTTCCCCAAC GACGGCCCCG TGATGAAGAA GACCATCACC GGCCTGCAGC 1741 CCAGCTTCGA GGTGGTGTAC ATGAACGACG GCGTGCTGGT GGGCCAGGTG ATCCTGGTGT 1801 ACCGCCTGAA CAGCGGCAAG TTCTACAGCT GCCACATGCG CACCCTGATG AAGAGCAAGG 1861 GCGTGGTGAA GGACTTCCCC GAGTACCACT TCATCCAGCA CCGCCTGGAG AAGACCTACG 1921 TGGAGGACGG CGGCTTCGTG GAGCAGCACG AGACCGCCAT CGCCCAGCTG ACCAGCCTGG 1981 GCAAGCCCCT GGGCAGCCTG CACGAGTGGG TGTAATAGGG TACCTTCGAT AAAATAAAAG 2041 ATTTTATTTA GTCTCCAGAA AAAGGGGGGA ATGAAAGACC CCACCTGTAG GTTTGGCAAG 2101 CTAGCTTAAG TAACGCCATT TTGCAAGGCA TGGAAAAATA CATAACTGAG AATAGAGAAG 2161 TTCAGATCAA GGTCAGGAAC AGATGGAACA GCTGAATATG GGCCAAACAG GATATCTGTG 2221 GTAAGCAGTT CCTGCCCCGG CTCAGGGCCA AGAACAGATG GAACAGCTGA ATATGGGCCA 2281 AACAGGATAT CTGTGGTAAG CAGTTCCTGC CCCGGCTCAG GGCCAAGAAC AGATGGTCCC 2341 CAGATGCGGT CCAGCCCTCA GCAGTTTCTA GAGAACCATC AGATGTTTCC AGGGTGCCCC 2401 AAGGACCTGA AATGACCCTG TGCCTTATTT GAACTAACCA ATCAGTTCGC TTCTCGCTTC 2461 TGTTCGCGCG CTTCTGCTCC CCGAGCTCAA TAAAAGAGCC CACAACCCCT CACTCGGGGC 2521 GCCAGTCCTC CGATTGACTG AGTCGCCCGG GTACCCGTGT ATCCAATAAA CCCTCTTGCA 2581 GTTGCATCCG ACTTGTGGTC TCGCTGTTCC TTGGGAGGGT CTCCTCTGAG TGATTGACTA 2641 CCCGTCAGCG GGGGTCTTTC ACATGCAGCA TGTATCAAAA TTAATTTGGT TTTTTTTCTT 2701 AAGTATTTAC ATTAAATGGC CATAGTTGCA TTAATGAATC GGCCAACGCG CGGGGAGAGG 2761 CGGTTTGCGT ATTGGGCGCT CTTCCGCTTC CTCGCTCACT GACTCGCTGC GCTCGGTCGT 2821 TCGGCTGCGG CGAGCGGTAT CAGCTCACTC AAAGGCGGTA ATACGGTTAT CCACAGAATC 2881 AGGGGATAAC GCAGGAAAGA ACATGTGAGC AAAAGGCCAG CAAAAGGCCA GGAACCGTAA 2941 AAAGGCCGCG TTGCTGGCGT TTTTCCATAG GCTCCGCCCC CCTGACGAGC ATCACAAAAA 3001 TCGACGCTCA AGTCAGAGGT GGCGAAACCC GACAGGACTA TAAAGATACC AGGCGTTTCC 3061 CCCTGGAAGC TCCCTCGTGC GCTCTCCTGT TCCGACCCTG CCGCTTACCG GATACCTGTC 3121 CGCCTTTCTC CCTTCGGGAA GCGTGGCGCT TTCTCATAGC TCACGCTGTA GGTATCTCAG 3181 TTCGGTGTAG GTCGTTCGCT CCAAGCTGGG CTGTGTGCAC GAACCCCCCG TTCAGCCCGA 3241 CCGCTGCGCC TTATCCGGTA ACTATCGTCT TGAGTCCAAC CCGGTAAGAC ACGACTTATC 3301 GCCACTGGCA GCAGCCACTG GTAACAGGAT TAGCAGAGCG AGGTATGTAG GCGGTGCTAC 3361 AGAGTTCTTG AAGTGGTGGC CTAACTACGG CTACACTAGA AGAACAGTAT TTGGTATCTG 3421 CGCTCTGCTG AAGCCAGTTA CCTTCGGAAA AAGAGTTGGT AGCTCTTGAT CCGGCAAACA 3481 AACCACCGCT GGTAGCGGTG GTTTTTTTGT TTGCAAGCAG CAGATTACGC GCAGAAAAAA 3541 AGGATCTCAA GAAGATCCTT TGATCTTTTC TACGGGGTCT GACGCTCAGT GGAACGAAAA 3601 CTCACGTTAA GGGATTTTGG TCATGAGATT ATCAAAAAGG ATCTTCACCT AGATCCTTTT 3661 GCGGCCGCAA ATCAATCTAA AGTATATATG AGTAAACTTG GTCTGACAGT TACCAATGCT 3721 TAATCAGTGA GGCACCTATC TCAGCGATCT GTCTATTTCG TTCATCCATA GTTGCCTGAC 3781 TCCCCGTCGT GTAGATAACT ACGATACGGG AGGGCTTACC ATCTGGCCCC AGTGCTGCAA 3841 TGATACCGCG AGACCCACGC TCACCGGCTC CAGATTTATC AGCAATAAAC CAGCCAGCCG 3901 GAAGGGCCGA GCGCAGAAGT GGTCCTGCAA CTTTATCCGC CTCCATCCAG TCTATTAATT 3961 GTTGCCGGGA AGCTAGAGTA AGTAGTTCGC CAGTTAATAG TTTGCGCAAC GTTGTTGCCA 4021 TTGCTACAGG CATCGTGGTG TCACGCTCGT CGTTTGGTAT GGCTTCATTC AGCTCCGGTT 4081 CCCAACGATC AAGGCGAGTT ACATGATCCC CCATGTTGTG CAAAAAAGCG GTTAGCTCCT 4141 TCGGTCCTCC GATCGTTGTC AGAAGTAAGT TGGCCGCAGT GTTATCACTC ATGGTTATGG 4201 CAGCACTGCA TAATTCTCTT ACTGTCATGC CATCCGTAAG ATGCTTTTCT GTGACTGGTG 4261 AGTACTCAAC CAAGTCATTC TGAGAATAGT GTATGCGGCG ACCGAGTTGC TCTTGCCCGG 4321 CGTCAATACG GGATAATACC GCGCCACATA GCAGAACTTT AAAAGTGCTC ATCATTGGAA 4381 AACGTTCTTC GGGGCGAAAA CTCTCAAGGA TCTTACCGCT GTTGAGATCC AGTTCGATGT 4441 AACCCACTCG TGCACCCAAC TGATCTTCAG CATCTTTTAC TTTCACCAGC GTTTCTGGGT 4501 GAGCAAAAAC AGGAAGGCAA AATGCCGCAA AAAAGGGAAT AAGGGCGACA CGGAAATGTT 4561 GAATACTCAT ACTCTTCCTT TTTCAATATT ATTGAAGCAT TTATCAGGGT TATTGTCTCA 4621 TGAGCGGATA CATATTTGAA TGTATTTAGA AAAATAAACA AATAGGGGTT CCGCGCACAT 4681 TTCCCCGAAA AGTGCCACCT GCAGCCTGAA TATGGGCCAA ACAGGATATC TGTGGTAAGC 4741 AGTTCCTGCC CCGGCTCAGG GCCAAGAACA GATGGAACAG CTGAATATGG GCCAAACAGG 4801 ATATCTGTGG TAAGCAGTTC CTGCCCCGGC TCAGGGCCAA GAACAGATGG TCCCCAGATG 4861 CGGTCCAGCC CTCAGCAGTT TCTAGAGAAC CATCAGATGT TTCCAGGGTG CCCCAAGGAC 4921 CTGAAATGAC CCTGTGCCTT ATTTGAACTA ACCAATCAGT TCGCTTCTCG CTTCTGTTCG 4981 CGCGCTTCTG CTCCCCGAGC TCAATAAAAG AGCCCACAAC CCCTCACTCG GGGCGCCAGT 5041 CCTCCGATTG ACTGAGTCGC CCGGGTACCC GTGTATCCAA TAAACCCTCT TGCAGTTGCA 5101 TCCGACTTGT GGTCTCGCTG TTCCTTGGGA GGGTCTCCTC TGAGTGATTG ACTACCCGTC 5161 AGCGGGGGTC TTTCATTTGG GGG //
pBABE-GFP载体图谱质粒图谱pdf版和pBABE-GFP载体序列质粒序列等相关资料下载
pBABE-GFP质粒载体应用举例
