BPK3079

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

BPK3079载体 pBPK3079-U6-AsCpf1crRNA质粒基本信息

质粒名称: BPK3079, pBPK3079-U6-AsCpf1crRNA
出品公司: 爱迪基因
目录编号: 78741
存储实验室: Keith Joung

载体骨架基本信息
载体名称: MLM3636
载体出品公司: Joung lab (Addgene Plasmid # 43860)
载体抗性: 氨苄青霉素
空载体大小: --
完整质粒大小: --
载体修饰: --
载体类型: 哺乳细胞表达,CRISPR
筛选标记: --
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: AsCpf1 crRNA backbone, without spacer sequence
物种来源: Synthetic
插入大小: --
基因突变: --
GenBank编号 --
启动子 U6
标签/融合蛋白: --
克隆方法: 限制性内切酶
5' 克隆位点: BsmBI(未销毁)
3' 克隆位点: BsmBI(未销毁)
5' 测序引物 OS280 (5'-CAGGGTTATTGTCTCATGAGCGG-3')
3' 测序引物 --

文献引用方法
材料和方法部分: BPK3079 was a gift from Keith Joung (Addgene plasmid # 78741 ; http://n2t.net/addgene:78741 ; RRID:Addgene_78741)
参考文献部分: Genome-wide specificities of CRISPR-Cas Cpf1 nucleases in human cells. Kleinstiver BP, Tsai SQ, Prew MS, Nguyen NT, Welch MM, Lopez JM, McCaw ZR, Aryee MJ, Joung JK. Nat Biotechnol. 2016 Jun 27. doi: 10.1038/nbt.3620. 10.1038/nbt.3620 PubMed 27347757

BPK3079质粒图谱 pBPK3079-U6-AsCpf1crRNA载体图谱和BPK3079载体序列 pBPK3079-U6-AsCpf1crRNA质粒序列多克隆位点信息

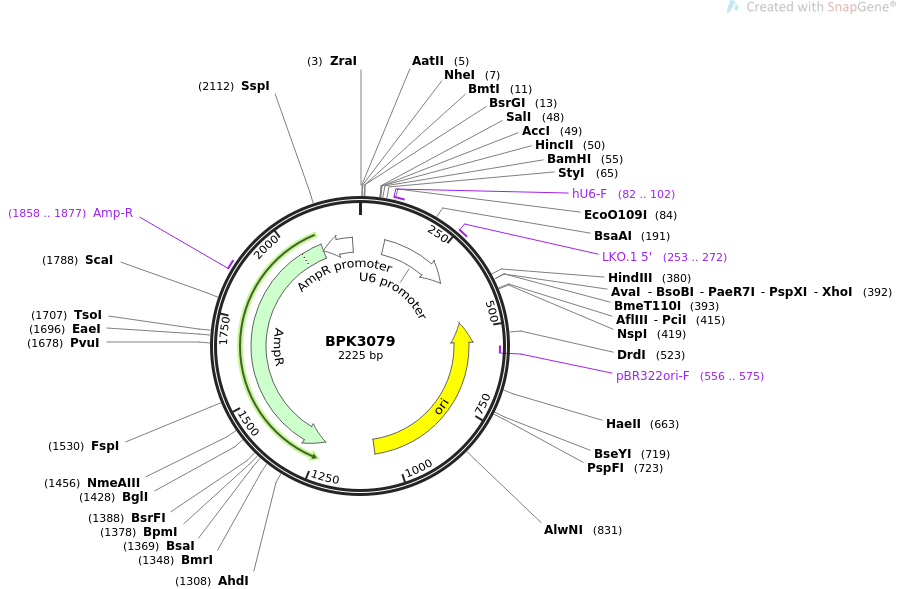

BPK3079质粒图谱

BPK3079质粒 pBPK3079-U6-AsCpf1crRNA载体简介

BPK3079质粒序列 pBPK3079-U6-AsCpf1crRNA载体序列

LOCUS       BPK3079               2225 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  Human expression plasmid for AsCpf1 guide RNA (need to clone in
            spacer into BsmBI sites).
ACCESSION   .
VERSION     .
KEYWORDS    BPK3079
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 2225)
  AUTHORS   Kleinstiver BP, Tsai SQ, Prew MS, Nguyen NT, Welch MM, Lopez JM,
            McCaw ZR, Aryee MJ, Joung JK
  TITLE     Genome-wide specificities of CRISPR-Cas Cpf1 nucleases in human
            cells.
  JOURNAL   Nat Biotechnol. 2016 Jun 27. doi: 10.1038/nbt.3620.
  PUBMED    27347757
REFERENCE   2  (bases 1 to 2225)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..2225
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        82..322
                     /label=U6 promoter
                     /note="RNA polymerase III promoter for human U6 snRNA"
     primer_bind     82..102
                     /label=hU6-F
                     /note="Human U6 promoter, forward primer"
     primer_bind     253..272
                     /label=LKO.1 5'
                     /note="Human U6 promoter, forward primer"
     rep_origin      complement(476..1064)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(556..575)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(1235..2095)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     1858..1877
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(2096..2200)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacgtcgcta gctgtacaaa aaagcaggct ttaaaggaac caattcagtc gactggatcc
       61 ggtaccaagg tcgggcagga agagggccta tttcccatga ttccttcata tttgcatata
      121 cgatacaagg ctgttagaga gataattaga attaatttga ctgtaaacac aaagatatta
      181 gtacaaaata cgtgacgtag aaagtaataa tttcttgggt agtttgcagt tttaaaatta
      241 tgttttaaaa tggactatca tatgcttacc gtaacttgaa agtatttcga tttcttggct
      301 ttatatatct tgtggaaagg acgaaacacc gtaatttcta ctcttgtaga tggagacgat
      361 taatgcgtct ccttttttta agcttgggcc gctcgaggta cctctctaca tatgacatgt
      421 gagcaaaagg ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc
      481 ataggctccg cccccctgac gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa
      541 acccgacagg actataaaga taccaggcgt ttccccctgg aagctccctc gtgcgctctc
      601 ctgttccgac cctgccgctt accggatacc tgtccgcctt tctcccttcg ggaagcgtgg
      661 cgctttctca tagctcacgc tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc
      721 tgggctgtgt gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc ggtaactatc
      781 gtcttgagtc caacccggta agacacgact tatcgccact ggcagcagcc actggtaaca
      841 ggattagcag agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg tggcctaact
      901 acggctacac tagaagaaca gtatttggta tctgcgctct gctgaagcca gttaccttcg
      961 gaaaaagagt tggtagctct tgatccggca aacaaaccac cgctggtagc ggtggttttt
     1021 ttgtttgcaa gcagcagatt acgcgcagaa aaaaaggatc tcaagaagat cctttgatct
     1081 tttctacggg gtctgacgct cagtggaacg aaaactcacg ttaagggatt ttggtcatga
     1141 gattatcaaa aaggatcttc acctagatcc ttttaaatta aaaatgaagt tttaaatcaa
     1201 tctaaagtat atatgagtaa acttggtctg acagttacca atgcttaatc agtgaggcac
     1261 ctatctcagc gatctgtcta tttcgttcat ccatagttgc ctgactcccc gtcgtgtaga
     1321 taactacgat acgggagggc ttaccatctg gccccagtgc tgcaatgata ccgcgagacc
     1381 cacgctcacc ggctccagat ttatcagcaa taaaccagcc agccggaagg gccgagcgca
     1441 gaagtggtcc tgcaacttta tccgcctcca tccagtctat taattgttgc cgggaagcta
     1501 gagtaagtag ttcgccagtt aatagtttgc gcaacgttgt tgccattgct acaggcatcg
     1561 tggtgtcacg ctcgtcgttt ggtatggctt cattcagctc cggttcccaa cgatcaaggc
     1621 gagttacatg atcccccatg ttgtgcaaaa aagcggttag ctccttcggt cctccgatcg
     1681 ttgtcagaag taagttggcc gcagtgttat cactcatggt tatggcagca ctgcataatt
     1741 ctcttactgt catgccatcc gtaagatgct tttctgtgac tggtgagtac tcaaccaagt
     1801 cattctgaga atagtgtatg cggcgaccga gttgctcttg cccggcgtca atacgggata
     1861 ataccgcgcc acatagcaga actttaaaag tgctcatcat tggaaaacgt tcttcggggc
     1921 gaaaactctc aaggatctta ccgctgttga gatccagttc gatgtaaccc actcgtgcac
     1981 ccaactgatc ttcagcatct tttactttca ccagcgtttc tgggtgagca aaaacaggaa
     2041 ggcaaaatgc cgcaaaaaag ggaataaggg cgacacggaa atgttgaata ctcatactct
     2101 tcctttttca atattattga agcatttatc agggttattg tctcatgagc ggatacatat
     2161 ttgaatgtat ttagaaaaat aaacaaatag gggttccgcg cacatttccc cgaaaagtgc
     2221 cacct
//

BPK3079载体图谱 pBPK3079-U6-AsCpf1crRNA质粒图谱pdf版和BPK3079载体序列 pBPK3079-U6-AsCpf1crRNA质粒序列等相关资料下载

BPK3079质粒 pBPK3079-U6-AsCpf1crRNA载体应用举例
