质粒名称: | pWPT-GFP |
---|---|
出品公司: | 爱迪基因 |
目录编号: | 12255 |
存储实验室: | Didier Trono |
载体骨架基本信息 |
|
载体名称: | pWPT |
载体出品公司: | -- |
载体抗性: | 氨苄青霉素 |
空载体大小: | 8754 bp |
完整质粒大小: | -- |
载体修饰: | 人细胞色素c氧化酶亚基VIII(human cytochrome C oxidase subunit VIII) |
载体类型: | 哺乳细胞表达 |
筛选标记: | 新霉素(G418) |
高拷贝/低拷贝: | 高拷贝 |
生长条件: | 37 ℃ |
插入基因信息 |
|
插入基因名称: | EGFP |
物种来源: | -- |
插入大小: | 716bp |
基因突变: | -- |
GenBank编号 | -- |
启动子 | -- |
标签/融合蛋白: | 人细胞色素c氧化酶亚基VIII(N端) |
克隆方法: | 限制性内切酶 |
5' 克隆位点: | AgeI(未破坏) |
3' 克隆位点: | NotI (未破坏) |
5' 测序引物 | CMV-F |
3' 测序引物 | SV40pA-R |
文献引用方法 |
|
材料和方法部分: | pWPT-GFP was a gift from Didier Trono (Addgene plasmid # 12255 ; http://n2t.net/addgene:12255 ; RRID:Addgene_12255) |
参考文献部分: | -- |
买家导航
载体基本信息

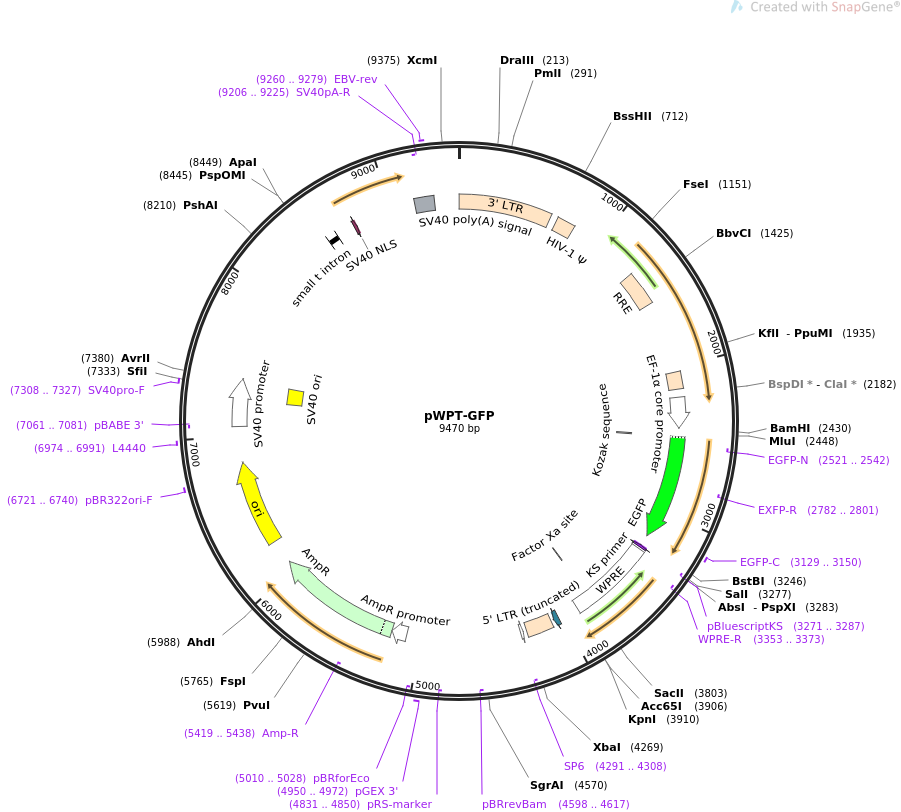

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pWPT-GFP 9470 bp ds-DNA circular SYN 06-AUG-2018 DEFINITION synthetic circular DNA ACCESSION . VERSION . KEYWORDS pWPT-GFP SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 9470) TITLE Trono Lab Constitutive Lentiviral Plasmids REFERENCE 2 (bases 1 to 9470) AUTHORS . TITLE Direct Submission JOURNAL Exported Aug 6, 2018 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..9470 /organism="synthetic DNA construct" /mol_type="other DNA" LTR 2..635 /label=3' LTR /note="3' long terminal repeat (LTR) from HIV-1" misc_feature 682..807 /label=HIV-1 Psi /note="packaging signal of human immunodeficiency virus type 1" misc_feature 1304..1537 /label=RRE /note="The Rev response element (RRE) of HIV-1 allows for Rev-dependent mRNA export from the nucleus to the cytoplasm." misc_feature 2033..2150 /label=cPPT/CTS /note="central polypurine tract and central termination sequence of HIV-1" promoter 2206..2417 /label=EF-1-alpha core promoter /note="core promoter for human elongation factor EF-1-alpha" regulatory 2470..2479 /regulatory_class="other" /note="vertebrate consensus sequence for strong initiation of translation (Kozak, 1987)" CDS 2476..3192 /codon_start=1 /product="enhanced GFP" /label=EGFP /note="mammalian codon-optimized" /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL EFVTAAGITLGMDELYK" primer_bind complement(2521..2542) /label=EGFP-N /note="EGFP, reverse primer" primer_bind complement(2782..2801) /label=EXFP-R /note="For distinguishing EGFP variants, reverse primer" primer_bind 3129..3150 /label=EGFP-C /note="EGFP, forward primer" primer_bind complement(3270..3286) /label=KS primer /note="common sequencing primer, one of multiple similar variants" primer_bind complement(3271..3287) /label=pBluescriptKS /note="For pBluescript vector" misc_feature 3300..3888 /label=WPRE /note="woodchuck hepatitis virus posttranscriptional regulatory element" primer_bind complement(3353..3373) /label=WPRE-R /note="WPRE, reverse primer" CDS complement(3771..3782) /codon_start=1 /product="Factor Xa recognition and cleavage site" /label=Factor Xa site /translation="IEGR" protein_bind 4032..4065 /label=loxP /bound_moiety="Cre recombinase" /note="Cre-mediated recombination occurs in the 8-bp core sequence (GCATACAT)." LTR 4085..4265 /label=5' LTR (truncated) /note="truncated 5' long terminal repeat (LTR) from HIV-1" promoter complement(4290..4308) /label=SP6 promoter /note="promoter for bacteriophage SP6 RNA polymerase" primer_bind complement(4291..4308) /label=SP6 /note="SP6 promoter, forward primer" primer_bind complement(4598..4617) /label=pBRrevBam /note="pBR322 vectors, tet region, downstream of BamHI, reverse primer" primer_bind complement(4831..4850) /label=pRS-marker /note="pRS vectors, use to sequence yeast selectable marker" primer_bind 4950..4972 /label=pGEX 3' /note="pGEX vectors, reverse primer" primer_bind complement(5010..5028) /label=pBRforEco /note="pBR322 vectors, upsteam of EcoRI site, forward primer" promoter 5096..5200 /gene="bla" /label=AmpR promoter CDS 5201..6061 /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind complement(5419..5438) /label=Amp-R /note="Ampicillin resistance gene, reverse primer" rep_origin 6232..6820 /direction=RIGHT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind 6721..6740 /label=pBR322ori-F /note="pBR322 origin, forward primer" primer_bind 6974..6991 /label=L4440 /note="L4440 vector, forward primer" primer_bind complement(7061..7081) /label=pBABE 3' /note="SV40 enhancer, reverse primer for pBABE vectors" promoter 7066..7395 /label=SV40 promoter /note="SV40 enhancer and early promoter" rep_origin 7246..7381 /label=SV40 ori /note="SV40 origin of replication" primer_bind 7308..7327 /label=SV40pro-F /note="SV40 promoter/origin, forward primer" intron 8529..8594 /label=small t intron /note="SV40 (simian virus 40) small t antigen intron" CDS 8724..8744 /codon_start=1 /product="nuclear localization signal of SV40 (simian virus 40) large T antigen" /label=SV40 NLS /translation="PKKKRKV" polyA_signal 9169..9303 /label=SV40 poly(A) signal /note="SV40 polyadenylation signal" primer_bind complement(9206..9225) /label=SV40pA-R /note="SV40 polyA, reverse primer" primer_bind 9260..9279 /label=EBV-rev /note="SV40 polyA terminator, reverse primer" ORIGIN 1 ttggaagggc taattcactc ccaaagaaga caagatatcc ttgatctgtg gatctaccac 61 acacaaggct acttccctga ttagcagaac tacacaccag ggccaggggt cagatatcca 121 ctgacctttg gatggtgcta caagctagta ccagttgagc cagataaggt agaagaggcc 181 aataaaggag agaacaccag cttgttacac cctgtgagcc tgcatgggat ggatgacccg 241 gagagagaag tgttagagtg gaggtttgac agccgcctag catttcatca cgtggcccga 301 gagctgcatc cggagtactt caagaactgc tgatatcgag cttgctacaa gggactttcc 361 gctggggact ttccagggag gcgtggcctg ggcgggactg gggagtggcg agccctcaga 421 tcctgcatat aagcagctgc tttttgcctg tactgggtct ctctggttag accagatctg 481 agcctgggag ctctctggct aactagggaa cccactgctt aagcctcaat aaagcttgcc 541 ttgagtgctt caagtagtgt gtgcccgtct gttgtgtgac tctggtaact agagatccct 601 cagacccttt tagtcagtgt ggaaaatctc tagcagtggc gcccgaacag ggacttgaaa 661 gcgaaaggga aaccagagga gctctctcga cgcaggactc ggcttgctga agcgcgcacg 721 gcaagaggcg aggggcggcg actggtgagt acgccaaaaa ttttgactag cggaggctag 781 aaggagagag atgggtgcga gagcgtcagt attaagcggg ggagaattag atcgcgatgg 841 gaaaaaattc ggttaaggcc agggggaaag aaaaaatata aattaaaaca tatagtatgg 901 gcaagcaggg agctagaacg attcgcagtt aatcctggcc tgttagaaac atcagaaggc 961 tgtagacaaa tactgggaca gctacaacca tcccttcaga caggatcaga agaacttaga 1021 tcattatata atacagtagc aaccctctat tgtgtgcatc aaaggataga gataaaagac 1081 accaaggaag ctttagacaa gatagaggaa gagcaaaaca aaagtaagac caccgcacag 1141 caagcggccg gccgctgatc ttcagacctg gaggaggaga tatgagggac aattggagaa 1201 gtgaattata taaatataaa gtagtaaaaa ttgaaccatt aggagtagca cccaccaagg 1261 caaagagaag agtggtgcag agagaaaaaa gagcagtggg aataggagct ttgttccttg 1321 ggttcttggg agcagcagga agcactatgg gcgcagcgtc aatgacgctg acggtacagg 1381 ccagacaatt attgtctggt atagtgcagc agcagaacaa tttgctgagg gctattgagg 1441 cgcaacagca tctgttgcaa ctcacagtct ggggcatcaa gcagctccag gcaagaatcc 1501 tggctgtgga aagataccta aaggatcaac agctcctggg gatttggggt tgctctggaa 1561 aactcatttg caccactgct gtgccttgga atgctagttg gagtaataaa tctctggaac 1621 agatttggaa tcacacgacc tggatggagt gggacagaga aattaacaat tacacaagct 1681 taatacactc cttaattgaa gaatcgcaaa accagcaaga aaagaatgaa caagaattat 1741 tggaattaga taaatgggca agtttgtgga attggtttaa cataacaaat tggctgtggt 1801 atataaaatt attcataatg atagtaggag gcttggtagg tttaagaata gtttttgctg 1861 tactttctat agtgaataga gttaggcagg gatattcacc attatcgttt cagacccacc 1921 tcccaacccc gaggggaccc gacaggcccg aaggaataga agaagaaggt ggagagagag 1981 acagagacag atccattcga ttagtgaacg gatctcgacg gtatcggtta acttttaaaa 2041 gaaaaggggg gattgggggg tacagtgcag gggaaagaat agtagacata atagcaacag 2101 acatacaaac taaagaatta caaaaacaaa ttacaaaaat tcaaaatttt ccgatcacga 2161 gactagcctc gagaagcttg atcgatggct ccggtgcccg tcagtgggca gagcgcacat 2221 cgcccacagt ccccgagaag ttggggggag gggtcggcaa ttgaaccggt gcctagagaa 2281 ggtggcgcgg ggtaaactgg gaaagtgatg tcgtgtactg gctccgcctt tttcccgagg 2341 gtgggggaga accgtatata agtgcagtag tcgccgtgaa cgttcttttt cgcaacgggt 2401 ttgccgccag aacacaggtg tcgtgacgcg gatccaggcc taagcttacg cgtcctagcg 2461 ctaccggtcg ccaccatggt gagcaagggc gaggagctgt tcaccggggt ggtgcccatc 2521 ctggtcgagc tggacggcga cgtaaacggc cacaagttca gcgtgtccgg cgagggcgag 2581 ggcgatgcca cctacggcaa gctgaccctg aagttcatct gcaccaccgg caagctgccc 2641 gtgccctggc ccaccctcgt gaccaccctg acctacggcg tgcagtgctt cagccgctac 2701 cccgaccaca tgaagcagca cgacttcttc aagtccgcca tgcccgaagg ctacgtccag 2761 gagcgcacca tcttcttcaa ggacgacggc aactacaaga cccgcgccga ggtgaagttc 2821 gagggcgaca ccctggtgaa ccgcatcgag ctgaagggca tcgacttcaa ggaggacggc 2881 aacatcctgg ggcacaagct ggagtacaac tacaacagcc acaacgtcta tatcatggcc 2941 gacaagcaga agaacggcat caaggtgaac ttcaagatcc gccacaacat cgaggacggc 3001 agcgtgcagc tcgccgacca ctaccagcag aacaccccca tcggcgacgg ccccgtgctg 3061 ctgcccgaca accactacct gagcacccag tccgccctga gcaaagaccc caacgagaag 3121 cgcgatcaca tggtcctgct ggagttcgtg accgccgccg ggatcactct cggcatggac 3181 gagctgtaca agtccggact cagatctcga ctagctagta gctagctagc tagtcgagct 3241 caacttcgaa ttcgatatca agcttatcgc gataccgtcg acctcgaggg aattccgata 3301 atcaacctct ggattacaaa atttgtgaaa gattgactgg tattcttaac tatgttgctc 3361 cttttacgct atgtggatac gctgctttaa tgcctttgta tcatgctatt gcttcccgta 3421 tggctttcat tttctcctcc ttgtataaat cctggttgct gtctctttat gaggagttgt 3481 ggcccgttgt caggcaacgt ggcgtggtgt gcactgtgtt tgctgacgca acccccactg 3541 gttggggcat tgccaccacc tgtcagctcc tttccgggac tttcgctttc cccctcccta 3601 ttgccacggc ggaactcatc gccgcctgcc ttgcccgctg ctggacaggg gctcggctgt 3661 tgggcactga caattccgtg gtgttgtcgg ggaagctgac gtcctttcca tggctgctcg 3721 cctgtgttgc cacctggatt ctgcgcggga cgtccttctg ctacgtccct tcggccctca 3781 atccagcgga ccttccttcc cgcggcctgc tgccggctct gcggcctctt ccgcgtcttc 3841 gccttcgccc tcagacgagt cggatctccc tttgggccgc ctccccgcat cgggaattcg 3901 agctcggtac ctttaagacc aatgacttac aaggcagctg tagatcttag ccacttttta 3961 aaagaaaagg ggggactgga agggctaatt cactcccaac gaagacaaga tgggatcaat 4021 tcaccatggg aataacttcg tatagcatac attatacgaa gttatgctgc tttttgcttg 4081 tactgggtct ctctggttag accagatctg agcctgggag ctctctggct aactagggaa 4141 cccactgctt aagcctcaat aaagcttgcc ttgagtgctt caagtagtgt gtgcccgtct 4201 gttgtgtgac tctggtaact agagatccct cagacccttt tagtcagtgt ggaaaatctc 4261 tagcagcatc tagaattaat tccgtgtatt ctatagtgtc acctaaatcg tatgtgtatg 4321 atacataagg ttatgtatta attgtagccg cgttctaacg acaatatgta caagcctaat 4381 tgtgtagcat ctggcttact gaagcagacc ctatcatctc tctcgtaaac tgccgtcaga 4441 gtcggtttgg ttggacgaac cttctgagtt tctggtaacg ccgtcccgca cccggaaatg 4501 gtcagcgaac caatcagcag ggtcatcgct agccagatcc tctacgccgg acgcatcgtg 4561 gccggcatca ccggcgccac aggtgcggtt gctggcgcct atatcgccga catcaccgat 4621 ggggaagatc gggctcgcca cttcgggctc atgagcgctt gtttcggcgt gggtatggtg 4681 gcaggccccg tggccggggg actgttgggc gccatctcct tgcatgcacc attccttgcg 4741 gcggcggtgc tcaacggcct caacctacta ctgggctgct tcctaatgca ggagtcgcat 4801 aagggagagc gtcgaatggt gcactctcag tacaatctgc tctgatgccg catagttaag 4861 ccagccccga cacccgccaa cacccgctga cgcgccctga cgggcttgtc tgctcccggc 4921 atccgcttac agacaagctg tgaccgtctc cgggagctgc atgtgtcaga ggttttcacc 4981 gtcatcaccg aaacgcgcga gacgaaaggg cctcgtgata cgcctatttt tataggttaa 5041 tgtcatgata ataatggttt cttagacgtc aggtggcact tttcggggaa atgtgcgcgg 5101 aacccctatt tgtttatttt tctaaataca ttcaaatatg tatccgctca tgagacaata 5161 accctgataa atgcttcaat aatattgaaa aaggaagagt atgagtattc aacatttccg 5221 tgtcgccctt attccctttt ttgcggcatt ttgccttcct gtttttgctc acccagaaac 5281 gctggtgaaa gtaaaagatg ctgaagatca gttgggtgca cgagtgggtt acatcgaact 5341 ggatctcaac agcggtaaga tccttgagag ttttcgcccc gaagaacgtt ttccaatgat 5401 gagcactttt aaagttctgc tatgtggcgc ggtattatcc cgtattgacg ccgggcaaga 5461 gcaactcggt cgccgcatac actattctca gaatgacttg gttgagtact caccagtcac 5521 agaaaagcat cttacggatg gcatgacagt aagagaatta tgcagtgctg ccataaccat 5581 gagtgataac actgcggcca acttacttct gacaacgatc ggaggaccga aggagctaac 5641 cgcttttttg cacaacatgg gggatcatgt aactcgcctt gatcgttggg aaccggagct 5701 gaatgaagcc ataccaaacg acgagcgtga caccacgatg cctgtagcaa tggcaacaac 5761 gttgcgcaaa ctattaactg gcgaactact tactctagct tcccggcaac aattaataga 5821 ctggatggag gcggataaag ttgcaggacc acttctgcgc tcggcccttc cggctggctg 5881 gtttattgct gataaatctg gagccggtga gcgtgggtct cgcggtatca ttgcagcact 5941 ggggccagat ggtaagccct cccgtatcgt agttatctac acgacgggga gtcaggcaac 6001 tatggatgaa cgaaatagac agatcgctga gataggtgcc tcactgatta agcattggta 6061 actgtcagac caagtttact catatatact ttagattgat ttaaaacttc atttttaatt 6121 taaaaggatc taggtgaaga tcctttttga taatctcatg accaaaatcc cttaacgtga 6181 gttttcgttc cactgagcgt cagaccccgt agaaaagatc aaaggatctt cttgagatcc 6241 tttttttctg cgcgtaatct gctgcttgca aacaaaaaaa ccaccgctac cagcggtggt 6301 ttgtttgccg gatcaagagc taccaactct ttttccgaag gtaactggct tcagcagagc 6361 gcagatacca aatactgtcc ttctagtgta gccgtagtta ggccaccact tcaagaactc 6421 tgtagcaccg cctacatacc tcgctctgct aatcctgtta ccagtggctg ctgccagtgg 6481 cgataagtcg tgtcttaccg ggttggactc aagacgatag ttaccggata aggcgcagcg 6541 gtcgggctga acggggggtt cgtgcacaca gcccagcttg gagcgaacga cctacaccga 6601 actgagatac ctacagcgtg agcattgaga aagcgccacg cttcccgaag ggagaaaggc 6661 ggacaggtat ccggtaagcg gcagggtcgg aacaggagag cgcacgaggg agcttccagg 6721 gggaaacgcc tggtatcttt atagtcctgt cgggtttcgc cacctctgac ttgagcgtcg 6781 atttttgtga tgctcgtcag gggggcggag cctatggaaa aacgccagca acgcggcctt 6841 tttacggttc ctggcctttt gctggccttt tgctcacatg ttctttcctg cgttatcccc 6901 tgattctgtg gataaccgta ttaccgcctt tgagtgagct gataccgctc gccgcagccg 6961 aacgaccgag cgcagcgagt cagtgagcga ggaagcggaa gagcgcccaa tacgcaaacc 7021 gcctctcccc gcgcgttggc cgattcatta atgcagctgt ggaatgtgtg tcagttaggg 7081 tgtggaaagt ccccaggctc cccagcaggc agaagtatgc aaagcatgca tctcaattag 7141 tcagcaacca ggtgtggaaa gtccccaggc tccccagcag gcagaagtat gcaaagcatg 7201 catctcaatt agtcagcaac catagtcccg cccctaactc cgcccatccc gcccctaact 7261 ccgcccagtt ccgcccattc tccgccccat ggctgactaa ttttttttat ttatgcagag 7321 gccgaggccg cctcggcctc tgagctattc cagaagtagt gaggaggctt ttttggaggc 7381 ctaggctttt gcaaaaagct tggacacaag acaggcttgc gagatatgtt tgagaatacc 7441 actttatccc gcgtcaggga gaggcagtgc gtaaaaagac gcggactcat gtgaaatact 7501 ggtttttagt gcgccagatc tctataatct cgcgcaacct attttcccct cgaacacttt 7561 ttaagccgta gataaacagg ctgggacact tcacatgagc gaaaaataca tcgtcacctg 7621 ggacatgttg cagatccatg cacgtaaact cgcaagccga ctgatgcctt ctgaacaatg 7681 gaaaggcatt attgccgtaa gccgtggcgg tctgtaccgg gtgcgttact ggcgcgtgaa 7741 ctgggtattc gtcatgtcga taccgtttgt atttccagct acgatcacga caaccagcgc 7801 gagcttaaag tgctgaaacg cgcagaaggc gatggcgaag gcttcatcgt tattgatgac 7861 ctggtggata ccggtggtac tgcggttgcg attcgtgaaa tgtatccaaa agcgcacttt 7921 gtcaccatct tcgcaaaacc ggctggtcgt ccgctggttg atgactatgt tgttgatatc 7981 ccgcaagata cctggattga acagccgtgg gatatgggcg tcgtattcgt cccgccaatc 8041 tccggtcgct aatcttttca acgcctggca ctgccgggcg ttgttctttt taacttcagg 8101 cgggttacaa tagtttccag taagtattct ggaggctgca tccatgacac aggcaaacct 8161 gagcgaaacc ctgttcaaac cccgctttaa acatcctgaa acctcgacgc tagtccgccg 8221 ctttaatcac ggcgcacaac cgcctgtgca gtcggccctt gatggtaaaa ccatccctca 8281 ctggtatcgc atgattaacc gtctgatgtg gatctggcgc ggcattgacc cacgcgaaat 8341 cctcgacgtc caggcacgta ttgtgatgag cgatgccgaa cgtaccgacg atgatttata 8401 cgatacggtg attggctacc gtggcggcaa ctggatttat gagtgggccc cggatctttg 8461 tgaaggaacc ttacttctgt ggtgtgacat aattggacaa actacctaca gagatttaaa 8521 gctctaaggt aaatataaaa tttttaagtg tataatgtgt taaactactg attctaattg 8581 tttgtgtatt ttagattcca acctatggaa ctgatgaatg ggagcagtgg tggaatgcct 8641 ttaatgagga aaacctgttt tgctcagaag aaatgccatc tagtgatgat gaggctactg 8701 ctgactctca acattctact cctccaaaaa agaagagaaa ggtagaagac cccaaggact 8761 ttccttcaga attgctaagt tttttgagtc atgctgtgtt tagtaataga actcttgctt 8821 gctttgctat ttacaccaca aaggaaaaag ctgcactgct atacaagaaa attatggaaa 8881 aatattctgt aacctttata agtaggcata acagttataa tcataacata ctgttttttc 8941 ttactccaca caggcataga gtgtctgcta ttaataacta tgctcaaaaa ttgtgtacct 9001 ttagcttttt aatttgtaaa ggggttaata aggaatattt gatgtatagt gccttgacta 9061 gagatcataa tcagccatac cacatttgta gaggttttac ttgctttaaa aaacctccca 9121 cacctccccc tgaacctgaa acataaaatg aatgcaattg ttgttgttaa cttgtttatt 9181 gcagcttata atggttacaa ataaagcaat agcatcacaa atttcacaaa taaagcattt 9241 ttttcactgc attctagttg tggtttgtcc aaactcatca atgtatctta tcatgtctgg 9301 atcaactgga taactcaagc taaccaaaat catcccaaac ttcccacccc ataccctatt 9361 accactgcca attacctagt ggtttcattt actctaaacc tgtgattcct ctgaattatt 9421 ttcattttaa agaaattgta tttgttaaat atgtactaca aacttagtag //
