出品公司: | Clontech |
---|---|
载体名称: | pAcGFP1-N1 |
质粒类型: | 哺乳动物细胞表达载体;荧光报告载体 |
高拷贝/低拷贝: | 高拷贝 |
克隆方法: | 限制性内切酶,多克隆位点 |
启动子: | CMV IE |
载体大小: | 4726 bp |
5' 测序引物及序列: | -- |
3' 测序引物及序列: | -- |
载体标签: | AcGFP1 (C-端) |
载体抗性: | 卡那霉素 |
筛选标记: | 新霉素(Neomycin) |
克隆菌株: | DH5α, HB101 |
宿主细胞(系): | 常规细胞系(293、CV-1、CHO等) |
备注: |
哺乳动物载体pAcGFP1-N1组成型表达C端AcGFP融合蛋白; AcGFP1与GFP相比,密码子经过了优化,更适合在哺乳动物细胞中高水平表达,同时也增强了亮度。 |
产品目录号: | 632469 |
稳定性: | 稳表达 或 瞬表达 |
组成型/诱导型: | 组成型 |
病毒/非病毒: | 非病毒 |
买家导航
pAcGFP1-N1载体质粒基本信息

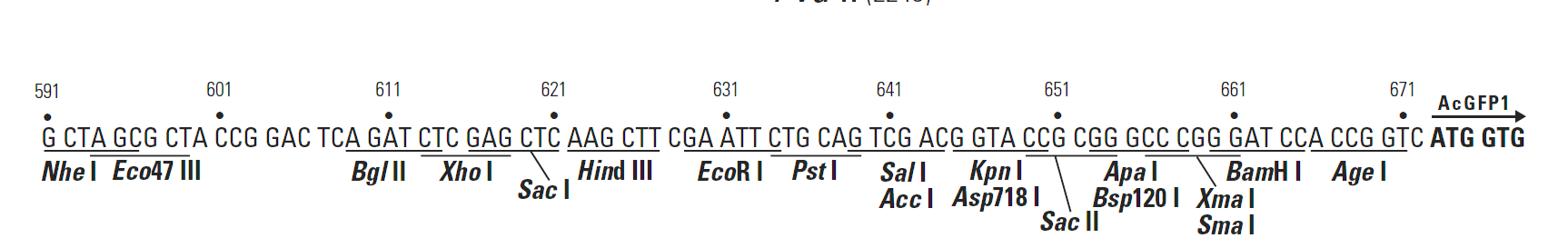

pAcGFP1-N1质粒图谱载体图谱和pAcGFP1-N1载体序列质粒序列多克隆位点信息
pAcGFP1-N1质粒载体简介
pAcGFP1-N1载体描述
pAcGFP1-N1 encodes a green fluorescent protein (GFP) from Aequorea coerulescens (excitation maximum = 475 nm; emission maximum = 505 nm). The coding sequence of the AcGFP1 gene contains silent base changes, which correspond to human codon-usage preferences (1). The MCS in pAcGFP1-N1 is between the immediate early promoter of CMV (PCMV IE) and the AcGFP1 coding sequences. Genes cloned into the MCS will be expressed as fusions to the N-terminus of AcGFP1 if they are in the same reading frame as AcGFP1 and there are no intervening stop codons. SV40 polyadenylation signals downstream of the AcGFP1 gene direct proper processing of the 3' end of the AcGFP1 mRNA. The vector backbone also contains an SV40 origin for replication in mammalian cells expressing the SV40 T antigen. A neomycin-resistance cassette (Neor), consisting of the SV40 early promoter, the neomycin/kanamycin resistance gene of Tn5, and polyadenylation signals from the Herpes simplex virus thymidine kinase (HSV TK) gene, allows stably transfected eukaryotic cells to be selected using G418. A bacterial promoter upstream of the gene expresses kanamycin resistance in E. coli. The pAcGFP1-N1 backbone also provides a pUC origin of replication for propagation in E. coli and an f1 origin for single-stranded DNA production.
Fusions to the N terminus of AcGFP1 retain the fluorescent properties of the native protein allowing the localization of the fusion protein in vivo . The target gene should be cloned into pAcGFP1-N1 so that it is in frame with the AcGFP1 coding sequences, with no intervening in-frame stop codons. The inserted gene should include the initiating ATG codon. The recombinant AcGFP1 vector can be transfected into mammalian cells using any standard transfection method. If required, stable transformants can be selected using G418 (2). pAcGFP1-N1 can also be used simply to express AcGFP1 in a cell line of interest (e.g., as a transfection marker).
Propagation in E. coli
Suitable host strains: DH5α, HB101 and other general purpose strains. Single-stranded DNA production requires
a host containing an F plasmid such as JM101 or XL1-Blue.
Selectable marker: plasmid confers resistance to kanamycin (30 μg/ml) to E. coli hosts.
E. coli replication origin: pUC
Copy number: ≈500
Plasmid incompatibility group: pMB1/ColE1
pAcGFP1-N1质粒序列载体序列
LOCUS pAcGFP1-N1 4726 bp DNA SYN DEFINITION pAcGFP1-N1 ACCESSION KEYWORDS SOURCE ORGANISM other sequences; artificial sequences; vectors. FEATURES Location/Qualifiers source 1..4726 /organism="pAcGFP1-N1" /mol_type="other DNA" promoter 10..562 /label="CMV_immearly_promoter" misc_feature 65..352 /label="CAG_enhancer" misc_feature 519..539 /label="CMV_fwd_primer" promoter 520..589 /label="CMV_promoter" CDS 673..1392 /label="ORF frame 1" /translation="MVSKGAELFTGIVPILIELNGDVNGHKFSVSGEGEGDATYGKLT LKFICTTGKLPVPWPTLVTTLSYGVQCFSRYPDHMKQHDFFKSAMPEGYIQERTIFFE DDGNYKSRAEVKFEGDTLVNRIELTGTDFKEDGNILGNKMEYNYNAHNVYIMTDKAKN GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH MIYFGFVTAAAITHGMDELYK*" gene 676..1389 /label="AcGFP1" /gene="AcGFP1" /translation="MVSKGAELFTGIVPILIELNGDVNGHKFSVSGEGEGDATYGKLT LKFICTTGKLPVPWPTLVTTLSYGVQCFSRYPDHMKQHDFFKSAMPEGYIQERTIFFE DDGNYKSRAEVKFEGDTLVNRIELTGTDFKEDGNILGNKMEYNYNAHNVYIMTDKAKN GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH MIYFGFVTAAAITHGMDELYK*" misc_feature 1605..1624 /label="EBV_rev_primer" /translation="MVSKGAELFTGIVPILIELNGDVNGHKFSVSGEGEGDATYGKLT LKFICTTGKLPVPWPTLVTTLSYGVQCFSRYPDHMKQHDFFKSAMPEGYIQERTIFFE DDGNYKSRAEVKFEGDTLVNRIELTGTDFKEDGNILGNKMEYNYNAHNVYIMTDKAKN GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH MIYFGFVTAAAITHGMDELYK*" rep_origin complement(1774..2080) /label="f1_origin" /translation="MVSKGAELFTGIVPILIELNGDVNGHKFSVSGEGEGDATYGKLT LKFICTTGKLPVPWPTLVTTLSYGVQCFSRYPDHMKQHDFFKSAMPEGYIQERTIFFE DDGNYKSRAEVKFEGDTLVNRIELTGTDFKEDGNILGNKMEYNYNAHNVYIMTDKAKN GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH MIYFGFVTAAAITHGMDELYK*" promoter 2159..2187 /label="AmpR_promoter" /translation="MVSKGAELFTGIVPILIELNGDVNGHKFSVSGEGEGDATYGKLT LKFICTTGKLPVPWPTLVTTLSYGVQCFSRYPDHMKQHDFFKSAMPEGYIQERTIFFE DDGNYKSRAEVKFEGDTLVNRIELTGTDFKEDGNILGNKMEYNYNAHNVYIMTDKAKN GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH MIYFGFVTAAAITHGMDELYK*" misc_feature complement(2253..2273) /label="pBABE_3_primer" /translation="MVSKGAELFTGIVPILIELNGDVNGHKFSVSGEGEGDATYGKLT LKFICTTGKLPVPWPTLVTTLSYGVQCFSRYPDHMKQHDFFKSAMPEGYIQERTIFFE DDGNYKSRAEVKFEGDTLVNRIELTGTDFKEDGNILGNKMEYNYNAHNVYIMTDKAKN GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH MIYFGFVTAAAITHGMDELYK*" misc_feature complement(2259..2474) /label="SV40_enhancer" /translation="MVSKGAELFTGIVPILIELNGDVNGHKFSVSGEGEGDATYGKLT LKFICTTGKLPVPWPTLVTTLSYGVQCFSRYPDHMKQHDFFKSAMPEGYIQERTIFFE DDGNYKSRAEVKFEGDTLVNRIELTGTDFKEDGNILGNKMEYNYNAHNVYIMTDKAKN GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH MIYFGFVTAAAITHGMDELYK*" promoter 2271..2539 /label="SV40_promoter" /translation="MVSKGAELFTGIVPILIELNGDVNGHKFSVSGEGEGDATYGKLT LKFICTTGKLPVPWPTLVTTLSYGVQCFSRYPDHMKQHDFFKSAMPEGYIQERTIFFE DDGNYKSRAEVKFEGDTLVNRIELTGTDFKEDGNILGNKMEYNYNAHNVYIMTDKAKN GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH MIYFGFVTAAAITHGMDELYK*" rep_origin 2438..2515 /label="SV40_origin" /translation="MVSKGAELFTGIVPILIELNGDVNGHKFSVSGEGEGDATYGKLT LKFICTTGKLPVPWPTLVTTLSYGVQCFSRYPDHMKQHDFFKSAMPEGYIQERTIFFE DDGNYKSRAEVKFEGDTLVNRIELTGTDFKEDGNILGNKMEYNYNAHNVYIMTDKAKN GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH MIYFGFVTAAAITHGMDELYK*" misc_feature 2500..2519 /label="SV40pro_F_primer" /translation="MVSKGAELFTGIVPILIELNGDVNGHKFSVSGEGEGDATYGKLT LKFICTTGKLPVPWPTLVTTLSYGVQCFSRYPDHMKQHDFFKSAMPEGYIQERTIFFE DDGNYKSRAEVKFEGDTLVNRIELTGTDFKEDGNILGNKMEYNYNAHNVYIMTDKAKN GIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDH MIYFGFVTAAAITHGMDELYK*" CDS 2622..3416 /label="ORF frame 3" /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*" gene 2625..3413 /label="NeoR/KanR" /gene="NeoR/KanR" /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGR PVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDL LSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDE EHQGLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRY QDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF*" CDS complement(2931..3467) /label="ORF frame 3" /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ PPHCISHDGYFLGRSKVR*" terminator 3591..3860 /label="TK_PA_terminator" /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ PPHCISHDGYFLGRSKVR*" rep_origin 4008..4627 /label="pBR322_origin" /translation="MAGWASLGRSFRTPESRSEELVKKAIEGDALRIGSGDTVKHEEA VSPFAAKLFSNITGSQRYVLIAVRHTQPATVDESRKAAIFHHDIRQAGIAMGHDEILA VGHARLEPGEQFGWREPLMLFVQIILIDKTGFHPSTCSLDAMFRLVVEWAGSRIKRMQ PPHCISHDGYFLGRSKVR*" ORIGIN 1 TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA TGGAGTTCCG 61 CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC CCCGCCCATT 121 GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC ATTGACGTCA 181 ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT ATCATATGCC 241 AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT ATGCCCAGTA 301 CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA TCGCTATTAC 361 CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG ACTCACGGGG 421 ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC AAAATCAACG 481 GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG GTAGGCGTGT 541 ACGGTGGGAG GTCTATATAA GCAGAGCTGG TTTAGTGAAC CGTCAGATCC GCTAGCGCTA 601 CCGGACTCAG ATCTCGAGCT CAAGCTTCGA ATTCTGCAGT CGACGGTACC GCGGGCCCGG 661 GATCCACCGG TCATGGTGAG CAAGGGCGCC GAGCTGTTCA CCGGCATCGT GCCCATCCTG 721 ATCGAGCTGA ATGGCGATGT GAATGGCCAC AAGTTCAGCG TGAGCGGCGA GGGCGAGGGC 781 GATGCCACCT ACGGCAAGCT GACCCTGAAG TTCATCTGCA CCACCGGCAA GCTGCCTGTG 841 CCCTGGCCCA CCCTGGTGAC CACCCTGAGC TACGGCGTGC AGTGCTTCTC ACGCTACCCC 901 GATCACATGA AGCAGCACGA CTTCTTCAAG AGCGCCATGC CTGAGGGCTA CATCCAGGAG 961 CGCACCATCT TCTTCGAGGA TGACGGCAAC TACAAGTCGC GCGCCGAGGT GAAGTTCGAG 1021 GGCGATACCC TGGTGAATCG CATCGAGCTG ACCGGCACCG ATTTCAAGGA GGATGGCAAC 1081 ATCCTGGGCA ATAAGATGGA GTACAACTAC AACGCCCACA ATGTGTACAT CATGACCGAC 1141 AAGGCCAAGA ATGGCATCAA GGTGAACTTC AAGATCCGCC ACAACATCGA GGATGGCAGC 1201 GTGCAGCTGG CCGACCACTA CCAGCAGAAT ACCCCCATCG GCGATGGCCC TGTGCTGCTG 1261 CCCGATAACC ACTACCTGTC CACCCAGAGC GCCCTGTCCA AGGACCCCAA CGAGAAGCGC 1321 GATCACATGA TCTACTTCGG CTTCGTGACC GCCGCCGCCA TCACCCACGG CATGGATGAG 1381 CTGTACAAGT GAGCGGCCGC GACTCTAGAT CATAATCAGC CATACCACAT TTGTAGAGGT 1441 TTTACTTGCT TTAAAAAACC TCCCACACCT CCCCCTGAAC CTGAAACATA AAATGAATGC 1501 AATTGTTGTT GTTAACTTGT TTATTGCAGC TTATAATGGT TACAAATAAA GCAATAGCAT 1561 CACAAATTTC ACAAATAAAG CATTTTTTTC ACTGCATTCT AGTTGTGGTT TGTCCAAACT 1621 CATCAATGTA TCTTAAGGCG TAAATTGTAA GCGTTAATAT TTTGTTAAAA TTCGCGTTAA 1681 ATTTTTGTTA AATCAGCTCA TTTTTTAACC AATAGGCCGA AATCGGCAAA ATCCCTTATA 1741 AATCAAAAGA ATAGACCGAG ATAGGGTTGA GTGTTGTTCC AGTTTGGAAC AAGAGTCCAC 1801 TATTAAAGAA CGTGGACTCC AACGTCAAAG GGCGAAAAAC CGTCTATCAG GGCGATGGCC 1861 CACTACGTGA ACCATCACCC TAATCAAGTT TTTTGGGGTC GAGGTGCCGT AAAGCACTAA 1921 ATCGGAACCC TAAAGGGAGC CCCCGATTTA GAGCTTGACG GGGAAAGCCG GCGAACGTGG 1981 CGAGAAAGGA AGGGAAGAAA GCGAAAGGAG CGGGCGCTAG GGCGCTGGCA AGTGTAGCGG 2041 TCACGCTGCG CGTAACCACC ACACCCGCCG CGCTTAATGC GCCGCTACAG GGCGCGTCAG 2101 GTGGCACTTT TCGGGGAAAT GTGCGCGGAA CCCCTATTTG TTTATTTTTC TAAATACATT 2161 CAAATATGTA TCCGCTCATG AGACAATAAC CCTGATAAAT GCTTCAATAA TATTGAAAAA 2221 GGAAGAGTCC TGAGGCGGAA AGAACCAGCT GTGGAATGTG TGTCAGTTAG GGTGTGGAAA 2281 GTCCCCAGGC TCCCCAGCAG GCAGAAGTAT GCAAAGCATG CATCTCAATT AGTCAGCAAC 2341 CAGGTGTGGA AAGTCCCCAG GCTCCCCAGC AGGCAGAAGT ATGCAAAGCA TGCATCTCAA 2401 TTAGTCAGCA ACCATAGTCC CGCCCCTAAC TCCGCCCATC CCGCCCCTAA CTCCGCCCAG 2461 TTCCGCCCAT TCTCCGCCCC ATGGCTGACT AATTTTTTTT ATTTATGCAG AGGCCGAGGC 2521 CGCCTCGGCC TCTGAGCTAT TCCAGAAGTA GTGAGGAGGC TTTTTTGGAG GCCTAGGCTT 2581 TTGCAAAGAT CGATCAAGAG ACAGGATGAG GATCGTTTCG CATGATTGAA CAAGATGGAT 2641 TGCACGCAGG TTCTCCGGCC GCTTGGGTGG AGAGGCTATT CGGCTATGAC TGGGCACAAC 2701 AGACAATCGG CTGCTCTGAT GCCGCCGTGT TCCGGCTGTC AGCGCAGGGG CGCCCGGTTC 2761 TTTTTGTCAA GACCGACCTG TCCGGTGCCC TGAATGAACT GCAAGACGAG GCAGCGCGGC 2821 TATCGTGGCT GGCCACGACG GGCGTTCCTT GCGCAGCTGT GCTCGACGTT GTCACTGAAG 2881 CGGGAAGGGA CTGGCTGCTA TTGGGCGAAG TGCCGGGGCA GGATCTCCTG TCATCTCACC 2941 TTGCTCCTGC CGAGAAAGTA TCCATCATGG CTGATGCAAT GCGGCGGCTG CATACGCTTG 3001 ATCCGGCTAC CTGCCCATTC GACCACCAAG CGAAACATCG CATCGAGCGA GCACGTACTC 3061 GGATGGAAGC CGGTCTTGTC GATCAGGATG ATCTGGACGA AGAGCATCAG GGGCTCGCGC 3121 CAGCCGAACT GTTCGCCAGG CTCAAGGCGA GCATGCCCGA CGGCGAGGAT CTCGTCGTGA 3181 CCCATGGCGA TGCCTGCTTG CCGAATATCA TGGTGGAAAA TGGCCGCTTT TCTGGATTCA 3241 TCGACTGTGG CCGGCTGGGT GTGGCGGACC GCTATCAGGA CATAGCGTTG GCTACCCGTG 3301 ATATTGCTGA AGAGCTTGGC GGCGAATGGG CTGACCGCTT CCTCGTGCTT TACGGTATCG 3361 CCGCTCCCGA TTCGCAGCGC ATCGCCTTCT ATCGCCTTCT TGACGAGTTC TTCTGAGCGG 3421 GACTCTGGGG TTCGAAATGA CCGACCAAGC GACGCCCAAC CTGCCATCAC GAGATTTCGA 3481 TTCCACCGCC GCCTTCTATG AAAGGTTGGG CTTCGGAATC GTTTTCCGGG ACGCCGGCTG 3541 GATGATCCTC CAGCGCGGGG ATCTCATGCT GGAGTTCTTC GCCCACCCTA GGGGGAGGCT 3601 AACTGAAACA CGGAAGGAGA CAATACCGGA AGGAACCCGC GCTATGACGG CAATAAAAAG 3661 ACAGAATAAA ACGCACGGTG TTGGGTCGTT TGTTCATAAA CGCGGGGTTC GGTCCCAGGG 3721 CTGGCACTCT GTCGATACCC CACCGAGACC CCATTGGGGC CAATACGCCC GCGTTTCTTC 3781 CTTTTCCCCA CCCCACCCCC CAAGTTCGGG TGAAGGCCCA GGGCTCGCAG CCAACGTCGG 3841 GGCGGCAGGC CCTGCCATAG CCTCAGGTTA CTCATATATA CTTTAGATTG ATTTAAAACT 3901 TCATTTTTAA TTTAAAAGGA TCTAGGTGAA GATCCTTTTT GATAATCTCA TGACCAAAAT 3961 CCCTTAACGT GAGTTTTCGT TCCACTGAGC GTCAGACCCC GTAGAAAAGA TCAAAGGATC 4021 TTCTTGAGAT CCTTTTTTTC TGCGCGTAAT CTGCTGCTTG CAAACAAAAA AACCACCGCT 4081 ACCAGCGGTG GTTTGTTTGC CGGATCAAGA GCTACCAACT CTTTTTCCGA AGGTAACTGG 4141 CTTCAGCAGA GCGCAGATAC CAAATACTGT CCTTCTAGTG TAGCCGTAGT TAGGCCACCA 4201 CTTCAAGAAC TCTGTAGCAC CGCCTACATA CCTCGCTCTG CTAATCCTGT TACCAGTGGC 4261 TGCTGCCAGT GGCGATAAGT CGTGTCTTAC CGGGTTGGAC TCAAGACGAT AGTTACCGGA 4321 TAAGGCGCAG CGGTCGGGCT GAACGGGGGG TTCGTGCACA CAGCCCAGCT TGGAGCGAAC 4381 GACCTACACC GAACTGAGAT ACCTACAGCG TGAGCTATGA GAAAGCGCCA CGCTTCCCGA 4441 AGGGAGAAAG GCGGACAGGT ATCCGGTAAG CGGCAGGGTC GGAACAGGAG AGCGCACGAG 4501 GGAGCTTCCA GGGGGAAACG CCTGGTATCT TTATAGTCCT GTCGGGTTTC GCCACCTCTG 4561 ACTTGAGCGT CGATTTTTGT GATGCTCGTC AGGGGGGCGG AGCCTATGGA AAAACGCCAG 4621 CAACGCGGCC TTTTTACGGT TCCTGGCCTT TTGCTGGCCT TTTGCTCACA TGTTCTTTCC 4681 TGCGTTATCC CCTGATTCTG TGGATAACCG TATTACCGCC ATGCAT //
pAcGFP1-N1载体图谱质粒图谱pdf版和pAcGFP1-N1载体序列质粒序列等相关资料下载
pAcGFP1-N1质粒载体应用举例
