pCMV-3Tag-1A

价格:3800元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pCMV-3Tag-1A载体质粒基本信息

出品公司: Agilent
载体名称: pCMV-3Tag-1A
质粒类型: 哺乳动物细胞载体
高拷贝/低拷贝: 高拷贝
克隆方法: --
启动子: --
载体大小: 4219 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: 3xFLAG
载体抗性: 卡那霉素
筛选标记: 新霉素
克隆菌株: --
宿主细胞(系): --
备注: 哺乳动物表达载体,用于标记具有N-末端3xFLAG表位的蛋白质。
产品目录号: --
稳定性: --
组成型/诱导型: --
病毒/非病毒: --

pCMV-3Tag-1A质粒图谱载体图谱和pCMV-3Tag-1A载体序列质粒序列多克隆位点信息

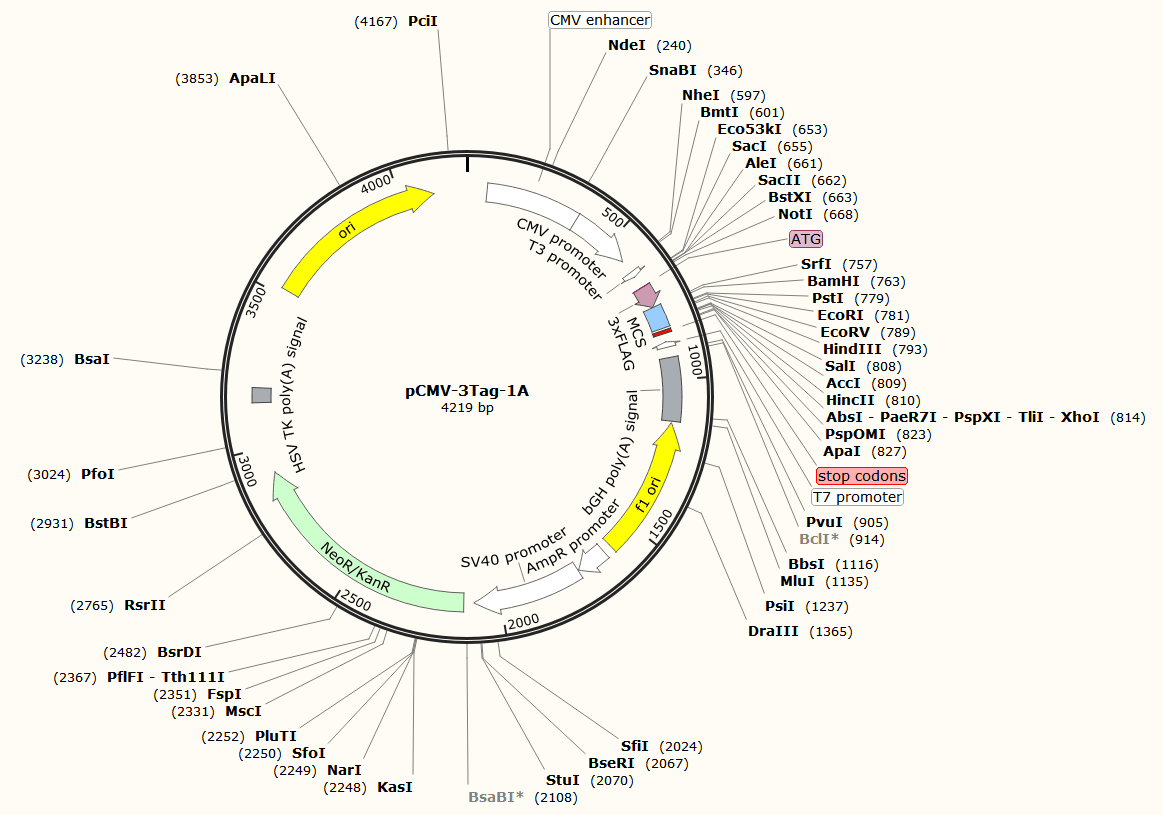

pCMV-3Tag-1A载体图谱

pCMV-3Tag-1A质粒载体简介

pCMV-3Tag-1A质粒序列载体序列

LOCUS       pCMV-3Tag-1A                4219 bp ds-DNA     circular SYN 28-NOV-2013
DEFINITION  Mammalian expression vector for tagging proteins with an N-terminal
            3xFLAG epitope. For other reading frames, use pCMV-3Tag-1B or
            pCMV-3Tag-1C.
ACCESSION   .
VERSION     .
KEYWORDS    pCMV-3Tag-1A
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4219)
  AUTHORS   Agilent Technologies
  TITLE     Direct Submission
  JOURNAL   Exported Tuesday, February 4, 2020 from SnapGene Viewer 3.1.4
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..4219
                     /organism="synthetic DNA construct"
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
     enhancer        66..370
                     /note="CMV enhancer"
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        371..574
                     /note="CMV promoter"
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        620..638
                     /note="T3 promoter"
                     /note="promoter for bacteriophage T3 RNA polymerase"
     CDS             679..681
                     /codon_start=1
                     /product="start codon"
                     /note="ATG"
                     /translation="M"
     CDS             682..753
                     /codon_start=1
                     /product="three tandem FLAG epitope tags"
                     /note="3xFLAG"
                     /translation="DYKDDDDKDYKDDDDKDYKDDDDK"
     misc_feature    754..828
                     /note="MCS"
                     /note="multiple cloning site"
     misc_feature    836..846
                     /note="stop codons"
                     /note="stop codons in all three reading frames"
     promoter        complement(874..892)
                     /note="T7 promoter"
                     /note="promoter for bacteriophage T7 RNA polymerase"
     polyA_signal    927..1134
                     /note="bGH poly(A) signal"
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      complement(1141..1596)
                     /direction=LEFT
                     /note="f1 ori"
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        1623..1725
                     /gene="bla"
                     /note="AmpR promoter"
     promoter        1729..2086
                     /note="SV40 promoter"
                     /note="SV40 enhancer and early promoter"
     CDS             2121..2915
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /note="NeoR/KanR"
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin)"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     misc_feature    3147..3194
                     /note="HSV TK poly(A) signal"
                     /note="herpesvirus thymidine kinase polyadenylation signal"
     rep_origin      3523..4111
                     /direction=RIGHT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 atgcattagt tattaatagt aatcaattac ggggtcatta gttcatagcc catatatgga
       61 gttccgcgtt acataactta cggtaaatgg cccgcctggc tgaccgccca acgacccccg
      121 cccattgacg tcaataatga cgtatgttcc catagtaacg ccaataggga ctttccattg
      181 acgtcaatgg gtggagtatt tacggtaaac tgcccacttg gcagtacatc aagtgtatca
      241 tatgccaagt acgcccccta ttgacgtcaa tgacggtaaa tggcccgcct ggcattatgc
      301 ccagtacatg accttatggg actttcctac ttggcagtac atctacgtat tagtcatcgc
      361 tattaccatg gtgatgcggt tttggcagta catcaatggg cgtggatagc ggtttgactc
      421 acggggattt ccaagtctcc accccattga cgtcaatggg agtttgtttt ggcaccaaaa
      481 tcaacgggac tttccaaaat gtcgtaacaa ctccgcccca ttgacgcaaa tgggcggtag
      541 gcgtgtacgg tgggaggtct atataagcag agctggttta gtgaaccgtc agatccgcta
      601 gcgattacgc caagctcgaa attaaccctc actaaaggga acaaaagctg gagctccacc
      661 gcggtggcgg ccgccaccat ggattacaag gatgacgacg ataaggacta taaggacgat
      721 gatgacaagg actacaaaga tgatgacgat aaagcccggg cgggatcccc cgggctgcag
      781 gaattcgata tcaagcttat cgataccgtc gacctcgagg gggggcccgg taccttaatt
      841 aattaaggta ccaggtaagt gtacccaatt cgccctatag tgagtcgtat tacaattcac
      901 tcgatcggct cgctgatcag cctcgactgt gccttctagt tgccagccat ctgttgtttg
      961 cccctccccc gtgccttcct tgaccctgga aggtgccact cccactgtcc tttcctaata
     1021 aaatgaggaa attgcatcgc attgtctgag taggtgtcat tctattctgg ggggtggggt
     1081 ggggcaggac agcaaggggg aggattggga agacaatagc aggcatgctg gggaacgcgt
     1141 aaattgtaag cgttaatatt ttgttaaaat tcgcgttaaa tttttgttaa atcagctcat
     1201 tttttaacca ataggccgaa atcggcaaaa tcccttataa atcaaaagaa tagaccgaga
     1261 tagggttgag tgttgttcca gtttggaaca agagtccact attaaagaac gtggactcca
     1321 acgtcaaagg gcgaaaaacc gtctatcagg gcgatggccc actacgtgaa ccatcaccct
     1381 aatcaagttt tttggggtcg aggtgccgta aagcactaaa tcggaaccct aaagggagcc
     1441 cccgatttag agcttgacgg ggaaagccgg cgaacgtggc gagaaaggaa gggaagaaag
     1501 cgaaaggagc gggcgctagg gcgctggcaa gtgtagcggt cacgctgcgc gtaaccacca
     1561 cacccgccgc gcttaatgcg ccgctacagg gcgcgtcagg tggcactttt cggggaaatg
     1621 tgcgcggaac ccctatttgt ttatttttct aaatacattc aaatatgtat ccgctcatga
     1681 gacaataacc ctgataaatg cttcaataat attgaaaaag gaagaatcct gaggcggaaa
     1741 gaaccagctg tggaatgtgt gtcagttagg gtgtggaaag tccccaggct ccccagcagg
     1801 cagaagtatg caaagcatgc atctcaatta gtcagcaacc aggtgtggaa agtccccagg
     1861 ctccccagca ggcagaagta tgcaaagcat gcatctcaat tagtcagcaa ccatagtccc
     1921 gcccctaact ccgcccatcc cgcccctaac tccgcccagt tccgcccatt ctccgcccca
     1981 tggctgacta atttttttta tttatgcaga ggccgaggcc gcctcggcct ctgagctatt
     2041 ccagaagtag tgaggaggct tttttggagg cctaggcttt tgcaaagatc gatcaagaga
     2101 caggatgagg atcgtttcgc atgattgaac aagatggatt gcacgcaggt tctccggccg
     2161 cttgggtgga gaggctattc ggctatgact gggcacaaca gacaatcggc tgctctgatg
     2221 ccgccgtgtt ccggctgtca gcgcaggggc gcccggttct ttttgtcaag accgacctgt
     2281 ccggtgccct gaatgaactg caagacgagg cagcgcggct atcgtggctg gccacgacgg
     2341 gcgttccttg cgcagctgtg ctcgacgttg tcactgaagc gggaagggac tggctgctat
     2401 tgggcgaagt gccggggcag gatctcctgt catctcacct tgctcctgcc gagaaagtat
     2461 ccatcatggc tgatgcaatg cggcggctgc atacgcttga tccggctacc tgcccattcg
     2521 accaccaagc gaaacatcgc atcgagcgag cacgtactcg gatggaagcc ggtcttgtcg
     2581 atcaggatga tctggacgaa gaacatcagg ggctcgcgcc agccgaactg ttcgccaggc
     2641 tcaaggcgag catgcccgac ggcgaggatc tcgtcgtgac ccatggcgat gcctgcttgc
     2701 cgaatatcat ggtggaaaat ggccgctttt ctggattcat cgactgtggc cggctgggtg
     2761 tggcggaccg ctatcaggac atagcgttgg ctacccgtga tattgctgaa gaacttggcg
     2821 gcgaatgggc tgaccgcttc ctcgtgcttt acggtatcgc cgctcccgat tcgcagcgca
     2881 tcgccttcta tcgccttctt gacgagttct tctgagcggg actctggggt tcgaaatgac
     2941 cgaccaagcg acgcccaacc tgccatcacg agatttcgat tccaccgccg ccttctatga
     3001 aaggttgggc ttcggaatcg ttttccggga cgccggctgg atgatcctcc agcgcgggga
     3061 tctcatgctg gagttcttcg cccaccctag ggggaggcta actgaaacac ggaaggagac
     3121 aataccggaa ggaacccgcg ctatgacggc aataaaaaga cagaataaaa cgcacggtgt
     3181 tgggtcgttt gttcataaac gcggggttcg gtcccagggc tggcactctg tcgatacccc
     3241 accgagaccc cattggggcc aatacgcccg cgtttcttcc ttttccccac cccacccccc
     3301 aagttcgggt gaaggcccag ggctcgcagc caacgtcggg gcggcaggcc ctgccatagc
     3361 ctcaggttac tcatatatac tttagattga tttaaaactt catttttaat ttaaaaggat
     3421 ctaggtgaag atcctttttg ataatctcat gaccaaaatc ccttaacgtg agttttcgtt
     3481 ccactgagcg tcagaccccg tagaaaagat caaaggatct tcttgagatc ctttttttct
     3541 gcgcgtaatc tgctgcttgc aaacaaaaaa accaccgcta ccagcggtgg tttgtttgcc
     3601 ggatcaagag ctaccaactc tttttccgaa ggtaactggc ttcagcagag cgcagatacc
     3661 aaatactgtt cttctagtgt agccgtagtt aggccaccac ttcaagaact ctgtagcacc
     3721 gcctacatac ctcgctctgc taatcctgtt accagtggct gctgccagtg gcgataagtc
     3781 gtgtcttacc gggttggact caagacgata gttaccggat aaggcgcagc ggtcgggctg
     3841 aacggggggt tcgtgcacac agcccagctt ggagcgaacg acctacaccg aactgagata
     3901 cctacagcgt gagctatgag aaagcgccac gcttcccgaa gggagaaagg cggacaggta
     3961 tccggtaagc ggcagggtcg gaacaggaga gcgcacgagg gagcttccag ggggaaacgc
     4021 ctggtatctt tatagtcctg tcgggtttcg ccacctctga cttgagcgtc gatttttgtg
     4081 atgctcgtca ggggggcgga gcctatggaa aaacgccagc aacgcggcct ttttacggtt
     4141 cctggccttt tgctggcctt ttgctcacat gttctttcct gcgttatccc ctgattctgt
     4201 ggataaccgt attaccgcc
//

pCMV-3Tag-1A载体图谱质粒图谱pdf版和pCMV-3Tag-1A载体序列质粒序列等相关资料下载

pCMV-3Tag-1A质粒载体应用举例
