pGL3-Promoter

价格:800元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pGL3-Promoter载体质粒基本信息

出品公司: Promega
载体名称: pGL3-promoter, pGL3promoter
质粒类型: 荧光素酶报告系统载体
高拷贝/低拷贝: 高拷贝
启动子: SV40
克隆方法: 多克隆位点,限制性内切酶
载体大小: 5010bp
5' 测序引物及序列: RV primer3:CTAGCAAAATAGGCTGTCCC
3' 测序引物及序列: GLprimer2: CTTTATGTTTTTGGCGTCTTCCA
载体标签: --
载体抗性: 氨苄
筛选标记: --
备注: 用于快速定量评估影响哺乳动物细胞特定基因表达的因子及其影响能力。
产品目录号: E1761
稳定性: 稳定
组成型: 非组成型
病毒/非病毒: 非病毒

pGL3-Promoter质粒图谱载体图谱和pGL3-Promoter载体序列质粒序列多克隆位点信息

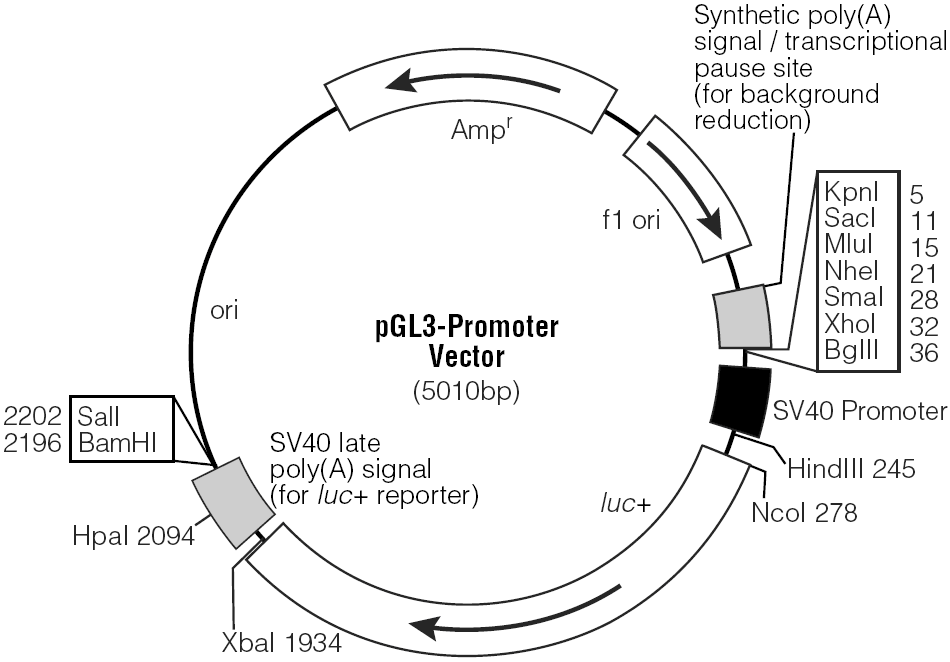

pGL3-promoter载体图谱

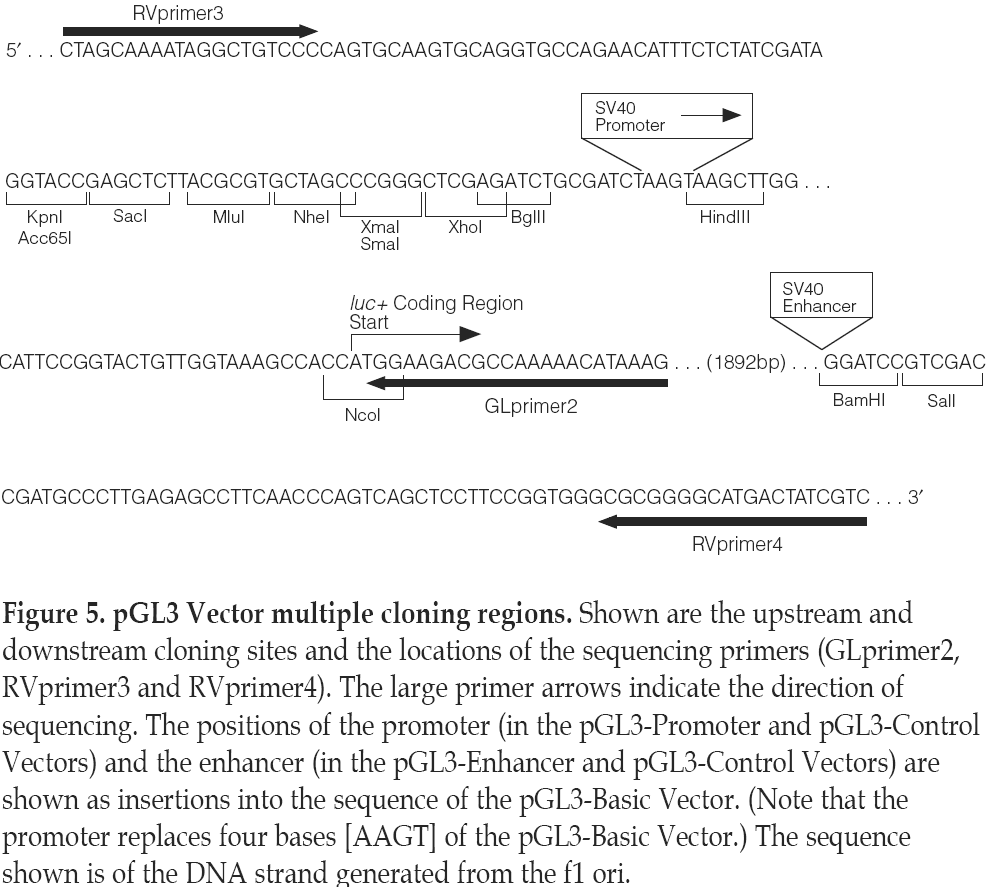

pET47b多克隆位点

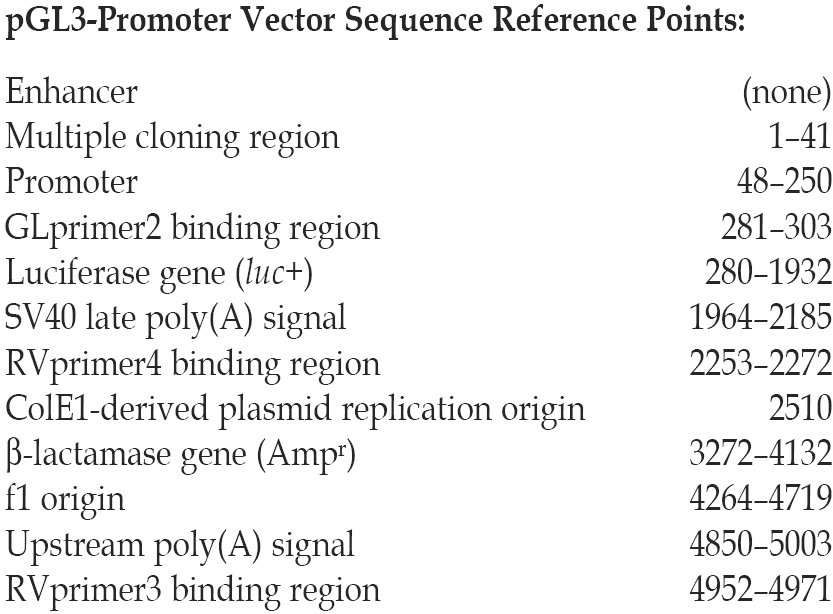

pGL3 promoter载体特征

pGL3-Promoter质粒载体简介

pGL3-Promoter质粒序列载体序列

LOCUS       pGL3-Promoter	5010 bp 	DNA     circular	SYN
DEFINITION  pGL3-Promoter
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
FEATURES             Location/Qualifiers
     source          1..5010
                     /organism="pGL3-Promoter"
                     /mol_type="other DNA"
     promoter        48..250
                     /label="SV40_promoter"
     rep_origin      95..172
                     /label="SV40_origin"
     misc_feature    157..176
                     /label="SV40pro_F_primer"
     gene            280..1932
                     /label="firefly_Luciferase"
                     /gene="firefly_Luciferase"
     CDS             280..1932
                     /label="ORF frame 1"
     misc_feature    complement(346..364)
                     /label="LucNrev_primer"
     misc_feature    complement(1984..2003)
                     /label="EBV_rev_primer"
     gene            complement(3272..4132)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(3272..4132)
                     /label="ORF frame 3"
     promoter        complement(4174..4202)
                     /label="AmpR_promoter"
     rep_origin      4281..4587
                     /label="f1_origin"
     misc_feature    4850..5003
                     /label="TB"
     terminator      4850..4898
                     /label="synth_PA_terminator"
     terminator      4850..5003
                     /label="up_PA_terminator"
     misc_feature    4952..4971
                     /label="RVprimer3_primer"
ORIGIN
    1 GGTACCGAGC TCTTACGCGT GCTAGCCCGG GCTCGAGATC TGCGATCTGC ATCTCAATTA
   61 GTCAGCAACC ATAGTCCCGC CCCTAACTCC GCCCATCCCG CCCCTAACTC CGCCCAGTTC
  121 CGCCCATTCT CCGCCCCATC GCTGACTAAT TTTTTTTATT TATGCAGAGG CCGAGGCCGC
  181 CTCGGCCTCT GAGCTATTCC AGAAGTAGTG AGGAGGCTTT TTTGGAGGCC TAGGCTTTTG
  241 CAAAAAGCTT GGCATTCCGG TACTGTTGGT AAAGCCACCA TGGAAGACGC CAAAAACATA
  301 AAGAAAGGCC CGGCGCCATT CTATCCGCTG GAAGATGGAA CCGCTGGAGA GCAACTGCAT
  361 AAGGCTATGA AGAGATACGC CCTGGTTCCT GGAACAATTG CTTTTACAGA TGCACATATC
  421 GAGGTGGACA TCACTTACGC TGAGTACTTC GAAATGTCCG TTCGGTTGGC AGAAGCTATG
  481 AAACGATATG GGCTGAATAC AAATCACAGA ATCGTCGTAT GCAGTGAAAA CTCTCTTCAA
  541 TTCTTTATGC CGGTGTTGGG CGCGTTATTT ATCGGAGTTG CAGTTGCGCC CGCGAACGAC
  601 ATTTATAATG AACGTGAATT GCTCAACAGT ATGGGCATTT CGCAGCCTAC CGTGGTGTTC
  661 GTTTCCAAAA AGGGGTTGCA AAAAATTTTG AACGTGCAAA AAAAGCTCCC AATCATCCAA
  721 AAAATTATTA TCATGGATTC TAAAACGGAT TACCAGGGAT TTCAGTCGAT GTACACGTTC
  781 GTCACATCTC ATCTACCTCC CGGTTTTAAT GAATACGATT TTGTGCCAGA GTCCTTCGAT
  841 AGGGACAAGA CAATTGCACT GATCATGAAC TCCTCTGGAT CTACTGGTCT GCCTAAAGGT
  901 GTCGCTCTGC CTCATAGAAC TGCCTGCGTG AGATTCTCGC ATGCCAGAGA TCCTATTTTT
  961 GGCAATCAAA TCATTCCGGA TACTGCGATT TTAAGTGTTG TTCCATTCCA TCACGGTTTT
 1021 GGAATGTTTA CTACACTCGG ATATTTGATA TGTGGATTTC GAGTCGTCTT AATGTATAGA
 1081 TTTGAAGAAG AGCTGTTTCT GAGGAGCCTT CAGGATTACA AGATTCAAAG TGCGCTGCTG
 1141 GTGCCAACCC TATTCTCCTT CTTCGCCAAA AGCACTCTGA TTGACAAATA CGATTTATCT
 1201 AATTTACACG AAATTGCTTC TGGTGGCGCT CCCCTCTCTA AGGAAGTCGG GGAAGCGGTT
 1261 GCCAAGAGGT TCCATCTGCC AGGTATCAGG CAAGGATATG GGCTCACTGA GACTACATCA
 1321 GCTATTCTGA TTACACCCGA GGGGGATGAT AAACCGGGCG CGGTCGGTAA AGTTGTTCCA
 1381 TTTTTTGAAG CGAAGGTTGT GGATCTGGAT ACCGGGAAAA CGCTGGGCGT TAATCAAAGA
 1441 GGCGAACTGT GTGTGAGAGG TCCTATGATT ATGTCCGGTT ATGTAAACAA TCCGGAAGCG
 1501 ACCAACGCCT TGATTGACAA GGATGGATGG CTACATTCTG GAGACATAGC TTACTGGGAC
 1561 GAAGACGAAC ACTTCTTCAT CGTTGACCGC CTGAAGTCTC TGATTAAGTA CAAAGGCTAT
 1621 CAGGTGGCTC CCGCTGAATT GGAATCCATC TTGCTCCAAC ACCCCAACAT CTTCGACGCA
 1681 GGTGTCGCAG GTCTTCCCGA CGATGACGCC GGTGAACTTC CCGCCGCCGT TGTTGTTTTG
 1741 GAGCACGGAA AGACGATGAC GGAAAAAGAG ATCGTGGATT ACGTCGCCAG TCAAGTAACA
 1801 ACCGCGAAAA AGTTGCGCGG AGGAGTTGTG TTTGTGGACG AAGTACCGAA AGGTCTTACC
 1861 GGAAAACTCG ACGCAAGAAA AATCAGAGAG ATCCTCATAA AGGCCAAGAA GGGCGGAAAG
 1921 ATCGCCGTGT AATTCTAGAG TCGGGGCGGC CGGCCGCTTC GAGCAGACAT GATAAGATAC
 1981 ATTGATGAGT TTGGACAAAC CACAACTAGA ATGCAGTGAA AAAAATGCTT TATTTGTGAA
 2041 ATTTGTGATG CTATTGCTTT ATTTGTAACC ATTATAAGCT GCAATAAACA AGTTAACAAC
 2101 AACAATTGCA TTCATTTTAT GTTTCAGGTT CAGGGGGAGG TGTGGGAGGT TTTTTAAAGC
 2161 AAGTAAAACC TCTACAAATG TGGTAAAATC GATAAGGATC CGTCGACCGA TGCCCTTGAG
 2221 AGCCTTCAAC CCAGTCAGCT CCTTCCGGTG GGCGCGGGGC ATGACTATCG TCGCCGCACT
 2281 TATGACTGTC TTCTTTATCA TGCAACTCGT AGGACAGGTG CCGGCAGCGC TCTTCCGCTT
 2341 CCTCGCTCAC TGACTCGCTG CGCTCGGTCG TTCGGCTGCG GCGAGCGGTA TCAGCTCACT
 2401 CAAAGGCGGT AATACGGTTA TCCACAGAAT CAGGGGATAA CGCAGGAAAG AACATGTGAG
 2461 CAAAAGGCCA GCAAAAGGCC AGGAACCGTA AAAAGGCCGC GTTGCTGGCG TTTTTCCATA
 2521 GGCTCCGCCC CCCTGACGAG CATCACAAAA ATCGACGCTC AAGTCAGAGG TGGCGAAACC
 2581 CGACAGGACT ATAAAGATAC CAGGCGTTTC CCCCTGGAAG CTCCCTCGTG CGCTCTCCTG
 2641 TTCCGACCCT GCCGCTTACC GGATACCTGT CCGCCTTTCT CCCTTCGGGA AGCGTGGCGC
 2701 TTTCTCATAG CTCACGCTGT AGGTATCTCA GTTCGGTGTA GGTCGTTCGC TCCAAGCTGG
 2761 GCTGTGTGCA CGAACCCCCC GTTCAGCCCG ACCGCTGCGC CTTATCCGGT AACTATCGTC
 2821 TTGAGTCCAA CCCGGTAAGA CACGACTTAT CGCCACTGGC AGCAGCCACT GGTAACAGGA
 2881 TTAGCAGAGC GAGGTATGTA GGCGGTGCTA CAGAGTTCTT GAAGTGGTGG CCTAACTACG
 2941 GCTACACTAG AAGAACAGTA TTTGGTATCT GCGCTCTGCT GAAGCCAGTT ACCTTCGGAA
 3001 AAAGAGTTGG TAGCTCTTGA TCCGGCAAAC AAACCACCGC TGGTAGCGGT GGTTTTTTTG
 3061 TTTGCAAGCA GCAGATTACG CGCAGAAAAA AAGGATCTCA AGAAGATCCT TTGATCTTTT
 3121 CTACGGGGTC TGACGCTCAG TGGAACGAAA ACTCACGTTA AGGGATTTTG GTCATGAGAT
 3181 TATCAAAAAG GATCTTCACC TAGATCCTTT TAAATTAAAA ATGAAGTTTT AAATCAATCT
 3241 AAAGTATATA TGAGTAAACT TGGTCTGACA GTTACCAATG CTTAATCAGT GAGGCACCTA
 3301 TCTCAGCGAT CTGTCTATTT CGTTCATCCA TAGTTGCCTG ACTCCCCGTC GTGTAGATAA
 3361 CTACGATACG GGAGGGCTTA CCATCTGGCC CCAGTGCTGC AATGATACCG CGAGACCCAC
 3421 GCTCACCGGC TCCAGATTTA TCAGCAATAA ACCAGCCAGC CGGAAGGGCC GAGCGCAGAA
 3481 GTGGTCCTGC AACTTTATCC GCCTCCATCC AGTCTATTAA TTGTTGCCGG GAAGCTAGAG
 3541 TAAGTAGTTC GCCAGTTAAT AGTTTGCGCA ACGTTGTTGC CATTGCTACA GGCATCGTGG
 3601 TGTCACGCTC GTCGTTTGGT ATGGCTTCAT TCAGCTCCGG TTCCCAACGA TCAAGGCGAG
 3661 TTACATGATC CCCCATGTTG TGCAAAAAAG CGGTTAGCTC CTTCGGTCCT CCGATCGTTG
 3721 TCAGAAGTAA GTTGGCCGCA GTGTTATCAC TCATGGTTAT GGCAGCACTG CATAATTCTC
 3781 TTACTGTCAT GCCATCCGTA AGATGCTTTT CTGTGACTGG TGAGTACTCA ACCAAGTCAT
 3841 TCTGAGAATA GTGTATGCGG CGACCGAGTT GCTCTTGCCC GGCGTCAATA CGGGATAATA
 3901 CCGCGCCACA TAGCAGAACT TTAAAAGTGC TCATCATTGG AAAACGTTCT TCGGGGCGAA
 3961 AACTCTCAAG GATCTTACCG CTGTTGAGAT CCAGTTCGAT GTAACCCACT CGTGCACCCA
 4021 ACTGATCTTC AGCATCTTTT ACTTTCACCA GCGTTTCTGG GTGAGCAAAA ACAGGAAGGC
 4081 AAAATGCCGC AAAAAAGGGA ATAAGGGCGA CACGGAAATG TTGAATACTC ATACTCTTCC
 4141 TTTTTCAATA TTATTGAAGC ATTTATCAGG GTTATTGTCT CATGAGCGGA TACATATTTG
 4201 AATGTATTTA GAAAAATAAA CAAATAGGGG TTCCGCGCAC ATTTCCCCGA AAAGTGCCAC
 4261 CTGACGCGCC CTGTAGCGGC GCATTAAGCG CGGCGGGTGT GGTGGTTACG CGCAGCGTGA
 4321 CCGCTACACT TGCCAGCGCC CTAGCGCCCG CTCCTTTCGC TTTCTTCCCT TCCTTTCTCG
 4381 CCACGTTCGC CGGCTTTCCC CGTCAAGCTC TAAATCGGGG GCTCCCTTTA GGGTTCCGAT
 4441 TTAGTGCTTT ACGGCACCTC GACCCCAAAA AACTTGATTA GGGTGATGGT TCACGTAGTG
 4501 GGCCATCGCC CTGATAGACG GTTTTTCGCC CTTTGACGTT GGAGTCCACG TTCTTTAATA
 4561 GTGGACTCTT GTTCCAAACT GGAACAACAC TCAACCCTAT CTCGGTCTAT TCTTTTGATT
 4621 TATAAGGGAT TTTGCCGATT TCGGCCTATT GGTTAAAAAA TGAGCTGATT TAACAAAAAT
 4681 TTAACGCGAA TTTTAACAAA ATATTAACGC TTACAATTTG CCATTCGCCA TTCAGGCTGC
 4741 GCAACTGTTG GGAAGGGCGA TCGGTGCGGG CCTCTTCGCT ATTACGCCAG CCCAAGCTAC
 4801 CATGATAAGT AAGTAATATT AAGGTACGGG AGGTACTTGG AGCGGCCGCA ATAAAATATC
 4861 TTTATTTTCA TTACATCTGT GTGTTGGTTT TTTGTGTGAA TCGATAGTAC TAACATACGC
 4921 TCTCCATCAA AACAAAACGA AACAAAACAA ACTAGCAAAA TAGGCTGTCC CCAGTGCAAG
 4981 TGCAGGTGCC AGAACATTTC TCTATCGATA
//

pGL3-Promoter载体图谱质粒图谱pdf版和pGL3-Promoter载体序列质粒序列等相关资料下载

pGL3-Promoter质粒载体应用举例
