pRK5

价格:1500元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pRK5载体质粒基本信息

出品公司: BD PharMingen
载体名称: pRK5
载体又名: pRK5空载体, pRK5空质粒
质粒类型: 哺乳动物细胞载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: CMV
载体大小: 4.6 kb
5’测序引物: CMV-F: CGCAAATGGGCGGTAGGCGTG
3’测序引物: pBABE 3' : ACCCTAACTGACACACATTCC
载体标签:
载体抗性: 氨苄青霉素
筛选标记:
克隆菌株: DH5 alpha等
宿主细胞(系): 常规细胞系(293、CV-1、CHO等)
产品目录号: #217091
稳定性: 瞬表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒
备注: pRK5载体是哺乳细胞表达载体,用于哺乳细胞蛋白表达

pRK5质粒图谱载体图谱和pRK5载体序列质粒序列多克隆位点信息

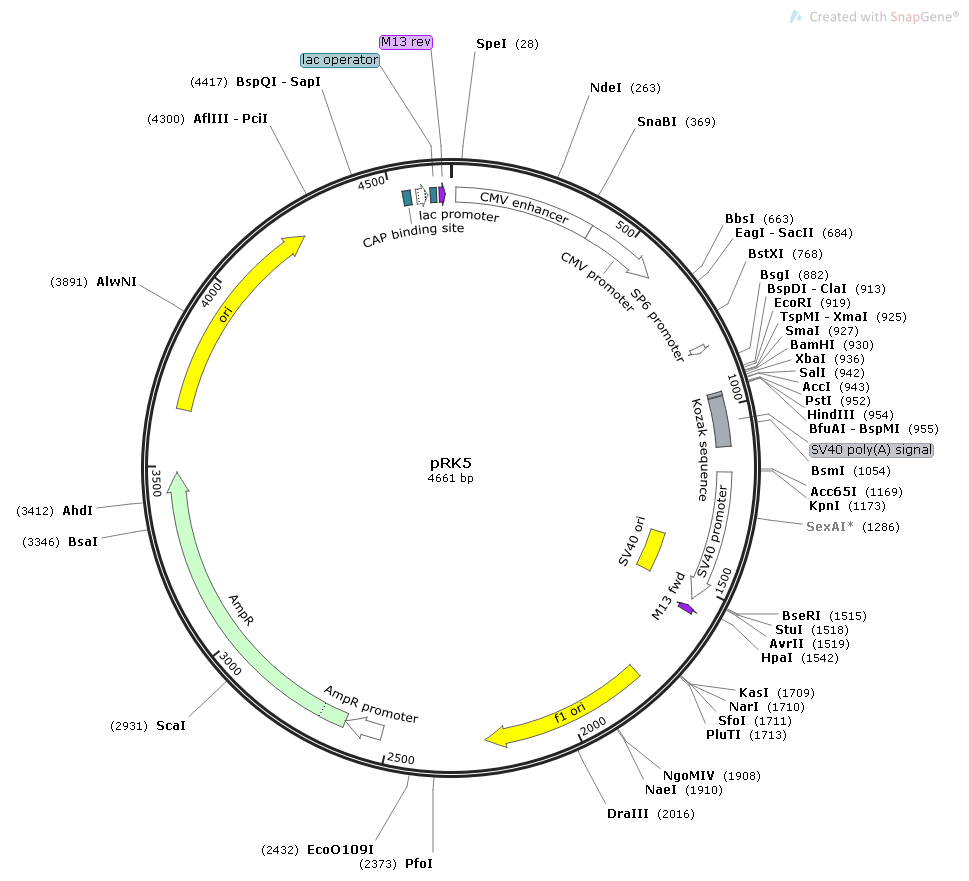

pRK5质粒图谱

pRK5质粒载体简介

pRK5质粒序列载体序列

LOCUS       pRK5               4661 bp ds-DNA     circular SYN 26-JUL-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4661)
  AUTHORS   biofeng.com
  TITLE     Direct Submission
  JOURNAL   Exported Wednesday, Jul 26, 2023 from SnapGene 4.3.6
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..4661
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        14..393
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        394..597
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        828..846
                     /label=SP6 promoter
                     /note="promoter for bacteriophage SP6 RNA polymerase"
     regulatory      961..970
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     polyA_signal    974..1108
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     promoter        1177..1534
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      1385..1520
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(1554..1570)
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     rep_origin      1783..2238
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2520..2624
                     /gene="bla"
                     /label=AmpR promoter
     CDS             2625..3485
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      3656..4244
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     protein_bind    4532..4553
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        4568..4598
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4606..4622
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     4630..4646
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 ttcgagctcg cccgacattg attattgact agttattaat agtaatcaat tacggggtca
       61 ttagttcata gcccatatat ggagttccgc gttacataac ttacggtaaa tggcccgcct
      121 ggctgaccgc ccaacgaccc ccgcccattg acgtcaataa tgacgtatgt tcccatagta
      181 acgccaatag ggactttcca ttgacgtcaa tgggtggagt atttacggta aactgcccac
      241 ttggcagtac atcaagtgta tcatatgcca agtacgcccc ctattgacgt caatgacggt
      301 aaatggcccg cctggcatta tgcccagtac atgaccttat gggactttcc tacttggcag
      361 tacatctacg tattagtcat cgctattacc atggtgatgc ggttttggca gtacatcaat
      421 gggcgtggat agcggtttga ctcacgggga tttccaagtc tccaccccat tgacgtcaat
      481 gggagtttgt tttggcacca aaatcaacgg gactttccaa aatgtcgtaa caactccgcc
      541 ccattgacgc aaatgggcgg taggcgtgta cggtgggagg tctatataag cagagctcgt
      601 ttagtgaacc gtcagatcgc ctggagacgc catccacgct gttttgacct ccatagaaga
      661 caccgggacc gatccagcct ccgcggccgg gaacggtgca ttggaacgcg gattccccgt
      721 gccaagagtg acgtaagtac cgcctataga gtctataggc ccaccccctt ggcttcgtta
      781 gaacgcggct acaattaata cataacctta tgtatcatac acatacgatt taggtgacac
      841 tatagaataa catccacttt gcctttctct ccacaggtgt ccactcccag gtccaactgc
      901 acctcggttc tatcgattga attccccggg gatcctctag agtcgacctg cagaagcttg
      961 gccgccatgg cccaacttgt ttattgcagc ttataatggt tacaaataaa gcaatagcat
     1021 cacaaatttc acaaataaag catttttttc actgcattct agttgtggtt tgtccaaact
     1081 catcaatgta tcttatcatg tctggatcgg gaattaattc ggcgcagcac catggcctga
     1141 aataacctct gaaagaggaa cttggttagg taccttctga ggcggaaaga accagctgtg
     1201 gaatgtgtgt cagttagggt gtggaaagtc cccaggctcc ccagcaggca gaagtatgca
     1261 aagcatgcat ctcaattagt cagcaaccag gtgtggaaag tccccaggct ccccagcagg
     1321 cagaagtatg caaagcatgc atctcaatta gtcagcaacc atagtcccgc ccctaactcc
     1381 gcccatcccg cccctaactc cgcccagttc cgcccattct ccgccccatg gctgactaat
     1441 tttttttatt tatgcagagg ccgaggccgc ctcggcctct gagctattcc agaagtagtg
     1501 aggaggcttt tttggaggcc taggcttttg caaaaagctg ttaacagctt ggcactggcc
     1561 gtcgttttac aacgtcgtga ctgggaaaac cctggcgtta cccaacttaa tcgccttgca
     1621 gcacatcccc ctttcgccag ctggcgtaat agcgaagagg cccgcaccga tcgcccttcc
     1681 caacagttgc gcagcctgaa tggcgaatgg cgcctgatgc ggtattttct ccttacgcat
     1741 ctgtgcggta tttcacaccg catacgtcaa agcaaccata gtacgcgccc tgtagcggcg
     1801 cattaagcgc ggcgggtgtg gtggttacgc gcagcgtgac cgctacactt gccagcgccc
     1861 tagcgcccgc tcctttcgct ttcttccctt cctttctcgc cacgttcgcc ggctttcccc
     1921 gtcaagctct aaatcggggg ctccctttag ggttccgatt tagtgcttta cggcacctcg
     1981 accccaaaaa acttgatttg ggtgatggtt cacgtagtgg gccatcgccc tgatagacgg
     2041 tttttcgccc tttgacgttg gagtccacgt tctttaatag tggactcttg ttccaaactg
     2101 gaacaacact caaccctatc tcgggctatt cttttgattt ataagggatt ttgccgattt
     2161 cggcctattg gttaaaaaat gagctgattt aacaaaaatt taacgcgaat tttaacaaaa
     2221 tattaacgtt tacaatttta tggtgcactc tcagtacaat ctgctctgat gccgcatagt
     2281 taagccagcc ccgacacccg ccaacacccg ctgacgcgcc ctgacgggct tgtctgctcc
     2341 cggcatccgc ttacagacaa gctgtgaccg tctccgggag ctgcatgtgt cagaggtttt
     2401 caccgtcatc accgaaacgc gcgagacgaa agggcctcgt gatacgccta tttttatagg
     2461 ttaatgtcat gataataatg gtttcttaga cgtcaggtgg cacttttcgg ggaaatgtgc
     2521 gcggaacccc tatttgttta tttttctaaa tacattcaaa tatgtatccg ctcatgagac
     2581 aataaccctg ataaatgctt caataatatt gaaaaaggaa gagtatgagt attcaacatt
     2641 tccgtgtcgc ccttattccc ttttttgcgg cattttgcct tcctgttttt gctcacccag
     2701 aaacgctggt gaaagtaaaa gatgctgaag atcagttggg tgcacgagtg ggttacatcg
     2761 aactggatct caacagcggt aagatccttg agagttttcg ccccgaagaa cgttttccaa
     2821 tgatgagcac ttttaaagtt ctgctatgtg gcgcggtatt atcccgtatt gacgccgggc
     2881 aagagcaact cggtcgccgc atacactatt ctcagaatga cttggttgag tactcaccag
     2941 tcacagaaaa gcatcttacg gatggcatga cagtaagaga attatgcagt gctgccataa
     3001 ccatgagtga taacactgcg gccaacttac ttctgacaac gatcggagga ccgaaggagc
     3061 taaccgcttt tttgcacaac atgggggatc atgtaactcg ccttgatcgt tgggaaccgg
     3121 agctgaatga agccatacca aacgacgagc gtgacaccac gatgcctgta gcaatggcaa
     3181 caacgttgcg caaactatta actggcgaac tacttactct agcttcccgg caacaattaa
     3241 tagactggat ggaggcggat aaagttgcag gaccacttct gcgctcggcc cttccggctg
     3301 gctggtttat tgctgataaa tctggagccg gtgagcgtgg gtctcgcggt atcattgcag
     3361 cactggggcc agatggtaag ccctcccgta tcgtagttat ctacacgacg gggagtcagg
     3421 caactatgga tgaacgaaat agacagatcg ctgagatagg tgcctcactg attaagcatt
     3481 ggtaactgtc agaccaagtt tactcatata tactttagat tgatttaaaa cttcattttt
     3541 aatttaaaag gatctaggtg aagatccttt ttgataatct catgaccaaa atcccttaac
     3601 gtgagttttc gttccactga gcgtcagacc ccgtagaaaa gatcaaagga tcttcttgag
     3661 atcctttttt tctgcgcgta atctgctgct tgcaaacaaa aaaaccaccg ctaccagcgg
     3721 tggtttgttt gccggatcaa gagctaccaa ctctttttcc gaaggtaact ggcttcagca
     3781 gagcgcagat accaaatact gttcttctag tgtagccgta gttaggccac cacttcaaga
     3841 actctgtagc accgcctaca tacctcgctc tgctaatcct gttaccagtg gctgctgcca
     3901 gtggcgataa gtcgtgtctt accgggttgg actcaagacg atagttaccg gataaggcgc
     3961 agcggtcggg ctgaacgggg ggttcgtgca cacagcccag cttggagcga acgacctaca
     4021 ccgaactgag atacctacag cgtgagctat gagaaagcgc cacgcttccc gaagggagaa
     4081 aggcggacag gtatccggta agcggcaggg tcggaacagg agagcgcacg agggagcttc
     4141 cagggggaaa cgcctggtat ctttatagtc ctgtcgggtt tcgccacctc tgacttgagc
     4201 gtcgattttt gtgatgctcg tcaggggggc ggagcctatg gaaaaacgcc agcaacgcgg
     4261 cctttttacg gttcctggcc ttttgctggc cttttgctca catgttcttt cctgcgttat
     4321 cccctgattc tgtggataac cgtattaccg cctttgagtg agctgatacc gctcgccgca
     4381 gccgaacgac cgagcgcagc gagtcagtga gcgaggaagc ggaagagcgc ccaatacgca
     4441 aaccgcctct ccccgcgcgt tggccgattc attaatgcag ctggcacgac aggtttcccg
     4501 actggaaagc gggcagtgag cgcaacgcaa ttaatgtgag ttagctcact cattaggcac
     4561 cccaggcttt acactttatg cttccggctc gtatgttgtg tggaattgtg agcggataac
     4621 aatttcacac aggaaacagc tatgacatga ttacgaatta a
//

pRK5载体图谱质粒图谱pdf版和pRK5载体序列质粒序列等相关资料下载

pRK5质粒载体应用举例
