pRevTRE载体质粒基本信息

出品公司: Clontech
载体名称: pRevTRE
质粒类型: 哺乳细胞表达;四环素调控载体
高拷贝/低拷贝: --
启动子: LTR
克隆方法: 多克隆位点,限制性内切酶
载体大小: 6487bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: Ampicillin
筛选标记: Hygromycin
备注: Tet-responsive retroviral expression.
产品目录号: 6137-1
稳定性: 稳表达
组成型: 诱导型
病毒/非病毒: 逆转录病毒

pRevTRE质粒图谱载体图谱和pRevTRE载体序列质粒序列多克隆位点信息

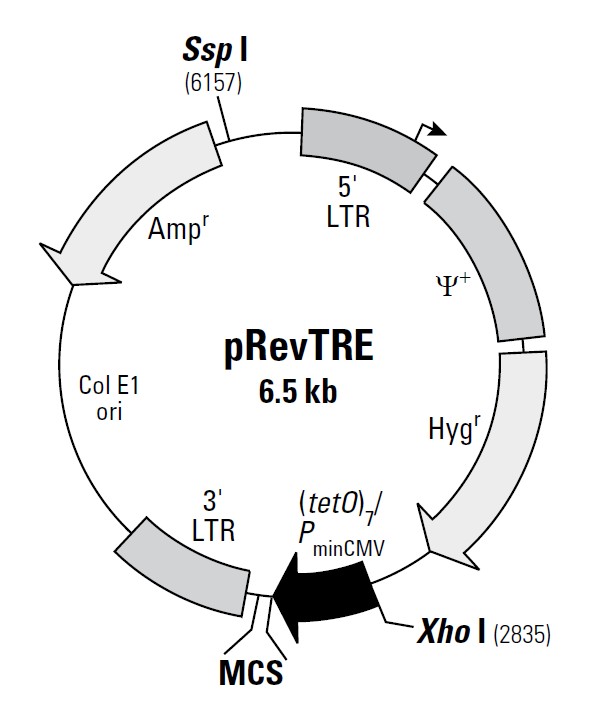

pRevTRE载体图谱

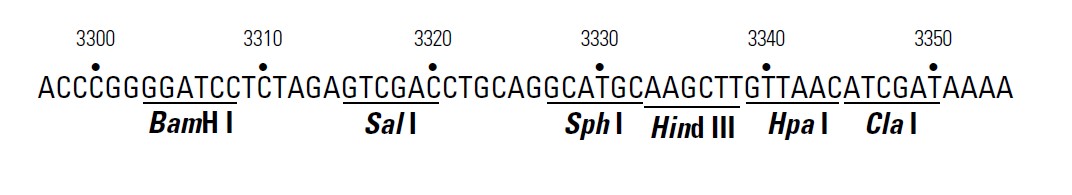

pRevTRE多克隆位点

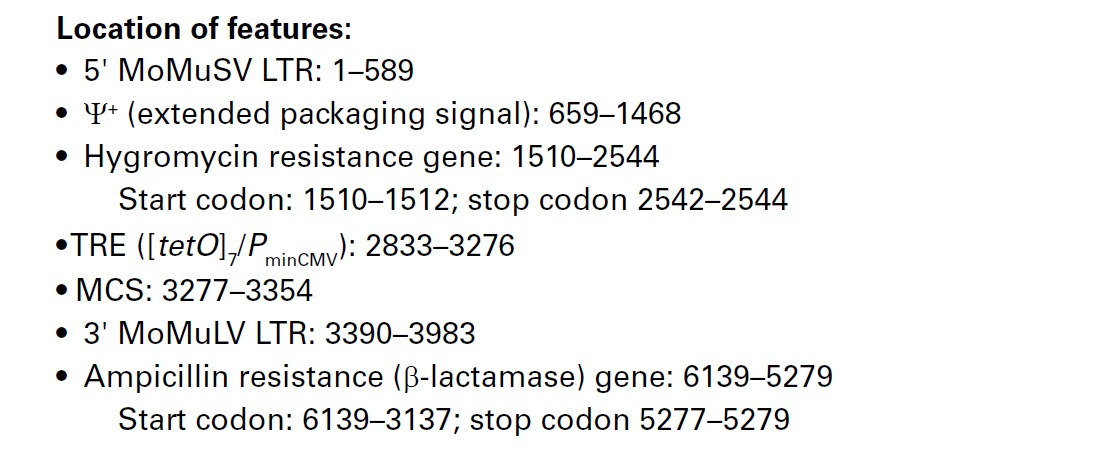

pRevTRE载体特征



pRevTRE质粒载体简介

pRevTRE质粒序列载体序列

LOCUS       pRevTRE	6487 bp 	DNA	SYN
DEFINITION  pRevTRE
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..6487
                     /organism="pRevTRE"
                     /mol_type="other DNA"
     misc_feature    1..589
                     /label="5MoMuLV_LTR"
     misc_feature    659..1468
                     /label="psi_plus_pack"
     misc_feature    1055..1462
                     /label="gag"
     misc_feature    1398..1420
                     /label="MSCV_primer"
     misc_feature    1398..1420
                     /label="pLXSN_5_primer"
     misc_feature    1436..1452
                     /label="pBABE_5_primer"
     CDS             complement(1449..2276)
                     /label="ORF frame 3"

     gene            1509..2540
                     /label="hygroB"
                     /gene="hygroB"

     CDS             1509..2543
                     /label="ORF frame 3"

     misc_feature    2833..3150
                     /label="TRE"

     promoter        3151..3270
                     /label="CMV2_promoter"

     misc_feature    3182..3201
                     /label="pCEP_fwd_primer"

     misc_feature    3184..3208
                     /label="LNCX_primer"

     misc_feature    3389..3982
                     /label="3MoMuLV_LTR"

     misc_feature    3431..3982
                     /label="5_LTR2"

     misc_feature    complement(4085..4107)
                     /label="pGEX_3_primer"

     gene            complement(5278..6138)
                     /label="Ampicillin"
                     /gene="Ampicillin"

     CDS             complement(5278..6138)
                     /label="ORF frame 2"

     promoter        complement(6180..6208)
                     /label="AmpR_promoter"

ORIGIN
    1 TTTGAAAGAC CCCACCCGTA GGTGGCAAGC TAGCTTAAGT AACGCCACTT TGCAAGGCAT
   61 GGAAAAATAC ATAACTGAGA ATAGAAAAGT TCAGATCAAG GTCAGGAACA AAGAAACAGC
  121 TGAATACCAA ACAGGATATC TGTGGTAAGC GGTTCCTGCC CCGGCTCAGG GCCAAGAACA
  181 GATGAGACAG CTGAGTGATG GGCCAAACAG GATATCTGTG GTAAGCAGTT CCTGCCCCGG
  241 CTCGGGGCCA AGAACAGATG GTCCCCAGAT GCGGTCCAGC CCTCAGCAGT TTCTAGTGAA
  301 TCATCAGATG TTTCCAGGGT GCCCCAAGGA CCTGAAAATG ACCCTGTACC TTATTTGAAC
  361 TAACCAATCA GTTCGCTTCT CGCTTCTGTT CGCGCGCTTC CGCTCTCCGA GCTCAATAAA
  421 AGAGCCCACA ACCCCTCACT CGGCGCGCCA GTCTTCCGAT AGACTGCGTC GCCCGGGTAC
  481 CCGTATTCCC AATAAAGCCT CTTGCTGTTT GCATCCGAAT CGTGGTCTCG CTGTTCCTTG
  541 GGAGGGTCTC CTCTGAGTGA TTGACTACCC ACGACGGGGG TCTTTCATTT GGGGGCTCGT
  601 CCGGGATTTG GAGACCCCTG CCCAGGGACC ACCGACCCAC CACCGGGAGG TAAGCTGGCC
  661 AGCAACTTAT CTGTGTCTGT CCGATTGTCT AGTGTCTATG TTTGATGTTA TGCGCCTGCG
  721 TCTGTACTAG TTAGCTAACT AGCTCTGTAT CTGGCGGACC CGTGGTGGAA CTGACGAGTT
  781 CTGAACACCC GGCCGCAACC CTGGGAGACG TCCCAGGGAC TTTGGGGGCC GTTTTTGTGG
  841 CCCGACCTGA GGAAGGGAGT CGATGTGGAA TCCGACCCCG TCAGGATATG TGGTTCTGGT
  901 AGGAGACGAG AACCTAAAAC AGTTCCCGCC TCCGTCTGAA TTTTTGCTTT CGGTTTGGAA
  961 CCGAAGCCGC GCGTCTTGTC TGCTGCAGCG CTGCAGCATC GTTCTGTGTT GTCTCTGTCT
 1021 GACTGTGTTT CTGTATTTGT CTGAAAATTA GGGCCAGACT GTTACCACTC CCTTAAGTTT
 1081 GACCTTAGGT CACTGGAAAG ATGTCGAGCG GATCGCTCAC AACCAGTCGG TAGATGTCAA
 1141 GAAGAGACGT TGGGTTACCT TCTGCTCTGC AGAATGGCCA ACCTTTAACG TCGGATGGCC
 1201 GCGAGACGGC ACCTTTAACC GAGACCTCAT CACCCAGGTT AAGATCAAGG TCTTTTCACC
 1261 TGGCCCGCAT GGACACCCAG ACCAGGTCCC CTACATCGTG ACCTGGGAAG CCTTGGCTTT
 1321 TGACCCCCCT CCCTGGGTCA AGCCCTTTGT ACACCCTAAG CCTCCGCCTC CTCTTCCTCC
 1381 ATCCGCCCCG TCTCTCCCCC TTGAACCTCC TCGTTCGACC CCGCCTCGAT CCTCCCTTTA
 1441 TCCAGCCCTC ACTCCTTCTC TAGGCGCCGG AATTCCGATC TGATAGCTTG CCACAACCCG
 1501 TACCAAAGAT GGATAGATCC GGAAAGCCTG AACTCACCGC GACGTCTGTC GAGAAGTTTC
 1561 TGATCGAAAA GTTCGACAGC GTCTCCGACC TGATGCAGCT CTCGGAGGGC GAAGAATCTC
 1621 GTGCTTTCAG CTTCGATGTA GGAGGGCGTG GATATGTCCT GCGGGTAAAT AGCTGCGCCG
 1681 ATGGTTTCTA CAAAGATCGT TATGTTTATC GGCACTTTGC ATCGGCCGCG CTCCCGATTC
 1741 CGGAAGTGCT TGACATTGGG GAATTCAGCG AGAGCCTGAC CTATTGCATC TCCCGCCGTG
 1801 CACAGGGTGT CACGTTGCAA GACCTGCCTG AAACCGAACT GCCCGCTGTT CTGCAGCCGG
 1861 TCGCGGAGGC CATGGATGCG ATCGCTGCGG CCGATCTTAG CCAGACGAGC GGGTTCGGCC
 1921 CATTCGGACC GCAAGGAATC GGTCAATACA CTACATGGCG TGATTTCATA TGCGCGATTG
 1981 CTGATCCCCA TGTGTATCAC TGGCAAACTG TGATGGACGA CACCGTCAGT GCGTCCGTCG
 2041 CGCAGGCTCT CGATGAGCTG ATGCTTTGGG CCGAGGACTG CCCCGAAGTC CGGCACCTCG
 2101 TGCACGCGGA TTTCGGCTCC AACAATGTCC TGACGGACAA TGGCCGCATA ACAGCGGTCA
 2161 TTGACTGGAG CGAGGCGATG TTCGGGGATT CCCAATACGA GGTCGCCAAC ATCTTCTTCT
 2221 GGAGGCCGTG GTTGGCTTGT ATGGAGCAGC AGACGCGCTA CTTCGAGCGG AGGCATCCGG
 2281 AGCTTGCAGG ATCGCCGCGG CTCCGGGCGT ATATGCTCCG CATTGGTCTT GACCAACTCT
 2341 ATCAGAGCTT GGTTGACGGC AATTTCGATG ATGCAGCTTG GGCGCAGGGT CGATGCGACG
 2401 CAATCGTCCG ATCCGGAGCC GGGACTGTCG GGCGTACACA AATCGCCCGC AGAAGCGCGG
 2461 CCGTCTGGAC CGATGGCTGT GTAGAAGTAC TCGCCGATAG TGGAAACCGA CGCCCCAGCA
 2521 CTCGTCCGAG GGCAAAGGAA TAGAGTAGAT GCCGACCGAA CAAGAGCTGA TTTCGAGAAC
 2581 GCCTCAGCCA GCAACTCGCG CGAGCCTAGC AAGGCAAATG CGAGAGAACG GCCTTACGCT
 2641 TGGTGGCACA GTTCTCGTCC ACAGTTCGCT AAGCTCGCTC GGCTGGGTCG CGGGAGGGCC
 2701 GGTCGCAGTG ATTCAGGCCC TTCTGGATTG TGTTGGTCCC CAGGGCACGA TTGTCATGCC
 2761 CACGCACTCG GGTGATCTGA CTGATCCCGC AGATTGGAGA TCGCCGCCCG TGCCTGCCGA
 2821 TTGGGTGCAG ATCTCGAGTT TACCACTCCC TATCAGTGAT AGAGAAAAGT GAAAGTCGAG
 2881 TTTACCACTC CCTATCAGTG ATAGAGAAAA GTGAAAGTCG AGTTTACCAC TCCCTATCAG
 2941 TGATAGAGAA AAGTGAAAGT CGAGTTTACC ACTCCCTATC AGTGATAGAG AAAAGTGAAA
 3001 GTCGAGTTTA CCACTCCCTA TCAGTGATAG AGAAAAGTGA AAGTCGAGTT TACCACTCCC
 3061 TATCAGTGAT AGAGAAAAGT GAAAGTCGAG TTTACCACTC CCTATCAGTG ATAGAGAAAA
 3121 GTGAAAGTCG AGCTCGGTAC CCGGGTCGAG TAGGCGTGTA CGGTGGGAGG CCTATATAAG
 3181 CAGAGCTCGT TTAGTGAACC GTCAGATCGC CTGGAGACGC CATCCACGCT GTTTTGACCT
 3241 CCATAGAAGA CACCGGGACC GATCCAGCCT CCGCGGCCCC GAATTCGAGC TCGGTACCCG
 3301 GGGATCCTCT AGAGTCGACC TGCAGGCATG CAAGCTTGTT AACATCGATA AAATAAAAGA
 3361 TTTTATTTAG TCTCCAGAAA AAGGGGGGAA TGAAAGACCC CACCTGTAGG TTTGGCAAGC
 3421 TAGCTTAAGT AACGCCATTT TGCAAGGCAT GGAAAAATAC ATAACTGAGA ATAGAGAAGT
 3481 TCAGATCAAG GTCAGGAACA GATGGAACAG CTGAATATGG GCCAAACAGG ATATCTGTGG
 3541 TAAGCAGTTC CTGCCCCGGC TCAGGGCCAA GAACAGATGG AACAGCTGAA TATGGGCCAA
 3601 ACAGGATATC TGTGGTAAGC AGTTCCTGCC CCGGCTCAGG GCCAAGAACA GATGGTCCCC
 3661 AGATGCGGTC CAGCCCTCAG CAGTTTCTAG AGAACCATCA GATGTTTCCA GGGTGCCCCA
 3721 AGGACCTGAA ATGACCCTGT GCCTTATTTG AACTAACCAA TCAGTTCGCT TCTCGCTTCT
 3781 GTTCGCGCGC TTCTGCTCCC CGAGCTCAAT AAAAGAGCCC ACAACCCCTC ACTCGGGGCG
 3841 CCAGTCCTCC GATTGACTGA GTCGCCCGGG TACCCGTGTA TCCAATAAAC CCTCTTGCAG
 3901 TTGCATCCGA CTTGTGGTCT CGCTGTTCCT TGGGAGGGTC TCCTCTGAGT GATTGACTAC
 3961 CCGTCAGCGG GGGTCTTTCA TTTGGGGGCT CGTCCGGGAT CGGGAGACCC CTGCCCAGGG
 4021 ACCACCGACC CACCACCGGG AGGTAAGCTG GCTGCCTCGC GCGTTTCGGT GATGACGGTG
 4081 AAAACCTCTG ACACATGCAG CTCCCGGAGA CGGTCACAGC TTGTCTGTAA GCGGATGCCG
 4141 GGAGCAGACA AGCCCGTCAG GGCGCGTCAG CGGGTGTTGG CGGGTGTCGG GGCGCAGCCA
 4201 TGACCCAGTC ACGTAGCGAT AGCGGAGTGT ATACTGGCTT AACTATGCGG CATCAGAGCA
 4261 GATTGTACTG AGAGTGCACC ATATGCGGTG TGAAATACCG CACAGATGCG TAAGGAGAAA
 4321 ATACCGCATC AGGCGCTCTT CCGCTTCCTC GCTCACTGAC TCGCTGCGCT CGGTCGTTCG
 4381 GCTGCGGCGA GCGGTATCAG CTCACTCAAA GGCGGTAATA CGGTTATCCA CAGAATCAGG
 4441 GGATAACGCA GGAAAGAACA TGTGAGCAAA AGGCCAGCAA AAGGCCAGGA ACCGTAAAAA
 4501 GGCCGCGTTG CTGGCGTTTT TCCATAGGCT CCGCCCCCCT GACGAGCATC ACAAAAATCG
 4561 ACGCTCAAGT CAGAGGTGGC GAAACCCGAC AGGACTATAA AGATACCAGG CGTTTCCCCC
 4621 TGGAAGCTCC CTCGTGCGCT CTCCTGTTCC GACCCTGCCG CTTACCGGAT ACCTGTCCGC
 4681 CTTTCTCCCT TCGGGAAGCG TGGCGCTTTC TCATAGCTCA CGCTGTAGGT ATCTCAGTTC
 4741 GGTGTAGGTC GTTCGCTCCA AGCTGGGCTG TGTGCACGAA CCCCCCGTTC AGCCCGACCG
 4801 CTGCGCCTTA TCCGGTAACT ATCGTCTTGA GTCCAACCCG GTAAGACACG ACTTATCGCC
 4861 ACTGGCAGCA GCCACTGGTA ACAGGATTAG CAGAGCGAGG TATGTAGGCG GTGCTACAGA
 4921 GTTCTTGAAG TGGTGGCCTA ACTACGGCTA CACTAGAAGG ACAGTATTTG GTATCTGCGC
 4981 TCTGCTGAAG CCAGTTACCT TCGGAAAAAG AGTTGGTAGC TCTTGATCCG GCAAACAAAC
 5041 CACCGCTGGT AGCGGTGGTT TTTTTGTTTG CAAGCAGCAG ATTACGCGCA GAAAAAAAGG
 5101 ATCTCAAGAA GATCCTTTGA TCTTTTCTAC GGGGTCTGAC GCTCAGTGGA ACGAAAACTC
 5161 ACGTTAAGGG ATTTTGGTCA TGAGATTATC AAAAAGGATC TTCACCTAGA TCCTTTTAAA
 5221 TTAAAAATGA AGTTTTAAAT CAATCTAAAG TATATATGAG TAAACTTGGT CTGACAGTTA
 5281 CCAATGCTTA ATCAGTGAGG CACCTATCTC AGCGATCTGT CTATTTCGTT CATCCATAGT
 5341 TGCCTGACTC CCCGTCGTGT AGATAACTAC GATACGGGAG GGCTTACCAT CTGGCCCCAG
 5401 TGCTGCAATG ATACCGCGAG ACCCACGCTC ACCGGCTCCA GATTTATCAG CAATAAACCA
 5461 GCCAGCCGGA AGGGCCGAGC GCAGAAGTGG TCCTGCAACT TTATCCGCCT CCATCCAGTC
 5521 TATTAATTGT TGCCGGGAAG CTAGAGTAAG TAGTTCGCCA GTTAATAGTT TGCGCAACGT
 5581 TGTTGCCATT GCTGCAGGCA TCGTGGTGTC ACGCTCGTCG TTTGGTATGG CTTCATTCAG
 5641 CTCCGGTTCC CAACGATCAA GGCGAGTTAC ATGATCCCCC ATGTTGTGCA AAAAAGCGGT
 5701 TAGCTCCTTC GGTCCTCCGA TCGTTGTCAG AAGTAAGTTG GCCGCAGTGT TATCACTCAT
 5761 GGTTATGGCA GCACTGCATA ATTCTCTTAC TGTCATGCCA TCCGTAAGAT GCTTTTCTGT
 5821 GACTGGTGAG TACTCAACCA AGTCATTCTG AGAATAGTGT ATGCGGCGAC CGAGTTGCTC
 5881 TTGCCCGGCG TCAACACGGG ATAATACCGC GCCACATAGC AGAACTTTAA AAGTGCTCAT
 5941 CATTGGAAAA CGTTCTTCGG GGCGAAAACT CTCAAGGATC TTACCGCTGT TGAGATCCAG
 6001 TTCGATGTAA CCCACTCGTG CACCCAACTG ATCTTCAGCA TCTTTTACTT TCACCAGCGT
 6061 TTCTGGGTGA GCAAAAACAG GAAGGCAAAA TGCCGCAAAA AAGGGAATAA GGGCGACACG
 6121 GAAATGTTGA ATACTCATAC TCTTCCTTTT TCAATATTAT TGAAGCATTT ATCAGGGTTA
 6181 TTGTCTCATG AGCGGATACA TATTTGAATG TATTTAGAAA AATAAACAAA TAGGGGTTCC
 6241 GCGCACATTT CCCCGAAAAG TGCCACCTGA CGTCTAAGAA ACCATTATTA TCATGACATT
 6301 AACCTATAAA AATAGGCGTA TCACGAGGCC CTTTCGTCTT CAAGAATTCA TACCAGATCA
 6361 CCGAAAACTG TCCTCCAAAT GTGTCCCCCT CACACTCCCA AATTCGCGGG CTTCTGCCTC
 6421 TTAGACCACT CTACCCTATT CCCCACACTC ACCGGAGCCA AAGCCGCGGC CCTTCCGTTT
 6481 CTTTGCT
//

pRevTRE载体图谱质粒图谱pdf版和pRevTRE载体序列质粒序列等相关资料下载

pRevTRE质粒载体应用举例
