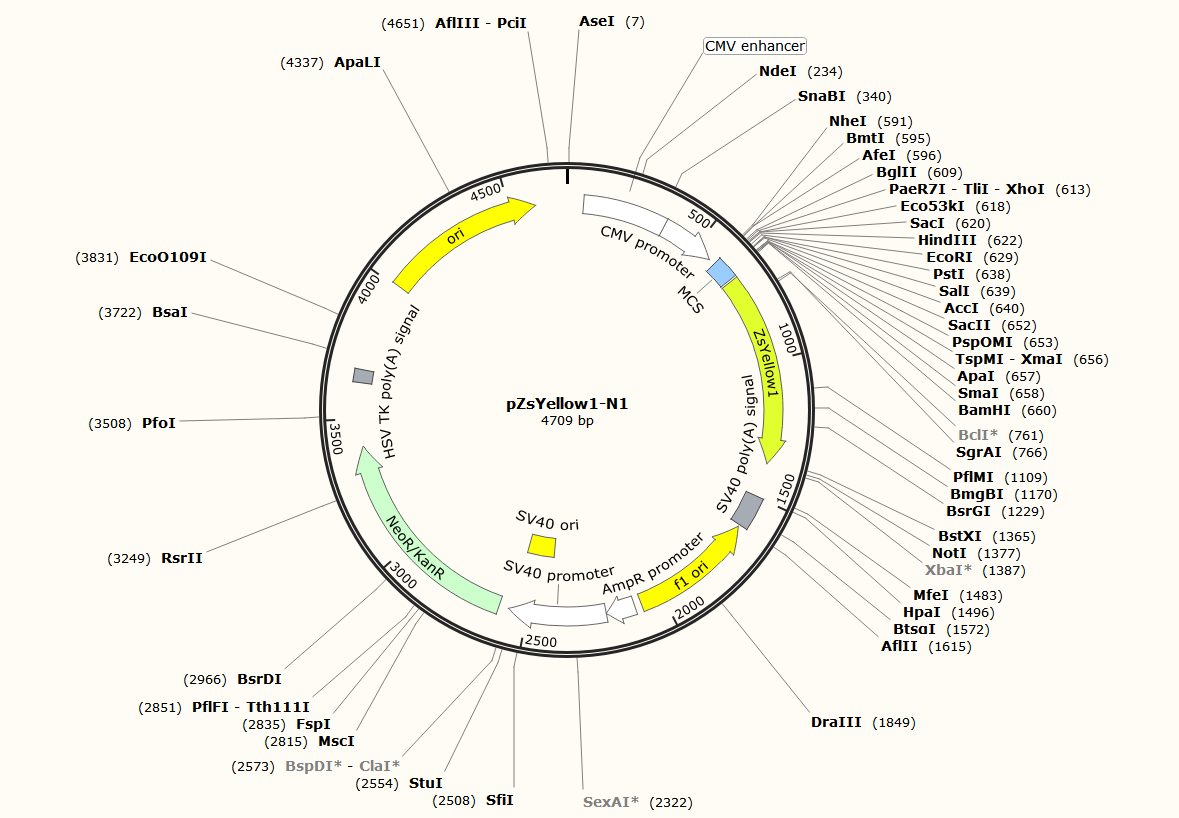

pZsYellow1-N1

LOCUS       pZsYellow1-N1                4709 bp ds-DNA     circular SYN 19-OCT-2017
DEFINITION  Vector for fusing ZsYellow1 to the C-terminus of a partner protein.
ACCESSION   .
VERSION     .
KEYWORDS    pZsYellow1-N1
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4709)
  AUTHORS   Clontech (TaKaRa)
  TITLE     Direct Submission
  JOURNAL   Exported Wednesday, February 19, 2020 from SnapGene Viewer 3.1.4
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..4709
                     /organism="synthetic DNA construct"
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
     enhancer        61..364
                     /note="CMV enhancer"
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /note="CMV promoter"
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     misc_feature    591..671
                     /note="MCS"
                     /note="multiple cloning site of fluorescent protein
                     plasmids"
     CDS             679..1374
                     /codon_start=1
                     /product="Zoanthus yellow fluorescent protein"
                     /note="ZsYellow1"
                     /note="mammalian codon-optimized"
                     /translation="MAHSKHGLKEEMTMKYHMEGCVNGHKFVITGEGIGYPFKGKQTIN
                     LCVIEGGPLPFSEDILSAGFKYGDRIFTEYPQDIVDYFKNSCPAGYTWGRSFLFEDGAV
                     CICNVDITVSVKENCIYHKSIFNGVNFPADGPVMKKMTTNWEASCEKIMPVPKQGILKG
                     DVSMYLLLKDGGRYRCQFDTVYKAKSVPSKMPEWHFIQHKLLREDRSDAKNQKWQLTEH
                     AIAFPSALA"
     polyA_signal    1497..1618
                     /note="SV40 poly(A) signal"
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(1625..2080)
                     /direction=LEFT
                     /note="f1 ori"
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2107..2211
                     /gene="bla"
                     /note="AmpR promoter"
     promoter        2213..2570
                     /note="SV40 promoter"
                     /note="SV40 enhancer and early promoter"
     rep_origin      2421..2556
                     /note="SV40 ori"
                     /note="SV40 origin of replication"
     CDS             2605..3399
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /note="NeoR/KanR"
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin)"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     misc_feature    3631..3678
                     /note="HSV TK poly(A) signal"
                     /note="herpesvirus thymidine kinase polyadenylation signal"
     rep_origin      4007..4595
                     /direction=RIGHT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      601 ccggactcag atctcgagct caagcttcga attctgcagt cgacggtacc gcgggcccgg
      661 gatccaccgg tcgccaccat ggcccacagc aagcacggcc tgaaggagga gatgaccatg
      721 aagtaccaca tggagggctg cgtgaacggc cacaagttcg tgatcaccgg cgagggcatc
      781 ggctacccct tcaagggcaa gcagaccatc aacctgtgcg tgatcgaggg cggccccctg
      841 cccttcagcg aggacatcct gagcgccggc ttcaagtacg gcgaccggat cttcaccgag
      901 tacccccagg acatcgtgga ctacttcaag aacagctgcc ccgccggcta cacctggggc
      961 cggagcttcc tgttcgagga cggcgccgtg tgcatctgta acgtggacat caccgtgagc
     1021 gtgaaggaga actgcatcta ccacaagagc atcttcaacg gcgtgaactt ccccgccgac
     1081 ggccccgtga tgaagaagat gaccaccaac tgggaggcca gctgcgagaa gatcatgccc
     1141 gtgcctaagc agggcatcct gaagggcgac gtgagcatgt acctgctgct gaaggacggc
     1201 ggccggtacc ggtgccagtt cgacaccgtg tacaaggcca agagcgtgcc cagcaagatg
     1261 cccgagtggc acttcatcca gcacaagctg ctgcgggagg accggagcga cgccaagaac
     1321 cagaagtggc agctgaccga gcacgccatc gccttcccca gcgccctggc ctgaagcggc
     1381 cgcgactcta gatcataatc agccatacca catttgtaga ggttttactt gctttaaaaa
     1441 acctcccaca cctccccctg aacctgaaac ataaaatgaa tgcaattgtt gttgttaact
     1501 tgtttattgc agcttataat ggttacaaat aaagcaatag catcacaaat ttcacaaata
     1561 aagcattttt ttcactgcat tctagttgtg gtttgtccaa actcatcaat gtatcttaag
     1621 gcgtaaattg taagcgttaa tattttgtta aaattcgcgt taaatttttg ttaaatcagc
     1681 tcatttttta accaataggc cgaaatcggc aaaatccctt ataaatcaaa agaatagacc
     1741 gagatagggt tgagtgttgt tccagtttgg aacaagagtc cactattaaa gaacgtggac
     1801 tccaacgtca aagggcgaaa aaccgtctat cagggcgatg gcccactacg tgaaccatca
     1861 ccctaatcaa gttttttggg gtcgaggtgc cgtaaagcac taaatcggaa ccctaaaggg
     1921 agcccccgat ttagagcttg acggggaaag ccggcgaacg tggcgagaaa ggaagggaag
     1981 aaagcgaaag gagcgggcgc tagggcgctg gcaagtgtag cggtcacgct gcgcgtaacc
     2041 accacacccg ccgcgcttaa tgcgccgcta cagggcgcgt caggtggcac ttttcgggga
     2101 aatgtgcgcg gaacccctat ttgtttattt ttctaaatac attcaaatat gtatccgctc
     2161 atgagacaat aaccctgata aatgcttcaa taatattgaa aaaggaagag tcctgaggcg
     2221 gaaagaacca gctgtggaat gtgtgtcagt tagggtgtgg aaagtcccca ggctccccag
     2281 caggcagaag tatgcaaagc atgcatctca attagtcagc aaccaggtgt ggaaagtccc
     2341 caggctcccc agcaggcaga agtatgcaaa gcatgcatct caattagtca gcaaccatag
     2401 tcccgcccct aactccgccc atcccgcccc taactccgcc cagttccgcc cattctccgc
     2461 cccatggctg actaattttt tttatttatg cagaggccga ggccgcctcg gcctctgagc
     2521 tattccagaa gtagtgagga ggcttttttg gaggcctagg cttttgcaaa gatcgatcaa
     2581 gagacaggat gaggatcgtt tcgcatgatt gaacaagatg gattgcacgc aggttctccg
     2641 gccgcttggg tggagaggct attcggctat gactgggcac aacagacaat cggctgctct
     2701 gatgccgccg tgttccggct gtcagcgcag gggcgcccgg ttctttttgt caagaccgac
     2761 ctgtccggtg ccctgaatga actgcaagac gaggcagcgc ggctatcgtg gctggccacg
     2821 acgggcgttc cttgcgcagc tgtgctcgac gttgtcactg aagcgggaag ggactggctg
     2881 ctattgggcg aagtgccggg gcaggatctc ctgtcatctc accttgctcc tgccgagaaa
     2941 gtatccatca tggctgatgc aatgcggcgg ctgcatacgc ttgatccggc tacctgccca
     3001 ttcgaccacc aagcgaaaca tcgcatcgag cgagcacgta ctcggatgga agccggtctt
     3061 gtcgatcagg atgatctgga cgaagagcat caggggctcg cgccagccga actgttcgcc
     3121 aggctcaagg cgagcatgcc cgacggcgag gatctcgtcg tgacccatgg cgatgcctgc
     3181 ttgccgaata tcatggtgga aaatggccgc ttttctggat tcatcgactg tggccggctg
     3241 ggtgtggcgg accgctatca ggacatagcg ttggctaccc gtgatattgc tgaagagctt
     3301 ggcggcgaat gggctgaccg cttcctcgtg ctttacggta tcgccgctcc cgattcgcag
     3361 cgcatcgcct tctatcgcct tcttgacgag ttcttctgag cgggactctg gggttcgaaa
     3421 tgaccgacca agcgacgccc aacctgccat cacgagattt cgattccacc gccgccttct
     3481 atgaaaggtt gggcttcgga atcgttttcc gggacgccgg ctggatgatc ctccagcgcg
     3541 gggatctcat gctggagttc ttcgcccacc ctagggggag gctaactgaa acacggaagg
     3601 agacaatacc ggaaggaacc cgcgctatga cggcaataaa aagacagaat aaaacgcacg
     3661 gtgttgggtc gtttgttcat aaacgcgggg ttcggtccca gggctggcac tctgtcgata
     3721 ccccaccgag accccattgg ggccaatacg cccgcgtttc ttccttttcc ccaccccacc
     3781 ccccaagttc gggtgaaggc ccagggctcg cagccaacgt cggggcggca ggccctgcca
     3841 tagcctcagg ttactcatat atactttaga ttgatttaaa acttcatttt taatttaaaa
     3901 ggatctaggt gaagatcctt tttgataatc tcatgaccaa aatcccttaa cgtgagtttt
     3961 cgttccactg agcgtcagac cccgtagaaa agatcaaagg atcttcttga gatccttttt
     4021 ttctgcgcgt aatctgctgc ttgcaaacaa aaaaaccacc gctaccagcg gtggtttgtt
     4081 tgccggatca agagctacca actctttttc cgaaggtaac tggcttcagc agagcgcaga
     4141 taccaaatac tgttcttcta gtgtagccgt agttaggcca ccacttcaag aactctgtag
     4201 caccgcctac atacctcgct ctgctaatcc tgttaccagt ggctgctgcc agtggcgata
     4261 agtcgtgtct taccgggttg gactcaagac gatagttacc ggataaggcg cagcggtcgg
     4321 gctgaacggg gggttcgtgc acacagccca gcttggagcg aacgacctac accgaactga
     4381 gatacctaca gcgtgagcta tgagaaagcg ccacgcttcc cgaagggaga aaggcggaca
     4441 ggtatccggt aagcggcagg gtcggaacag gagagcgcac gagggagctt ccagggggaa
     4501 acgcctggta tctttatagt cctgtcgggt ttcgccacct ctgacttgag cgtcgatttt
     4561 tgtgatgctc gtcagggggg cggagcctat ggaaaaacgc cagcaacgcg gcctttttac
     4621 ggttcctggc cttttgctgg ccttttgctc acatgttctt tcctgcgtta tcccctgatt
     4681 ctgtggataa ccgtattacc gccatgcat
//
