| 出品公司: | EMD Biosciences (Novagen) |
|---|---|
| 别名: | pET24(+), pet 24(+) |
| 质粒类型: | 大肠杆菌蛋白表达 |
| 表达水平: | 高 |
| 克隆方法: | 多克隆位点，限制性内切酶 |
| 载体大小: | 5236 bp |
| 5' 测序引物: | T7 |
| 5' 测序引物序列: | 5'-TAATACGACTCACTATAGGG-3' |
| 载体标签: | C-His |
| 载体抗性: | Kana |
| 备注: |
Designed for expression from bacterial translational signal within cloned insert (no ribosome binding site or ATG start codon).
|
| 产品目录号: | 69337-3 |
| 稳定性: | 瞬时表达 Transient |
| 组成型: | 组成型 Constitutive |
| 病毒/非病毒: | 非病毒 |
| 表达宿主菌: | BL21(DE3) 、BLR(DE3)、Rosetta(DE3)、OrigamiB(DE3) |
| pET表达手册： |
pET表达手册英文版 pET表达手册中文版 |
| pET载体汇总: |
pET-3a pET-11a pET-12a pET-14b pET-15b pET-16b pET-17b pET-19b pET-20b pET-21a pET-22b pET-23a pET-24a pET-25b pET-26b pET-27b pET-28a pET-29a pET-30a pET-31b pET-32a pET-33b pET-34b pET-35b pET-37b pET-39b pET-40b pET-41a pET-42a pET-43.1a pET-44a pET-45b pET-47b pET-48b pET-49b pET-50b pET-51b pET-52b pETDuet-1 pACYCDuet-1 pCDFDuet-1 pRSFDuet-1 pColaDuet-1 |
买家导航
pET-24(+)载体 pET24+质粒基本信息

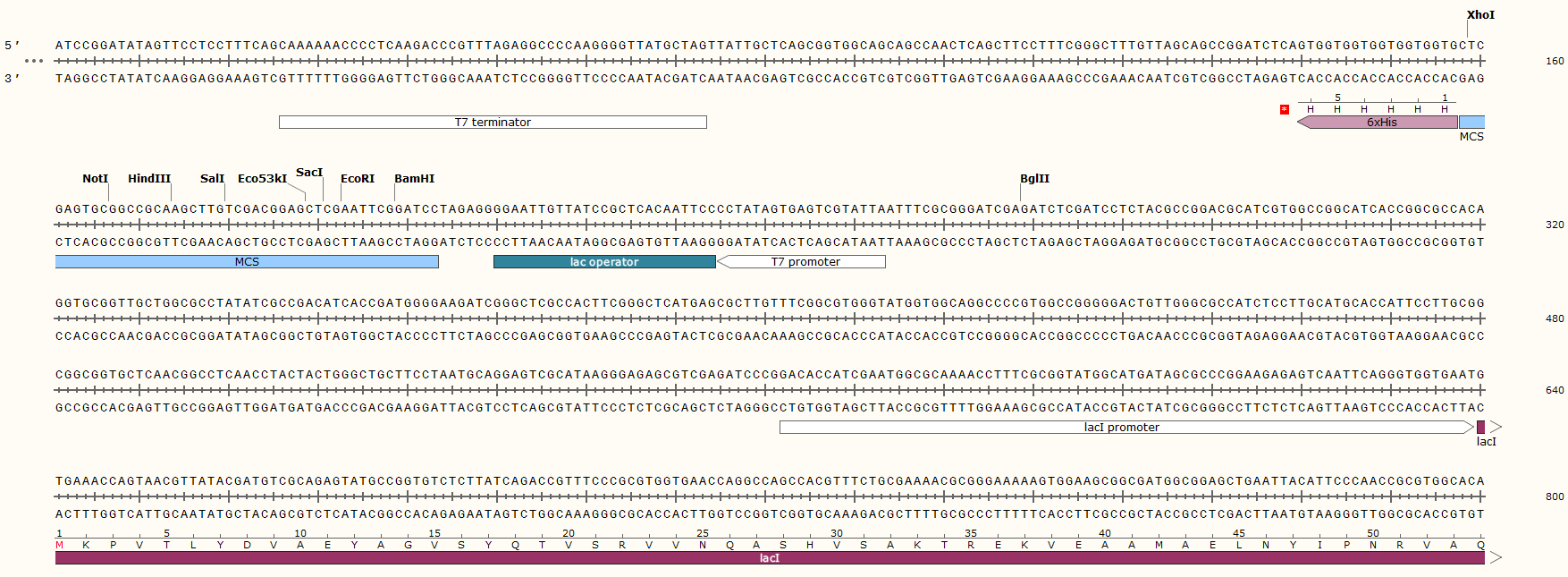

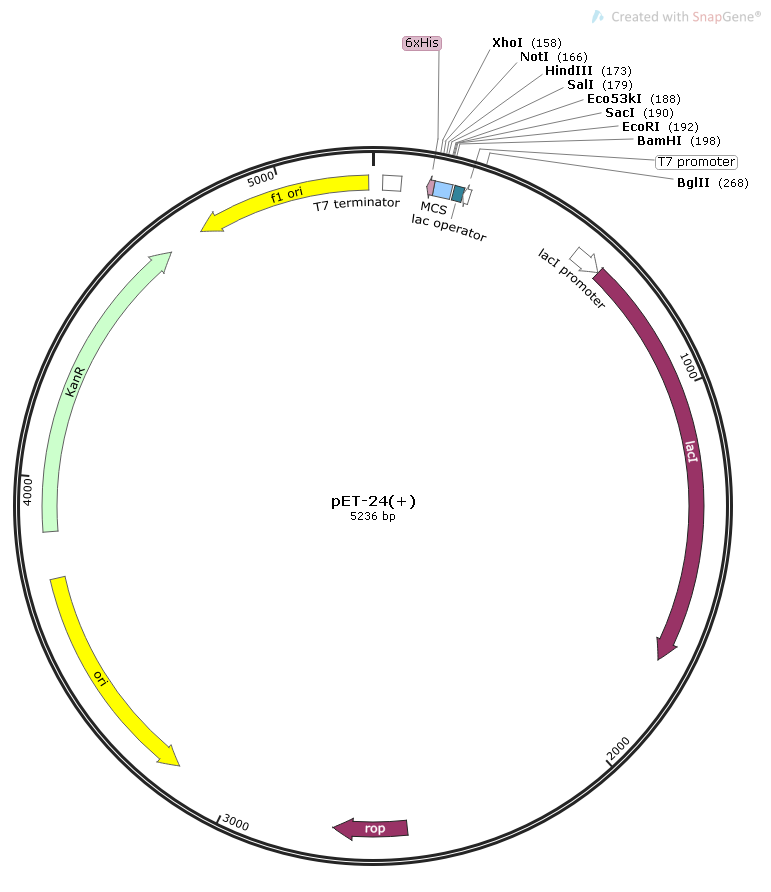

pET-24(+)质粒图谱 pET24+载体图谱和pET-24(+)载体序列 pET24+质粒序列多克隆位点信息
| Feature Name | Start | End | |
|---|---|---|---|
| T7_terminator | 129 | 1 | |
| T7_Terminal_primer | 69 | 87 | |
| lacO | 235 | 208 | |
| T7_promoter | 253 | 235 | |
| tet (300 - 563) | 285 | 548 | |
| pBRrevBam_primer | 356 | 337 | |
| lacI | 631 | 1722 | |
| tet (576 - 851) | 1781 | 2056 | |
| ROP | 2531 | 2722 | |
| pGEX_3_primer | 2738 | 2716 | |
| pBR322_origin | 3756 | 3137 | |
| KanR2 | 3862 | 4677 |
| ORF | Start | End | |
|---|---|---|---|
| ORF frame 3 | 390 | 890 | |
| ORF frame 1 | 763 | 1722 | |
| ORF frame 1 | 3862 | 4677 |
| Enzyme Name | Cut |
|---|---|
| XhoI | 158 |
| NotI | 166 |
| EagI | 166 |
| HindIII | 173 |
| SalI | 179 |
| SacI | 190 |
| EcoRI | 192 |
| BamHI | 198 |
| BglII | 268 |
| BclI | 1004 |
| ApaI | 1201 |
| EcoRV | 1440 |
| HpaI | 1496 |
| FspI | 2072 |
| NruI | 3950 |
| ClaI | 3984 |
| XmaI | 4165 |
| SmaI | 4167 |
pET-24(+)质粒 pET24+载体简介
pET-24(+)载体是一种转录载体，设计用于从克隆插入位点中携带的细菌翻译信号表达。因此，它缺乏存在于pET翻译载体上的核糖体结合位点和ATG起始密码子。pET-24系列载体具有C端His标签。独特的酶切位点在载体图谱中被标注出来。需要注意的是，这些载体序列是依据载体pBR322的方向来进行编号的，所以T7标签表达区域在载体图谱上是反向的。
pET-24(+)质粒序列 pET24+载体序列
LOCUS pET-24(+) 5236 bp DNA Circular SYN
DEFINITION pET-24(+)
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
COMMENT This file is created by Vector NTI
http://www.biofeng.com/
COMMENT ORIGDB|GenBank
COMMENT VNTAUTHORNAME|biofeng.com|
COMMENT VNTOAUTHORAD1|Novagen Inc.|
FEATURES Location/Qualifiers
source 1..5236
/organism="pET-24(+)"
/mol_type="other DNA"
terminator complement(1..129)
/label="T7_terminator"
misc_feature 69..87
/label="T7_Terminal_primer"
misc_feature complement(208..235)
/label="lacO"
promoter complement(235..253)
/label="T7_promoter"
gene 285..548
/label="tet (300 - 563)"
/gene="tet (300 - 563)"
misc_feature complement(337..356)
/label="pBRrevBam_primer"
CDS 390..890
/label="ORF frame 3"
/translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
LMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGECETSNVIRCRRVCRCLLSD
RFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQTVVADWRCHLQSGPARAV
ANCRGD*"
misc_feature 631..1722
/label="lacI"
/translation="MSACFGVGMVAGPVAGGLLGAISLHAPFLAAAVLNGLNLLLGCF
LMQESHKGERRDPGHHRMAQNLSRYGMIAPGRESIQGGECETSNVIRCRRVCRCLLSD
RFPRGEPGQPRFCENAGKSGSGDGGAELHSQPRGTTTGGQTVVADWRCHLQSGPARAV
ANCRGD*"
CDS 763..1722
/label="ORF frame 1"
/translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
gene 1781..2056
/label="tet (576 - 851)"
/gene="tet (576 - 851)"
/translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
misc_feature 2531..2722
/label="ROP"
/translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
misc_feature complement(2716..2738)
/label="pGEX_3_primer"
/translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
rep_origin complement(3137..3756)
/label="pBR322_origin"
/translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
gene 3862..4677
/label="KanR2"
/gene="KanR2"
/translation="MAELNYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKS
RADQLGASVVVSMVERSGVEACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNV
PALFLDVSDQTPINSIIFSHEDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGW
HKYLTRNQIQPIAEREGDWSAMSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITE
SGLRVGADISVVGYDDTEDSSCYIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQ
LLPVSLVKRKTTLAPNTQTASPRALADSLMQLARQVSRLESGQ*"
CDS 3862..4677
/label="ORF frame 1"
/translation="MSHIQRETSCSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLY
GKPDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIP
GKTAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGL
VDASDFDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVG
RVGIADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF*"
ORIGIN
1 atccggatat agttcctcct ttcagcaaaa aacccctcaa gacccgttta gaggccccaa
61 ggggttatgc tagttattgc tcagcggtgg cagcagccaa ctcagcttcc tttcgggctt
121 tgttagcagc cggatctcag tggtggtggt ggtggtgctc gagtgcggcc gcaagcttgt
181 cgacggagct cgaattcgga tcctagaggg gaattgttat ccgctcacaa ttcccctata
241 gtgagtcgta ttaatttcgc gggatcgaga tctcgatcct ctacgccgga cgcatcgtgg
301 ccggcatcac cggcgccaca ggtgcggttg ctggcgccta tatcgccgac atcaccgatg
361 gggaagatcg ggctcgccac ttcgggctca tgagcgcttg tttcggcgtg ggtatggtgg
421 caggccccgt ggccggggga ctgttgggcg ccatctcctt gcatgcacca ttccttgcgg
481 cggcggtgct caacggcctc aacctactac tgggctgctt cctaatgcag gagtcgcata
541 agggagagcg tcgagatccc ggacaccatc gaatggcgca aaacctttcg cggtatggca
601 tgatagcgcc cggaagagag tcaattcagg gtggtgaatg tgaaaccagt aacgttatac
661 gatgtcgcag agtatgccgg tgtctcttat cagaccgttt cccgcgtggt gaaccaggcc
721 agccacgttt ctgcgaaaac gcgggaaaaa gtggaagcgg cgatggcgga gctgaattac
781 attcccaacc gcgtggcaca acaactggcg ggcaaacagt cgttgctgat tggcgttgcc
841 acctccagtc tggccctgca cgcgccgtcg caaattgtcg cggcgattaa atctcgcgcc
901 gatcaactgg gtgccagcgt ggtggtgtcg atggtagaac gaagcggcgt cgaagcctgt
961 aaagcggcgg tgcacaatct tctcgcgcaa cgcgtcagtg ggctgatcat taactatccg
1021 ctggatgacc aggatgccat tgctgtggaa gctgcctgca ctaatgttcc ggcgttattt
1081 cttgatgtct ctgaccagac acccatcaac agtattattt tctcccatga agacggtacg
1141 cgactgggcg tggagcatct ggtcgcattg ggtcaccagc aaatcgcgct gttagcgggc
1201 ccattaagtt ctgtctcggc gcgtctgcgt ctggctggct ggcataaata tctcactcgc
1261 aatcaaattc agccgatagc ggaacgggaa ggcgactgga gtgccatgtc cggttttcaa
1321 caaaccatgc aaatgctgaa tgagggcatc gttcccactg cgatgctggt tgccaacgat
1381 cagatggcgc tgggcgcaat gcgcgccatt accgagtccg ggctgcgcgt tggtgcggat
1441 atctcggtag tgggatacga cgataccgaa gacagctcat gttatatccc gccgttaacc
1501 accatcaaac aggattttcg cctgctgggg caaaccagcg tggaccgctt gctgcaactc
1561 tctcagggcc aggcggtgaa gggcaatcag ctgttgcccg tctcactggt gaaaagaaaa
1621 accaccctgg cgcccaatac gcaaaccgcc tctccccgcg cgttggccga ttcattaatg
1681 cagctggcac gacaggtttc ccgactggaa agcgggcagt gagcgcaacg caattaatgt
1741 aagttagctc actcattagg caccgggatc tcgaccgatg cccttgagag ccttcaaccc
1801 agtcagctcc ttccggtggg cgcggggcat gactatcgtc gccgcactta tgactgtctt
1861 ctttatcatg caactcgtag gacaggtgcc ggcagcgctc tgggtcattt tcggcgagga
1921 ccgctttcgc tggagcgcga cgatgatcgg cctgtcgctt gcggtattcg gaatcttgca
1981 cgccctcgct caagccttcg tcactggtcc cgccaccaaa cgtttcggcg agaagcaggc
2041 cattatcgcc ggcatggcgg ccccacgggt gcgcatgatc gtgctcctgt cgttgaggac
2101 ccggctaggc tggcggggtt gccttactgg ttagcagaat gaatcaccga tacgcgagcg
2161 aacgtgaagc gactgctgct gcaaaacgtc tgcgacctga gcaacaacat gaatggtctt
2221 cggtttccgt gtttcgtaaa gtctggaaac gcggaagtca gcgccctgca ccattatgtt
2281 ccggatctgc atcgcaggat gctgctggct accctgtgga acacctacat ctgtattaac
2341 gaagcgctgg cattgaccct gagtgatttt tctctggtcc cgccgcatcc ataccgccag
2401 ttgtttaccc tcacaacgtt ccagtaaccg ggcatgttca tcatcagtaa cccgtatcgt
2461 gagcatcctc tctcgtttca tcggtatcat tacccccatg aacagaaatc ccccttacac
2521 ggaggcatca gtgaccaaac aggaaaaaac cgcccttaac atggcccgct ttatcagaag
2581 ccagacatta acgcttctgg agaaactcaa cgagctggac gcggatgaac aggcagacat
2641 ctgtgaatcg cttcacgacc acgctgatga gctttaccgc agctgcctcg cgcgtttcgg
2701 tgatgacggt gaaaacctct gacacatgca gctcccggag acggtcacag cttgtctgta
2761 agcggatgcc gggagcagac aagcccgtca gggcgcgtca gcgggtgttg gcgggtgtcg
2821 gggcgcagcc atgacccagt cacgtagcga tagcggagtg tatactggct taactatgcg
2881 gcatcagagc agattgtact gagagtgcac catatatgcg gtgtgaaata ccgcacagat
2941 gcgtaaggag aaaataccgc atcaggcgct cttccgcttc ctcgctcact gactcgctgc
3001 gctcggtcgt tcggctgcgg cgagcggtat cagctcactc aaaggcggta atacggttat
3061 ccacagaatc aggggataac gcaggaaaga acatgtgagc aaaaggccag caaaaggcca
3121 ggaaccgtaa aaaggccgcg ttgctggcgt ttttccatag gctccgcccc cctgacgagc
3181 atcacaaaaa tcgacgctca agtcagaggt ggcgaaaccc gacaggacta taaagatacc
3241 aggcgtttcc ccctggaagc tccctcgtgc gctctcctgt tccgaccctg ccgcttaccg
3301 gatacctgtc cgcctttctc ccttcgggaa gcgtggcgct ttctcatagc tcacgctgta
3361 ggtatctcag ttcggtgtag gtcgttcgct ccaagctggg ctgtgtgcac gaaccccccg
3421 ttcagcccga ccgctgcgcc ttatccggta actatcgtct tgagtccaac ccggtaagac
3481 acgacttatc gccactggca gcagccactg gtaacaggat tagcagagcg aggtatgtag
3541 gcggtgctac agagttcttg aagtggtggc ctaactacgg ctacactaga aggacagtat
3601 ttggtatctg cgctctgctg aagccagtta ccttcggaaa aagagttggt agctcttgat
3661 ccggcaaaca aaccaccgct ggtagcggtg gtttttttgt ttgcaagcag cagattacgc
3721 gcagaaaaaa aggatctcaa gaagatcctt tgatcttttc tacggggtct gacgctcagt
3781 ggaacgaaaa ctcacgttaa gggattttgg tcatgaacaa taaaactgtc tgcttacata
3841 aacagtaata caaggggtgt tatgagccat attcaacggg aaacgtcttg ctctaggccg
3901 cgattaaatt ccaacatgga tgctgattta tatgggtata aatgggctcg cgataatgtc
3961 gggcaatcag gtgcgacaat ctatcgattg tatgggaagc ccgatgcgcc agagttgttt
4021 ctgaaacatg gcaaaggtag cgttgccaat gatgttacag atgagatggt cagactaaac
4081 tggctgacgg aatttatgcc tcttccgacc atcaagcatt ttatccgtac tcctgatgat
4141 gcatggttac tcaccactgc gatccccggg aaaacagcat tccaggtatt agaagaatat
4201 cctgattcag gtgaaaatat tgttgatgcg ctggcagtgt tcctgcgccg gttgcattcg
4261 attcctgttt gtaattgtcc ttttaacagc gatcgcgtat ttcgtctcgc tcaggcgcaa
4321 tcacgaatga ataacggttt ggttgatgcg agtgattttg atgacgagcg taatggctgg
4381 cctgttgaac aagtctggaa agaaatgcat aaacttttgc cattctcacc ggattcagtc
4441 gtcactcatg gtgatttctc acttgataac cttatttttg acgaggggaa attaataggt
4501 tgtattgatg ttggacgagt cggaatcgca gaccgatacc aggatcttgc catcctatgg
4561 aactgcctcg gtgagttttc tccttcatta cagaaacggc tttttcaaaa atatggtatt
4621 gataatcctg atatgaataa attgcagttt catttgatgc tcgatgagtt tttctaagaa
4681 ttaattcatg agcggataca tatttgaatg tatttagaaa aataaacaaa taggggttcc
4741 gcgcacattt ccccgaaaag tgccacctga aattgtaaac gttaatattt tgttaaaatt
4801 cgcgttaaat ttttgttaaa tcagctcatt ttttaaccaa taggccgaaa tcggcaaaat
4861 cccttataaa tcaaaagaat agaccgagat agggttgagt gttgttccag tttggaacaa
4921 gagtccacta ttaaagaacg tggactccaa cgtcaaaggg cgaaaaaccg tctatcaggg
4981 cgatggccca ctacgtgaac catcacccta atcaagtttt ttggggtcga ggtgccgtaa
5041 agcactaaat cggaacccta aagggagccc ccgatttaga gcttgacggg gaaagccggc
5101 gaacgtggcg agaaaggaag ggaagaaagc gaaaggagcg ggcgctaggg cgctggcaag
5161 tgtagcggtc acgctgcgcg taaccaccac acccgccgcg cttaatgcgc cgctacaggg
5221 cgcgtcccat tcgcca
//
pET-24(+)载体图谱 pET24+质粒图谱pdf版和pET-24(+)载体序列 pET24+质粒序列等相关资料下载
pET-24(+)质粒 pET24+载体应用举例
- 上一篇：pET-23d(+)
- 下一篇：pET-24a(+)
