pLVX-EF1α-IRES-ZsGreen1

价格:2500元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pLVX-EF1α-IRES-ZsGreen1载体质粒基本信息

出品公司: Clontech
载体名称: pLVX-EF1α-IRES-ZsGreen1, pLVX-EF1a-IRES-ZsGreen1, pLVX-EF1alpha-IRES-ZsGreen1
质粒类型: 哺乳动物细胞慢病毒表达载体
高拷贝/低拷贝: 高拷贝
启动子: EF1α/ EF1a
克隆方法: 多克隆位点,限制性内切酶
载体大小: 8889 bp
5' 测序引物及序列: EF1a Forward: TCAAGCCTCAGACAGTGGTTC
3' 测序引物及序列: IRES-R: CCTCACATTGCCAAAAGACG
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: ZsGreen1
备注: 克隆宿主菌株 Stbl3
产品目录号: 631982
稳定性: 稳表达
组成型: 组成型
病毒/非病毒: 慢病毒

pLVX-EF1α-IRES-ZsGreen1质粒图谱载体图谱和pLVX-EF1α-IRES-ZsGreen1载体序列质粒序列多克隆位点信息

pLVX-EF1α-IRES-ZsGreen1载体图谱

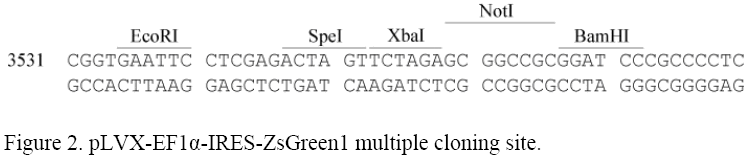

pLVX-EF1α-IRES-ZsGreen1多克隆位点

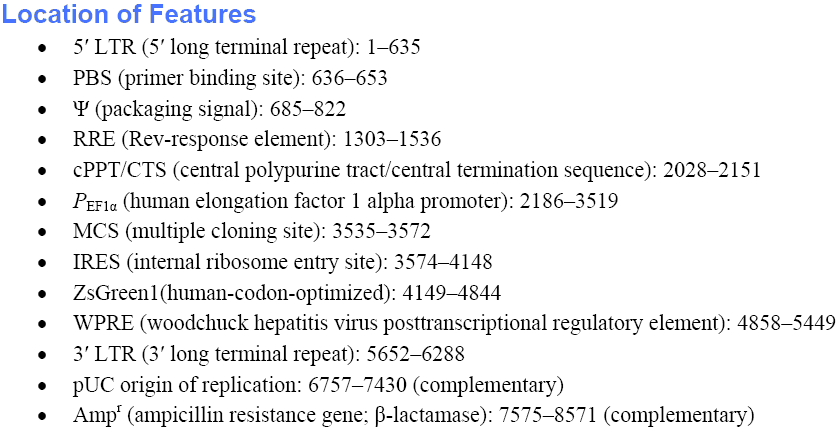

pLVX-EF1α-IRES-ZsGreen1载体特征

pLVX-EF1α-IRES-ZsGreen1质粒载体简介

pLVX-EF1α-IRES-ZsGreen1质粒序列载体序列

LOCUS       pLVX-EF1a-IRES-ZsGreen1   8889 bp    DNA   circular            11-FEB-2010
COMMENT     Created by Clontech Laboratories Inc.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     Cat. No. 631982
FEATURES             Location/Qualifiers
     CDS             4149..4844
                     /label=ZsGreen1
     misc_feature    3574..4148
                     /label=IRES
     LTR             1..635
                     /label=5'\LTR
     misc_feature    685..822
                     /label=Packaging\signal
     misc_feature    2028..2151
                     /label=cPPT/CTS\(DNA\flap)
     misc_feature    4858..5449
                     /label=WPRE
     rep_origin      complement(6757..7430)
                     /label=pUC\origin
     CDS             complement(7575..8571)
                     /label=Amp(R)
     misc_binding    1303..1536
                     /label=RRE
     misc_binding    636..653
                     /label=PBS
     LTR             5652..6288
                     /label=3'\LTR
     misc_feature    3535..3572
                     /label=MCS
     promoter        2186..3519
                     /label=EF1a\Promoter
BASE COUNT     2190 a      2213 c      2366 g      2120 t
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccttt aaaagaaaag
     2041 gggggattgg ggggtacagt gcaggggaaa gaatagtaga cataatagca acagacatac
     2101 aaactaaaga attacaaaaa caaattacaa aaattcaaaa ttttcgggtt tattacaggg
     2161 acagcagaga tccagtttat cgatgagtaa ttcatacaaa aggactcgcc cctgccttgg
     2221 ggaatcccag ggaccgtcgt taaactccca ctaacgtaga acccagagat cgctgcgttc
     2281 ccgccccctc acccgcccgc tctcgtcatc actgaggtgg agaagagcat gcgtgaggct
     2341 ccggtgcccg tcagtgggca gagcgcacat cgcccacagt ccccgagaag ttggggggag
     2401 gggtcggcaa ttgaaccggt gcctagagaa ggtggcgcgg ggtaaactgg gaaagtgatg
     2461 tcgtgtactg gctccgcctt tttcccgagg gtgggggaga accgtatata agtgcagtag
     2521 tcgccgtgaa cgttcttttt cgcaacgggt ttgccgccag aacacaggta agtgccgtgt
     2581 gtggttcccg cgggcctggc ctctttacgg gttatggccc ttgcgtgcct tgaattactt
     2641 ccacgcccct ggctgcagta cgtgattctt gatcccgagc ttcgggttgg aagtgggtgg
     2701 gagagttcga ggccttgcgc ttaaggagcc ccttcgcctc gtgcttgagt tgaggcctgg
     2761 cttgggcgct ggggccgccg cgtgcgaatc tggtggcacc ttcgcgcctg tctcgctgct
     2821 ttcgataagt ctctagccat ttaaaatttt tgatgacctg ctgcgacgct ttttttctgg
     2881 caagatagtc ttgtaaatgc gggccaagat ctgcacactg gtatttcggt ttttggggcc
     2941 gcgggcggcg acggggcccg tgcgtcccag cgcacatgtt cggcgaggcg gggcctgcga
     3001 gcgcggccac cgagaatcgg acgggggtag tctcaagctg gccggcctgc tctggtgcct
     3061 ggcctcgcgc cgccgtgtat cgccccgccc tgggcggcaa ggctggcccg gtcggcacca
     3121 gttgcgtgag cggaaagatg gccgcttccc ggccctgctg cagggagctc aaaatggagg
     3181 acgcggcgct cgggagagcg ggcgggtgag tcacccacac aaaggaaaag ggcctttccg
     3241 tcctcagccg tcgcttcatg tgactccacg gagtaccggg cgccgtccag gcacctcgat
     3301 tagttctcga gcttttggag tacgtcgtct ttaggttggg gggaggggtt ttatgcgatg
     3361 gagtttcccc acactgagtg ggtggagact gaagttaggc cagcttggca cttgatgtaa
     3421 ttctccttgg aatttgccct ttttgagttt ggatcttggt tcattctcaa gcctcagaca
     3481 gtggttcaaa gtttttttct tccatttcag gtgtcgtgag gatctatttc cggtgaattc
     3541 ctcgagacta gttctagagc ggccgcggat cccgcccctc tccctccccc ccccctaacg
     3601 ttactggccg aagccgcttg gaataaggcc ggtgtgcgtt tgtctatatg ttattttcca
     3661 ccatattgcc gtcttttggc aatgtgaggg cccggaaacc tggccctgtc ttcttgacga
     3721 gcattcctag gggtctttcc cctctcgcca aaggaatgca aggtctgttg aatgtcgtga
     3781 aggaagcagt tcctctggaa gcttcttgaa gacaaacaac gtctgtagcg accctttgca
     3841 ggcagcggaa ccccccacct ggcgacaggt gcctctgcgg ccaaaagcca cgtgtataag
     3901 atacacctgc aaaggcggca caaccccagt gccacgttgt gagttggata gttgtggaaa
     3961 gagtcaaatg gctcacctca agcgtattca acaaggggct gaaggatgcc cagaaggtac
     4021 cccattgtat gggatctgat ctggggcctc ggtgcacatg ctttacatgt gtttagtcga
     4081 ggttaaaaaa cgtctaggcc ccccgaacca cggggacgtg gttttccttt gaaaaacacg
     4141 atgataatat ggcccagtcc aagcacggcc tgaccaagga gatgaccatg aagtaccgca
     4201 tggagggctg cgtggacggc cacaagttcg tgatcaccgg cgagggcatc ggctacccct
     4261 tcaagggcaa gcaggccatc aacctgtgcg tggtggaggg cggccccttg cccttcgccg
     4321 aggacatctt gtccgccgcc ttcatgtacg gcaaccgcgt gttcaccgag tacccccagg
     4381 acatcgtcga ctacttcaag aactcctgcc ccgccggcta cacctgggac cgctccttcc
     4441 tgttcgagga cggcgccgtg tgcatctgca acgccgacat caccgtgagc gtggaggaga
     4501 actgcatgta ccacgagtcc aagttctacg gcgtgaactt ccccgccgac ggccccgtga
     4561 tgaagaagat gaccgacaac tgggagccct cctgcgagaa gatcatcccc gtgcccaagc
     4621 agggcatctt gaagggcgac gtgagcatgt acctgctgct gaaggacggt ggccgcttgc
     4681 gctgccagtt cgacaccgtg tacaaggcca agtccgtgcc ccgcaagatg cccgactggc
     4741 acttcatcca gcacaagctg acccgcgagg accgcagcga cgccaagaac cagaagtggc
     4801 acctgaccga gcacgccatc gcctccggct ccgccttgcc ctgaacgcgt ctggaacaat
     4861 caacctctgg attacaaaat ttgtgaaaga ttgactggta ttcttaacta tgttgctcct
     4921 tttacgctat gtggatacgc tgctttaatg cctttgtatc atgctattgc ttcccgtatg
     4981 gctttcattt tctcctcctt gtataaatcc tggttgctgt ctctttatga ggagttgtgg
     5041 cccgttgtca ggcaacgtgg cgtggtgtgc actgtgtttg ctgacgcaac ccccactggt
     5101 tggggcattg ccaccacctg tcagctcctt tccgggactt tcgctttccc cctccctatt
     5161 gccacggcgg aactcatcgc cgcctgcctt gcccgctgct ggacaggggc tcggctgttg
     5221 ggcactgaca attccgtggt gttgtcgggg aagctgacgt cctttccatg gctgctcgcc
     5281 tgtgttgcca cctggattct gcgcgggacg tccttctgct acgtcccttc ggccctcaat
     5341 ccagcggacc ttccttcccg cggcctgctg ccggctctgc ggcctcttcc gcgtcttcgc
     5401 cttcgccctc agacgagtcg gatctccctt tgggccgcct ccccgcctgg aattaattct
     5461 gcagtcgaga cctagaaaaa catggagcaa tcacaagtag caatacagca gctaccaatg
     5521 ctgattgtgc ctggctagaa gcacaagagg aggaggaggt gggttttcca gtcacacctc
     5581 aggtaccttt aagaccaatg acttacaagg cagctgtaga tcttagccac tttttaaaag
     5641 aaaagagggg actggaaggg ctaattcact cccaacgaag acaagatatc cttgatctgt
     5701 ggatctacca cacacaaggc tacttccctg attagcagaa ctacacacca gggccagggg
     5761 tcagatatcc actgaccttt ggatggtgct acaagctagt accagttgag ccagataagg
     5821 tagaagaggc caataaagga gagaacacca gcttgttaca ccctgtgagc ctgcatggga
     5881 tggatgaccc ggagagagaa gtgttagagt ggaggtttga cagccgccta gcatttcatc
     5941 acgtggcccg agagctgcat ccggagtact tcaagaactg ctgatatcga gcttgctaca
     6001 agggactttc cgctggggac tttccaggga ggcgtggcct gggcgggact ggggagtggc
     6061 gagccctcag atcctgcata taagcagctg ctttttgcct gtactgggtc tctctggtta
     6121 gaccagatct gagcctggga gctctctggc taactaggga acccactgct taagcctcaa
     6181 taaagcttgc cttgagtgct tcaagtagtg tgtgcccgtc tgttgtgtga ctctggtaac
     6241 tagagatccc tcagaccctt ttagtcagtg tggaaaatct ctagcagtag tagttcatgt
     6301 catcttatta ttcagtattt ataacttgca aagaaatgaa tatcagagag tgagaggcct
     6361 tgacattgct agcgtttacc gtcgacctct agctagagct tggcgtaatc atggtcatag
     6421 ctgtttcctg tgtgaaattg ttatccgctc acaattccac acaacatacg agccggaagc
     6481 ataaagtgta aagcctgggg tgcctaatga gtgagctaac tcacattaat tgcgttgcgc
     6541 tcactgcccg ctttccagtc gggaaacctg tcgtgccagc tgcattaatg aatcggccaa
     6601 cgcgcgggga gaggcggttt gcgtattggg cgctcttccg cttcctcgct cactgactcg
     6661 ctgcgctcgg tcgttcggct gcggcgagcg gtatcagctc actcaaaggc ggtaatacgg
     6721 ttatccacag aatcagggga taacgcagga aagaacatgt gagcaaaagg ccagcaaaag
     6781 gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc ataggctccg cccccctgac
     6841 gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa acccgacagg actataaaga
     6901 taccaggcgt ttccccctgg aagctccctc gtgcgctctc ctgttccgac cctgccgctt
     6961 accggatacc tgtccgcctt tctcccttcg ggaagcgtgg cgctttctca tagctcacgc
     7021 tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc tgggctgtgt gcacgaaccc
     7081 cccgttcagc ccgaccgctg cgccttatcc ggtaactatc gtcttgagtc caacccggta
     7141 agacacgact tatcgccact ggcagcagcc actggtaaca ggattagcag agcgaggtat
     7201 gtaggcggtg ctacagagtt cttgaagtgg tggcctaact acggctacac tagaagaaca
     7261 gtatttggta tctgcgctct gctgaagcca gttaccttcg gaaaaagagt tggtagctct
     7321 tgatccggca aacaaaccac cgctggtagc ggtggttttt ttgtttgcaa gcagcagatt
     7381 acgcgcagaa aaaaaggatc tcaagaagat cctttgatct tttctacggg gtctgacgct
     7441 cagtggaacg aaaactcacg ttaagggatt ttggtcatga gattatcaaa aaggatcttc
     7501 acctagatcc ttttaaatta aaaatgaagt tttaaatcaa tctaaagtat atatgagtaa
     7561 acttggtctg acagttacca atgcttaatc agtgaggcac ctatctcagc gatctgtcta
     7621 tttcgttcat ccatagttgc ctgactcccc gtcgtgtaga taactacgat acgggagggc
     7681 ttaccatctg gccccagtgc tgcaatgata ccgcgagacc cacgctcacc ggctccagat
     7741 ttatcagcaa taaaccagcc agccggaagg gccgagcgca gaagtggtcc tgcaacttta
     7801 tccgcctcca tccagtctat taattgttgc cgggaagcta gagtaagtag ttcgccagtt
     7861 aatagtttgc gcaacgttgt tgccattgct acaggcatcg tggtgtcacg ctcgtcgttt
     7921 ggtatggctt cattcagctc cggttcccaa cgatcaaggc gagttacatg atcccccatg
     7981 ttgtgcaaaa aagcggttag ctccttcggt cctccgatcg ttgtcagaag taagttggcc
     8041 gcagtgttat cactcatggt tatggcagca ctgcataatt ctcttactgt catgccatcc
     8101 gtaagatgct tttctgtgac tggtgagtac tcaaccaagt cattctgaga atagtgtatg
     8161 cggcgaccga gttgctcttg cccggcgtca atacgggata ataccgcgcc acatagcaga
     8221 actttaaaag tgctcatcat tggaaaacgt tcttcggggc gaaaactctc aaggatctta
     8281 ccgctgttga gatccagttc gatgtaaccc actcgtgcac ccaactgatc ttcagcatct
     8341 tttactttca ccagcgtttc tgggtgagca aaaacaggaa ggcaaaatgc cgcaaaaaag
     8401 ggaataaggg cgacacggaa atgttgaata ctcatactct tcctttttca atattattga
     8461 agcatttatc agggttattg tctcatgagc ggatacatat ttgaatgtat ttagaaaaat
     8521 aaacaaatag gggttccgcg cacatttccc cgaaaagtgc cacctgacgt cgacggatcg
     8581 ggagatcaac ttgtttattg cagcttataa tggttacaaa taaagcaata gcatcacaaa
     8641 tttcacaaat aaagcatttt tttcactgca ttctagttgt ggtttgtcca aactcatcaa
     8701 tgtatcttat catgtctgga tcaactggat aactcaagct aaccaaaatc atcccaaact
     8761 tcccacccca taccctatta ccactgccaa ttacctgtgg tttcatttac tctaaacctg
     8821 tgattcctct gaattatttt cattttaaag aaattgtatt tgttaaatat gtactacaaa
     8881 cttagtagt
//

pLVX-EF1α-IRES-ZsGreen1载体图谱质粒图谱pdf版和pLVX-EF1α-IRES-ZsGreen1载体序列质粒序列等相关资料下载

pLVX-EF1α-IRES-ZsGreen1质粒载体应用举例

分享到:

全部质粒载体分类

相关质粒载体

相关质粒载体文章

相关载体质粒问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
