pRS305

价格:1500元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pRS305载体质粒基本信息

出品公司: ATCC
载体名称: pRS303
质粒类型: 酵母表达载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: T3
载体大小: 5.5 kb
5’测序引物: M13-F:TGTAAAACGACGGCCAGT
3’测序引物: M13-R:CAGGAAACAGCTATGACC
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: 亮氨酸筛选
克隆菌株: DH5 alpha; 等
宿主细胞(系): 酿酒酵母
产品目录号: 77140
稳定性: 瞬表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒
备注: pRS305载体是酿酒酵母表达载体。

pRS305质粒图谱载体图谱和pRS305载体序列质粒序列多克隆位点信息

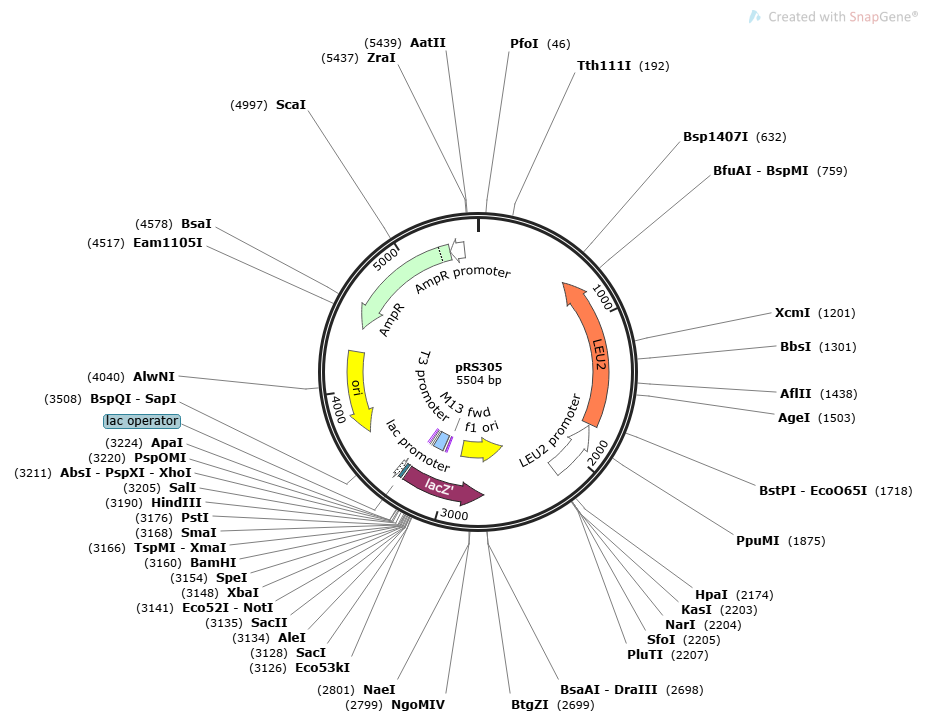

pRS305载体图谱

pRS305质粒载体简介

pRS305质粒序列载体序列

LOCUS       pRS305                5504 bp DNA     circular SYN 07-MAR-2024
DEFINITION  Yeast integrative vector with a LEU2 marker and an MCS derived from
            pBLUESCRIPT.
ACCESSION   U03437
VERSION     .
KEYWORDS    pRS305
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5504)
  AUTHORS   Sikorski RS, Hieter P.
  TITLE     A system of shuttle vectors and yeast host strains designed for
            efficient manipulation of DNA in Saccharomyces cerevisiae.
  JOURNAL   Genetics 1989;122:19-27.
  PUBMED    2659436
REFERENCE   2  (bases 1 to 5504)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jul 14, 2024 from SnapGene 6.0.2
            https://www.biofeng.com
COMMENT     SGRef: number: 1; type: "Journal Article"; journalName: "Genetics";
            date: "1989"; volume: "122"; pages: "19-27"
FEATURES             Location/Qualifiers
     source          1..5504
                     /lab_host="Saccharomyces cerevisiae"
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     CDS             complement(663..1757)
                     /codon_start=1
                     /gene="S. cerevisiae LEU2"
                     /product="3-isopropylmalate dehydrogenase, required for
                     leucine biosynthesis"
                     /label=LEU2
                     /note="yeast auxotrophic marker"
                     /note="color: #ff7f50"
                     /translation="MSAPKKIVVLPGDHVGQEITAEAIKVLKAISDVRSNVKFDFENHL
                     IGGAAIDATGVPLPDEALEASKKVDAVLLGAVGGPKWGTGSVRPEQGLLKIRKELQLYA
                     NLRPCNFASDSLLDLSPIKPQFAKGTDFVVVRELVGGIYFGKRKEDDGDGVAWDSEQYT
                     VPEVQRITRMAAFMALQHEPPLPIWSLDKANVLASSRLWRKTVEETIKNEFPTLKVQHQ
                     LIDSAAMILVKNPTHLNGIIITSNMFGDIISDEASVIPGSLGLLPSASLASLPDKNTAF
                     GLYEPCHGSAPDLPKNKVDPIATILSAAMMLKLSLNLPEEGKAIEDAVKKVLDAGIRTG
                     DLGGSNSTTEVGDAVAEEVKKILA"
     promoter        complement(1770..2174)
                     /gene="S. cerevisiae LEU2"
                     /label=LEU2 promoter
                     /note="color: #ffffff; direction: LEFT"
     rep_origin      complement(2474..2929)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
                     /note="color: #ffff00"
     CDS             complement(2712..3287)
                     /codon_start=1
                     /gene="lacZ fragment"
                     /product="fragment of beta-galactosidase"
                     /label=lacZ'
                     /note="color: #993366"
                     /translation="MTMITPSSELTLTKGNKSWVPGPPSRSTVSISLISNSCSPGDPLV
                     LERPPPRWSSNSPYSESYYNSLAVVLQRRDWENPGVTQLNRLAAHPPFASWRNSEEART
                     DRPSQQLRSLNGEWRDAPCSGALSAAGVVVTRSVTATLASALAPAPFAFFPSFLATFAG
                     FPRQALNRGLPLGFRFSALRHLDPKKLD"
     primer_bind     3074..3090
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
                     /note="color: #a020f0; direction: RIGHT"
     promoter        3097..3115
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
                     /note="color: #ffffff; direction: RIGHT"
     misc_feature    3124..3231
                     /label=MCS
                     /note="pBluescript multiple cloning site"
                     /note="color: #99ccff"
     promoter        complement(3244..3262)
                     /label=T3 promoter
                     /note="promoter for bacteriophage T3 RNA polymerase"
                     /note="color: #ffffff; direction: LEFT"
     primer_bind     complement(3283..3299)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
                     /note="color: #a020f0; direction: LEFT"
     protein_bind    3307..3323
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
                     /note="color: #31849b"
     promoter        complement(3331..3361)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
                     /note="This reverse directional feature has 3 segments:
                        1: 3331 .. 3337 / #ffffff / -10
                        2: 3338 .. 3355 / #ffffff
                        3: 3356 .. 3361 / #ffffff / -35"
     rep_origin      complement(3685..4273)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number colE1/pMB1/pBR322/pUC origin of
                     replication"
                     /note="color: #ffff00"
     CDS             complement(4444..5304)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /note="This feature has 2 segments:
                        1: 4444 .. 5235 / #ccffcc
                        2: 5236 .. 5304 / #ccffcc / signal sequence
                     Cleavage site after base 5235"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFFHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(5305..5409)
                     /gene="bla"
                     /label=AmpR promoter
                     /note="color: #ffffff; direction: LEFT"
ORIGIN
        1 tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg gagacggtca
       61 cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg tcagcgggtg
      121 ttggcgggtg tcggggctgg cttaactatg cggcatcaga gcagattgta ctgagagtgc
      181 accatatcga ctacgtcgta aggccgtttc tgacagagta aaattcttga gggaactttc
      241 accattatgg gaaatggttc aagaaggtat tgacttaaac tccatcaaat ggtcaggtca
      301 ttgagtgttt tttatttgtt gtattttttt ttttttagag aaaatcctcc aatatcaaat
      361 taggaatcgt agtttcatga ttttctgtta cacctaactt tttgtgtggt gccctcctcc
      421 ttgtcaatat taatgttaaa gtgcaattct ttttccttat cacgttgagc cattagtatc
      481 aatttgctta cctgtattcc tttactatcc tcctttttct ccttcttgat aaatgtatgt
      541 agattgcgta tatagtttcg tctaccctat gaacatattc cattttgtaa tttcgtgtcg
      601 tttctattat gaatttcatt tataaagttt atgtacaaat atcataaaaa aagagaatct
      661 ttttaagcaa ggattttctt aacttcttcg gcgacagcat caccgacttc ggtggtactg
      721 ttggaaccac ctaaatcacc agttctgata cctgcatcca aaaccttttt aactgcatct
      781 tcaatggcct taccttcttc aggcaagttc aatgacaatt tcaacatcat tgcagcagac
      841 aagatagtgg cgatagggtc aaccttattc tttggcaaat ctggagcaga accgtggcat
      901 ggttcgtaca aaccaaatgc ggtgttcttg tctggcaaag aggccaagga cgcagatggc
      961 aacaaaccca aggaacctgg gataacggag gcttcatcgg agatgatatc accaaacatg
     1021 ttgctggtga ttataatacc atttaggtgg gttgggttct taactaggat catggcggca
     1081 gaatcaatca attgatgttg aaccttcaat gtagggaatt cgttcttgat ggtttcctcc
     1141 acagtttttc tccataatct tgaagaggcc aaaacattag ctttatccaa ggaccaaata
     1201 ggcaatggtg gctcatgttg tagggccatg aaagcggcca ttcttgtgat tctttgcact
     1261 tctggaacgg tgtattgttc actatcccaa gcgacaccat caccatcgtc ttcctttctc
     1321 ttaccaaagt aaatacctcc cactaattct ctgacaacaa cgaagtcagt acctttagca
     1381 aattgtggct tgattggaga taagtctaaa agagagtcgg atgcaaagtt acatggtctt
     1441 aagttggcgt acaattgaag ttctttacgg atttttagta aaccttgttc aggtctaaca
     1501 ctaccggtac cccatttagg accacccaca gcacctaaca aaacggcatc aaccttcttg
     1561 gaggcttcca gcgcctcatc tggaagtggg acacctgtag catcgatagc agcaccacca
     1621 attaaatgat tttcgaaatc gaacttgaca ttggaacgaa catcagaaat agctttaaga
     1681 accttaatgg cttcggctgt gatttcttga ccaacgtggt cacctggcaa aacgacgatc
     1741 ttcttagggg cagacatagg ggcagacatt agaatggtat atccttgaaa tatatatata
     1801 tattgctgaa atgtaaaagg taagaaaagt tagaaagtaa gacgattgct aaccacctat
     1861 tggaaaaaac aataggtcct taaataatat tgtcaacttc aagtattgtg atgcaagcat
     1921 ttagtcatga acgcttctct attctatatg aaaagccggt tccggcctct cacctttcct
     1981 ttttctccca atttttcagt tgaaaaaggt atatgcgtca ggcgacctct gaaattaaca
     2041 aaaaatttcc agtcatcgaa tttgattctg tgcgatagcg cccctgtgtg ttctcgttat
     2101 gttgaggaaa aaaataatgg ttgctaagag attcgaactc ttgcatctta cgatacctga
     2161 gtattcccac agttaactgc ggtcaagata tttcttgaat caggcgcctt agaccgctcg
     2221 gccaaacaac caattacttg ttgagaaata gagtataatt atcctataaa tataacgttt
     2281 ttgaacacac atgaacaagg aagtacagga caattgattt tgaagagaat gtggattttg
     2341 atgtaattgt tgggattcca tttttaataa ggcaataata ttaggtatgt ggatatacta
     2401 gaagttctcc tcgaccgtcg atatgcggtg tgaaataccg cacagatgcg taaggagaaa
     2461 ataccgcatc aggaaattgt aaacgttaat attttgttaa aattcgcgtt aaatttttgt
     2521 taaatcagct cattttttaa ccaataggcc gaaatcggca aaatccctta taaatcaaaa
     2581 gaatagaccg agatagggtt gagtgttgtt ccagtttgga acaagagtcc actattaaag
     2641 aacgtggact ccaacgtcaa agggcgaaaa accgtctatc agggcgatgg cccactacgt
     2701 gaaccatcac cctaatcaag ttttttgggg tcgaggtgcc gtaaagcact aaatcggaac
     2761 cctaaaggga gcccccgatt tagagcttga cggggaaagc cggcgaacgt ggcgagaaag
     2821 gaagggaaga aagcgaaagg agcgggcgct agggcgctgg caagtgtagc ggtcacgctg
     2881 cgcgtaacca ccacacccgc cgcgcttaat gcgccgctac agggcgcgtc gcgccattcg
     2941 ccattcaggc tgcgcaactg ttgggaaggg cgatcggtgc gggcctcttc gctattacgc
     3001 cagctggcga aggggggatg tgctgcaagg cgattaagtt gggtaacgcc agggttttcc
     3061 cagtcacgac gttgtaaaac gacggccagt gaattgtaat acgactcact atagggcgaa
     3121 ttggagctcc accgcggtgg cggccgctct agaactagtg gatcccccgg gctgcaggaa
     3181 ttcgatatca agcttatcga taccgtcgac ctcgaggggg ggcccggtac ccagcttttg
     3241 ttccctttag tgagggttaa ttccgagctt ggcgtaatca tggtcatagc tgtttcctgt
     3301 gtgaaattgt tatccgctca caattccaca caacatagga gccggaagca taaagtgtaa
     3361 agcctggggt gcctaatgag tgaggtaact cacattaatt gcgttgcgct cactgcccgc
     3421 tttccagtcg ggaaacctgt cgtgccagct gcattaatga atcggccaac gcgcggggag
     3481 aggcggtttg cgtattgggc gctcttccgc ttcctcgctc actgactcgc tgcgctcggt
     3541 cgttcggctg cggcgagcgg tatcagctca ctcaaaggcg gtaatacggt tatccacaga
     3601 atcaggggat aacgcaggaa agaacatgtg agcaaaaggc cagcaaaagg ccaggaaccg
     3661 taaaaaggcc gcgttgctgg cgtttttcca taggctcggc ccccctgacg agcatcacaa
     3721 aaatcgacgc tcaagtcaga ggtggcgaaa cccgacagga ctataaagat accaggcgtt
     3781 cccccctgga agctccctcg tgcgctctcc tgttccgacc ctgccgctta ccggatacct
     3841 gtccgccttt ctcccttcgg gaagcgtggc gctttctcaa tgctcacgct gtaggtatct
     3901 cagttcggtg taggtcgttc gctccaagct gggctgtgtg cacgaacccc ccgttcagcc
     3961 cgaccgctgc gccttatccg gtaactatcg tcttgagtcc aacccggtaa gacacgactt
     4021 atcgccactg gcagcagcca ctggtaacag gattagcaga gcgaggtatg taggcggtgc
     4081 tacagagttc ttgaagtggt ggcctaacta cggctacact agaaggacag tatttggtat
     4141 ctgcgctctg ctgaagccag ttaccttcgg aaaaagagtt ggtagctctt gatccggcaa
     4201 acaaaccacc gctggtagcg gtggtttttt tgtttgcaag cagcagatta cgcgcagaaa
     4261 aaaaggatct caagaagatc ctttgatctt ttctacgggg tctgacgctc agtggaacga
     4321 aaactcacgt taagggattt tggtcatgag attatcaaaa aggatcttca cctagatcct
     4381 tttaaattaa aaatgaagtt ttaaatcaat ctaaagtata tatgagtaaa cttggtctga
     4441 cagttaccaa tgcttaatca gtgaggcacc tatctcagcg atctgtctat ttcgttcatc
     4501 catagttgcc tgactgcccg tcgtgtagat aactacgata cgggagggct taccatctgg
     4561 ccccagtgct gcaatgatac cgcgagaccc acgctcaccg gctccagatt tatcagcaat
     4621 aaaccagcca gccggaaggg ccgagcgcag aagtggtcct gcaactttat ccgcctccat
     4681 ccagtctatt aattgttgcc gggaagctag agtaagtagt tcgccagtta atagtttgcg
     4741 caacgttgtt gccattgcta caggcatcgt ggtgtcacgc tcgtcgtttg gtatggcttc
     4801 attcagctcc ggttcccaac gatcaaggcg agttacatga tcccccatgt tgtgaaaaaa
     4861 agcggttagc tccttcggtc ctccgatcgt tgtcagaagt aagttggccg cagtgttatc
     4921 actcatggtt atggcagcac tgcataattc tcttactgtc atgccatccg taagatgctt
     4981 ttctgtgact ggtgagtact caaccaagtc attctgagaa tagtgtatgc ggcgaccgag
     5041 ttgctcttgc ccggcgtcaa tacgggataa taccgcgcca catagcagaa ctttaaaagt
     5101 gctcatcatt ggaaaacgtt cttcggggcg aaaactctca aggatcttac cgctgttgag
     5161 atccagttcg atgtaaccca ctcgtgcacc caactgatct tcagcatctt ttactttcac
     5221 cagcgtttct gggtgagcaa aaacaggaag gcaaaatgcc gcaaaaaagg gaataagggc
     5281 gacacggaaa tgttgaatac tcatactctt cctttttcaa tattattgaa gcatttatca
     5341 gggttattgt ctcatgagcg gatacatatt tgaatgtatt tagaaaaata aacaaatagg
     5401 ggttccgcgc acatttcccc gaaaagtgcc acctgacgtc taagaaacca ttattatcat
     5461 gacattaacc tataaaaata ggcgtatcac gaggcccttt cgtc
//

pRS305载体图谱质粒图谱pdf版和pRS305载体序列质粒序列等相关资料下载

pRS305质粒载体应用举例

分享到:

全部质粒载体分类

相关质粒载体

相关质粒载体文章

相关载体质粒问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
