pRS304

价格:1500元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pRS304载体质粒基本信息

出品公司: ATCC
载体名称: pRS304
质粒类型: 酵母表达载体
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: T3
载体大小: 4.3 kb
5’测序引物: M13-F:TGTAAAACGACGGCCAGT
3’测序引物: M13-R:CAGGAAACAGCTATGACC
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: 亮氨酸筛选
克隆菌株: DH5 alpha; 等
宿主细胞(系): 酿酒酵母
产品目录号: 77139
稳定性: 瞬表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒
备注: pRS304载体是酿酒酵母表达载体。

pRS304质粒图谱载体图谱和pRS304载体序列质粒序列多克隆位点信息

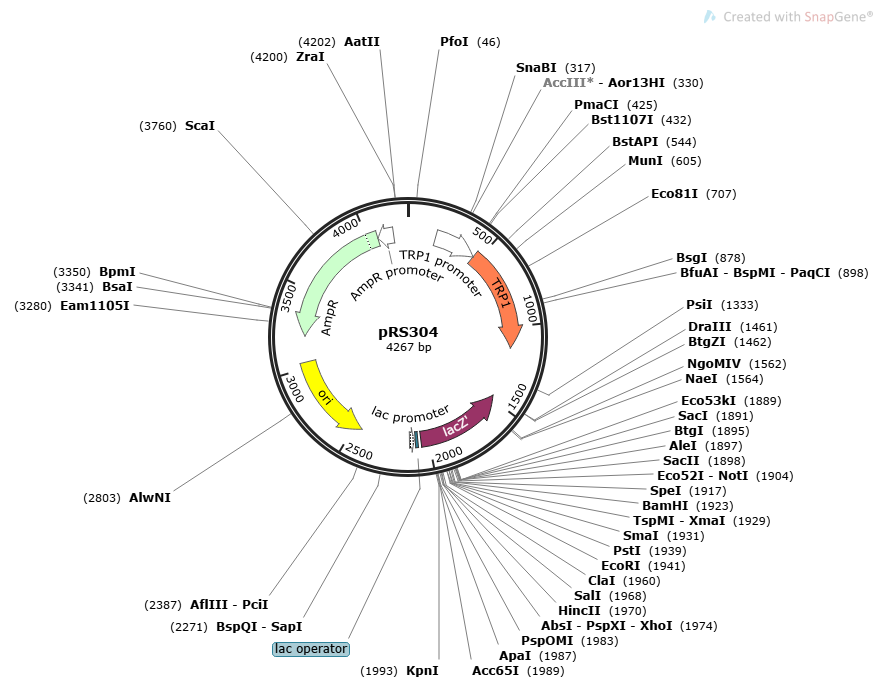

pRS304载体图谱

pRS304质粒载体简介

pRS304质粒序列载体序列

LOCUS       pRS304                4267 bp DNA     circular SYN 07-MAR-2024
DEFINITION  Yeast integrative vector with a TRP1 marker and an MCS derived from
            pBLUESCRIPT.
ACCESSION   U03436
VERSION     .
KEYWORDS    pRS304
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4267)
  AUTHORS   Sikorski RS, Hieter P.
  TITLE     A system of shuttle vectors and yeast host strains designed for
            efficient manipulation of DNA in Saccharomyces cerevisiae.
  JOURNAL   Genetics 1989;122:19-27.
  PUBMED    2659436
REFERENCE   2  (bases 1 to 4267)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jul 14, 2024 from SnapGene 6.0.2
            https://www.biofeng.com
COMMENT     SGRef: number: 1; type: "Journal Article"; journalName: "Genetics";
            date: "1989"; volume: "122"; pages: "19-27"
FEATURES             Location/Qualifiers
     source          1..4267
                     /lab_host="Saccharomyces cerevisiae"
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        185..465
                     /gene="S. cerevisiae TRP1"
                     /label=TRP1 promoter
                     /note="color: #ffffff; direction: RIGHT"
     CDS             466..1140
                     /codon_start=1
                     /gene="S. cerevisiae TRP1"
                     /product="phosphoribosylanthranilate isomerase, required
                     for tryptophan biosynthesis"
                     /label=TRP1
                     /note="yeast auxotrophic marker"
                     /note="color: #ff7f50"
                     /translation="MSVINFTGSSGPLVKVCGLQSTEAAECALDSDADLLGIICVPNRK
                     RTIDPVIARKISSLVKAYKNSSGTPKYLVGVFRNQPKEDVLALVNDYGIDIVQLHGDES
                     WQEYQEFLGLPVIKRLVFPKDCNILLSAASQKPHSFIPLFDSEAGGTGELLDWNSISDW
                     VGRQESPESLHFMLAGGLTPENVGDALRLNGVIGVDVSGGVETNGVKDSNKIANFVKNA
                     KK"
     rep_origin      complement(1237..1692)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
                     /note="color: #ffff00"
     CDS             complement(1475..2050)
                     /codon_start=1
                     /gene="lacZ fragment"
                     /product="fragment of beta-galactosidase"
                     /label=lacZ'
                     /note="color: #993366"
                     /translation="MTMITPSSELTLTKGNKSWVPGPPSRSTVSISLISNSCSPGDPLV
                     LERPPPRWSSNSPYSESYYNSLAVVLQRRDWENPGVTQLNRLAAHPPFASWRNSEEART
                     DRPSQQLRSLNGEWRDAPCSGALSAAGVVVTRSVTATLASALAPAPFAFFPSFLATFAG
                     FPRQALNRGLPLGFRFSALRHLDPKKLD"
     primer_bind     1837..1853
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
                     /note="color: #a020f0; direction: RIGHT"
     promoter        1860..1878
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
                     /note="color: #ffffff; direction: RIGHT"
     misc_feature    1887..1994
                     /label=MCS
                     /note="pBluescript multiple cloning site"
                     /note="color: #99ccff"
     promoter        complement(2007..2025)
                     /label=T3 promoter
                     /note="promoter for bacteriophage T3 RNA polymerase"
                     /note="color: #ffffff; direction: LEFT"
     primer_bind     complement(2046..2062)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
                     /note="color: #a020f0; direction: LEFT"
     protein_bind    2070..2086
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
                     /note="color: #31849b"
     promoter        complement(2094..2124)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
                     /note="This reverse directional feature has 3 segments:
                        1: 2094 .. 2100 / #ffffff / -10
                        2: 2101 .. 2118 / #ffffff
                        3: 2119 .. 2124 / #ffffff / -35"
     rep_origin      complement(2448..3036)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number colE1/pMB1/pBR322/pUC origin of
                     replication"
                     /note="color: #ffff00"
     CDS             complement(3207..4067)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /note="This feature has 2 segments:
                        1: 3207 .. 3998 / #ccffcc
                        2: 3999 .. 4067 / #ccffcc / signal sequence
                     Cleavage site after base 3998"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFFHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(4068..4172)
                     /gene="bla"
                     /label=AmpR promoter
                     /note="color: #ffffff; direction: LEFT"
ORIGIN
        1 tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg gagacggtca
       61 cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg tcagcgggtg
      121 ttggcgggtg tcggggctgg cttaactatg cggcatcaga gcagattgta ctgagagtgc
      181 accaaacgac attactatat atataatata ggaagcattt aatagacagc atcgtaatat
      241 atgtgtactt tgcagttatg acgccagatg gcagtagtgg aagatattct ttattgaaaa
      301 atagcttgtc accttacgta caatcttgat ccggagcttt tctttttttg ccgattaaga
      361 attaattcgg tcgaaaaaag aaaaggagag ggccaagagg gagggcattg gtgactattg
      421 agcacgtgag tatacgtgat taagcacaca aaggcagctt ggagtatgtc tgttattaat
      481 ttcacaggta gttctggtcc attggtgaaa gtttgcggct tgcagagcac agaggccgca
      541 gaatgtgctc tagattccga tgctgacttg ctgggtatta tatgtgtgcc caatagaaag
      601 agaacaattg acccggttat tgcaaggaaa atttcaagtc ttgtaaaagc atataaaaat
      661 agttcaggca ctccgaaata cttggttggc gtgtttcgta atcaacctaa ggaggatgtt
      721 ttggctctgg tcaatgatta cggcattgat atcgtccaac tgcatggaga tgagtcgtgg
      781 caagaatacc aagagttcct cggtttgcca gttattaaaa gactcgtatt tccaaaagac
      841 tgcaacatac tactcagtgc agcttcacag aaacctcatt cgtttattcc cttgtttgat
      901 tcagaagcag gtgggacagg tgaacttttg gattggaact cgatttctga ctgggttgga
      961 aggcaagaga gccccgaaag cttacatttt atgttagctg gtggactgac gccagaaaat
     1021 gttggtgatg cgcttagatt aaatggcgtt attggtgttg atgtaagcgg aggtgtggag
     1081 acaaatggtg taaaagactc taacaaaata gcaaatttcg tcaaaaatgc taagaaatag
     1141 gttattactg agtagtattt atttaagtat tgtttgtgca cttgcctgcg gtgtgaaata
     1201 ccgcacagat gcgtaaggag aaaataccgc atcaggaaat tgtaaacgtt aatattttgt
     1261 taaaattcgc gttaaatttt tgttaaatca gctcattttt taaccaatag gccgaaatcg
     1321 gcaaaatccc ttataaatca aaagaataga ccgagatagg gttgagtgtt gttccagttt
     1381 ggaacaagag tccactatta aagaacgtgg actccaacgt caaagggcga aaaaccgtct
     1441 atcagggcga tggcccacta cgtgaaccat caccctaatc aagttttttg gggtcgaggt
     1501 gccgtaaagc actaaatcgg aaccctaaag ggagcccccg atttagagct tgacggggaa
     1561 agccggcgaa cgtggcgaga aaggaaggga agaaagcgaa aggagcgggc gctagggcgc
     1621 tggcaagtgt agcggtcacg ctgcgcgtaa ccaccacacc cgccgcgctt aatgcgccgc
     1681 tacagggcgc gtcgcgccat tcgccattca ggctgcgcaa ctgttgggaa gggcgatcgg
     1741 tgcgggcctc ttcgctatta cgccagctgg cgaagggggg atgtgctgca aggcgattaa
     1801 gttgggtaac gccagggttt tcccagtcac gacgttgtaa aacgacggcc agtgaattgt
     1861 aatacgactc actatagggc gaattggagc tccaccgcgg tggcggccgc tctagaacta
     1921 gtggatcccc cgggctgcag gaattcgata tcaagcttat cgataccgtc gacctcgagg
     1981 gggggcccgg tacccagctt ttgttccctt tagtgagggt taattccgag cttggcgtaa
     2041 tcatggtcat agctgtttcc tgtgtgaaat tgttatccgc tcacaattcc acacaacata
     2101 ggagccggaa gcataaagtg taaagcctgg ggtgcctaat gagtgaggta actcacatta
     2161 attgcgttgc gctcactgcc cgctttccag tcgggaaacc tgtcgtgcca gctgcattaa
     2221 tgaatcggcc aacgcgcggg gagaggcggt ttgcgtattg ggcgctcttc cgcttcctcg
     2281 ctcactgact cgctgcgctc ggtcgttcgg ctgcggcgag cggtatcagc tcactcaaag
     2341 gcggtaatac ggttatccac agaatcaggg gataacgcag gaaagaacat gtgagcaaaa
     2401 ggccagcaaa aggccaggaa ccgtaaaaag gccgcgttgc tggcgttttt ccataggctc
     2461 ggcccccctg acgagcatca caaaaatcga cgctcaagtc agaggtggcg aaacccgaca
     2521 ggactataaa gataccaggc gttcccccct ggaagctccc tcgtgcgctc tcctgttccg
     2581 accctgccgc ttaccggata cctgtccgcc tttctccctt cgggaagcgt ggcgctttct
     2641 caatgctcac gctgtaggta tctcagttcg gtgtaggtcg ttcgctccaa gctgggctgt
     2701 gtgcacgaac cccccgttca gcccgaccgc tgcgccttat ccggtaacta tcgtcttgag
     2761 tccaacccgg taagacacga cttatcgcca ctggcagcag ccactggtaa caggattagc
     2821 agagcgaggt atgtaggcgg tgctacagag ttcttgaagt ggtggcctaa ctacggctac
     2881 actagaagga cagtatttgg tatctgcgct ctgctgaagc cagttacctt cggaaaaaga
     2941 gttggtagct cttgatccgg caaacaaacc accgctggta gcggtggttt ttttgtttgc
     3001 aagcagcaga ttacgcgcag aaaaaaagga tctcaagaag atcctttgat cttttctacg
     3061 gggtctgacg ctcagtggaa cgaaaactca cgttaaggga ttttggtcat gagattatca
     3121 aaaaggatct tcacctagat ccttttaaat taaaaatgaa gttttaaatc aatctaaagt
     3181 atatatgagt aaacttggtc tgacagttac caatgcttaa tcagtgaggc acctatctca
     3241 gcgatctgtc tatttcgttc atccatagtt gcctgactgc ccgtcgtgta gataactacg
     3301 atacgggagg gcttaccatc tggccccagt gctgcaatga taccgcgaga cccacgctca
     3361 ccggctccag atttatcagc aataaaccag ccagccggaa gggccgagcg cagaagtggt
     3421 cctgcaactt tatccgcctc catccagtct attaattgtt gccgggaagc tagagtaagt
     3481 agttcgccag ttaatagttt gcgcaacgtt gttgccattg ctacaggcat cgtggtgtca
     3541 cgctcgtcgt ttggtatggc ttcattcagc tccggttccc aacgatcaag gcgagttaca
     3601 tgatccccca tgttgtgaaa aaaagcggtt agctccttcg gtcctccgat cgttgtcaga
     3661 agtaagttgg ccgcagtgtt atcactcatg gttatggcag cactgcataa ttctcttact
     3721 gtcatgccat ccgtaagatg cttttctgtg actggtgagt actcaaccaa gtcattctga
     3781 gaatagtgta tgcggcgacc gagttgctct tgcccggcgt caatacggga taataccgcg
     3841 ccacatagca gaactttaaa agtgctcatc attggaaaac gttcttcggg gcgaaaactc
     3901 tcaaggatct taccgctgtt gagatccagt tcgatgtaac ccactcgtgc acccaactga
     3961 tcttcagcat cttttacttt caccagcgtt tctgggtgag caaaaacagg aaggcaaaat
     4021 gccgcaaaaa agggaataag ggcgacacgg aaatgttgaa tactcatact cttccttttt
     4081 caatattatt gaagcattta tcagggttat tgtctcatga gcggatacat atttgaatgt
     4141 atttagaaaa ataaacaaat aggggttccg cgcacatttc cccgaaaagt gccacctgac
     4201 gtctaagaaa ccattattat catgacatta acctataaaa ataggcgtat cacgaggccc
     4261 tttcgtc
//

pRS304载体图谱质粒图谱pdf版和pRS304载体序列质粒序列等相关资料下载

pRS304质粒载体应用举例
