出品公司: | AB Vector |
---|---|
载体名称: | pAB-bee |
质粒类型: | 昆虫细胞载体 |
高拷贝/低拷贝: | 高拷贝 |
克隆方法: | -- |
启动子: | -- |
载体大小: | 9932 bp |
5' 测序引物及序列: | -- |
3' 测序引物及序列: | -- |
载体标签: | -- |
载体抗性: | 氨苄青霉素 |
筛选标记: | -- |
克隆菌株: | -- |
宿主细胞(系): | -- |
备注: | -- |
产品目录号: | -- |
稳定性: | -- |
组成型/诱导型: | -- |
病毒/非病毒: | -- |
买家导航
pAB-bee载体 pABbee质粒基本信息

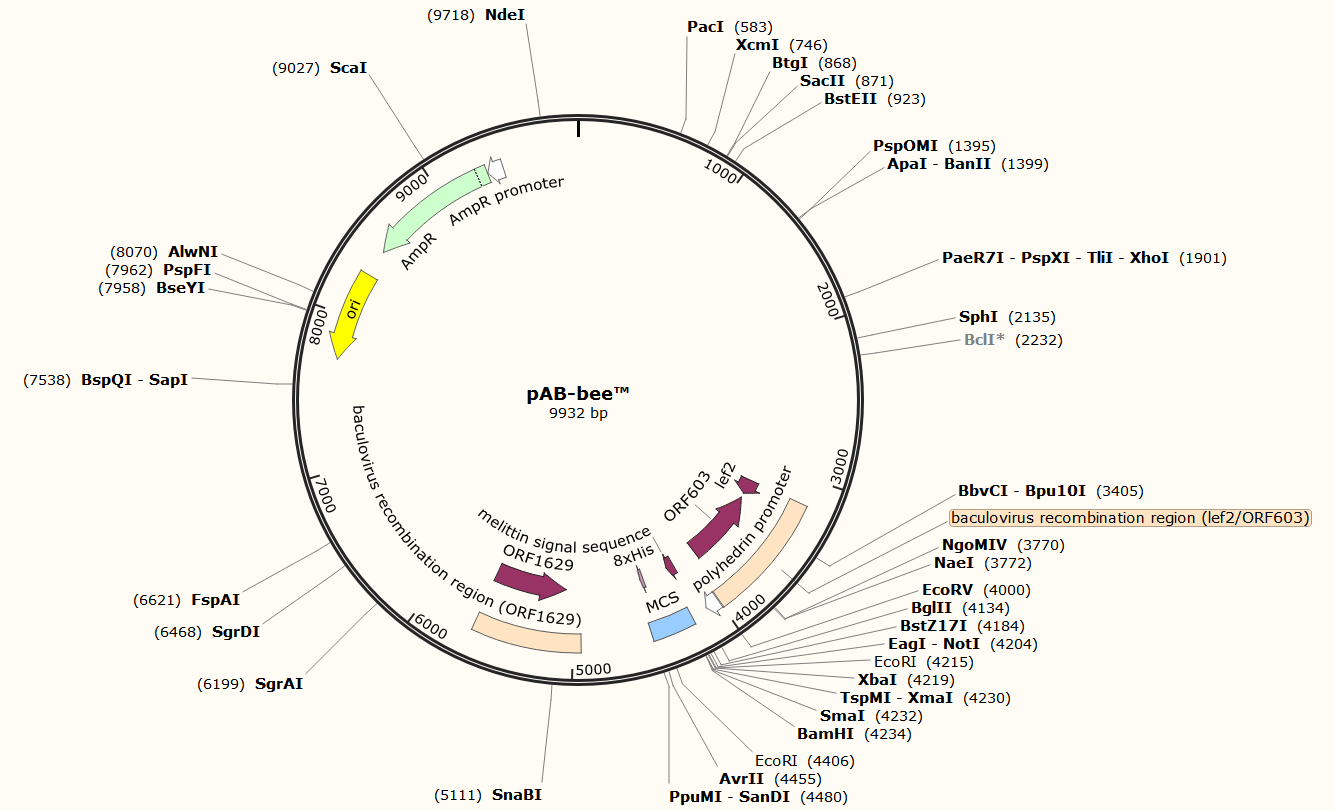

pAB-bee质粒图谱 pABbee载体图谱和pAB-bee载体序列 pABbee质粒序列多克隆位点信息
pAB-bee质粒 pABbee载体简介
pAB-bee质粒序列 pABbee载体序列
LOCUS pAB-bee 9932 bp ds-DNA circular SYN 04-MAY-2014 DEFINITION Baculovirus transfer plasmid for high-level expression of secreted proteins with a C-terminal 8xHis tag. ACCESSION . VERSION . KEYWORDS pAB-bee SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 9932) AUTHORS AB Vector TITLE Direct Submission JOURNAL Exported Saturday, January 4, 2020 from SnapGene Viewer 3.1.4 http://www.snapgene.com FEATURES Location/Qualifiers source 1..9932 /organism="synthetic DNA construct" /lab_host="Insect Cells" /mol_type="other DNA" misc_recomb 3170..3997 /note="baculovirus recombination region (lef2/ORF603)" /note="contains ORF603 and part of lef2" CDS 3170..3294 /codon_start=3 /product="baculovirus late expression factor 2" /note="lef2" /translation="HLLIKSQDVYKPPNCQKMKTVDKLCPFAGNCKGLNPICNY" CDS complement(3332..3937) /codon_start=1 /product="baculovirus ORF603 protein" /note="ORF603" /translation="MAVIFNNKQLLADNSIEKGGELFLFNGSYNILESYVNPVLLKNGV IELEEAAYYAGNILYKTDDPKFIDYINLIIKATHSEELPENSTVVNYRKTMRSGTIHPI KKDIYIYDNKKFTLYDRYIYGYDNNYVNFYEEKNEKEKEYEEEDDKASSLCENKIILSQ INCESFENDFKYYLSDYNYAFSIIDNTTNVLVAFGLYR" promoter 4001..4092 /gene="polh from Autographa californica" /note="polyhedrin promoter" /note="promoter for the baculovirus polyhedrin gene" CDS 4143..4205 /codon_start=1 /product="signal sequence from honeybee melittin" /note="melittin signal sequence" /translation="MKFLVNVALVFMVVYISYIYA" misc_feature 4203..4485 /note="MCS" /note="multiple cloning site" CDS 4418..4441 /codon_start=1 /product="8xHis affinity tag" /note="8xHis" /translation="HHHHHHHH" misc_recomb 4947..5652 /note="baculovirus recombination region (ORF1629)" /note="contains part of ORF1629" CDS complement(5064..5652) /codon_start=2 /product="baculovirus capsid-associated protein" /note="ORF1629" /note="required for viral replication" /translation="IPKSSTTNLIADVLADTINRRRVAMAKSSSEATSNDEGWDDDDNR PNKANTPDVKYVQALFNVFTSSQLYTNDSDERNTKAHNILNDVEPLLQNKTQTNIDKAR LLLQDLASFVALSENPLDSPAIGSEKQPLFETNRNLFYKSIEDLIFKFRYKDAENHLIF ALTYHPKDYKFNELLKYVQQLSVNQQRTESSA" rep_origin complement(7715..8303) /direction=LEFT /note="ori" /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" CDS complement(8474..9334) /codon_start=1 /gene="bla" /product="beta-lactamase" /note="AmpR" /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" promoter complement(9335..9439) /gene="bla" /note="AmpR promoter" ORIGIN 1 aagctttact cgtaaagcga gttgaaggat catatttagt tgcgtttatg agataagatt 61 gaaagcacgt gtaaaatgtt tcccgcgcgt tggcacaact atttacaatg cggccaagtt 121 ataaaagatt ctaatctgat atgttttaaa acacctttgc ggcccgagtt gtttgcgtac 181 gtgactagcg aagaagatgt gtggaccgca gaacagatag taaaacaaaa ccctagtatt 241 ggagcaataa tcgatttaac caacacgtct aaatattatg atggtgtgca ttttttgcgg 301 gcgggcctgt tatacaaaaa aattcaagta cctggccaga ctttgccgcc tgaaagcata 361 gttcaagaat ttattgacac ggtaaaagaa tttacagaaa agtgtcccgg catgttggtg 421 ggcgtgcact gcacacacgg tattaatcgc accggttaca tggtgtgcag atatttaatg 481 cacaccctgg gtattgcgcc gcaggaagcc atagatagat tcgaaaaagc cagaggtcac 541 aaaattgaaa gacaaaatta cgttcaagat ttattaattt aattaatatt atttgcattc 601 tttaacaaat actttatcct attttcaaat tgttgcgctt cttccagcga accaaaacta 661 tgcttcgctt gctccgttta gcttgtagcc gatcagtggc gttgttccaa tcgacggtag 721 gattaggccg gatattctcc accacaatgt tggcaacgtt gatgttacgt ttatgctttt 781 ggttttccac gtacgtcttt tggccggtaa tagccgtaaa cgtagtgccg tcgcgcgtca 841 cgcacaacac cggatgtttg cgcttgtccg cggggtattg aaccgcgcga tccgacaaat 901 ccaccacttt ggcaactaaa tcggtgacct gcgcgtcttt tttctgcatt atttcgtctt 961 tcttttgcat ggtttcctgg aagccggtgt acatgcggtt tagatcagtc atgacgcgcg 1021 tgacctgcaa atctttggcc tcgatctgct tgtccttgat ggcaacgatg cgttcaataa 1081 actcttgttt tttaacaagt tcctcggttt tttgcgccac caccgcttgc agcgcgtttg 1141 tgtgctcggt gaatgtcgca atcagcttag tcaccaactg tttgctctcc tcctcccgtt 1201 gtttgatcgc gggatcgtac ttgccggtgc agagcacttg aggaattact tcttctaaaa 1261 gccattcttg taattctatg gcgtaaggca atttggactt cataatcagc tgaatcacgc 1321 cggatttagt aatgagcact gtatgcggct gcaaatacag cgggtcgccc cttttcacga 1381 cgctgttaga ggtagggccc ccattttgga tggtctgctc aaataacgat ttgtatttat 1441 tgtctacatg aacacgtata gctttatcac aaactgtata ttttaaactg ttagcgacgt 1501 ccttggccac gaaccggacc tgttggtcgc gctctagcac gtaccgcagg ttgaacgtat 1561 cttctccaaa tttaaattct ccaattttaa cgcgagccat tttgatacac gtgtgtcgat 1621 tttgcaacaa ctattgtttt ttaacgcaaa ctaaacttat tgtggtaagc aataattaaa 1681 tatgggggaa catgcgccgc tacaacactc gtcgttatga acgcagacgg cgccggtctc 1741 ggcgcaagcg gctaaaacgt gttgcgcgtt caacgcggca aacatcgcaa aagccaatag 1801 tacagttttg atttgcatat taacggcgat tttttaaatt atcttattta ataaatagtt 1861 atgacgccta caactccccg cccgcgttga ctcgctgcac ctcgagcagt tcgttgacgc 1921 cttcctccgt gtggccgaac acgtcgagcg ggtggtcgat gaccagcggc gtgccgcacg 1981 cgacgcacaa gtatctgtac accgaatgat cgtcgggcga aggcacgtcg gcctccaagt 2041 ggcaatattg gcaaattcga aaatatatac agttgggttg tttgcgcata tctatcgtgg 2101 cgttgggcat gtacgtccga acgttgattt gcatgcaagc cgaaattaaa tcattgcgat 2161 tagtgcgatt aaaacgttgt acatcctcgc ttttaatcat gccgtcgatt aaatcgcgca 2221 atcgagtcaa gtgatcaaag tgtggaataa tgttttcttt gtattcccga gtcaagcgca 2281 gcgcgtattt taacaaacta gccatcttgt aagttagttt catttaatgc aactttatcc 2341 aataatatat tatgtatcgc acgtcaagaa ttaacaatgc gcccgttgtc gcatctcaac 2401 acgactatga tagagatcaa ataaagcgcg aattaaatag cttgcgacgc aacgtgcacg 2461 atctgtgcac gcgttccggc acgagctttg attgtaataa gtttttacga agcgatgaca 2521 tgacccccgt agtgacaacg atcacgccca aaagaactgc cgactacaaa attaccgagt 2581 atgtcggtga cgttaaaact attaagccat ccaatcgacc gttagtcgaa tcaggaccgc 2641 tggtgcgaga agccgcgaag tatggcgaat gcatcgtata acgtgtggag tccgctcatt 2701 agagcgtcat gtttagacaa gaaagctaca tatttaattg atcccgatga ttttattgat 2761 aaattgaccc taactccata cacggtattc tacaatggcg gggttttggt caaaatttcc 2821 ggactgcgat tgtacatgct gttaacggct ccgcccacta ttaatgaaat taaaaattcc 2881 aattttaaaa aacgcagcaa gagaaacatt tgtatgaaag aatgcgtaga aggaaagaaa 2941 aatgtcgtcg acatgctgaa caacaagatt aatatgcctc cgtgtataaa aaaaatattg 3001 aacgatttga aagaaaacaa tgtaccgcgc ggcggtatgt acaggaagag gtttatacta 3061 aactgttaca ttgcaaacgt ggtttcgtgt gccaagtgtg aaaaccgatg tttaatcaag 3121 gctctgacgc atttctacaa ccacgactcc aagtgtgtgg gtgaagtcat gcatctttta 3181 atcaaatccc aagatgtgta taaaccacca aactgccaaa aaatgaaaac tgtcgacaag 3241 ctctgtccgt ttgctggcaa ctgcaagggt ctcaatccta tttgtaatta ttgaataata 3301 aaacaattat aaatgctaaa tttgtttttt attaacgata caaaccaaac gcaacaagaa 3361 catttgtagt attatctata attgaaaacg cgtagttata atcgctgagg taatatttaa 3421 aatcattttc aaatgattca cagttaattt gcgacaatat aattttattt tcacataaac 3481 tagacgcctt gtcgtcttct tcttcgtatt ccttctcttt ttcatttttc tcctcataaa 3541 aattaacata gttattatcg tatccatata tgtatctatc gtatagagta aattttttgt 3601 tgtcataaat atatatgtct tttttaatgg ggtgtatagt accgctgcgc atagtttttc 3661 tgtaatttac aacagtgcta ttttctggta gttcttcgga gtgtgttgct ttaattatta 3721 aatttatata atcaatgaat ttgggatcgt cggttttgta caatatgttg ccggcatagt 3781 acgcagcttc ttctagttca attacaccat tttttagcag caccggatta acataacttt 3841 ccaaaatgtt gtacgaaccg ttaaacaaaa acagttcacc tcccttttct atactattgt 3901 ctgcgagcag ttgtttgttg ttaaaaataa cagccattgt aatgagacgc acaaactaat 3961 atcacaaact ggaaatgtct atcaatatat agttgctgat atcatggaga taattaaaat 4021 gataaccatc tcgcaaataa ataagtattt tactgttttc gtaacagttt tgtaataaaa 4081 aaacctataa atattccgga ttattcatac cgtcccacca tcgggcgcgg atcagatcta 4141 aaatgaaatt cttagtcaac gttgcccttg tttttatggt cgtatacatt tcttacatct 4201 atgcggccgc tccggaattc tagaaggtac ccgggatccc actgaagatg atgacatgaa 4261 gatgaagatg atgatggtga tgacatcgat gccgatgatg acgacgacga tgataatgat 4321 aattctgatg aggataatga agacagtgat gatgacgatg atgacgatga atagctccag 4381 ccctgggtga ttctgatgag tgacagaatt cgtcgagcac caccaccacc accaccacca 4441 ctaattgatt aatacctagg tcgacgcgat cctttcctgg gacccggcaa gaaccaaaaa 4501 ctcactctct tcaaggaaat ccgtaatgtt aaacccgaca cgatgaagct tgtcgttgga 4561 tggaaaggaa aagagttcta cagggaaact tggacccgct tcatggaaga cagcttcccc 4621 attgttaacg accaagaagt gatggatgtt ttccttgttg tcaacatgcg tcccactaga 4681 cccaaccgtt gttacaaatt cctggcccaa cacgctctgc gttgcgaccc cgactatgta 4741 cctcatgacg tgattaggat cgtcgagcct tcatgggtgg gcagcaacaa cgagtaccgc 4801 atcagcctgg ctaagaaggg cggcggctgc ccaataatga accttcactc tgagtacacc 4861 aactcgttcg aacagttcat cgatcgtgtc atctgggaga acttctacaa gcccatcgtt 4921 tacatcggta ccgactctgc tgaagaggag gaaattctcc ttgaagtttc cctggtgttc 4981 aaagtaaagg agtttgcacc agacgcacct ctgttcactg gtccggcgta ttaaaacacg 5041 atacattgtt attagtacat ttattaagcg ctagattctg tgcgttgttg atttacagac 5101 aattgttgta cgtattttaa taattcatta aatttataat ctttagggtg gtatgttaga 5161 gcgaaaatca aatgattttc agcgtcttta tatctgaatt taaatattaa atcctcaata 5221 gatttgtaaa ataggtttcg attagtttca aacaagggtt gtttttccga accgatggct 5281 ggactatcta atggattttc gctcaacgcc acaaaacttg ccaaatcttg tagcagcaat 5341 ctagctttgt cgatattcgt ttgtgttttg ttttgtaata aaggttcgac gtcgttcaaa 5401 atattatgcg cttttgtatt tctttcatca ctgtcgttag tgtacaattg actcgacgta 5461 aacacgttaa ataaagcttg gacatattta acatcgggcg tgttagcttt attaggccga 5521 ttatcgtcgt cgtcccaacc ctcgtcgtta gaagttgctt ccgaagacga ttttgccata 5581 gccacacgac gcctattaat tgtgtcggct aacacgtccg cgatcaaatt tgtagttgag 5641 ctttttggaa ttatttctga ttgcgggcgt ttttgggcgg gtttcaatct aactgtgccc 5701 gattttaatt cagacaacac gttagaaagc gatggtgcag gcggtggtaa catttcagac 5761 ggcaaatcta ctaatggcgg cggtggtgga gctgatgata aatctaccat cggtggaggc 5821 gcaggcgggg ctggcggcgg aggcggaggc ggaggtggtg gcggtgatgc agacggcggt 5881 ttaggctcaa atgtctcttt aggcaacaca gtcggcacct caactattgt actggtttcg 5941 ggcgccgttt ttggtttgac cggtctgaga cgagtgcgat ttttttcgtt tctaatagct 6001 tccaacaatt gttgtctgtc gtctaaaggt gcagcgggtt gaggttccgt cggcattggt 6061 ggagcgggcg gcaattcaga catcgatggt ggtggtggtg gtggaggcgc tggaatgtta 6121 ggcacgggag aaggtggtgg cggcggtgcc gccggtataa tttgttctgg tttagtttgt 6181 tcgcgcacga ttgtgggcac cggcgcaggc gccgctggct gcacaacgga aggtcgtctg 6241 cttcgaggca gcgcttgggg tggtggcaat tcaatattat aattggaata caaatcgtaa 6301 aaatctgcta taagcattgt aatttcgcta tcgtttaccg tgccgatatt taacaaccgc 6361 tcaatgtaag caattgtatt gtaaagagat tgtctcaagc tccgcacgcc gataacaagc 6421 cttttcattt ttactacagc attgtagtgg cgagacactt cgctgtcgtc gacgtacatg 6481 tatgctttgt tgtcaaaaac gtcgttggca agctttaaaa tatttaaaag aacatctctg 6541 ttcagcacca ctgtgttgtc gtaaatgttg tttttgataa tttgcgcttc cgcagtatcg 6601 acacgttcaa aaaattgatg cgcatcaatt ttgttgttcc tattattgaa taaataagat 6661 tgtacagatt catatctacg attcgtcatg gccaccacaa atgctacgct gcaaacgctg 6721 gtacaatttt acgaaaactg caaaaacgtc aaaactcggt ataaaataat caacgggcgc 6781 tttggcaaaa tatctatttt atcgcacaag cccactagca aattgtattt gcagaaaaca 6841 atttcggcgc acaattttaa cgctgacgaa ataaaagttc accagttaat gagcgaccac 6901 ccaaatttta taaaaatcta ttttaatcac ggttccatca acaaccaagt gatcgtgatg 6961 gactacattg actgtcccga tttatttgaa acactacaaa ttaaaggcga gctttcgtac 7021 caacttgtta gcaatattat tagacagctg tgtgaagcgc tcaacgattt gcacaagcac 7081 aatttcatac acaacgacat aaaactcgaa aatgtcttat atttcgaagc acttgatcgc 7141 gtgtatgttt gcgattacgg attgtgcaaa cacgaaaact cacttagcgt gcacgacggc 7201 acgttggagt attttagtcc ggaaaaaatt cgacacacaa ctatgcacgt ttcgtttgac 7261 tggtacgcgg cgtgttaaca tacaagttgc taaccggcgg ttcgtaatca tggtcatagc 7321 tgtttcctgt gtgaaattgt tatccgctca caattccaca caacatacga gccggaagca 7381 taaagtgtaa agcctggggt gcctaatgag tgagctaact cacattaatt gcgttgcgct 7441 cactgcccgc tttccagtcg ggaaacctgt cgtgccagct gcattaatga atcggccaac 7501 gcgcggggag aggcggtttg cgtattgggc gctcttccgc ttcctcgctc actgactcgc 7561 tgcgctcggt cgttcggctg cggcgagcgg tatcagctca ctcaaaggcg gtaatacggt 7621 tatccacaga atcaggggat aacgcaggaa agaacatgtg agcaaaaggc cagcaaaagg 7681 ccaggaaccg taaaaaggcc gcgttgctgg cgtttttcca taggctccgc ccccctgacg 7741 agcatcacaa aaatcgacgc tcaagtcaga ggtggcgaaa cccgacagga ctataaagat 7801 accaggcgtt tccccctgga agctccctcg tgcgctctcc tgttccgacc ctgccgctta 7861 ccggatacct gtccgccttt ctcccttcgg gaagcgtggc gctttctcat agctcacgct 7921 gtaggtatct cagttcggtg taggtcgttc gctccaagct gggctgtgtg cacgaacccc 7981 ccgttcagcc cgaccgctgc gccttatccg gtaactatcg tcttgagtcc aacccggtaa 8041 gacacgactt atcgccactg gcagcagcca ctggtaacag gattagcaga gcgaggtatg 8101 taggcggtgc tacagagttc ttgaagtggt ggcctaacta cggctacact agaaggacag 8161 tatttggtat ctgcgctctg ctgaagccag ttaccttcgg aaaaagagtt ggtagctctt 8221 gatccggcaa acaaaccacc gctggtagcg gtggtttttt tgtttgcaag cagcagatta 8281 cgcgcagaaa aaaaggatct caagaagatc ctttgatctt ttctacgggg tctgacgctc 8341 agtggaacga aaactcacgt taagggattt tggtcatgag attatcaaaa aggatcttca 8401 cctagatcct tttaaattaa aaatgaagtt ttaaatcaat ctaaagtata tatgagtaaa 8461 cttggtctga cagttaccaa tgcttaatca gtgaggcacc tatctcagcg atctgtctat 8521 ttcgttcatc catagttgcc tgactccccg tcgtgtagat aactacgata cgggagggct 8581 taccatctgg ccccagtgct gcaatgatac cgcgagaccc acgctcaccg gctccagatt 8641 tatcagcaat aaaccagcca gccggaaggg ccgagcgcag aagtggtcct gcaactttat 8701 ccgcctccat ccagtctatt aattgttgcc gggaagctag agtaagtagt tcgccagtta 8761 atagtttgcg caacgttgtt gccattgcta caggcatcgt ggtgtcacgc tcgtcgtttg 8821 gtatggcttc attcagctcc ggttcccaac gatcaaggcg agttacatga tcccccatgt 8881 tgtgcaaaaa agcggttagc tccttcggtc ctccgatcgt tgtcagaagt aagttggccg 8941 cagtgttatc actcatggtt atggcagcac tgcataattc tcttactgtc atgccatccg 9001 taagatgctt ttctgtgact ggtgagtact caaccaagtc attctgagaa tagtgtatgc 9061 ggcgaccgag ttgctcttgc ccggcgtcaa tacgggataa taccgcgcca catagcagaa 9121 ctttaaaagt gctcatcatt ggaaaacgtt cttcggggcg aaaactctca aggatcttac 9181 cgctgttgag atccagttcg atgtaaccca ctcgtgcacc caactgatct tcagcatctt 9241 ttactttcac cagcgtttct gggtgagcaa aaacaggaag gcaaaatgcc gcaaaaaagg 9301 gaataagggc gacacggaaa tgttgaatac tcatactctt cctttttcaa tattattgaa 9361 gcatttatca gggttattgt ctcatgagcg gatacatatt tgaatgtatt tagaaaaata 9421 aacaaatagg ggttccgcgc acatttcccc gaaaagtgcc acctgacgtc taagaaacca 9481 ttattatcat gacattaacc tataaaaata ggcgtatcac gaggcccttt cgtctcgcgc 9541 gtttcggtga tgacggtgaa aacctctgac acatgcagct cccggagacg gtcacagctt 9601 gtctgtaagc ggatgccggg agcagacaag cccgtcaggg cgcgtcagcg ggtgttggcg 9661 ggtgtcgggg ctggcttaac tatgcggcat cagagcagat tgtactgaga gtgcaccata 9721 tgcggtgtga aataccgcac agatgcgtaa ggagaaaata ccgcatcagg cgccattcgc 9781 cattcaggct gcgcaactgt tgggaagggc gatcggtgcg ggcctcttcg ctattacgcc 9841 agctggcgaa agggggatgt gctgcaaggc gattaagttg ggtaacgcca gggttttccc 9901 agtcacgacg ttgtaaaacg acggccagtg cc //
pAB-bee载体图谱 pABbee质粒图谱pdf版和pAB-bee载体序列 pABbee质粒序列等相关资料下载
pAB-bee质粒 pABbee载体应用举例
