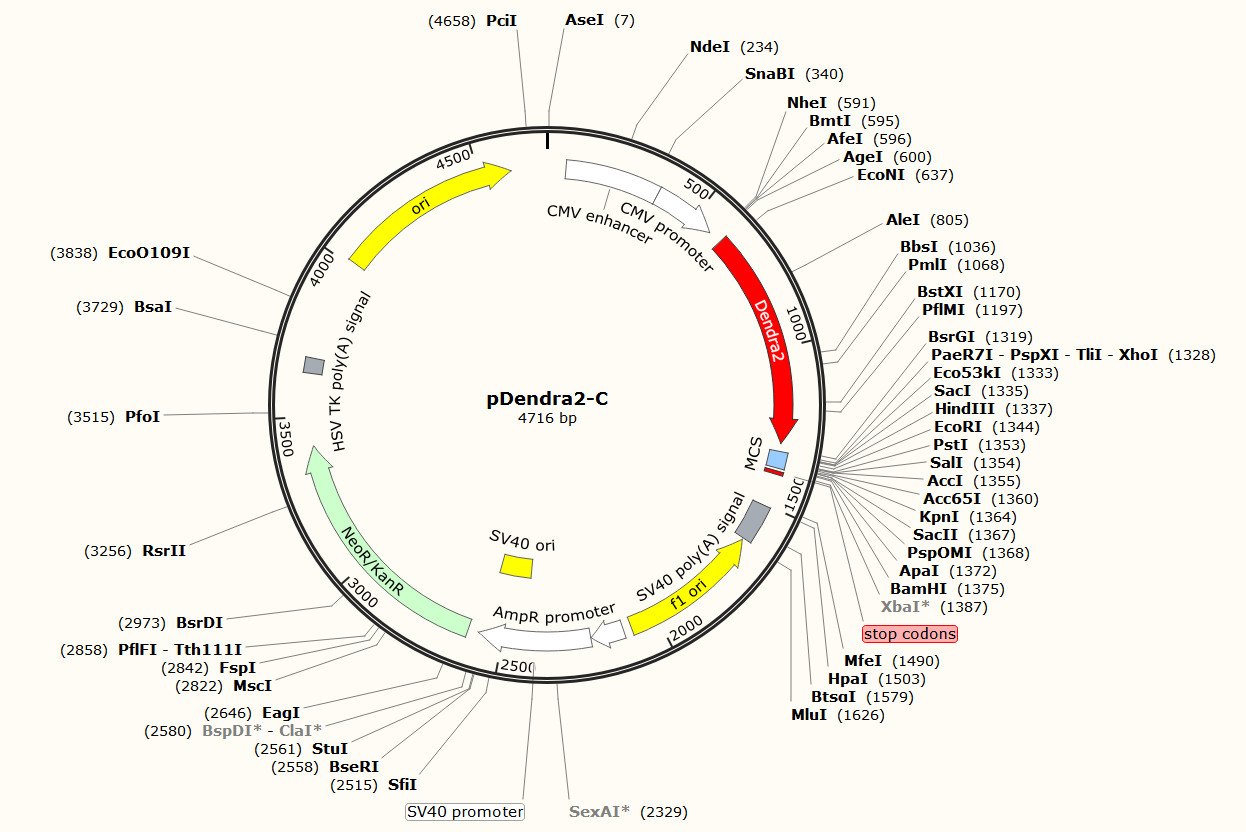

pDendra2-C

LOCUS       pDendra2-C                4716 bp ds-DNA     circular SYN 19-OCT-2017
DEFINITION  Vector for fusing Dendra2 to the N-terminus of a partner protein.
ACCESSION   .
VERSION     .
KEYWORDS    pDendra2-C
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4716)
  AUTHORS   Clontech (TaKaRa)
  TITLE     Direct Submission
  JOURNAL   Exported Saturday, December 14, 2019 from SnapGene Viewer 3.1.4
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..4716
                     /organism="synthetic DNA construct"
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
     enhancer        61..364
                     /note="CMV enhancer"
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /note="CMV promoter"
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             613..1302
                     /codon_start=1
                     /product="monomeric photoswitchable green-to-red
                     fluorescent protein from Dendronephthya"
                     /note="Dendra2"
                     /note="mammalian codon-optimized"
                     /translation="MNTPGINLIKEDMRVKVHMEGNVNGHAFVIEGEGKGKPYEGTQTA
                     NLTVKEGAPLPFSYDILTTAVHYGNRVFTKYPEDIPDYFKQSFPEGYSWERTMTFEDKG
                     ICTIRSDISLEGDCFFQNVRFKGTNFPPNGPVMQKKTLKWEPSTEKLHVRDGLLVGNIN
                     MALLLEGGGHYLCDFKTTYKAKKVVQLPDAHFVDHRIEILGNDSDYNKVKLYEHAVARY
                     SPLPSQVW"
     misc_feature    1328..1380
                     /note="MCS"
                     /note="multiple cloning site of fluorescent protein
                     plasmids"
     misc_feature    1389..1399
                     /note="stop codons"
                     /note="stop codons in all three reading frames"
     polyA_signal    1504..1625
                     /note="SV40 poly(A) signal"
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(1632..2087)
                     /direction=LEFT
                     /note="f1 ori"
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2114..2218
                     /gene="bla"
                     /note="AmpR promoter"
     promoter        2220..2577
                     /note="SV40 promoter"
                     /note="SV40 enhancer and early promoter"
     rep_origin      2428..2563
                     /note="SV40 ori"
                     /note="SV40 origin of replication"
     CDS             2612..3406
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /note="NeoR/KanR"
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin)"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     misc_feature    3638..3685
                     /note="HSV TK poly(A) signal"
                     /note="herpesvirus thymidine kinase polyadenylation signal"
     rep_origin      4014..4602
                     /direction=RIGHT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      601 ccggtcgcca ccatgaacac cccgggaatt aacctgatca aggaggacat gcgcgtgaag
      661 gtgcacatgg agggcaacgt gaacggccac gccttcgtga tcgagggcga gggcaagggc
      721 aagccctacg agggcaccca gaccgccaac ctgaccgtga aggagggcgc ccccctgccc
      781 ttcagctacg acatcctgac caccgccgtg cactacggca accgggtgtt caccaagtac
      841 cccgaggaca tccccgacta cttcaagcag agcttccccg agggctacag ctgggagcgc
      901 accatgacct tcgaggacaa gggcatctgc accatccgca gcgacatcag cctggagggc
      961 gactgcttct tccagaacgt gcgcttcaag ggcaccaact tcccccccaa cggccccgtg
     1021 atgcagaaga agaccctgaa gtgggagccc agcaccgaga agctgcacgt gcgcgacggc
     1081 ctgctggtgg gcaacatcaa catggccctg ctgctggagg gcggcggcca ctacctgtgc
     1141 gacttcaaga ccacctacaa ggccaagaag gtggtgcagc tgcccgacgc ccacttcgtg
     1201 gaccaccgca tcgagatcct gggcaacgac agcgactaca acaaggtgaa gctgtacgag
     1261 cacgccgtgg cccgctacag ccccctgccc agccaggtgt ggtccggcga cagcggcgtg
     1321 tacaagactc gagctcaagc ttcgaattct gcagtcgacg gtaccgcggg cccgggatcc
     1381 accggatcta gataactgat cataatcagc cataccacat ttgtagaggt tttacttgct
     1441 ttaaaaaacc tcccacacct ccccctgaac ctgaaacata aaatgaatgc aattgttgtt
     1501 gttaacttgt ttattgcagc ttataatggt tacaaataaa gcaatagcat cacaaatttc
     1561 acaaataaag catttttttc actgcattct agttgtggtt tgtccaaact catcaatgta
     1621 tcttaacgcg taaattgtaa gcgttaatat tttgttaaaa ttcgcgttaa atttttgtta
     1681 aatcagctca ttttttaacc aataggccga aatcggcaaa atcccttata aatcaaaaga
     1741 atagaccgag atagggttga gtgttgttcc agtttggaac aagagtccac tattaaagaa
     1801 cgtggactcc aacgtcaaag ggcgaaaaac cgtctatcag ggcgatggcc cactacgtga
     1861 accatcaccc taatcaagtt ttttggggtc gaggtgccgt aaagcactaa atcggaaccc
     1921 taaagggagc ccccgattta gagcttgacg gggaaagccg gcgaacgtgg cgagaaagga
     1981 agggaagaaa gcgaaaggag cgggcgctag ggcgctggca agtgtagcgg tcacgctgcg
     2041 cgtaaccacc acacccgccg cgcttaatgc gccgctacag ggcgcgtcag gtggcacttt
     2101 tcggggaaat gtgcgcggaa cccctatttg tttatttttc taaatacatt caaatatgta
     2161 tccgctcatg agacaataac cctgataaat gcttcaataa tattgaaaaa ggaagagtcc
     2221 tgaggcggaa agaaccagct gtggaatgtg tgtcagttag ggtgtggaaa gtccccaggc
     2281 tccccagcag gcagaagtat gcaaagcatg catctcaatt agtcagcaac caggtgtgga
     2341 aagtccccag gctccccagc aggcagaagt atgcaaagca tgcatctcaa ttagtcagca
     2401 accatagtcc cgcccctaac tccgcccatc ccgcccctaa ctccgcccag ttccgcccat
     2461 tctccgcccc atggctgact aatttttttt atttatgcag aggccgaggc cgcctcggcc
     2521 tctgagctat tccagaagta gtgaggaggc ttttttggag gcctaggctt ttgcaaagat
     2581 cgatcaagag acaggatgag gatcgtttcg catgattgaa caagatggat tgcacgcagg
     2641 ttctccggcc gcttgggtgg agaggctatt cggctatgac tgggcacaac agacaatcgg
     2701 ctgctctgat gccgccgtgt tccggctgtc agcgcagggg cgcccggttc tttttgtcaa
     2761 gaccgacctg tccggtgccc tgaatgaact gcaagacgag gcagcgcggc tatcgtggct
     2821 ggccacgacg ggcgttcctt gcgcagctgt gctcgacgtt gtcactgaag cgggaaggga
     2881 ctggctgcta ttgggcgaag tgccggggca ggatctcctg tcatctcacc ttgctcctgc
     2941 cgagaaagta tccatcatgg ctgatgcaat gcggcggctg catacgcttg atccggctac
     3001 ctgcccattc gaccaccaag cgaaacatcg catcgagcga gcacgtactc ggatggaagc
     3061 cggtcttgtc gatcaggatg atctggacga agagcatcag gggctcgcgc cagccgaact
     3121 gttcgccagg ctcaaggcga gcatgcccga cggcgaggat ctcgtcgtga cccatggcga
     3181 tgcctgcttg ccgaatatca tggtggaaaa tggccgcttt tctggattca tcgactgtgg
     3241 ccggctgggt gtggcggacc gctatcagga catagcgttg gctacccgtg atattgctga
     3301 agagcttggc ggcgaatggg ctgaccgctt cctcgtgctt tacggtatcg ccgctcccga
     3361 ttcgcagcgc atcgccttct atcgccttct tgacgagttc ttctgagcgg gactctgggg
     3421 ttcgaaatga ccgaccaagc gacgcccaac ctgccatcac gagatttcga ttccaccgcc
     3481 gccttctatg aaaggttggg cttcggaatc gttttccggg acgccggctg gatgatcctc
     3541 cagcgcgggg atctcatgct ggagttcttc gcccacccta gggggaggct aactgaaaca
     3601 cggaaggaga caataccgga aggaacccgc gctatgacgg caataaaaag acagaataaa
     3661 acgcacggtg ttgggtcgtt tgttcataaa cgcggggttc ggtcccaggg ctggcactct
     3721 gtcgataccc caccgagacc ccattggggc caatacgccc gcgtttcttc cttttcccca
     3781 ccccaccccc caagttcggg tgaaggccca gggctcgcag ccaacgtcgg ggcggcaggc
     3841 cctgccatag cctcaggtta ctcatatata ctttagattg atttaaaact tcatttttaa
     3901 tttaaaagga tctaggtgaa gatccttttt gataatctca tgaccaaaat cccttaacgt
     3961 gagttttcgt tccactgagc gtcagacccc gtagaaaaga tcaaaggatc ttcttgagat
     4021 cctttttttc tgcgcgtaat ctgctgcttg caaacaaaaa aaccaccgct accagcggtg
     4081 gtttgtttgc cggatcaaga gctaccaact ctttttccga aggtaactgg cttcagcaga
     4141 gcgcagatac caaatactgt tcttctagtg tagccgtagt taggccacca cttcaagaac
     4201 tctgtagcac cgcctacata cctcgctctg ctaatcctgt taccagtggc tgctgccagt
     4261 ggcgataagt cgtgtcttac cgggttggac tcaagacgat agttaccgga taaggcgcag
     4321 cggtcgggct gaacgggggg ttcgtgcaca cagcccagct tggagcgaac gacctacacc
     4381 gaactgagat acctacagcg tgagctatga gaaagcgcca cgcttcccga agggagaaag
     4441 gcggacaggt atccggtaag cggcagggtc ggaacaggag agcgcacgag ggagcttcca
     4501 gggggaaacg cctggtatct ttatagtcct gtcgggtttc gccacctctg acttgagcgt
     4561 cgatttttgt gatgctcgtc aggggggcgg agcctatgga aaaacgccag caacgcggcc
     4621 tttttacggt tcctggcctt ttgctggcct tttgctcaca tgttctttcc tgcgttatcc
     4681 cctgattctg tggataaccg tattaccgcc atgcat
//
