pRS313

价格:1500元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pRS313载体质粒基本信息

出品公司: Agilent
载体名称: pRS313
质粒类型: 蛋白表达
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: pUC
载体大小:4.9 kb
5’测序引物及序列: M13F:TGTAAAACGACGGCCAGT
3’测序引物及序列: M13R:CAGGAAACAGCTATGACC
载体抗性: Amp
筛选标记: HIS3
克隆菌株: DH5 alpha; 等
宿主细胞(系): 酵母菌
产品目录号: #217568
物种: 瞬表达
温度: 37
病毒/非病毒: 非病毒

pRS313质粒图谱载体图谱和pRS313载体序列质粒序列多克隆位点信息

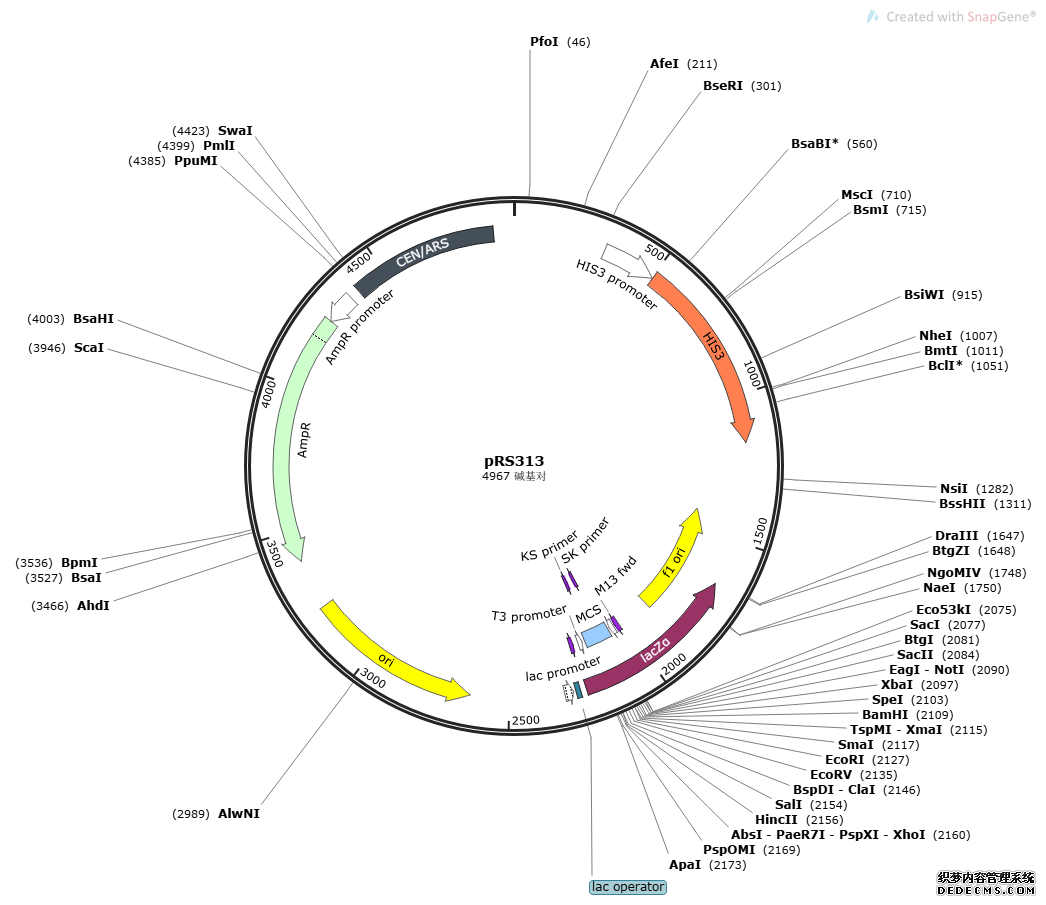

pRS313载体图谱

pRS313质粒载体简介

pRS313质粒序列载体序列

LOCUS       pRS313                4967 bp DNA     circular SYN 17-AUG-2024
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4967)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 17, 2024 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..4967
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        315..502
                     /gene="S. cerevisiae HIS3"
                     /label=HIS3 promoter
     CDS             503..1162
                     /codon_start=1
                     /gene="S. cerevisiae HIS3"
                     /product="imidazoleglycerol-phosphate dehydratase, required
                     for histidine biosynthesis"
                     /label=HIS3
                     /note="yeast auxotrophic marker"
                     /translation="MTEQKALVKRITNETKIQIAISLKGGPLAIEHSIFPEKEAEAVAE
                     QATQSQVINVHTGIGFLDHMIHALAKHSGWSLIVECIGDLHIDDHHTTEDCGIALGQAF
                     KEALLARGVKRFGSGFAPLDEALSRAVVDLSNRPYAVVELGLQREKVGDLSCEMIPHFL
                     ESFAEASRITLHVDCLRGKNDHHRSESAFKALAVAIREATSPNGTNDVPSTKGVLM"
     rep_origin      complement(1423..1878)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     CDS             complement(1661..2236)
                     /codon_start=1
                     /gene="lacZ fragment"
                     /product="LacZ-alpha fragment of beta-galactosidase"
                     /label=lacZ-alpha
                     /translation="MTMITPSSELTLTKGNKSWVPGPPSRSTVSISLISNSCSPGDPLV
                     LERPPPRWSSNSPYSESYYNSLAVVLQRRDWENPGVTQLNRLAAHPPFASWRNSEEART
                     DRPSQQLRSLNGEWRDAPCSGALSAAGVVVTRSVTATLASALAPAPFAFFPSFLATFAG
                     FPRQALNRGLPLGFRFSALRHLDPKKLD"
     primer_bind     2023..2039
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     promoter        2046..2064
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     misc_feature    2073..2180
                     /label=MCS
                     /note="pBluescript multiple cloning site"
     primer_bind     2097..2113
                     /label=SK primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(2147..2163)
                     /label=KS primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     promoter        complement(2193..2211)
                     /label=T3 promoter
                     /note="promoter for bacteriophage T3 RNA polymerase"
     primer_bind     complement(2232..2248)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    2256..2272
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(2280..2310)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     rep_origin      complement(2634..3222)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(3393..4253)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFFHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(4254..4358)
                     /gene="bla"
                     /label=AmpR promoter
     misc_feature    4395..4898
                     /label=CEN/ARS
                     /note="S. cerevisiae CEN6 centromere fused to an
                     autonomously replicating sequence"
ORIGIN
        1 tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg gagacggtca
       61 cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg tcagcgggtg
      121 ttggcgggtg tcggggctgg cttaactatg cggcatcaga gcagattgta ctgagagtgc
      181 accataattc cgttttaaga gcttggtgag cgctaggagt cactgccagg tatcgtttga
      241 acacggcatt agtcagggaa gtcataacac agtcctttcc cgcaattttc tttttctatt
      301 actcttggcc tcctctagta cactctatat ttttttatgc ctcggtaatg attttcattt
      361 ttttttttcc acctagcgga tgactctttt tttttcttag cgattggcat tatcacataa
      421 tgaattatac attatataaa gtaatgtgat ttcttcgaag aatatactaa aaaatgagca
      481 ggcaagataa acgaaggcaa agatgacaga gcagaaagcc ctagtaaagc gtattacaaa
      541 tgaaaccaag attcagattg cgatctcttt aaagggtggt cccctagcga tagagcactc
      601 gatcttccca gaaaaagagg cagaagcagt agcagaacag gccacacaat cgcaagtgat
      661 taacgtccac acaggtatag ggtttctgga ccatatgata catgctctgg ccaagcattc
      721 cggctggtcg ctaatcgttg agtgcattgg tgacttacac atagacgacc atcacaccac
      781 tgaagactgc gggattgctc tcggtcaagc ttttaaagag gccctactgg cgcgtggagt
      841 aaaaaggttt ggatcaggat ttgcgccttt ggatgaggca ctttccagag cggtggtaga
      901 tctttcgaac aggccgtacg cagttgtcga acttggtttg caaagggaga aagtaggaga
      961 tctctcttgc gagatgatcc cgcattttct tgaaagcttt gcagaggcta gcagaattac
     1021 cctccacgtt gattgtctgc gaggcaagaa tgatcatcac cgtagtgaga gtgcgttcaa
     1081 ggctcttgcg gttgccataa gagaagccac ctcgcccaat ggtaccaacg atgttccctc
     1141 caccaaaggt gttcttatgt agtgacaccg attatttaaa gctgcagcat acgatatata
     1201 tacatgtgta tatatgtata cctatgaatg tcagtaagta tgtatacgaa cagtatgata
     1261 ctgaagatga caaggtaatg catcattcta tacgtgtcat tctgaacgag gcgcgctttc
     1321 cttttttctt tttgcttttt cttttttttt ctcttgaact cgacggatca tatgcggtgt
     1381 gaaataccgc acagatgcgt aaggagaaaa taccgcatca ggaaattgta aacgttaata
     1441 ttttgttaaa attcgcgtta aatttttgtt aaatcagctc attttttaac caataggccg
     1501 aaatcggcaa aatcccttat aaatcaaaag aatagaccga gatagggttg agtgttgttc
     1561 cagtttggaa caagagtcca ctattaaaga acgtggactc caacgtcaaa gggcgaaaaa
     1621 ccgtctatca gggcgatggc ccactacgtg aaccatcacc ctaatcaagt tttttggggt
     1681 cgaggtgccg taaagcacta aatcggaacc ctaaagggag cccccgattt agagcttgac
     1741 ggggaaagcc ggcgaacgtg gcgagaaagg aagggaagaa agcgaaagga gcgggcgcta
     1801 gggcgctggc aagtgtagcg gtcacgctgc gcgtaaccac cacacccgcc gcgcttaatg
     1861 cgccgctaca gggcgcgtcg cgccattcgc cattcaggct gcgcaactgt tgggaagggc
     1921 gatcggtgcg ggcctcttcg ctattacgcc agctggcgaa ggggggatgt gctgcaaggc
     1981 gattaagttg ggtaacgcca gggttttccc agtcacgacg ttgtaaaacg acggccagtg
     2041 aattgtaata cgactcacta tagggcgaat tggagctcca ccgcggtggc ggccgctcta
     2101 gaactagtgg atcccccggg ctgcaggaat tcgatatcaa gcttatcgat accgtcgacc
     2161 tcgagggggg gcccggtacc cagcttttgt tccctttagt gagggttaat tccgagcttg
     2221 gcgtaatcat ggtcatagct gtttcctgtg tgaaattgtt atccgctcac aattccacac
     2281 aacataggag ccggaagcat aaagtgtaaa gcctggggtg cctaatgagt gaggtaactc
     2341 acattaattg cgttgcgctc actgcccgct ttccagtcgg gaaacctgtc gtgccagctg
     2401 cattaatgaa tcggccaacg cgcggggaga ggcggtttgc gtattgggcg ctcttccgct
     2461 tcctcgctca ctgactcgct gcgctcggtc gttcggctgc ggcgagcggt atcagctcac
     2521 tcaaaggcgg taatacggtt atccacagaa tcaggggata acgcaggaaa gaacatgtga
     2581 gcaaaaggcc agcaaaaggc caggaaccgt aaaaaggccg cgttgctggc gtttttccat
     2641 aggctcggcc cccctgacga gcatcacaaa aatcgacgct caagtcagag gtggcgaaac
     2701 ccgacaggac tataaagata ccaggcgttc ccccctggaa gctccctcgt gcgctctcct
     2761 gttccgaccc tgccgcttac cggatacctg tccgcctttc tcccttcggg aagcgtggcg
     2821 ctttctcaat gctcacgctg taggtatctc agttcggtgt aggtcgttcg ctccaagctg
     2881 ggctgtgtgc acgaaccccc cgttcagccc gaccgctgcg ccttatccgg taactatcgt
     2941 cttgagtcca acccggtaag acacgactta tcgccactgg cagcagccac tggtaacagg
     3001 attagcagag cgaggtatgt aggcggtgct acagagttct tgaagtggtg gcctaactac
     3061 ggctacacta gaaggacagt atttggtatc tgcgctctgc tgaagccagt taccttcgga
     3121 aaaagagttg gtagctcttg atccggcaaa caaaccaccg ctggtagcgg tggttttttt
     3181 gtttgcaagc agcagattac gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt
     3241 tctacggggt ctgacgctca gtggaacgaa aactcacgtt aagggatttt ggtcatgaga
     3301 ttatcaaaaa ggatcttcac ctagatcctt ttaaattaaa aatgaagttt taaatcaatc
     3361 taaagtatat atgagtaaac ttggtctgac agttaccaat gcttaatcag tgaggcacct
     3421 atctcagcga tctgtctatt tcgttcatcc atagttgcct gactgcccgt cgtgtagata
     3481 actacgatac gggagggctt accatctggc cccagtgctg caatgatacc gcgagaccca
     3541 cgctcaccgg ctccagattt atcagcaata aaccagccag ccggaagggc cgagcgcaga
     3601 agtggtcctg caactttatc cgcctccatc cagtctatta attgttgccg ggaagctaga
     3661 gtaagtagtt cgccagttaa tagtttgcgc aacgttgttg ccattgctac aggcatcgtg
     3721 gtgtcacgct cgtcgtttgg tatggcttca ttcagctccg gttcccaacg atcaaggcga
     3781 gttacatgat cccccatgtt gtgaaaaaaa gcggttagct ccttcggtcc tccgatcgtt
     3841 gtcagaagta agttggccgc agtgttatca ctcatggtta tggcagcact gcataattct
     3901 cttactgtca tgccatccgt aagatgcttt tctgtgactg gtgagtactc aaccaagtca
     3961 ttctgagaat agtgtatgcg gcgaccgagt tgctcttgcc cggcgtcaat acgggataat
     4021 accgcgccac atagcagaac tttaaaagtg ctcatcattg gaaaacgttc ttcggggcga
     4081 aaactctcaa ggatcttacc gctgttgaga tccagttcga tgtaacccac tcgtgcaccc
     4141 aactgatctt cagcatcttt tactttcacc agcgtttctg ggtgagcaaa aacaggaagg
     4201 caaaatgccg caaaaaaggg aataagggcg acacggaaat gttgaatact catactcttc
     4261 ctttttcaat attattgaag catttatcag ggttattgtc tcatgagcgg atacatattt
     4321 gaatgtattt agaaaaataa acaaataggg gttccgcgca catttccccg aaaagtgcca
     4381 cctgggtcct tttcatcacg tgctataaaa ataattataa tttaaatttt ttaatataaa
     4441 tatataaatt aaaaatagaa agtaaaaaaa gaaattaaag aaaaaatagt ttttgttttc
     4501 cgaagatgta aaagactcta gggggatcgc caacaaatac taccttttat cttgctcttc
     4561 ctgctctcag gtattaatgc cgaattgttt catcttgtct gtgtagaaga ccacacacga
     4621 aaatcctgtg attttacatt ttacttatcg ttaatcgaat gtatatctat ttaatctgct
     4681 tttcttgtct aataaatata tatgtaaagt acgctttttg ttgaaatttt ttaaaccttt
     4741 gtttattttt ttttcttcat tccgtaactc ttctaccttc tttatttact ttctaaaatc
     4801 caaatacaaa acataaaaat aaataaacac agagtaaatt cccaaattat tccatcatta
     4861 aaagatacga ggcgcgtgta agttacaggc aagcgatccg tcctaagaaa ccattattat
     4921 catgacatta acctataaaa ataggcgtat cacgaggccc tttcgtc
//

pRS313载体图谱质粒图谱pdf版和pRS313载体序列质粒序列等相关资料下载

pRS313质粒载体应用举例
