pmVenus-N1载体质粒基本信息

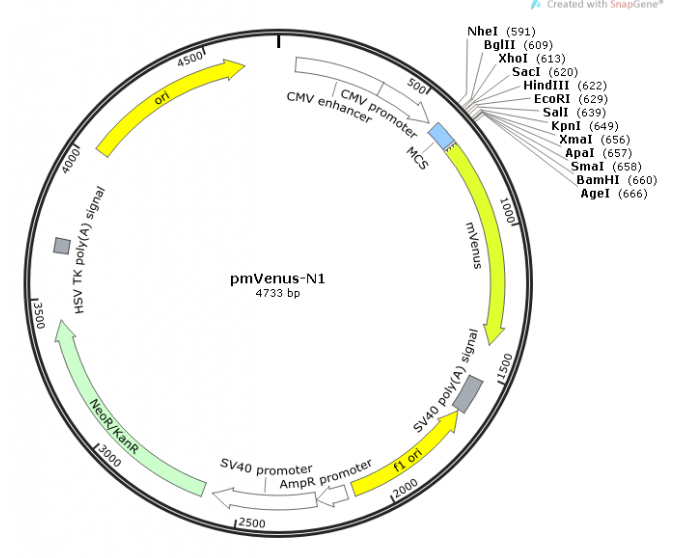

pmVenus-N1质粒图谱载体图谱和pmVenus-N1载体序列质粒序列多克隆位点信息
pmVenus-N1质粒载体简介
pmVenus-N1质粒序列载体序列
LOCUS pmVenus-N1 4733 bp DNA circular SYN 12-JUL-2023
DEFINITION synthetic circular DNA
ACCESSION .
VERSION .
KEYWORDS .
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 4733)
AUTHORS Biofeng
TITLE Direct Submission
JOURNAL Exported Jul 12, 2023 from SnapGene 6.0.2
https://www.biofeng.com
FEATURES Location/Qualifiers
source 1..4733
/mol_type="other DNA"
/organism="synthetic DNA construct"
enhancer 61..364
/label=CMV enhancer
/note="human cytomegalovirus immediate early enhancer"
promoter 365..568
/label=CMV promoter
/note="human cytomegalovirus (CMV) immediate early
promoter"
misc_feature 591..671
/label=MCS
/note="multiple cloning site"
regulatory 673..682
/label=Kozak sequence
/note="vertebrate consensus sequence for strong initiation
of translation (Kozak, 1987)"
/regulatory_class="other"
CDS 679..1398
/codon_start=1
/product="Venus YFP with monomerizing A206K mutation (Nagai
et al., 2002; Kremers et al., 2006)"
/label=mVenus
/note="mammalian codon-optimized"
/translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
KLICTTGKLPVPWPTLVTTLGYGLQCFARYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYITADKQKNGIK
ANFKIRHNIEDGGVQLADHYQQNTPIGDGPVLLPDNHYLSYQSKLSKDPNEKRDHMVLL
EFVTAAGITLGMDELYK"
polyA_signal 1521..1642
/label=SV40 poly(A) signal
/note="SV40 polyadenylation signal"
rep_origin complement(1649..2104)
/direction=LEFT
/label=f1 ori
/note="f1 bacteriophage origin of replication; arrow
indicates direction of (+) strand synthesis"
promoter 2131..2235
/gene="bla"
/label=AmpR promoter
promoter 2237..2594
/label=SV40 promoter
/note="SV40 enhancer and early promoter"
rep_origin 2445..2580
/label=SV40 ori
/note="SV40 origin of replication"
CDS 2629..3423
/codon_start=1
/gene="aph(3')-II (or nptII)"
/product="aminoglycoside phosphotransferase from Tn5"
/label=NeoR/KanR
/note="confers resistance to neomycin, kanamycin, and G418
(Geneticin(R))"
/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
polyA_signal 3655..3702
/label=HSV TK poly(A) signal
/note="herpes simplex virus thymidine kinase
polyadenylation signal (Cole and Stacy, 1985)"
rep_origin 4031..4619
/direction=RIGHT
/label=ori
/note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
replication"
ORIGIN
1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
601 ccggactcag atctcgagct caagcttcga attctgcagt cgacggtacc gcgggcccgg
661 gatccaccgg tcgccaccat ggtgagcaag ggcgaggagc tgttcaccgg ggtggtgccc
721 atcctggtcg agctggacgg cgacgtaaac ggccacaagt tcagcgtgtc cggcgagggc
781 gagggcgatg ccacctacgg caagctgacc ctgaagctca tctgcaccac cggcaagctg
841 cccgtgccct ggcccaccct cgtgaccacc ctcggctacg gcctgcagtg cttcgcccgc
901 taccccgacc acatgaagca gcacgacttc ttcaagtccg ccatgcccga aggctacgtc
961 caggagcgca ccatcttctt caaggacgac ggcaactaca agacccgcgc cgaggtgaag
1021 ttcgagggcg acaccctggt gaaccgcatc gagctgaagg gcatcgactt caaggaggac
1081 ggcaacatcc tggggcacaa gctggagtac aactacaaca gccacaacgt ctatatcacc
1141 gccgacaagc agaagaacgg catcaaggcc aacttcaaga tccgccacaa catcgaggac
1201 ggcggcgtgc agctcgccga ccactaccag cagaacaccc ccatcggcga cggccccgtg
1261 ctgctgcccg acaaccacta cctgagctac cagtccaagc tgagcaaaga ccccaacgag
1321 aagcgcgatc acatggtcct gctggagttc gtgaccgccg ccgggatcac tctcggcatg
1381 gacgagctgt acaagtaaag cggccgcgac tctagatcat aatcagccat accacatttg
1441 tagaggtttt acttgcttta aaaaacctcc cacacctccc cctgaacctg aaacataaaa
1501 tgaatgcaat tgttgttgtt aacttgttta ttgcagctta taatggttac aaataaagca
1561 atagcatcac aaatttcaca aataaagcat ttttttcact gcattctagt tgtggtttgt
1621 ccaaactcat caatgtatct taaggcgtaa attgtaagcg ttaatatttt gttaaaattc
1681 gcgttaaatt tttgttaaat cagctcattt tttaaccaat aggccgaaat cggcaaaatc
1741 ccttataaat caaaagaata gaccgagata gggttgagtg ttgttccagt ttggaacaag
1801 agtccactat taaagaacgt ggactccaac gtcaaagggc gaaaaaccgt ctatcagggc
1861 gatggcccac tacgtgaacc atcaccctaa tcaagttttt tggggtcgag gtgccgtaaa
1921 gcactaaatc ggaaccctaa agggagcccc cgatttagag cttgacgggg aaagccggcg
1981 aacgtggcga gaaaggaagg gaagaaagcg aaaggagcgg gcgctagggc gctggcaagt
2041 gtagcggtca cgctgcgcgt aaccaccaca cccgccgcgc ttaatgcgcc gctacagggc
2101 gcgtcaggtg gcacttttcg gggaaatgtg cgcggaaccc ctatttgttt atttttctaa
2161 atacattcaa atatgtatcc gctcatgaga caataaccct gataaatgct tcaataatat
2221 tgaaaaagga agagtcctga ggcggaaaga accagctgtg gaatgtgtgt cagttagggt
2281 gtggaaagtc cccaggctcc ccagcaggca gaagtatgca aagcatgcat ctcaattagt
2341 cagcaaccag gtgtggaaag tccccaggct ccccagcagg cagaagtatg caaagcatgc
2401 atctcaatta gtcagcaacc atagtcccgc ccctaactcc gcccatcccg cccctaactc
2461 cgcccagttc cgcccattct ccgccccatg gctgactaat tttttttatt tatgcagagg
2521 ccgaggccgc ctcggcctct gagctattcc agaagtagtg aggaggcttt tttggaggcc
2581 taggcttttg caaagatcga tcaagagaca ggatgaggat cgtttcgcat gattgaacaa
2641 gatggattgc acgcaggttc tccggccgct tgggtggaga ggctattcgg ctatgactgg
2701 gcacaacaga caatcggctg ctctgatgcc gccgtgttcc ggctgtcagc gcaggggcgc
2761 ccggttcttt ttgtcaagac cgacctgtcc ggtgccctga atgaactgca agacgaggca
2821 gcgcggctat cgtggctggc cacgacgggc gttccttgcg cagctgtgct cgacgttgtc
2881 actgaagcgg gaagggactg gctgctattg ggcgaagtgc cggggcagga tctcctgtca
2941 tctcaccttg ctcctgccga gaaagtatcc atcatggctg atgcaatgcg gcggctgcat
3001 acgcttgatc cggctacctg cccattcgac caccaagcga aacatcgcat cgagcgagca
3061 cgtactcgga tggaagccgg tcttgtcgat caggatgatc tggacgaaga gcatcagggg
3121 ctcgcgccag ccgaactgtt cgccaggctc aaggcgagca tgcccgacgg cgaggatctc
3181 gtcgtgaccc atggcgatgc ctgcttgccg aatatcatgg tggaaaatgg ccgcttttct
3241 ggattcatcg actgtggccg gctgggtgtg gcggaccgct atcaggacat agcgttggct
3301 acccgtgata ttgctgaaga gcttggcggc gaatgggctg accgcttcct cgtgctttac
3361 ggtatcgccg ctcccgattc gcagcgcatc gccttctatc gccttcttga cgagttcttc
3421 tgagcgggac tctggggttc gaaatgaccg accaagcgac gcccaacctg ccatcacgag
3481 atttcgattc caccgccgcc ttctatgaaa ggttgggctt cggaatcgtt ttccgggacg
3541 ccggctggat gatcctccag cgcggggatc tcatgctgga gttcttcgcc caccctaggg
3601 ggaggctaac tgaaacacgg aaggagacaa taccggaagg aacccgcgct atgacggcaa
3661 taaaaagaca gaataaaacg cacggtgttg ggtcgtttgt tcataaacgc ggggttcggt
3721 cccagggctg gcactctgtc gataccccac cgagacccca ttggggccaa tacgcccgcg
3781 tttcttcctt ttccccaccc caccccccaa gttcgggtga aggcccaggg ctcgcagcca
3841 acgtcggggc ggcaggccct gccatagcct caggttactc atatatactt tagattgatt
3901 taaaacttca tttttaattt aaaaggatct aggtgaagat cctttttgat aatctcatga
3961 ccaaaatccc ttaacgtgag ttttcgttcc actgagcgtc agaccccgta gaaaagatca
4021 aaggatcttc ttgagatcct ttttttctgc gcgtaatctg ctgcttgcaa acaaaaaaac
4081 caccgctacc agcggtggtt tgtttgccgg atcaagagct accaactctt tttccgaagg
4141 taactggctt cagcagagcg cagataccaa atactgtcct tctagtgtag ccgtagttag
4201 gccaccactt caagaactct gtagcaccgc ctacatacct cgctctgcta atcctgttac
4261 cagtggctgc tgccagtggc gataagtcgt gtcttaccgg gttggactca agacgatagt
4321 taccggataa ggcgcagcgg tcgggctgaa cggggggttc gtgcacacag cccagcttgg
4381 agcgaacgac ctacaccgaa ctgagatacc tacagcgtga gctatgagaa agcgccacgc
4441 ttcccgaagg gagaaaggcg gacaggtatc cggtaagcgg cagggtcgga acaggagagc
4501 gcacgaggga gcttccaggg ggaaacgcct ggtatcttta tagtcctgtc gggtttcgcc
4561 acctctgact tgagcgtcga tttttgtgat gctcgtcagg ggggcggagc ctatggaaaa
4621 acgccagcaa cgcggccttt ttacggttcc tggccttttg ctggcctttt gctcacatgt
4681 tctttcctgc gttatcccct gattctgtgg ataaccgtat taccgccatg cat
//
pmVenus-N1载体图谱质粒图谱pdf版和pmVenus-N1载体序列质粒序列等相关资料下载
pmVenus-N1质粒载体应用举例
