p3xFLAG-Myc-CMV-24载体质粒基本信息

出品公司: Sigma-Aldrich
载体名称: p3xFLAG-Myc-CMV-24
质粒类型: 哺乳动物细胞载体
高拷贝/低拷贝: 高拷贝
克隆方法: --
启动子: CMV
载体大小: 4752 bp
5' 测序引物及序列: CMV-F
3' 测序引物及序列: hGH-PA-R
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: G418
克隆菌株: DH5α 等
宿主细胞(系): --
备注: --
产品目录号: --

p3xFLAG-Myc-CMV-24质粒图谱载体图谱和p3xFLAG-Myc-CMV-24载体序列质粒序列多克隆位点信息

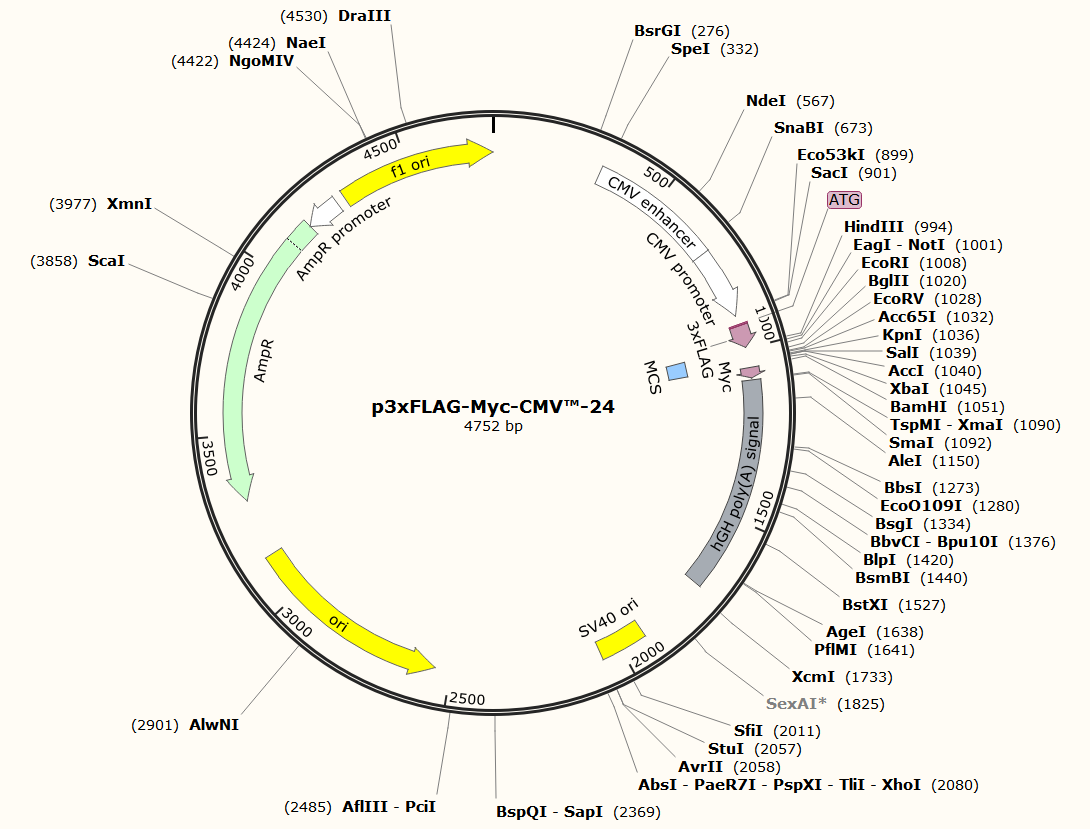

p3xFLAG-Myc-CMV-24载体图谱

p3xFLAG-Myc-CMV-24质粒载体简介

p3xFLAG-Myc-CMV-24质粒序列载体序列

LOCUS       p3xFLAG-Myc-CMV-24                4752 bp ds-DNA     circular SYN 23-OCT-2018
DEFINITION  Vector for expression of 3xFLAG- and Myc-tagged proteins in
            mammalian cells.
ACCESSION   .
VERSION     .
KEYWORDS    p3xFLAG-Myc-CMV-24
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4752)
  AUTHORS   MilliporeSigma
  TITLE     Direct Submission
  JOURNAL   Exported Saturday, December 21, 2019 from SnapGene Viewer 3.1.4
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..4752
                     /organism="synthetic DNA construct"
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
     enhancer        318..697
                     /note="CMV enhancer"
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        698..901
                     /note="CMV promoter"
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             928..930
                     /codon_start=1
                     /product="start codon"
                     /note="ATG"
                     /translation="M"
     CDS             931..996
                     /codon_start=1
                     /product="three tandem FLAG epitope tags, followed by an
                     enterokinase cleavage site"
                     /note="3xFLAG"
                     /translation="DYKDHDGDYKDHDIDYKDDDDK"
     misc_feature    994..1050
                     /note="MCS"
                     /note="multiple cloning site"
     CDS             1057..1086
                     /codon_start=1
                     /product="Myc (human c-Myc oncogene) epitope tag"
                     /note="Myc"
                     /translation="EQKLISEEDL"
     polyA_signal    1093..1715
                     /note="hGH poly(A) signal"
                     /note="human growth hormone polyadenylation signal"
     rep_origin      1924..2059
                     /note="SV40 ori"
                     /note="SV40 origin of replication"
     rep_origin      complement(2546..3134)
                     /direction=LEFT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(3305..4165)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /note="AmpR"
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(4166..4270)
                     /gene="bla"
                     /note="AmpR promoter"
     rep_origin      4297..4752
                     /direction=RIGHT
                     /note="f1 ori"
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
ORIGIN
        1 ccattcgcca ttcaggctgc gcaactgttg ggaagggcga tcggtgcggg cctcttcgct
       61 attacgccag ctggcgaaag ggggatgtgc tgcaaggcga ttaagttggg taacgccagg
      121 gttttcccag tcacgacgtt gtaaaacgac ggccagtgcc aagctgatct atacattgaa
      181 tcaatattgg caattagcca tattagtcat tggttatata gcataaatca atattggcta
      241 ttggccattg catacgttgt atctatatca taatatgtac atttatattg gctcatgtcc
      301 aatatgaccg ccatgttgac attgattatt gactagttat taatagtaat caattacggg
      361 gtcattagtt catagcccat atatggagtt ccgcgttaca taacttacgg taaatggccc
      421 gcctggctga ccgcccaacg acccccgccc attgacgtca ataatgacgt atgttcccat
      481 agtaacgcca atagggactt tccattgacg tcaatgggtg gagtatttac ggtaaactgc
      541 ccacttggca gtacatcaag tgtatcatat gccaagtccg ccccctattg acgtcaatga
      601 cggtaaatgg cccgcctggc attatgccca gtacatgacc ttacgggact ttcctacttg
      661 gcagtacatc tacgtattag tcatcgctat taccatggtg atgcggtttt ggcagtacac
      721 caatgggcgt ggatagcggt ttgactcacg gggatttcca agtctccacc ccattgacgt
      781 caatgggagt ttgttttggc accaaaatca acgggacttt ccaaaatgtc gtaataaccc
      841 cgccccgttg acgcaaatgg gcggtaggcg tgtacggtgg gaggtctata taagcagagc
      901 tcgtttagtg aaccgtcaga attaaccatg gactacaaag accatgacgg tgattataaa
      961 gatcatgaca tcgattacaa ggatgacgat gacaagcttg cggccgcgaa ttcatcgata
     1021 gatctgatat cggtaccagt cgactctaga ggatccgaac aaaaactcat ctcagaagag
     1081 gatctgtgac ccgggtggca tccctgtgac ccctccccag tgcctctcct ggccctggaa
     1141 gttgccactc cagtgcccac cagccttgtc ctaataaaat taagttgcat cattttgtct
     1201 gactaggtgt ccttctataa tattatgggg tggagggggg tggtatggag caaggggcaa
     1261 gttgggaaga caacctgtag ggcctgcggg gtctattggg aaccaagctg gagtgcagtg
     1321 gcacaatctt ggctcactgc aatctccgcc tcctgggttc aagcgattct cctgcctcag
     1381 cctcccgagt tgttgggatt ccaggcatgc atgaccaggc tcagctaatt tttgtttttt
     1441 tggtagagac ggggtttcac catattggcc aggctggtct ccaactccta atctcaggtg
     1501 atctacccac cttggcctcc caaattgctg ggattacagg cgtgaaccac tgctcccttc
     1561 cctgtccttc tgattttaaa ataactatac cagcaggagg acgtccagac acagcatagg
     1621 ctacctggcc atgcccaacc ggtgggacat ttgagttgct tgcttggcac tgtcctctca
     1681 tgcgttgggt ccactcagta gatgcctgtt gaattgggta cgcggccagc ttggctgtgg
     1741 aatgtgtgtc agttagggtg tggaaagtcc ccaggctccc cagcaggcag aagtatgcaa
     1801 agcatgcatc tcaattagtc agcaaccagg tgtggaaagt ccccaggctc cccagcaggc
     1861 agaagtatgc aaagcatgca tctcaattag tcagcaacca tagtcccgcc cctaactccg
     1921 cccatcccgc ccctaactcc gcccagttcc gcccattctc cgccccatgg ctgactaatt
     1981 ttttttattt atgcagaggc cgaggccgcc tcggcctctg agctattcca gaagtagtga
     2041 ggaggctttt ttggaggcct aggcttttgc aaaaagctcc tcgaggaact gaaaaaccag
     2101 aaagttaatt ccctatagtg agtcgtatta aattcgtaat catgtcatag ctgtttcctg
     2161 tgtgaaattg ttatccgctc acaattccac acaacatacg agccggaagc ataaagtgta
     2221 aagcctgggg tgcctaatga gtgagctaac tcacattaat tgcgttgcgc tcactgcccg
     2281 ctttccagtc gggaaacctg tcgtgccagc tgcattaatg aatcggccaa cgcgcgggga
     2341 gaggcggttt gcgtattggg cgctcttccg cttcctcgct cactgactcg ctgcgctcgg
     2401 tcgttcggct gcggcgagcg gtatcagctc actcaaaggc ggtaatacgg ttatccacag
     2461 aatcagggga taacgcagga aagaacatgt gagcaaaagg ccagcaaaag gccaggaacc
     2521 gtaaaaaggc cgcgttgctg gcgtttttcc ataggctccg cccccctgac gagcatcaca
     2581 aaaatcgacg ctcaagtcag aggtggcgaa acccgacagg actataaaga taccaggcgt
     2641 ttccccctgg aagctccctc gtgcgctctc ctgttccgac cctgccgctt accggatacc
     2701 tgtccgcctt tctcccttcg ggaagcgtgg cgctttctca tagctcacgc tgtaggtatc
     2761 tcagttcggt gtaggtcgtt cgctccaagc tgggctgtgt gcacgaaccc cccgttcagc
     2821 ccgaccgctg cgccttatcc ggtaactatc gtcttgagtc caacccggta agacacgact
     2881 tatcgccact ggcagcagcc actggtaaca ggattagcag agcgaggtat gtaggcggtg
     2941 ctacagagtt cttgaagtgg tggcctaact acggctacac tagaagaaca gtatttggta
     3001 tctgcgctct gctgaagcca gttaccttcg gaaaaagagt tggtagctct tgatccggca
     3061 aacaaaccac cgctggtagc ggtggttttt ttgtttgcaa gcagcagatt acgcgcagaa
     3121 aaaaaggatc tcaagaagat cctttgatct tttctacggg gtctgacgct cagtggaacg
     3181 aaaactcacg ttaagggatt ttggtcatga gattatcaaa aaggatcttc acctagatcc
     3241 ttttaaatta aaaatgaagt tttaaatcaa tctaaagtat atatgagtaa acttggtctg
     3301 acagttacca atgcttaatc agtgaggcac ctatctcagc gatctgtcta tttcgttcat
     3361 ccatagttgc ctgactcccc gtcgtgtaga taactacgat acgggagggc ttaccatctg
     3421 gccccagtgc tgcaatgata ccgcgagacc cacgctcacc ggctccagat ttatcagcaa
     3481 taaaccagcc agccggaagg gccgagcgca gaagtggtcc tgcaacttta tccgcctcca
     3541 tccagtctat taattgttgc cgggaagcta gagtaagtag ttcgccagtt aatagtttgc
     3601 gcaacgttgt tgccattgct acaggcatcg tggtgtcacg ctcgtcgttt ggtatggctt
     3661 cattcagctc cggttcccaa cgatcaaggc gagttacatg atcccccatg ttgtgcaaaa
     3721 aagcggttag ctccttcggt cctccgatcg ttgtcagaag taagttggcc gcagtgttat
     3781 cactcatggt tatggcagca ctgcataatt ctcttactgt catgccatcc gtaagatgct
     3841 tttctgtgac tggtgagtac tcaaccaagt cattctgaga atagtgtatg cggcgaccga
     3901 gttgctcttg cccggcgtca atacgggata ataccgcgcc acatagcaga actttaaaag
     3961 tgctcatcat tggaaaacgt tcttcggggc gaaaactctc aaggatctta ccgctgttga
     4021 gatccagttc gatgtaaccc actcgtgcac ccaactgatc ttcagcatct tttactttca
     4081 ccagcgtttc tgggtgagca aaaacaggaa ggcaaaatgc cgcaaaaaag ggaataaggg
     4141 cgacacggaa atgttgaata ctcatactct tcctttttca atattattga agcatttatc
     4201 agggttattg tctcatgagc ggatacatat ttgaatgtat ttagaaaaat aaacaaatag
     4261 gggttccgcg cacatttccc cgaaaagtgc cacctgacgc gccctgtagc ggcgcattaa
     4321 gcgcggcggg tgtggtggtt acgcgcagcg tgaccgctac acttgccagc gccctagcgc
     4381 ccgctccttt cgctttcttc ccttcctttc tcgccacgtt cgccggcttt ccccgtcaag
     4441 ctctaaatcg ggggctccct ttagggttcc gatttagtgc tttacggcac ctcgacccca
     4501 aaaaacttga ttagggtgat ggttcacgta gtgggccatc gccctgatag acggtttttc
     4561 gccctttgac gttggagtcc acgttcttta atagtggact cttgttccaa actggaacaa
     4621 cactcaaccc tatctcggtc tattcttttg atttataagg gattttgccg atttcggcct
     4681 attggttaaa aaatgagctg atttaacaaa aatttaacgc gaattttaac aaaatattaa
     4741 cgcttacaat tt
//

p3xFLAG-Myc-CMV-24载体图谱质粒图谱pdf版和p3xFLAG-Myc-CMV-24载体序列质粒序列等相关资料下载

p3xFLAG-Myc-CMV-24质粒载体应用举例
