质粒名称: | pLV-EF1a-mCherry-MinD-IRES-Puro |
---|---|
出品公司: | Addgene |
目录编号: | 213112 |
存储实验室: | Scott Coyle |
载体骨架基本信息 |
|
载体名称: | pLV-EF1a |
载体出品公司: | Clontech |
空载体大小: | 8699bp |
完整质粒大小: | 10253bp |
载体类型: | 哺乳细胞表达, Lentiviral |
筛选标记: | Puromycin |
载体抗性: | 氨苄霉素 |
生长温度: | 37 ℃ |
宿主菌: | NEB Stable |
拷贝数: | 高拷贝 |
插入基因信息 |
|
插入基因名称: | Cherry-MinD |
物种来源: | Escherichia coli |
插入大小: | 1554bp |
启动子: | EF1a |
克隆方法: | Gibson Cloning |
5’测序引物 | EF1a_F (TCAAGCCTCAGACAGTGGTTC) |
3’测序引物 | EF1a_R (TAGAGGGAAACCGTTGCTAGC) |
文献引用方法 |
|
材料和方法部分: |
pLV-EF1a-mCherry-MinD-IRES-Puro was a gift from Scott Coyle (Addgene plasmid # 213112 ; http://n2t.net/addgene:213112 ; RRID:Addgene_213112)
|
参考文献部分: | A programmable reaction-diffusion system for spatiotemporal cell signaling circuit design. Rajasekaran R, Chang CC, Weix EWZ, Galateo TM, Coyle SM. Cell. 2023 Dec 27:S0092-8674(23)01339-9. doi: 10.1016/j.cell.2023.12.007. 10.1016/j.cell.2023.12.007 PubMed 38181787 |
买家导航
载体基本信息

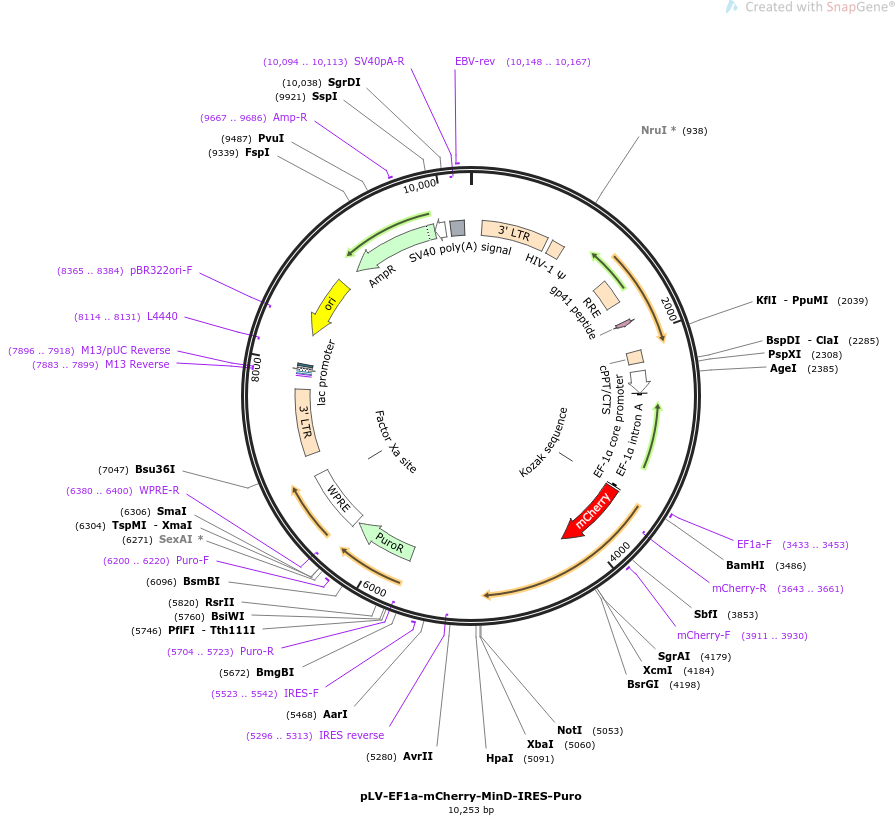

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pLV-EF1a-mCherry-MinD-IRES-Puro 10253 bp ds-DNA circular SYN 26-JAN-2024 DEFINITION Expression of mCherry-MinD in mammalian cells. ACCESSION . VERSION . KEYWORDS pLV-EF1a-mCherry-MinD-IRES-Puro SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 10253) AUTHORS Rajasekaran R, Chang CC, Weix EWZ, Galateo TM, Coyle SM TITLE A programmable reaction-diffusion system for spatiotemporal cell signaling circuit design. JOURNAL Cell. 2023 Dec 27:S0092-8674(23)01339-9. doi: 10.1016/j.cell.2023.12.007. PUBMED 38181787 REFERENCE 2 (bases 1 to 10253) AUTHORS . TITLE Direct Submission JOURNAL Exported Jan 26, 2024 from SnapGene Server 1.1.58 http://www.biofeng.com FEATURES Location/Qualifiers source 1..10253 /organism="synthetic DNA construct" /mol_type="other DNA" LTR 106..739 /label=3' LTR /note="3' long terminal repeat (LTR) from HIV-1" misc_feature 786..911 /label=HIV-1 Psi /note="packaging signal of human immunodeficiency virus type 1" misc_feature 1408..1641 /label=RRE /note="The Rev response element (RRE) of HIV-1 allows for Rev-dependent mRNA export from the nucleus to the cytoplasm." CDS 1826..1870 /codon_start=1 /product="antigenic peptide corresponding to amino acids 655 to 669 of the HIV envelope protein gp41 (Lutje Hulsik et al., 2013)" /label=gp41 peptide /note="recognized by the 2H10 single-chain llama nanobody" /translation="KNEQELLELDKWASL" misc_feature 2133..2248 /label=cPPT/CTS /note="central polypurine tract and central termination sequence of HIV-1 (lacking the first T)" promoter 2326..2537 /label=EF-1-alpha core promoter /note="core promoter for human elongation factor EF-1-alpha" intron 2538..3476 /label=EF-1-alpha intron A /note="intron upstream of the start codon of human EF-1-alpha" primer_bind 3433..3453 /label=EF1a-F /note="Human elongation factor-1a promoter, forward primer" regulatory 3492..3501 /regulatory_class="other" /note="vertebrate consensus sequence for strong initiation of translation (Kozak, 1987)" CDS 3498..4205 /codon_start=1 /product="monomeric derivative of DsRed fluorescent protein (Shaner et al., 2004)" /label=mCherry /note="mammalian codon-optimized" /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA EGRHSTGGMDELYK" primer_bind complement(3643..3661) /label=mCherry-R /note="mCherry, reverse primer" primer_bind 3911..3930 /label=mCherry-F /note="mCherry, forward primer" primer_bind complement(5296..5313) /label=IRES reverse /note="IRES internal ribosome entry site, reverse primer. Also called pCDH-rev" primer_bind 5523..5542 /label=IRES-F /note="IRES internal ribosome entry site, forward primer" CDS 5704..6303 /codon_start=1 /gene="pac from Streptomyces alboniger" /product="puromycin N-acetyltransferase" /label=PuroR /note="confers resistance to puromycin" /translation="MTEYKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIER VTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLA AQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETS APRNLPFYERLGFTVTADVEVPEGPRTWCMTRKPGA" primer_bind complement(5704..5723) /label=Puro-R /note="Puromycin resistance gene, reverse primer. Also called puro-variant-R" primer_bind 6200..6220 /label=Puro-F /note="Puromycin resistance gene, forward primer" misc_feature 6327..6915 /label=WPRE /note="woodchuck hepatitis virus posttranscriptional regulatory element" primer_bind complement(6380..6400) /label=WPRE-R /note="WPRE, reverse primer" CDS complement(6798..6809) /codon_start=1 /product="Factor Xa recognition and cleavage site" /label=Factor Xa site /translation="IEGR" LTR 7122..7755 /label=3' LTR /note="3' long terminal repeat (LTR) from HIV-1" primer_bind complement(7883..7899) /label=M13 rev /note="common sequencing primer, one of multiple similar variants" primer_bind complement(7883..7899) /label=M13 Reverse /note="In lacZ gene. Also called M13-rev" primer_bind complement(7896..7918) /label=M13/pUC Reverse /note="In lacZ gene" protein_bind 7907..7923 /label=lac operator /bound_moiety="lac repressor encoded by lacI" /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." promoter complement(7931..7961) /label=lac promoter /note="promoter for the E. coli lac operon" protein_bind 7976..7997 /label=CAP binding site /bound_moiety="E. coli catabolite activator protein" /note="CAP binding activates transcription in the presence of cAMP." primer_bind complement(8114..8131) /label=L4440 /note="L4440 vector, forward primer" rep_origin complement(8285..8873) /direction=LEFT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind complement(8365..8384) /label=pBR322ori-F /note="pBR322 origin, forward primer" CDS complement(9044..9904) /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind 9667..9686 /label=Amp-R /note="Ampicillin resistance gene, reverse primer" promoter complement(9905..10009) /gene="bla" /label=AmpR promoter polyA_signal 10057..10191 /label=SV40 poly(A) signal /note="SV40 polyadenylation signal" primer_bind complement(10094..10113) /label=SV40pA-R /note="SV40 polyA, reverse primer" primer_bind 10148..10167 /label=EBV-rev /note="SV40 polyA terminator, reverse primer" ORIGIN 1 tgccaattac ctgtggtttc atttactcta aacctgtgat tcctctgaat tattttcatt 61 ttaaagaaat tgtatttgtt aaatatgtac tacaaactta gtagttggaa gggctaattc 121 actcccaaag aagacaagat atccttgatc tgtggatcta ccacacacaa ggctacttcc 181 ctgattagca gaactacaca ccagggccag gggtcagata tccactgacc tttggatggt 241 gctacaagct agtaccagtt gagccagata aggtagaaga ggccaataaa ggagagaaca 301 ccagcttgtt acaccctgtg agcctgcatg ggatggatga cccggagaga gaagtgttag 361 agtggaggtt tgacagccgc ctagcatttc atcacgtggc ccgagagctg catccggagt 421 acttcaagaa ctgctgatat cgagcttgct acaagggact ttccgctggg gactttccag 481 ggaggcgtgg cctgggcggg actggggagt ggcgagccct cagatcctgc atataagcag 541 ctgctttttg cctgtactgg gtctctctgg ttagaccaga tctgagcctg ggagctctct 601 ggctaactag ggaacccact gcttaagcct caataaagct tgccttgagt gcttcaagta 661 gtgtgtgccc gtctgttgtg tgactctggt aactagagat ccctcagacc cttttagtca 721 gtgtggaaaa tctctagcag tggcgcccga acagggactt gaaagcgaaa gggaaaccag 781 aggagctctc tcgacgcagg actcggcttg ctgaagcgcg cacggcaaga ggcgaggggc 841 ggcgactggt gagtacgcca aaaattttga ctagcggagg ctagaaggag agagatgggt 901 gcgagagcgt cagtattaag cgggggagaa ttagatcgcg atgggaaaaa attcggttaa 961 ggccaggggg aaagaaaaaa tataaattaa aacatatagt atgggcaagc agggagctag 1021 aacgattcgc agttaatcct ggcctgttag aaacatcaga aggctgtaga caaatactgg 1081 gacagctaca accatccctt cagacaggat cagaagaact tagatcatta tataatacag 1141 tagcaaccct ctattgtgtg catcaaagga tagagataaa agacaccaag gaagctttag 1201 acaagataga ggaagagcaa aacaaaagta agaccaccgc acagcaagcg gccggccgct 1261 gatcttcaga cctggaggag gagatatgag ggacaattgg agaagtgaat tatataaata 1321 taaagtagta aaaattgaac cattaggagt agcacccacc aaggcaaaga gaagagtggt 1381 gcagagagaa aaaagagcag tgggaatagg agctttgttc cttgggttct tgggagcagc 1441 aggaagcact atgggcgcag cgtcaatgac gctgacggta caggccagac aattattgtc 1501 tggtatagtg cagcagcaga acaatttgct gagggctatt gaggcgcaac agcatctgtt 1561 gcaactcaca gtctggggca tcaagcagct ccaggcaaga atcctggctg tggaaagata 1621 cctaaaggat caacagctcc tggggatttg gggttgctct ggaaaactca tttgcaccac 1681 tgctgtgcct tggaatgcta gttggagtaa taaatctctg gaacagattt ggaatcacac 1741 gacctggatg gagtgggaca gagaaattaa caattacaca agcttaatac actccttaat 1801 tgaagaatcg caaaaccagc aagaaaagaa tgaacaagaa ttattggaat tagataaatg 1861 ggcaagtttg tggaattggt ttaacataac aaattggctg tggtatataa aattattcat 1921 aatgatagta ggaggcttgg taggtttaag aatagttttt gctgtacttt ctatagtgaa 1981 tagagttagg cagggatatt caccattatc gtttcagacc cacctcccaa ccccgagggg 2041 acccgacagg cccgaaggaa tagaagaaga aggtggagag agagacagag acagatccat 2101 tcgattagtg aacggatctc gacggtatcg cctttaaaag aaaagggggg attggggggt 2161 acagtgcagg ggaaagaata gtagacataa tagcaacaga catacaaact aaagaattac 2221 aaaaacaaat tacaaaaatt caaaattttc gggtttatta cagggacagc agagatccag 2281 tttatcgatg aggccctttc gtcttcactc gaggtgcccg tcagtgggca gagcgcacat 2341 cgcccacagt ccccgagaag ttggggggag gggtcggcaa ttgaaccggt gcctagagaa 2401 ggtggcgcgg ggtaaactgg gaaagtgatg tcgtgtactg gctccgcctt tttcccgagg 2461 gtgggggaga accgtatata agtgcagtag tcgccgtgaa cgttcttttt cgcaacgggt 2521 ttgccgccag aacacaggta agtgccgtgt gtggttcccg cgggcctggc ctctttacgg 2581 gttatggccc ttgcgtgcct tgaattactt ccacctggct gcagtacgtg attcttgatc 2641 ccgagcttcg ggttggaagt gggtgggaga gttcgaggcc ttgcgcttaa ggagcccctt 2701 cgcctcgtgc ttgagttgag gcctggcctg ggcgctgggg ccgccgcgtg cgaatctggt 2761 ggcaccttcg cgcctgtctc gctgctttcg ataagtctct agccatttaa aatttttgat 2821 gacctgctgc gacgcttttt ttctggcaag atagtcttgt aaatgcgggc caagatctgc 2881 acactggtat ttcggttttt ggggccgcgg gcggcgacgg ggcccgtgcg tcccagcgca 2941 catgttcggc gaggcggggc ctgcgagcgc ggccaccgag aatcggacgg gggtagtctc 3001 aagctggccg gcctgctctg gtgcctggcc tcgcgccgcc gtgtatcgcc ccgccctggg 3061 cggcaaggct ggcccggtcg gcaccagttg cgtgagcgga aagatggccg cttcccggcc 3121 ctgctgcagg gagctcaaaa tggaggacgc ggcgctcggg agagcgggcg ggtgagtcac 3181 ccacacaaag gaaaagggcc tttccgtcct cagccgtcgc ttcatgtgac tccacggagt 3241 accgggcgcc gtccaggcac ctcgattagt tctcgagctt ttggagtacg tcgtctttag 3301 gttgggggga ggggttttat gcgatggagt ttccccacac tgagtgggtg gagactgaag 3361 ttaggccagc ttggcacttg atgtaattct ccttggaatt tgcccttttt gagtttggat 3421 cttggttcat tctcaagcct cagacagtgg ttcaaagttt ttttcttcca tttcaggtgt 3481 cgtgaggatc cgccaccatg gtgagcaagg gcgaggagga taacatggcc atcatcaagg 3541 agttcatgcg cttcaaggtg cacatggagg gctccgtgaa cggccacgag ttcgagatcg 3601 agggcgaggg cgagggccgc ccctacgagg gcacccagac cgccaagctg aaggtgacca 3661 agggtggccc cctgcccttc gcctgggaca tcctgtcccc tcagttcatg tacggctcca 3721 aggcctacgt gaagcacccc gccgacatcc ccgactactt gaagctgtcc ttccccgagg 3781 gcttcaagtg ggagcgcgtg atgaacttcg aggacggcgg cgtggtgacc gtgacccagg 3841 actcctccct gcaggacggc gagttcatct acaaggtgaa gctgcgcggc accaacttcc 3901 cctccgacgg ccccgtaatg cagaagaaga ccatgggctg ggaggcctcc tccgagcgga 3961 tgtaccccga ggacggcgcc ctgaagggcg agatcaagca gaggctgaag ctgaaggacg 4021 gcggccacta cgacgctgag gtcaagacca cctacaaggc caagaagccc gtgcagctgc 4081 ccggcgccta caacgtcaac atcaagttgg acatcacctc ccacaacgag gactacacca 4141 tcgtggaaca gtacgaacgc gccgagggcc gccactccac cggcggcatg gacgagctgt 4201 acaaggacag cgccggaagt gctggctctg cgggtaccat ggcccgcata atagttgtga 4261 cttcaggtaa gggcggagtt ggaaaaacca catccagcgc agccatagct accggcctcg 4321 cacagaaagg caagaaaact gtggtcatag attttgatat tgggctcagg aacctggacc 4381 tgataatggg ctgcgaacgg cgcgttgtct acgattttgt caatgtcatc caaggcgacg 4441 cgactcttaa tcaggcactt ataaaagata aacgaaccga aaacttgtat attcttcctg 4501 cctcacaaac gcgggacaaa gacgcgctca ccagggaggg tgtcgcaaaa gttttggatg 4561 acttgaaagc gatggacttt gagttcatag tttgtgactc tcccgccggt atagagacag 4621 gggcacttat ggcactgtac ttcgcagatg aagccataat cacaactaat ccggaggtgt 4681 ctagtgtgcg agattcagac cgaatactgg ggatactcgc cagcaaatca cggagggcag 4741 aaaacgggga ggagccaatt aaggagcatc tcctgcttac ccgatataac cccggtcgag 4801 tatctcgggg agatatgctt tcaatggaag atgtcctcga gattctgagg ataaaactgg 4861 taggcgttat cccggaagac cagtccgtcc tccgcgcatc taatcagggg gagcctgtca 4921 tacttgacat aaatgcggat gctgggaaag cttatgccga tacggtagaa cggctcctcg 4981 gggaagaacg gcccttccgc ttcatagagg aggaaaagaa gggattcctt aaacggctgt 5041 tcgggggata agcggccgct ctagagtcga cgggccgcgg taacaattgt taactaactt 5101 aagctagcaa cggtttccct ctagcgggat caattccgcc ccccccccct aacgttactg 5161 gccgaagccg cttggaataa ggccggtgtg cgtttgtcta tatgttattt tccaccatat 5221 tgccgtcttt tggcaatgtg agggcccgga aacctggccc tgtcttcttg acgagcattc 5281 ctaggggtct ttcccctctc gccaaaggaa tgcaaggtct gttgaatgtc gtgaaggaag 5341 cagttcctct ggaagcttct tgaagacaaa caacgtctgt agcgaccctt tgcaggcagc 5401 ggaacccccc acctggcgac aggtgcctct gcggccaaaa gccacgtgta taagatacac 5461 ctgcaaaggc ggcacaaccc cagtgccacg ttgtgagttg gatagttgtg gaaagagtca 5521 aatggctctc ctcaagcgta ttcaacaagg ggctgaagga tgcccagaag gtaccccatt 5581 gtatgggatc tgatctgggg cctcggtgca catgctttac atgtgtttag tcgaggttaa 5641 aaaaacgtct aggccccccg aaccacgggg acgtggtttt cctttgaaaa acacgataat 5701 accatgaccg agtacaagcc cacggtgcgc ctcgccaccc gcgacgacgt ccccagggcc 5761 gtacgcaccc tcgccgccgc gttcgccgac taccccgcca cgcgccacac cgtcgatccg 5821 gaccgccaca tcgagcgggt caccgagctg caagaactct tcctcacgcg cgtcgggctc 5881 gacatcggca aggtgtgggt cgcggacgac ggcgccgcgg tggcggtctg gaccacgccg 5941 gagagcgtcg aagcgggggc ggtgttcgcc gagatcggcc cgcgcatggc cgagttgagc 6001 ggttcccggc tggccgcgca gcaacagatg gaaggcctcc tggcgccgca ccggcccaag 6061 gagcccgcgt ggttcctggc caccgtcggc gtctcgcccg accaccaggg caagggtctg 6121 ggcagcgccg tcgtgctccc cggagtggag gcggccgagc gcgccggggt gcccgccttc 6181 ctggagacct ccgcgccccg caacctcccc ttctacgagc ggctcggctt caccgtcacc 6241 gccgacgtcg aggtgcccga aggaccgcgc acctggtgca tgacccgcaa gcccggtgcc 6301 tgacccgggc ggggcgcgtc tggaacaatc aacctctgga ttacaaaatt tgtgaaagat 6361 tgactggtat tcttaactat gttgctcctt ttacgctatg tggatacgct gctttaatgc 6421 ctttgtatca tgctattgct tcccgtatgg ctttcatttt ctcctccttg tataaatcct 6481 ggttgctgtc tctttatgag gagttgtggc ccgttgtcag gcaacgtggc gtggtgtgca 6541 ctgtgtttgc tgacgcaacc cccactggtt ggggcattgc caccacctgt cagctccttt 6601 ccgggacttt cgctttcccc ctccctattg ccacggcgga actcatcgcc gcctgccttg 6661 cccgctgctg gacaggggct cggctgttgg gcactgacaa ttccgtggtg ttgtcgggga 6721 agctgacgtc ctttccatgg ctgctcgcct gtgttgccac ctggattctg cgcgggacgt 6781 ccttctgcta cgtcccttcg gccctcaatc cagcggacct tccttcccgc ggcctgctgc 6841 cggctctgcg gcctcttccg cgtcttcgcc ttcgccctca gacgagtcgg atctcccttt 6901 gggccgcctc cccgcctgga attaattctg cagtcgagac ctagaaaaac atggagcaat 6961 cacaagtagc aatacagcag ctaccaatgc tgattgtgcc tggctagaag cacaagagga 7021 ggaggaggtg ggttttccag tcacacctca ggtaccttta agaccaatga cttacaaggc 7081 agctgtagat cttagccact ttttaaaaga aaagagggga ctggaagggc taattcactc 7141 ccaacgaaga caagatatcc ttgatctgtg gatctaccac acacaaggct acttccctga 7201 ttagcagaac tacacaccag ggccaggggt cagatatcca ctgacctttg gatggtgcta 7261 caagctagta ccagttgagc cagataaggt agaagaggcc aataaaggag agaacaccag 7321 cttgttacac cctgtgagcc tgcatgggat ggatgacccg gagagagaag tgttagagtg 7381 gaggtttgac agccgcctag catttcatca cgtggcccga gagctgcatc cggagtactt 7441 caagaactgc tgatatcgag cttgctacaa gggactttcc gctggggact ttccagggag 7501 gcgtggcctg ggcgggactg gggagtggcg agccctcaga tcctgcatat aagcagctgc 7561 tttttgcctg tactgggtct ctctggttag accagatctg agcctgggag ctctctggct 7621 aactagggaa cccactgctt aagcctcaat aaagcttgcc ttgagtgctt caagtagtgt 7681 gtgcccgtct gttgtgtgac tctggtaact agagatccct cagacccttt tagtcagtgt 7741 ggaaaatctc tagcagtagt agttcatgtc atcttattat tcagtattta taacttgcaa 7801 agaaatgaat atcagagagt gagaggcctt gacattgcta gcgtttaccg tcgacctcta 7861 gctagagctt ggcgtaatca tggtcatagc tgtttcctgt gtgaaattgt tatccgctca 7921 caattccaca caacatacga gccggaagca taaagtgtaa agcctggggt gcctaatgag 7981 tgagctaact cacattaatt gcgttgcgct cactgcccgc tttccagtcg ggaaacctgt 8041 cgtgccagct gcattaatga atcggccaac gcgcggggag aggcggtttg cgtattgggc 8101 gctcttccgc ttcctcgctc actgactcgc tgcgctcggt cgttcggctg cggcgagcgg 8161 tatcagctca ctcaaaggcg gtaatacggt tatccacaga atcaggggat aacgcaggaa 8221 agaacatgtg agcaaaaggc cagcaaaagg ccaggaaccg taaaaaggcc gcgttgctgg 8281 cgtttttcca taggctccgc ccccctgacg agcatcacaa aaatcgacgc tcaagtcaga 8341 ggtggcgaaa cccgacagga ctataaagat accaggcgtt tccccctgga agctccctcg 8401 tgcgctctcc tgttccgacc ctgccgctta ccggatacct gtccgccttt ctcccttcgg 8461 gaagcgtggc gctttctcat agctcacgct gtaggtatct cagttcggtg taggtcgttc 8521 gctccaagct gggctgtgtg cacgaacccc ccgttcagcc cgaccgctgc gccttatccg 8581 gtaactatcg tcttgagtcc aacccggtaa gacacgactt atcgccactg gcagcagcca 8641 ctggtaacag gattagcaga gcgaggtatg taggcggtgc tacagagttc ttgaagtggt 8701 ggcctaacta cggctacact agaagaacag tatttggtat ctgcgctctg ctgaagccag 8761 ttaccttcgg aaaaagagtt ggtagctctt gatccggcaa acaaaccacc gctggtagcg 8821 gtggtttttt tgtttgcaag cagcagatta cgcgcagaaa aaaaggatct caagaagatc 8881 ctttgatctt ttctacgggg tctgacgctc agtggaacga aaactcacgt taagggattt 8941 tggtcatgag attatcaaaa aggatcttca cctagatcct tttaaattaa aaatgaagtt 9001 ttaaatcaat ctaaagtata tatgagtaaa cttggtctga cagttaccaa tgcttaatca 9061 gtgaggcacc tatctcagcg atctgtctat ttcgttcatc catagttgcc tgactccccg 9121 tcgtgtagat aactacgata cgggagggct taccatctgg ccccagtgct gcaatgatac 9181 cgcgagaccc acgctcaccg gctccagatt tatcagcaat aaaccagcca gccggaaggg 9241 ccgagcgcag aagtggtcct gcaactttat ccgcctccat ccagtctatt aattgttgcc 9301 gggaagctag agtaagtagt tcgccagtta atagtttgcg caacgttgtt gccattgcta 9361 caggcatcgt ggtgtcacgc tcgtcgtttg gtatggcttc attcagctcc ggttcccaac 9421 gatcaaggcg agttacatga tcccccatgt tgtgcaaaaa agcggttagc tccttcggtc 9481 ctccgatcgt tgtcagaagt aagttggccg cagtgttatc actcatggtt atggcagcac 9541 tgcataattc tcttactgtc atgccatccg taagatgctt ttctgtgact ggtgagtact 9601 caaccaagtc attctgagaa tagtgtatgc ggcgaccgag ttgctcttgc ccggcgtcaa 9661 tacgggataa taccgcgcca catagcagaa ctttaaaagt gctcatcatt ggaaaacgtt 9721 cttcggggcg aaaactctca aggatcttac cgctgttgag atccagttcg atgtaaccca 9781 ctcgtgcacc caactgatct tcagcatctt ttactttcac cagcgtttct gggtgagcaa 9841 aaacaggaag gcaaaatgcc gcaaaaaagg gaataagggc gacacggaaa tgttgaatac 9901 tcatactctt cctttttcaa tattattgaa gcatttatca gggttattgt ctcatgagcg 9961 gatacatatt tgaatgtatt tagaaaaata aacaaatagg ggttccgcgc acatttcccc 10021 gaaaagtgcc acctgacgtc gacggatcga gagatcaact tgtttattgc agcttataat 10081 ggttacaaat aaagcaatag catcacaaat ttcacaaata aagcattttt ttcactgcat 10141 tctagttgtg gtttgtccaa actcatcaat gtatcttatc atgtctggat caactggata 10201 actcaagcta accaaaatca tcccaaactt cccaccccat accctattac cac //
