质粒名称: | pTetQCas-BsaI |
---|---|
出品公司: | Addgene |
目录编号: | 170629 |
存储实验室: | Sheng Yang |
载体骨架基本信息 |
|
载体名称: | pCDFDuet-1 |
完整质粒大小: | 7955 bp |
载体类型: | 细菌表达 |
载体抗性: | Streptomycin |
生长温度: | 37 ℃ |
宿主菌: | DH5a |
拷贝数: | 高拷贝 |
插入基因信息 |
|
插入基因名称: | VchTniQ, VchCas8, VchCas7, VchCas6, CRISPR(BsaI) |
物种来源: | Vibrio cholera |
插入大小: | 951 bp |
克隆方法: | Gibson Cloning |
文献引用方法 |
|
材料和方法部分: | pTetQCas-BsaI was a gift from Sheng Yang (Addgene plasmid # 170629 ; http://n2t.net/addgene:170629 ; RRID:Addgene_170629) |
参考文献部分: | Programming Cells by Multicopy Chromosomal Integration Using CRISPR-Associated Transposases. Zhang Y, Yang J, Yang S, Zhang J, Chen J, Tao R, Jiang Y, Yang J, Yang S. CRISPR J. 2021 Jun;4(3):350-359. doi: 10.1089/crispr.2021.0018. 10.1089/crispr.2021.0018 PubMed 34152213 |
买家导航
载体基本信息

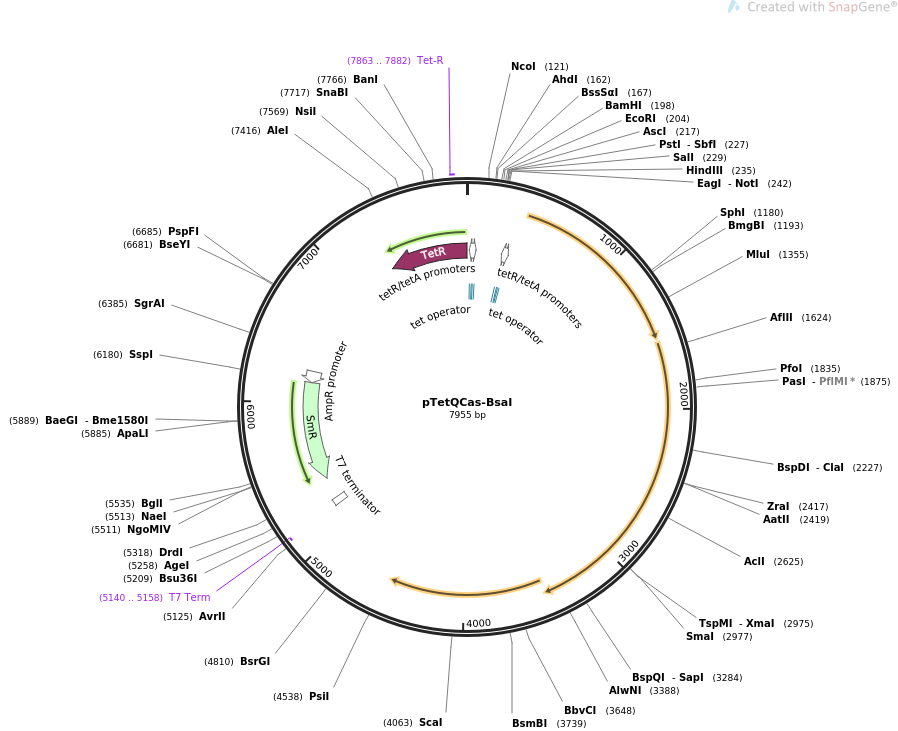

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pTetQCas-BsaI 7955 bp ds-DNA circular SYN 03-AUG-2021 DEFINITION Expression of CRISPR-associated transposases. ACCESSION . VERSION . KEYWORDS pTetQCas-BsaI SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 7955) AUTHORS Zhang Y, Yang J, Yang S, Zhang J, Chen J, Tao R, Jiang Y, Yang J, Yang S TITLE Programming Cells by Multicopy Chromosomal Integration Using CRISPR-Associated Transposases. JOURNAL CRISPR J. 2021 Jun;4(3):350-359. doi: 10.1089/crispr.2021.0018. PUBMED 34152213 REFERENCE 2 (bases 1 to 7955) AUTHORS . TITLE Direct Submission JOURNAL Exported Aug 3, 2021 from SnapGene Server 1.1.58 http://www.biofeng.com FEATURES Location/Qualifiers source 1..7955 /organism="synthetic DNA construct" /mol_type="other DNA" promoter 19..74 /gene="tetR" /label=tetR/tetA promoters /note="overlapping promoters for bacterial tetR and tetA" protein_bind 25..43 /label=tet operator /bound_moiety="tetracycline repressor TetR" /note="bacterial operator O1 for the tetR and tetA genes" protein_bind 55..73 /gene="tetO" /label=tet operator /bound_moiety="tetracycline repressor TetR" /note="bacterial operator O2 for the tetR and tetA genes" promoter 281..336 /gene="tetR" /label=tetR/tetA promoters /note="overlapping promoters for bacterial tetR and tetA" protein_bind 287..305 /label=tet operator /bound_moiety="tetracycline repressor TetR" /note="bacterial operator O1 for the tetR and tetA genes" protein_bind 317..335 /gene="tetO" /label=tet operator /bound_moiety="tetracycline repressor TetR" /note="bacterial operator O2 for the tetR and tetA genes" primer_bind complement(5140..5158) /label=T7 Term /note="T7 terminator, reverse primer" terminator 5154..5201 /label=T7 terminator /note="transcription terminator for bacteriophage T7 RNA polymerase" CDS complement(5372..6163) /codon_start=1 /gene="aadA" /product="aminoglycoside adenylyltransferase (Murphy, 1985)" /label=SmR /note="confers resistance to spectinomycin and streptomycin" /translation="MREAVIAEVSTQLSEVVGVIERHLEPTLLAVHLYGSAVDGGLKPH SDIDLLVTVTVRLDETTRRALINDLLETSASPGESEILRAVEVTIVVHDDIIPWRYPAK RELQFGEWQRNDILAGIFEPATIDIDLAILLTKAREHSVALVGPAAEELFDPVPEQDLF EALNETLTLWNSPPDWAGDERNVVLTLSRIWYSAVTGKIAPKDVAADWAMERLPAQYQP VILEARQAYLGQEEDRLASRADQLEEFVHYVKGEITKVVGK" promoter complement(6164..6255) /gene="bla" /label=AmpR promoter CDS complement(7332..7955) /codon_start=1 /gene="tetR from transposon Tn10" /product="tetracycline repressor TetR" /label=TetR /note="TetR binds to the tetracycline operator tetO to inhibit transcription. This inhibition can be relieved by adding tetracycline or doxycycline." /translation="MSRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWHV KNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLGTR PTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERETPTT DSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKCESGS" primer_bind 7863..7882 /label=Tet-R /note="Tetracycline resistance gene, reverse primer" ORIGIN 1 cattaattcc taatttttgt tgacactcta tcattgatag agttatttta ccactcccta 61 tcagtgatag agaaaagtga actctagaaa taattttgtt taactttaaa aggagatata 121 ccatgggtga actgccgagt aggtagctga taacgagacc tctggtctcg tgaactgccg 181 agtaggtagc tgataacgga tccgaattcg agctcggcgc gcctgcaggt cgacaagctt 241 gcggccgctc taatctagac atcattaatt cctaattttt gttgacactc tatcattgat 301 agagttattt taccactccc tatcagtgat agagaaaagt gaactctaga aataattttg 361 tttaacttta aaggagatat acatatgttt ttgcaaagac ctaaacctta cagcgatgaa 421 agtttagaaa gtttctttat ccgagtggct aacaaaaatg gctacggtga tgtccatcgc 481 ttcctagaag ccactaaacg attccttcaa gacattgacc ataatggcta tcaaaccttt 541 ccgactgata taactcggat aaacccatac tcagctaaaa acagttccag cgcacgaact 601 gcgtcattcc tgaaacttgc acaattgaca tttaatgaac cgccagagct acttgggttg 661 gcaattaaca gaacaaacat gaaatactcg ccgtcaacta gcgcggttgt tagaggtgca 721 gaagtctttc ctcgcagttt actacggacg cactccatcc cctgctgtcc tttgtgtctg 781 cgagaaaatg gctacgcctc ctacctttgg cactttcagg ggtacgaata ctgccacagc 841 cataacgtac ctttaattac cacttgtagc tgtggtaagg agtttgacta ccgagtatct 901 gggttaaagg gcatttgctg caaatgcaag gagcctatca ccttaaccag cagggagaac 961 ggtcatgagg cagcgtgtac tgtttcaaac tggcttgctg gccatgaatc taaacctctg 1021 ccaaatcttc ctaaaagcta ccgatggggt ttagttcatt ggtggatggg tattaaagat 1081 agcgagttcg atcacttttc gttcgttcaa tttttctcaa actggccaag gtcattccac 1141 tcgataatcg aagatgaagt agagttcaac cttgagcatg ctgttgtcag cacgtctgaa 1201 ttacgactaa aagatcttct tggtcgattg tttttcggtt caattcggtt acctgagcgg 1261 aatcttcaac acaatatcat ccttggtgag cttctctgct atttagaaaa tcgtttatgg 1321 caagacaagg gattaatcgc caacctcaaa atgaacgcgt tagaggcgac tgtaatgtta 1381 aattgtagcc tcgatcagat tgcatcaatg gttgaacaac gcatcttgaa gccaaatcga 1441 aaaagcaagc ccaacagccc tcttgatgtt accgattatc tatttcattt cggcgatatt 1501 ttctgtcttt ggttagctga gttccaaagc gatgagttta accgttcgtt ttatgtgtcg 1561 aggtggtaaa tgcaaactct gaaagaacta atcgcatcca atcctgacga cttaacaact 1621 gaacttaaga gagcatttcg tccactcaca ccgcatattg caattgatgg taatgaactt 1681 gacgcactga cgatattagt caatttaacc gataagactg atgatcagaa agacctgctc 1741 gatcgagcca aatgcaagca aaaacttcga gatgaaaaat ggtgggctag ctgcataaat 1801 tgcgttaatt acagacaaag ccataaccca aaattcccgg atatacgttc tgaaggcgtg 1861 attcgaaccc aagccctggg tgaattaccg agtttcctac tctcgtcctc aaaaatccca 1921 ccataccatt ggtcatatag ccatgattca aaatacgtca acaaaagcgc attcctcacc 1981 aatgagtttt gttgggatgg tgagatctca tgtttgggtg agcttcttaa agatgcagat 2041 cacccacttt ggaatacttt gaaaaagtta ggttgttctc aaaaaacttg caaagcaatg 2101 gcaaaacaac tagctgatat tactctcacg actatcaatg tcacactcgc accaaattac 2161 ctgactcaaa tatctctccc cgatagtgat acatcctaca tttcactctc tcctgttgca 2221 tcgctatcga tgcaaagcca ctttcatcag aggctccaag atgaaaatcg gcatagcgcg 2281 ataacgcggt ttagccgaac taccaacatg ggggtcactg cgatgacatg tggcggcgca 2341 tttagaatgt taaagtctgg cgctaagttt tccagccccc ctcatcaccg attaaacagt 2401 aaacgaagtt ggttgacgtc agagcatgtt cagtcattaa aacagtacca gcgcctcaac 2461 aaaagcctca tacctgaaaa ctctcggatt gcactccgta gaaaatacaa aatcgagctt 2521 caaaatatgg tcagatcttg gtttgcaatg caagaccata cccttgattc gaacatactt 2581 atccaacatt tgaatcatga cctatcttac ttaggagcca caaaacgttt tgcatacgat 2641 ccagcgatga ccaagctctt tactgagctt ttgaaacgag agttatcaaa ttcaatcaat 2701 aatggtgagc aacacactaa tggatcgttt ttagtcctac cgaatatcag ggtttgtggc 2761 gcaacagctt taagctcccc ggtaacggtg gggattccat cacttacagc tttctttggc 2821 ttcgttcacg catttgaacg gaatataaat cgcaccacct catcgtttcg tgttgaatcc 2881 tttgcgatat gcgtccatca actacatgtc gagaagcgag gtttgacagc agagtttgtg 2941 gaaaaaggcg acgggactat atccgctccc gcgacccggg atgactggca gtgtgatgtc 3001 gtatttagcc ttattttgaa caccaacttt gctcaacata ttgaccaaga tacgttagtt 3061 acatcactac caaagcgatt ggctcggggt tcagcaaaaa ttgcgattga tgactttaaa 3121 catatcaact cattctcgac attagaaaca gcgatcgaat ctctgccaat agaagctggt 3181 aggtggttat cactttacgc acagtcaaac aataatctaa gtgatctatt agcagccatg 3241 acagaggacc atcagctcat ggcaagctgc gtcggttacc acttgttaga agagcccaaa 3301 gataaaccaa actccctcag aggttacaaa cacgctatcg ccgagtgcat cattggactc 3361 attaactcaa tcacctttag ctcagagact gatcccaaca caatcttttg gtcgctaaag 3421 aactatcaaa actacctagt ggtacagcca aggagtatca acgatgaaac taccgacaaa 3481 tctagcctat gagcgctcta tcgacccatc agatgtctgt ttttttgtcg tctggcccga 3541 tgatagaaaa acacctttaa cctacaattc tcgtactctg ctcgggcaaa tggaagcggc 3601 atcattagcc tatgatgtct caggtcaacc aataaaaagt gccaccgctg aggcgttagc 3661 tcaagggaac cctcatcaag ttgatttctg ccacgttcca tacggtgcga gtcatattga 3721 atgcagtttc tccgtctcgt tttcttctga actacgtcaa ccatataagt gtaactcaag 3781 caaagttaaa caaacgctag tgcaattagt cgagctctac gaaacgaaaa tcggctggac 3841 tgagctagca acccgatatt tgatgaacat ttgcaacggt aaatggctgt ggaaaaatac 3901 ccgtaaagcc tattgctgga acattgtact tacaccttgg ccttggaacg gggaaaaggt 3961 tggatttgaa gatattcgta ctaactacac ctcacggcaa gactttaaaa ataataaaaa 4021 ttggtctgct atagttgaaa tgatcaaaac cgcattttct agtactgatg ggctggcgat 4081 atttgaagtc agggccacct tgcacttgcc aacgaatgct atggtgcggc caagccaagt 4141 tttcacagaa aaagaaagtg gcagtaaaag taaatctaaa actcaaaaca gtcgagtttt 4201 tcagagtaca actattgatg gtgaacgatc gccaatacta ggggccttta aaacgggagc 4261 agctattgca accattgacg actggtatcc tgaagccact gagccactaa gggtcggacg 4321 gtttggggtt catcgcgaag atgtcacttg ctaccgtcat ccgtctaccg gaaaagattt 4381 tttctcgata ttacaacaag cagagcacta tattgaagtg ttgagcgcca acaaaactcc 4441 cgctcaagaa actatcaacg acatgcactt tttaatggct aacctgatta agggtgggat 4501 gttccagcat aaaggagact gactgtgaaa tggtattata agacaatcac ctttctgcca 4561 gagttgtgca acaacgagtc actggctgca aagtgtctcc gcgttctgca tggatttaac 4621 tatcagtatg agacacgaaa tatcggcgtt tcatttccgc tttggtgtga tgcaacggtt 4681 ggaaaaaaga tttcatttgt cagcaagaac aagatagaac tcgacttact acttaaacaa 4741 cactatttcg tccaaatgga acaacttcaa tactttcata tatccaacac tgttctcgtc 4801 ccagaagatt gtacatacgt ttcctttaga cgctgtcaat ctatagataa gctcacagca 4861 gcagggctgg caaggaaaat cagacgcctg gagaaacgtg ctctatctag aggcgagcaa 4921 tttgacccat catcttttgc tcaaaaagag catactgcaa tagcgcacta ccactcactt 4981 ggggagtcca gcaaacagac gaaccgcaac tttcgactca atatcaggat gctctcggag 5041 caaccccgtg aggggaactc gatttttagt agctatggct tatcaaattc agaaaactcg 5101 tttcagcctg tacccttaat ctgacctagg ctgctgccac cgctgagcaa taactagcat 5161 aaccccttgg ggcctctaaa cgggtcttga ggggtttttt gctgaaacct caggcatttg 5221 agaagcacac ggtcacactg cttccggtag tcaataaacc ggtaaaccag caatagacat 5281 aagcggctat ttaacgaccc tgccctgaac cgacgaccgg gtcatcgtgg ccggatcttg 5341 cggcccctcg gcttgaacga attgttagac attatttgcc gactaccttg gtgatctcgc 5401 ctttcacgta gtggacaaat tcttccaact gatctgcgcg cgaggccaag cgatcttctt 5461 cttgtccaag ataagcctgt ctagcttcaa gtatgacggg ctgatactgg gccggcaggc 5521 gctccattgc ccagtcggca gcgacatcct tcggcgcgat tttgccggtt actgcgctgt 5581 accaaatgcg ggacaacgta agcactacat ttcgctcatc gccagcccag tcgggcggcg 5641 agttccatag cgttaaggtt tcatttagcg cctcaaatag atcctgttca ggaaccggat 5701 caaagagttc ctccgccgct ggacctacca aggcaacgct atgttctctt gcttttgtca 5761 gcaagatagc cagatcaatg tcgatcgtgg ctggctcgaa gatacctgca agaatgtcat 5821 tgcgctgcca ttctccaaat tgcagttcgc gcttagctgg ataacgccac ggaatgatgt 5881 cgtcgtgcac aacaatggtg acttctacag cgcggagaat ctcgctctct ccaggggaag 5941 ccgaagtttc caaaaggtcg ttgatcaaag ctcgccgcgt tgtttcatca agccttacgg 6001 tcaccgtaac cagcaaatca atatcactgt gtggcttcag gccgccatcc actgcggagc 6061 cgtacaaatg tacggccagc aacgtcggtt cgagatggcg ctcgatgacg ccaactacct 6121 ctgatagttg agtcgatact tcggcgatca ccgcttccct catactcttc ctttttcaat 6181 attattgaag catttatcag ggttattgtc tcatgagcgg atacatattt gaatgtattt 6241 agaaaaataa acaaatagct agctcactcg gtcgctacgc tccgggcgtg agactgcggc 6301 gggcgctgcg gacacataca aagttaccca cagattccgt ggataagcag gggactaaca 6361 tgtgaggcaa aacagcaggg ccgcgccggt ggcgtttttc cataggctcc gccctcctgc 6421 cagagttcac ataaacagac gcttttccgg tgcatctgtg ggagccgtga ggctcaacca 6481 tgaatctgac agtacgggcg aaacccgaca ggacttaaag atccccaccg tttccggcgg 6541 gtcgctccct cttgcgctct cctgttccga ccctgccgtt taccggatac ctgttccgcc 6601 tttctccctt acgggaagtg tggcgctttc tcatagctca cacactggta tctcggctcg 6661 gtgtaggtcg ttcgctccaa gctgggctgt aagcaagaac tccccgttca gcccgactgc 6721 tgcgccttat ccggtaactg ttcacttgag tccaacccgg aaaagcacgg taaaacgcca 6781 ctggcagcag ccattggtaa ctgggagttc gcagaggatt tgtttagcta aacacgcggt 6841 tgctcttgaa gtgtgcgcca aagtccggct acactggaag gacagatttg gttgctgtgc 6901 tctgcgaaag ccagttacca cggttaagca gttccccaac tgacttaacc ttcgatcaaa 6961 ccacctcccc aggtggtttt ttcgaaggtt aagtcagttg gggaactgct taaccttcga 7021 tcaaaccacc tccccaggtg gttttttcgt ttacagggca aaagattacg cgcagaaaaa 7081 aaggatctca agaagatcct ttgatctttt ctactgaacc gctctagatt tcagtgcaat 7141 ttatctcttc aaatgtagca cctgaagtca gccccatacg atataagttg taattctcat 7201 gttagtcatg ccccgcgccc accggaagga gctgactggg ttgaaggctc tcaagggcat 7261 cctgatgaat cccctaatga tttttatcaa aatcattaag gttaccatca cggaaaaagg 7321 ttatgctgct tttaagaccc actttcacat ttaagttgtt tttctaatcc gcatatgatc 7381 aattcaaggc cgaataagaa ggctggctct gcaccttggt gatcaaataa ttcgatagct 7441 tgtcgtaata atggcggcat actatcagta gtaggtgttt ccctttcttc tttagcgact 7501 tgatgctctt gatcttccaa tacgcaacct aaagtaaaat gccccacagc gctgagtgca 7561 tataatgcat tctctagtga aaaaccttgt tggcataaaa aggctaattg attttcgaga 7621 gtttcatact gtttttctgt aggccgtgta cctaaatgta cttttgctcc atcgcgatga 7681 cttagtaaag cacatctaaa acttttagcg ttattacgta aaaaatcttg ccagctttcc 7741 ccttctaaag ggcaaaagtg agtatggtgc ctatctaaca tctcaatggc taaggcgtcg 7801 agcaaagccc gcttattttt tacatgccaa tacaatgtag gctgctctac acctagcttc 7861 tgggcgagtt tacgggttgt taaaccttcg attccgacct cattaagcag ctctaatgcg 7921 ctgttaatca ctttactttt atctaatcta gacat //
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
