载体基本信息

出品公司: GenScript
载体名称: pGen2.1
质粒类型: 哺乳动物细胞载体
高拷贝/低拷贝: 高拷贝
克隆方法: --
启动子: CMV
载体大小: 5774 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: 新霉素/G418(Geneticin)
克隆菌株: --
宿主细胞(系): --
备注: 编码N末端标记的CMV启动子哺乳动物表达载体。
产品目录号: --
稳定性: --
组成型/诱导型: --
病毒/非病毒: 非病毒

载体图谱质粒图谱和多克隆位点信息

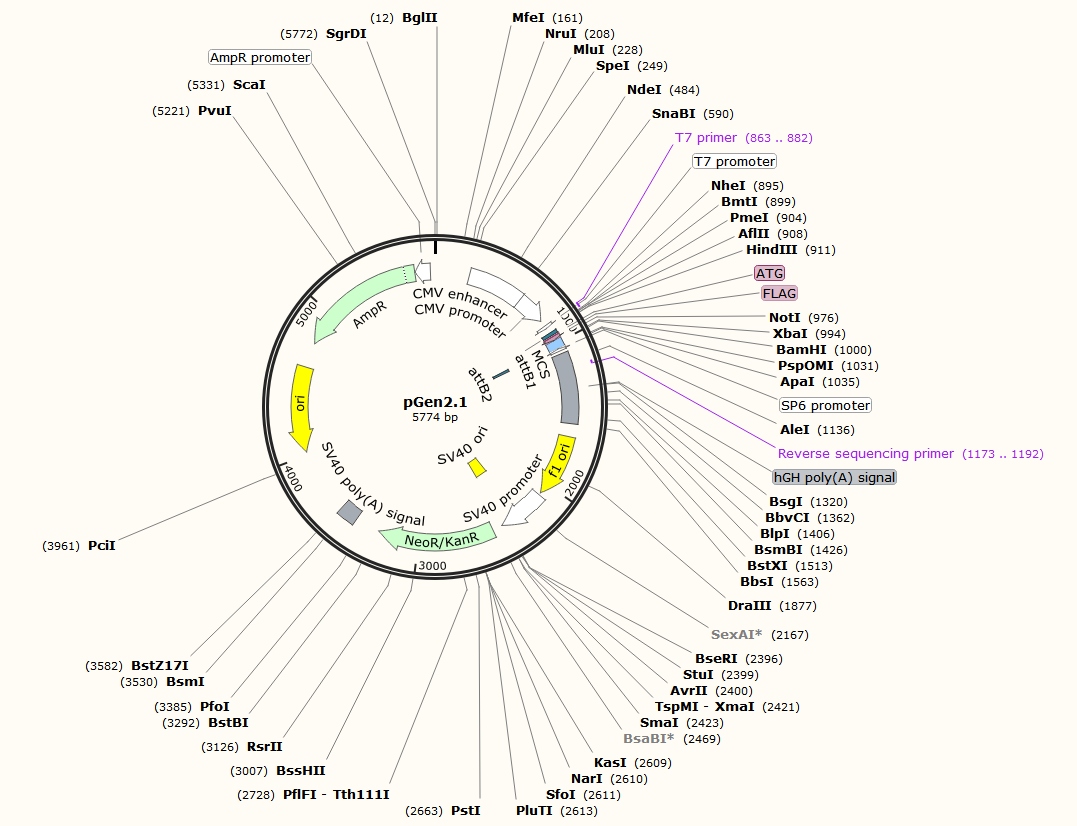

pGen2.1载体图谱

载体简介

载体序列

LOCUS       pGen2.1               5774 bp ds-DNA     circular SYN 23-FEB-2013
DEFINITION  CMV promoter-based mammalian expression vector encoding an
            N-terminal FLAG tag.
ACCESSION   .
VERSION     .
KEYWORDS    pGen2.1
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5774)
  AUTHORS   GenScript
  TITLE     Direct Submission
  JOURNAL   Exported Monday, February 24, 2020 from SnapGene Viewer 3.1.4
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5774
                     /organism="synthetic DNA construct"
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
     enhancer        235..614
                     /note="CMV enhancer"
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /note="CMV promoter"
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /note="T7 promoter"
                     /note="promoter for bacteriophage T7 RNA polymerase"
     protein_bind    917..941
                     /gene="mutant version of attB"
                     /bound_moiety="BP Clonase(TM)"
                     /note="attB1"
                     /note="recombination site for the Gateway(R) BP reaction"
     CDS             948..950
                     /codon_start=1
                     /product="start codon"
                     /note="ATG"
                     /translation="M"
     CDS             951..974
                     /codon_start=1
                     /product="FLAG epitope tag, followed by an enterokinase
                     cleavage site"
                     /note="FLAG"
                     /translation="DYKDDDDK"
     misc_feature    975..1036
                     /note="MCS"
                     /note="multiple cloning site"
     protein_bind    1006..1030
                     /gene="mutant version of attB"
                     /bound_moiety="BP clonase(TM)"
                     /note="attB2"
                     /note="recombination site for the Gateway(R) BP reaction"
     promoter        complement(1040..1058)
                     /note="SP6 promoter"
                     /note="promoter for bacteriophage SP6 RNA polymerase"
     polyA_signal    1079..1555
                     /note="hGH poly(A) signal"
                     /note="human growth hormone polyadenylation signal"
     rep_origin      1644..2072
                     /direction=RIGHT
                     /note="f1 ori"
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2086..2415
                     /note="SV40 promoter"
                     /note="SV40 enhancer and early promoter"
     rep_origin      2266..2401
                     /note="SV40 ori"
                     /note="SV40 origin of replication"
     CDS             2482..3276
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /note="NeoR/KanR"
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3450..3571
                     /note="SV40 poly(A) signal"
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(4022..4607)
                     /direction=LEFT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(4778..5638)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /note="AmpR"
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(5639..5743)
                     /gene="bla"
                     /note="AmpR promoter"
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttacaa gtttgtacaa aaaagcaggc tgccaccatg gattacaagg
      961 atgacgacga taaggcggcc gcttgagcat gcatctagag gatccaccca gctttcttgt
     1021 acaaagtggt gggccctatt ctatagtgtc acctaaatcg ctagagctcg ctgatcacgg
     1081 gtggcatccc tgtgacccct ccccagtgcc tctcctggcc ctggaagttg ccactccagt
     1141 gcccaccagc cttgtcctaa taaaattaag ttgcatcatt ttgtctgact aggtgtcctt
     1201 ctataatatt atggggtgga ggggggtggt atggagcaag gggcaagttg ggatgacaac
     1261 ctgtagggcc tgcggggtct attgggaacc aagctggagt gcagtggcac aatcttggct
     1321 cactgcaatc tccgcctcct gggttcaagc gattctcctg cctcagcctc ccgagttgtt
     1381 gggattccag gcatgcatga ccaggctcag ctaatttttg tttttttggt agagacgggg
     1441 tttcaccata ttggccaggc tggtctccaa ctcctaatct caggtgatct acccaccttg
     1501 gcctcccaaa ttgctgggat tacaggcgtg aaccactgct cccttccctg tccttgaaga
     1561 caatagcagg catgctgggg atgcggtggg ctctatggct tctgaggcgg aaagaaccag
     1621 ctggggctct agggggtatc cccacgcgcc ctgtagcggc gcattaagcg cggcgggtgt
     1681 ggtggttacg cgcagcgtga ccgctacact tgccagcgcc ctagcgcccg ctcctttcgc
     1741 tttcttccct tcctttctcg ccacgttcgc cggctttccc cgtcaagctc taaatcgggg
     1801 gctcccttta gggttccgat ttagtgcttt acggcacctc gaccccaaaa aacttgatta
     1861 gggtgatggt tcacgtagtg ggccatcgcc ctgatagacg gtttttcgcc ctttgacgtt
     1921 ggagtccacg ttctttaata gtggactctt gttccaaact ggaacaacac tcaaccctat
     1981 ctcggtctat tcttttgatt tataagggat tttgccgatt tcggcctatt ggttaaaaaa
     2041 tgagctgatt taacaaaaat ttaacgcgaa ttaattctgt ggaatgtgtg tcagttaggg
     2101 tgtggaaagt ccccaggctc cccagcaggc agaagtatgc aaagcatgca tctcaattag
     2161 tcagcaacca ggtgtggaaa gtccccaggc tccccagcag gcagaagtat gcaaagcatg
     2221 catctcaatt agtcagcaac catagtcccg cccctaactc cgcccatccc gcccctaact
     2281 ccgcccagtt ccgcccattc tccgccccat ggctgactaa ttttttttat ttatgcagag
     2341 gccgaggccg cctctgcctc tgagctattc cagaagtagt gaggaggctt ttttggaggc
     2401 ctaggctttt gcaaaaagct cccgggagct tgtatatcca ttttcggatc tgatcaagag
     2461 acaggatgag gatcgtttcg catgattgaa caagatggat tgcacgcagg ttctccggcc
     2521 gcttgggtgg agaggctatt cggctatgac tgggcacaac agacaatcgg ctgctctgat
     2581 gccgccgtgt tccggctgtc agcgcagggg cgcccggttc tttttgtcaa gaccgacctg
     2641 tccggtgccc tgaatgaact gcaggacgag gcagcgcggc tatcgtggct ggccacgacg
     2701 ggcgttcctt gcgcagctgt gctcgacgtt gtcactgaag cgggaaggga ctggctgcta
     2761 ttgggcgaag tgccggggca ggatctcctg tcatctcacc ttgctcctgc cgagaaagta
     2821 tccatcatgg ctgatgcaat gcggcggctg catacgcttg atccggctac ctgcccattc
     2881 gaccaccaag cgaaacatcg catcgagcga gcacgtactc ggatggaagc cggtcttgtc
     2941 gatcaggatg atctggacga agagcatcag gggctcgcgc cagccgaact gttcgccagg
     3001 ctcaaggcgc gcatgcccga cggcgaggat ctcgtcgtga cccatggcga tgcctgcttg
     3061 ccgaatatca tggtggaaaa tggccgcttt tctggattca tcgactgtgg ccggctgggt
     3121 gtggcggacc gctatcagga catagcgttg gctacccgtg atattgctga agagcttggc
     3181 ggcgaatggg ctgaccgctt cctcgtgctt tacggtatcg ccgctcccga ttcgcagcgc
     3241 atcgccttct atcgccttct tgacgagttc ttctgagcgg gactctgggg ttcgaaatga
     3301 ccgaccaagc gacgcccaac ctgccatcac gagatttcga ttccaccgcc gccttctatg
     3361 aaaggttggg cttcggaatc gttttccggg acgccggctg gatgatcctc cagcgcgggg
     3421 atctcatgct ggagttcttc gcccacccca acttgtttat tgcagcttat aatggttaca
     3481 aataaagcaa tagcatcaca aatttcacaa ataaagcatt tttttcactg cattctagtt
     3541 gtggtttgtc caaactcatc aatgtatctt atcatgtctg tataccgtcg acctctagct
     3601 agagcttggc gtaatcatgg tcatagctgt ttcctgtgtg aaattgttat ccgctcacaa
     3661 ttccacacaa catacgagcc ggaagcataa agtgtaaagc ctggggtgcc taatgagtga
     3721 gctaactcac attaattgcg ttgcgctcac tgcccgcttt ccagtcggga aacctgtcgt
     3781 gccagctgca ttaatgaatc ggccaacgcg cggggagagg cggtttgcgt attgggcgct
     3841 cttccgcttc ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat
     3901 cagctcactc aaaggcggta atacggttat ccacagaatc aggggataac gcaggaaaga
     3961 acatgtgagc aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt
     4021 ttttccatag gctccgcccc cctgacgagc atcacaaaaa tcgacgctca agtcagaggt
     4081 ggcgaaaccc gacaggacta taaagatacc aggcgtttcc ccctggaagc tccctcgtgc
     4141 gctctcctgt tccgaccctg ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa
     4201 gcgtggcgct ttctcatagc tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct
     4261 ccaagctggg ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc ttatccggta
     4321 actatcgtct tgagtccaac ccggtaagac acgacttatc gccactggca gcagccactg
     4381 gtaacaggat tagcagagcg aggtatgtag gcggtgctac agagttcttg aagtggtggc
     4441 ctaactacgg ctacactaga agaacagtat ttggtatctg cgctctgctg aagccagtta
     4501 ccttcggaaa aagagttggt agctcttgat ccggcaaaca aaccaccgct ggtagcggtt
     4561 tttttgtttg caagcagcag attacgcgca gaaaaaaagg atctcaagaa gatcctttga
     4621 tcttttctac ggggtctgac gctcagtgga acgaaaactc acgttaaggg attttggtca
     4681 tgagattatc aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga agttttaaat
     4741 caatctaaag tatatatgag taaacttggt ctgacagtta ccaatgctta atcagtgagg
     4801 cacctatctc agcgatctgt ctatttcgtt catccatagt tgcctgactc cccgtcgtgt
     4861 agataactac gatacgggag ggcttaccat ctggccccag tgctgcaatg ataccgcgag
     4921 acccacgctc accggctcca gatttatcag caataaacca gccagccgga agggccgagc
     4981 gcagaagtgg tcctgcaact ttatccgcct ccatccagtc tattaattgt tgccgggaag
     5041 ctagagtaag tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt gctacaggca
     5101 tcgtggtgtc acgctcgtcg tttggtatgg cttcattcag ctccggttcc caacgatcaa
     5161 ggcgagttac atgatccccc atgttgtgca aaaaagcggt tagctccttc ggtcctccga
     5221 tcgttgtcag aagtaagttg gccgcagtgt tatcactcat ggttatggca gcactgcata
     5281 attctcttac tgtcatgcca tccgtaagat gcttttctgt gactggtgag tactcaacca
     5341 agtcattctg agaatagtgt atgcggcgac cgagttgctc ttgcccggcg tcaatacggg
     5401 ataataccgc gccacatagc agaactttaa aagtgctcat cattggaaaa cgttcttcgg
     5461 ggcgaaaact ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa cccactcgtg
     5521 cacccaactg atcttcagca tcttttactt tcaccagcgt ttctgggtga gcaaaaacag
     5581 gaaggcaaaa tgccgcaaaa aagggaataa gggcgacacg gaaatgttga atactcatac
     5641 tcttcctttt tcaatattat tgaagcattt atcagggtta ttgtctcatg agcggataca
     5701 tatttgaatg tatttagaaa aataaacaaa taggggttcc gcgcacattt ccccgaaaag
     5761 tgccacctga cgtc
//
