LAMP1-mGFP

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: LAMP1-mGFP
出品公司: Addgene
目录编号: 34831
存储实验室: Esteban Dell'Angelica

载体骨架基本信息
载体名称: pEGFP-N3
载体出品公司: Clontech
空载体大小: 4729 bp
完整质粒大小: 6015 bp
载体类型: 哺乳细胞表达
载体抗性: Kanamycin
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 高拷贝

插入基因信息
插入基因名称: LAMP1
物种来源: H. sapiens (human)
插入大小: 1300 bp
启动子: CMV
标签/融合蛋白:
mGFP (C terminal on backbone)
Kozak (N terminal on insert)
GSTGSTGSTGA linker (C terminal on insert)
克隆方法: 限制性内切酶
5’克隆位点: EcoRI (not destroyed)
3’克隆位点: SalI (not destroyed)
5’测序引物 CMV-F
3’测序引物 EGFP-N

文献引用方法
材料和方法部分:
LAMP1-mGFP was a gift from Esteban Dell'Angelica (Addgene plasmid # 34831 ; http://n2t.net/addgene:34831 ; RRID:Addgene_34831)

参考文献部分: Distribution and dynamics of Lamp1-containing endocytic organelles in fibroblasts deficient in BLOC-3. Falcon-Perez JM, Nazarian R, Sabatti C, Dell'Angelica EC. J Cell Sci. 2005 Nov 15;118(Pt 22):5243-55. Epub 2005 Oct 25. 10.1242/jcs.02633 PubMed 16249233

载体图谱质粒图谱和多克隆位点信息

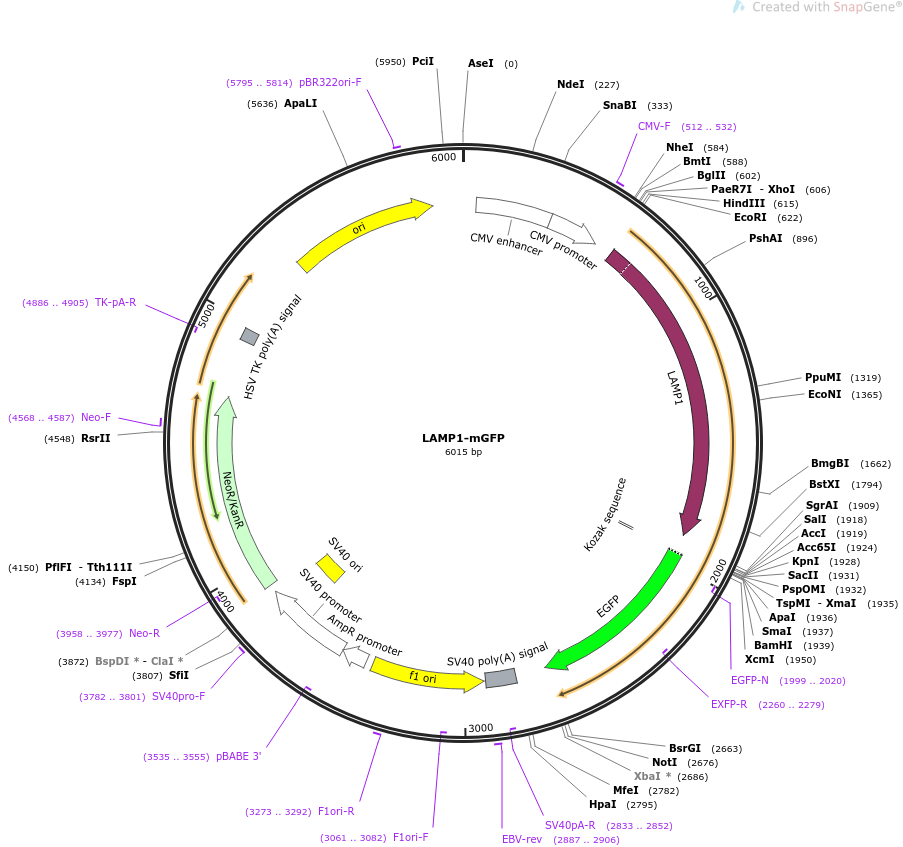

LAMP1-mGFP载体图谱

载体简介

载体序列

LOCUS       LAMP1-mGFP                6015 bp ds-DNA     circular SYN 11-MAR-2024
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    LAMP1-mGFP
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6015)
  AUTHORS   Falcon-Perez JM, Nazarian R, Sabatti C, Dell'Angelica EC
  TITLE     Distribution and dynamics of Lamp1-containing endocytic organelles
            in fibroblasts deficient in BLOC-3.
  JOURNAL   J Cell Sci. 2005 Nov 15;118(Pt 22):5243-55. Epub 2005 Oct 25.
  PUBMED    16249233
REFERENCE   2  (bases 1 to 6015)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Mar 11, 2024 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6015
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        54..357
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        358..561
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     512..532
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     CDS             634..1884
                     /codon_start=1
                     /product="human lysosome-associated membrane glycoprotein
                     1"
                     /label=LAMP1
                     /translation="MAAPGSARRPLLLLLLLLLLGLMHCASAAMFMVKNGNGTACIMAN
                     FSAAFSVNYDTKSGPKNMTFDLPSDATVVLNRSSCGKENTSDPSLVIAFGRGHTLTLNF
                     TRNATRYSVQLMSFVYNLSDTHLFPNASSKEIKTVESITDIRADIDKKYRCVSGTQVHM
                     NNVTVTLHDATIQAYLSNSSFSRGETRCEQDRPSPTTAPPAPPSPSPSPVPKSPSVDKY
                     NVSGTNGTCLLASMGLQLNLTYERKDNTTVTRLLNINPNKTSASGSCGAHLVTLELHSE
                     GTTVLLFQFGMNASSSRFFLQGIQLNTILPDARDPAFKAANGSLRALQATVGNSYKCNA
                     EEHVRVTKAFSVNIFKVWVQAFKVEGGQFGSVEECLLDENSMLIPIAVGGALAGLVLIV
                     LIAYLVGRKRSHAGYQTI"
     regulatory      1948..1957
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             1954..2673
                     /codon_start=1
                     /product="the original enhanced GFP (Yang et al., 1996)"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLK
                     EFVTAAGITLGMDELYK"
     primer_bind     complement(1999..2020)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(2260..2279)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     polyA_signal    2796..2917
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(2833..2852)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     2887..2906
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      complement(2924..3379)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(3061..3082)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     3273..3292
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        3406..3510
                     /gene="bla"
                     /label=AmpR promoter
     promoter        3512..3869
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     primer_bind     complement(3535..3555)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      3720..3855
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3782..3801
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             3904..4698
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(3958..3977)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     4568..4587
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(4886..4905)
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     polyA_signal    4930..4977
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      5306..5894
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     5795..5814
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 taatagtaat caattacggg gtcattagtt catagcccat atatggagtt ccgcgttaca
       61 taacttacgg taaatggccc gcctggctga ccgcccaacg acccccgccc attgacgtca
      121 ataatgacgt atgttcccat agtaacgcca atagggactt tccattgacg tcaatgggtg
      181 gagtatttac ggtaaactgc ccacttggca gtacatcaag tgtatcatat gccaagtacg
      241 ccccctattg acgtcaatga cggtaaatgg cccgcctggc attatgccca gtacatgacc
      301 ttatgggact ttcctacttg gcagtacatc tacgtattag tcatcgctat taccatggtg
      361 atgcggtttt ggcagtacat caatgggcgt ggatagcggt ttgactcacg gggatttcca
      421 agtctccacc ccattgacgt caatgggagt ttgttttggc accaaaatca acgggacttt
      481 ccaaaatgtc gtaacaactc cgccccattg acgcaaatgg gcggtaggcg tgtacggtgg
      541 gaggtctata taagcagagc tggtttagtg aaccgtcaga tccgctagcg ctaccggact
      601 cagatctcga gctcaagctt cgaattcagg gacatggcgg cccccggcag cgcccggcga
      661 cccctgctgc tgctactgct gttgctgctg ctcggcctca tgcattgtgc gtcagcagca
      721 atgtttatgg tgaaaaatgg caacgggacc gcgtgcataa tggccaactt ctctgctgcc
      781 ttctcagtga actacgacac caagagtggc cctaagaaca tgacctttga cctgccatca
      841 gatgccacag tggtgctcaa ccgcagctcc tgtggaaaag agaacacttc tgaccccagt
      901 ctcgtgattg cttttggaag aggacataca ctcactctca atttcacgag aaatgcaaca
      961 cgttacagcg tccagctcat gagttttgtt tataacttgt cagacacaca ccttttcccc
     1021 aatgcgagct ccaaagaaat caagactgtg gaatctataa ctgacatcag ggcagatata
     1081 gataaaaaat acagatgtgt tagtggcacc caggtccaca tgaacaacgt gaccgtaacg
     1141 ctccatgatg ccaccatcca ggcgtacctt tccaacagca gcttcagcag gggagagaca
     1201 cgctgtgaac aagacaggcc ttccccaacc acagcgcccc ctgcgccacc cagcccctcg
     1261 ccctcacccg tgcccaagag cccctctgtg gacaagtaca acgtgagcgg caccaacggg
     1321 acctgcctgc tggccagcat ggggctgcag ctgaacctca cctatgagag gaaggacaac
     1381 acgacggtga caaggcttct caacatcaac cccaacaaga cctcggccag cgggagctgc
     1441 ggcgcccacc tggtgactct ggagctgcac agcgagggca ccaccgtcct gctcttccag
     1501 ttcgggatga atgcaagttc tagccggttt ttcctacaag gaatccagtt gaatacaatt
     1561 cttcctgacg ccagagaccc cgcctttaaa gctgccaacg gctccctgcg agcgctgcag
     1621 gccacagtcg gcaattccta caagtgcaac gcggaggagc acgtccgtgt cacgaaggcg
     1681 ttttcagtca atatattcaa agtgtgggtc caggctttca aggtggaagg tggccagttt
     1741 ggctctgtgg aggagtgtct gctggacgag aacagcatgc tgatccccat cgctgtgggt
     1801 ggtgccctgg cggggctggt cctcatcgtc ctcatcgcct acctcgtcgg caggaagagg
     1861 agtcacgcag gctaccagac tatcggctcc accggctcca caggctccac cggcgcggtc
     1921 gacggtaccg cgggcccggg atccatcgcc accatggtga gcaagggcga ggagctgttc
     1981 accggggtgg tgcccatcct ggtcgagctg gacggcgacg taaacggcca caagttcagc
     2041 gtgtccggcg agggcgaggg cgatgccacc tacggcaagc tgaccctgaa gttcatctgc
     2101 accaccggca agctgcccgt gccctggccc accctcgtga ccaccctgac ctacggcgtg
     2161 cagtgcttca gccgctaccc cgaccacatg aagcagcacg acttcttcaa gtccgccatg
     2221 cccgaaggct acgtccagga gcgcaccatc ttcttcaagg acgacggcaa ctacaagacc
     2281 cgcgccgagg tgaagttcga gggcgacacc ctggtgaacc gcatcgagct gaagggcatc
     2341 gacttcaagg aggacggcaa catcctgggg cacaagctgg agtacaacta caacagccac
     2401 aacgtctata tcatggccga caagcagaag aacggcatca aggtgaactt caagatccgc
     2461 cacaacatcg aggacggcag cgtgcagctc gccgaccact accagcagaa cacccccatc
     2521 ggcgacggcc ccgtgctgct gcccgacaac cactacctga gcacccagtc cgccctgagc
     2581 aaagacccca acgagaagcg cgatcacatg gtccttaagg agttcgtgac cgccgccggg
     2641 atcactctcg gcatggacga gctgtacaag taaagcggcc gcgactctag atcataatca
     2701 gccataccac atttgtagag gttttacttg ctttaaaaaa cctcccacac ctccccctga
     2761 acctgaaaca taaaatgaat gcaattgttg ttgttaactt gtttattgca gcttataatg
     2821 gttacaaata aagcaatagc atcacaaatt tcacaaataa agcatttttt tcactgcatt
     2881 ctagttgtgg tttgtccaaa ctcatcaatg tatcttaagg cgtaaattgt aagcgttaat
     2941 attttgttaa aattcgcgtt aaatttttgt taaatcagct cattttttaa ccaataggcc
     3001 gaaatcggca aaatccctta taaatcaaaa gaatagaccg agatagggtt gagtgttgtt
     3061 ccagtttgga acaagagtcc actattaaag aacgtggact ccaacgtcaa agggcgaaaa
     3121 accgtctatc agggcgatgg cccactacgt gaaccatcac cctaatcaag ttttttgggg
     3181 tcgaggtgcc gtaaagcact aaatcggaac cctaaaggga gcccccgatt tagagcttga
     3241 cggggaaagc cggcgaacgt ggcgagaaag gaagggaaga aagcgaaagg agcgggcgct
     3301 agggcgctgg caagtgtagc ggtcacgctg cgcgtaacca ccacacccgc cgcgcttaat
     3361 gcgccgctac agggcgcgtc aggtggcact tttcggggaa atgtgcgcgg aacccctatt
     3421 tgtttatttt tctaaataca ttcaaatatg tatccgctca tgagacaata accctgataa
     3481 atgcttcaat aatattgaaa aaggaagagt cctgaggcgg aaagaaccag ctgtggaatg
     3541 tgtgtcagtt agggtgtgga aagtccccag gctccccagc aggcagaagt atgcaaagca
     3601 tgcatctcaa ttagtcagca accaggtgtg gaaagtcccc aggctcccca gcaggcagaa
     3661 gtatgcaaag catgcatctc aattagtcag caaccatagt cccgccccta actccgccca
     3721 tcccgcccct aactccgccc agttccgccc attctccgcc ccatggctga ctaatttttt
     3781 ttatttatgc agaggccgag gccgcctcgg cctctgagct attccagaag tagtgaggag
     3841 gcttttttgg aggcctaggc ttttgcaaag atcgatcaag agacaggatg aggatcgttt
     3901 cgcatgattg aacaagatgg attgcacgca ggttctccgg ccgcttgggt ggagaggcta
     3961 ttcggctatg actgggcaca acagacaatc ggctgctctg atgccgccgt gttccggctg
     4021 tcagcgcagg ggcgcccggt tctttttgtc aagaccgacc tgtccggtgc cctgaatgaa
     4081 ctgcaagacg aggcagcgcg gctatcgtgg ctggccacga cgggcgttcc ttgcgcagct
     4141 gtgctcgacg ttgtcactga agcgggaagg gactggctgc tattgggcga agtgccgggg
     4201 caggatctcc tgtcatctca ccttgctcct gccgagaaag tatccatcat ggctgatgca
     4261 atgcggcggc tgcatacgct tgatccggct acctgcccat tcgaccacca agcgaaacat
     4321 cgcatcgagc gagcacgtac tcggatggaa gccggtcttg tcgatcagga tgatctggac
     4381 gaagagcatc aggggctcgc gccagccgaa ctgttcgcca ggctcaaggc gagcatgccc
     4441 gacggcgagg atctcgtcgt gacccatggc gatgcctgct tgccgaatat catggtggaa
     4501 aatggccgct tttctggatt catcgactgt ggccggctgg gtgtggcgga ccgctatcag
     4561 gacatagcgt tggctacccg tgatattgct gaagagcttg gcggcgaatg ggctgaccgc
     4621 ttcctcgtgc tttacggtat cgccgctccc gattcgcagc gcatcgcctt ctatcgcctt
     4681 cttgacgagt tcttctgagc gggactctgg ggttcgaaat gaccgaccaa gcgacgccca
     4741 acctgccatc acgagatttc gattccaccg ccgccttcta tgaaaggttg ggcttcggaa
     4801 tcgttttccg ggacgccggc tggatgatcc tccagcgcgg ggatctcatg ctggagttct
     4861 tcgcccaccc tagggggagg ctaactgaaa cacggaagga gacaataccg gaaggaaccc
     4921 gcgctatgac ggcaataaaa agacagaata aaacgcacgg tgttgggtcg tttgttcata
     4981 aacgcggggt tcggtcccag ggctggcact ctgtcgatac cccaccgaga ccccattggg
     5041 gccaatacgc ccgcgtttct tccttttccc caccccaccc cccaagttcg ggtgaaggcc
     5101 cagggctcgc agccaacgtc ggggcggcag gccctgccat agcctcaggt tactcatata
     5161 tactttagat tgatttaaaa cttcattttt aatttaaaag gatctaggtg aagatccttt
     5221 ttgataatct catgaccaaa atcccttaac gtgagttttc gttccactga gcgtcagacc
     5281 ccgtagaaaa gatcaaagga tcttcttgag atcctttttt tctgcgcgta atctgctgct
     5341 tgcaaacaaa aaaaccaccg ctaccagcgg tggtttgttt gccggatcaa gagctaccaa
     5401 ctctttttcc gaaggtaact ggcttcagca gagcgcagat accaaatact gttcttctag
     5461 tgtagccgta gttaggccac cacttcaaga actctgtagc accgcctaca tacctcgctc
     5521 tgctaatcct gttaccagtg gctgctgcca gtggcgataa gtcgtgtctt accgggttgg
     5581 actcaagacg atagttaccg gataaggcgc agcggtcggg ctgaacgggg ggttcgtgca
     5641 cacagcccag cttggagcga acgacctaca ccgaactgag atacctacag cgtgagctat
     5701 gagaaagcgc cacgcttccc gaagggagaa aggcggacag gtatccggta agcggcaggg
     5761 tcggaacagg agagcgcacg agggagcttc cagggggaaa cgcctggtat ctttatagtc
     5821 ctgtcgggtt tcgccacctc tgacttgagc gtcgattttt gtgatgctcg tcaggggggc
     5881 ggagcctatg gaaaaacgcc agcaacgcgg cctttttacg gttcctggcc ttttgctggc
     5941 cttttgctca catgttcttt cctgcgttat cccctgattc tgtggataac cgtattaccg
     6001 ccatgcatta gttat
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
