pRK5-HA-Ubiquitin-K11

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pRK5-HA-Ubiquitin-K11
出品公司: Addgene
目录编号: 22901
存储实验室: Sandra Weller

载体骨架基本信息
载体名称: pRK5-HA
空载体大小: 4800 bp
完整质粒大小: 4996 bp
载体类型: 哺乳细胞表达
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 高拷贝

插入基因信息
插入基因名称: Ubiquitin C / Ub
物种来源: H. sapiens (human)
插入大小: 220 bp
基因突变: K11 only, all other lysines mutated to arginines
标签/融合蛋白: HA (N terminal on backbone)
克隆方法: 限制性内切酶
5’克隆位点: unknown (unknown if destroyed)
3’克隆位点: unknown (unknown if destroyed)
5’测序引物 SP6

文献引用方法
材料和方法部分:
pRK5-HA-Ubiquitin-K11 was a gift from Sandra Weller (Addgene plasmid # 22901 ; http://n2t.net/addgene:22901 ; RRID:Addgene_22901)

参考文献部分: Virus-Induced Chaperone-Enriched (VICE) domains function as nuclear protein quality control centers during HSV-1 infection. Livingston CM, Ifrim MF, Cowan AE, Weller SK. PLoS Pathog. 2009 Oct . 5(10):e1000619. 10.1371/journal.ppat.1000619 PubMed 19816571

载体图谱质粒图谱和多克隆位点信息

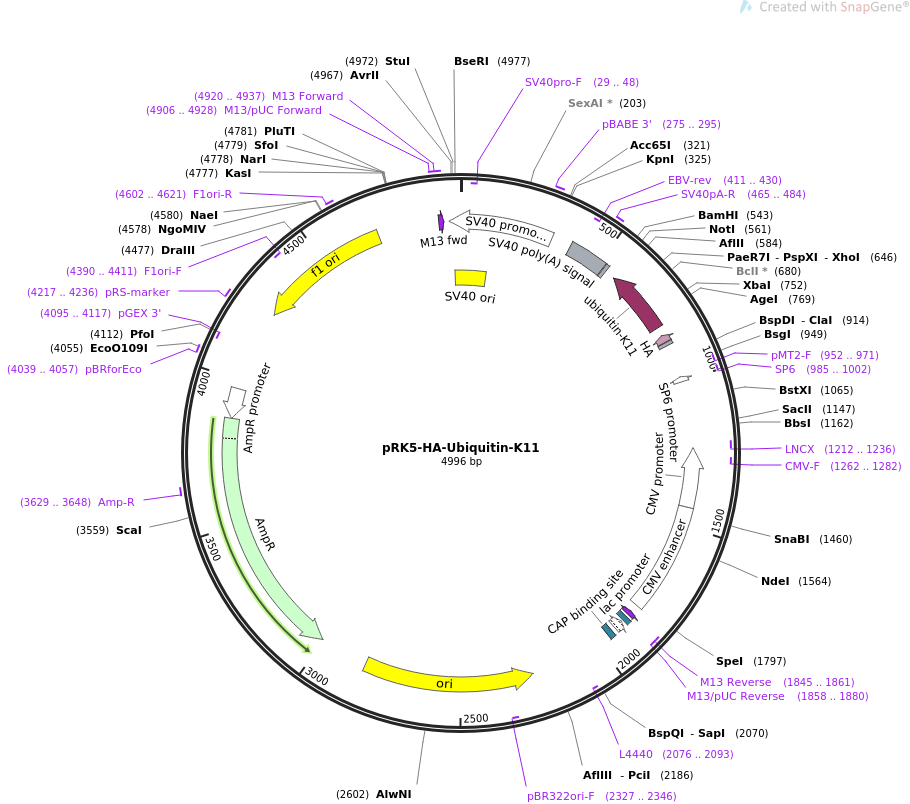

pRK5-HA-Ubiquitin-K11载体图谱

载体简介

载体序列

LOCUS        pRK5-HA-Ubiquitin-K11                4996 bp ds-DNA     circular SYN 19-JAN-2022
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pRK5-HA-Ubiquitin-K11
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4996)
  AUTHORS   Livingston CM, Ifrim MF, Cowan AE, Weller SK
  TITLE     Virus-Induced Chaperone-Enriched (VICE) domains function as nuclear
            protein quality control centers during HSV-1 infection.
  JOURNAL   PLoS Pathog. 2009 Oct . 5(10):e1000619.
  PUBMED    19816571
REFERENCE   2  (bases 1 to 4996)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jan 19, 2022 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..4996
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(29..48)
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     primer_bind     275..295
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     polyA_signal    387..521
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(411..430)
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     465..484
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     regulatory      525..534
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             complement(571..798)
                     /codon_start=1
                     /product="human ubiquitin variant containing Lys-11, with
                     all other lysines mutated to arginine"
                     /label=ubiquitin-K11
                     /translation="MQIFVRTLTGKTITLEVEPSDTIENVRARIQDREGIPPDQQRLIF
                     AGRQLEDGRTLSDYNIQRESTLHLVLRLRGG"
     CDS             complement(829..855)
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     regulatory      858..867
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     primer_bind     complement(952..971)
                     /label=pMT2-F
                     /note="Synthetic intron, forward primer"
     promoter        complement(984..1002)
                     /label=SP6 promoter
                     /note="promoter for bacteriophage SP6 RNA polymerase"
     primer_bind     complement(985..1002)
                     /label=SP6
                     /note="SP6 promoter, forward primer"
     primer_bind     complement(1212..1236)
                     /label=LNCX
                     /note="Human CMV promoter, forward primer"
     promoter        complement(1233..1436)
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(1262..1282)
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     enhancer        1437..1816
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     primer_bind     complement(1845..1861)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(1845..1861)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(1858..1880)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    1869..1885
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(1893..1923)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    1938..1959
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(2076..2093)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(2247..2835)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(2327..2346)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(3006..3866)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     3629..3648
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(3867..3971)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     4039..4057
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     primer_bind     complement(4095..4117)
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     4217..4236
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     rep_origin      complement(4253..4708)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(4390..4411)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     4602..4621
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     4906..4928
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     4920..4937
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     4921..4937
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     promoter        complement(4957..318)
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      4971..110
                     /label=SV40 ori
                     /note="SV40 origin of replication"
ORIGIN
        1 ttctggaata gctcagaggc cgaggcggcc tcggcctctg cataaataaa aaaaattagt
       61 cagccatggg gcggagaatg ggcggaactg ggcggagtta ggggcgggat gggcggagtt
      121 aggggcggga ctatggttgc tgactaattg agatgcatgc tttgcatact tctgcctgct
      181 ggggagcctg gggactttcc acacctggtt gctgactaat tgagatgcat gctttgcata
      241 cttctgcctg ctggggagcc tggggacttt ccacacccta actgacacac attccacagc
      301 tggttctttc cgcctcagaa ggtacctaac caagttcctc tttcagaggt tatttcaggc
      361 catggtgctg cgccgaatta attcccgatc cagacatgat aagatacatt gatgagtttg
      421 gacaaaccac aactagaatg cagtgaaaaa aatgctttat ttgtgaaatt tgtgatgcta
      481 ttgctttatt tgtaaccatt ataagctgca ataaacaagt tgggccatgg cggccaagct
      541 ggggatcctt acttacttag cggccgctca accacctctt agtcttaaga caagatgtaa
      601 ggtcgactct ctctgaatgt tgtaatcaga cagcgttcta ccgtcctcga gctgtctacc
      661 ggcaaagatc aatctttgtt gatcaggtgg aatgccttct ctgtcttgaa ttctagctct
      721 aacgttttcg atggtatcgg atggttcaac ttctagagtt atggttttac cggttaacgt
      781 tctgacgaag atctgcatgg tcgacccacc accaccacca ttgagatctg cgtagtcagg
      841 cacatcatag gggtagccca tggtggcgcg aatggccttg gtgaagagac cgactgtcgg
      901 ttcgggaatt caatcgatag aaccgaggtg cagttggacc tgggagtgga cacctgtgga
      961 gagaaaggca aagtggatgt tattctatag tgtcacctaa atcgtatgtg tatgatacat
     1021 aaggttatgt attaattgta gccgcgttct aacgaagcca agggggtggg cctatagact
     1081 ctataggcgg tacttacgtc actcttggca cggggaatcc gcgttccaat gcaccgttcc
     1141 cggccgcgga ggctggatcg gtcccggtgt cttctatgga ggtcaaaaca gcgtggatgg
     1201 cgtctccagg cgatctgacg gttcactaaa cgagctctgc ttatatagac ctcccaccgt
     1261 acacgcctac cgcccatttg cgtcaatggg gcggagttgt tacgacattt tggaaagtcc
     1321 cgttgatttt ggtgccaaaa caaactccca ttgacgtcaa tggggtggag acttggaaat
     1381 ccccgtgagt caaaccgcta tccacgccca ttgatgtact gccaaaaccg catcaccatg
     1441 gtaatagcga tgactaatac gtagatgtac tgccaagtag gaaagtccca taaggtcatg
     1501 tactgggcat aatgccaggc gggccattta ccgtcattga cgtcaatagg gggcgtactt
     1561 ggcatatgat acacttgatg tactgccaag tgggcagttt accgtaaata ctccacccat
     1621 tgacgtcaat ggaaagtccc tattggcgtt actatgggaa catacgtcat tattgacgtc
     1681 aatgggcggg ggtcgttggg cggtcagcca ggcgggccat ttaccgtaag ttatgtaacg
     1741 cggaactcca tatatgggct atgaactaat gaccccgtaa ttgattacta ttaataacta
     1801 gtcaataatc aatgtcgggc gagctcgaat taattcgtaa tcatgtcata gctgtttcct
     1861 gtgtgaaatt gttatccgct cacaattcca cacaacatac gagccggaag cataaagtgt
     1921 aaagcctggg gtgcctaatg agtgagctaa ctcacattaa ttgcgttgcg ctcactgccc
     1981 gctttccagt cgggaaacct gtcgtgccag ctgcattaat gaatcggcca acgcgcgggg
     2041 agaggcggtt tgcgtattgg gcgctcttcc gcttcctcgc tcactgactc gctgcgctcg
     2101 gtcgttcggc tgcggcgagc ggtatcagct cactcaaagg cggtaatacg gttatccaca
     2161 gaatcagggg ataacgcagg aaagaacatg tgagcaaaag gccagcaaaa ggccaggaac
     2221 cgtaaaaagg ccgcgttgct ggcgtttttc cataggctcc gcccccctga cgagcatcac
     2281 aaaaatcgac gctcaagtca gaggtggcga aacccgacag gactataaag ataccaggcg
     2341 tttccccctg gaagctccct cgtgcgctct cctgttccga ccctgccgct taccggatac
     2401 ctgtccgcct ttctcccttc gggaagcgtg gcgctttctc atagctcacg ctgtaggtat
     2461 ctcagttcgg tgtaggtcgt tcgctccaag ctgggctgtg tgcacgaacc ccccgttcag
     2521 cccgaccgct gcgccttatc cggtaactat cgtcttgagt ccaacccggt aagacacgac
     2581 ttatcgccac tggcagcagc cactggtaac aggattagca gagcgaggta tgtaggcggt
     2641 gctacagagt tcttgaagtg gtggcctaac tacggctaca ctagaagaac agtatttggt
     2701 atctgcgctc tgctgaagcc agttaccttc ggaaaaagag ttggtagctc ttgatccggc
     2761 aaacaaacca ccgctggtag cggtggtttt tttgtttgca agcagcagat tacgcgcaga
     2821 aaaaaaggat ctcaagaaga tcctttgatc ttttctacgg ggtctgacgc tcagtggaac
     2881 gaaaactcac gttaagggat tttggtcatg agattatcaa aaaggatctt cacctagatc
     2941 cttttaaatt aaaaatgaag ttttaaatca atctaaagta tatatgagta aacttggtct
     3001 gacagttacc aatgcttaat cagtgaggca cctatctcag cgatctgtct atttcgttca
     3061 tccatagttg cctgactccc cgtcgtgtag ataactacga tacgggaggg cttaccatct
     3121 ggccccagtg ctgcaatgat accgcgagac ccacgctcac cggctccaga tttatcagca
     3181 ataaaccagc cagccggaag ggccgagcgc agaagtggtc ctgcaacttt atccgcctcc
     3241 atccagtcta ttaattgttg ccgggaagct agagtaagta gttcgccagt taatagtttg
     3301 cgcaacgttg ttgccattgc tacaggcatc gtggtgtcac gctcgtcgtt tggtatggct
     3361 tcattcagct ccggttccca acgatcaagg cgagttacat gatcccccat gttgtgcaaa
     3421 aaagcggtta gctccttcgg tcctccgatc gttgtcagaa gtaagttggc cgcagtgtta
     3481 tcactcatgg ttatggcagc actgcataat tctcttactg tcatgccatc cgtaagatgc
     3541 ttttctgtga ctggtgagta ctcaaccaag tcattctgag aatagtgtat gcggcgaccg
     3601 agttgctctt gcccggcgtc aatacgggat aataccgcgc cacatagcag aactttaaaa
     3661 gtgctcatca ttggaaaacg ttcttcgggg cgaaaactct caaggatctt accgctgttg
     3721 agatccagtt cgatgtaacc cactcgtgca cccaactgat cttcagcatc ttttactttc
     3781 accagcgttt ctgggtgagc aaaaacagga aggcaaaatg ccgcaaaaaa gggaataagg
     3841 gcgacacgga aatgttgaat actcatactc ttcctttttc aatattattg aagcatttat
     3901 cagggttatt gtctcatgag cggatacata tttgaatgta tttagaaaaa taaacaaata
     3961 ggggttccgc gcacatttcc ccgaaaagtg ccacctgacg tctaagaaac cattattatc
     4021 atgacattaa cctataaaaa taggcgtatc acgaggccct ttcgtctcgc gcgtttcggt
     4081 gatgacggtg aaaacctctg acacatgcag ctcccggaga cggtcacagc ttgtctgtaa
     4141 gcggatgccg ggagcagaca agcccgtcag ggcgcgtcag cgggtgttgg cgggtgtcgg
     4201 ggctggctta actatgcggc atcagagcag attgtactga gagtgcacca taaaattgta
     4261 aacgttaata ttttgttaaa attcgcgtta aatttttgtt aaatcagctc attttttaac
     4321 caataggccg aaatcggcaa aatcccttat aaattaaaag aatagcccga gatagggttg
     4381 agtgttgttc cagtttggaa caagagtcca ctattaaaga acgtggactc caacgtcaaa
     4441 gggcgaaaaa ccgtctatca gggcgatggc ccactacgtg aaccatcacc caaatcaagt
     4501 tttttggggt cgaggtgccg taaagcacta aatcggaacc ctaaagggag cccccgattt
     4561 agagcttgac ggggaaagcc ggcgaacgtg gcgagaaagg aagggaagaa agcgaaagga
     4621 gcgggcgcta gggcgctggc aagtgtagcg gtcacgctgc gcgtaaccac cacacccgcc
     4681 gcgcttaatg cgccgctaca gggcgcgtac tatggttgct ttgacgtatg cggtgtgaaa
     4741 taccgcacag atgcgtaagg agaaaatacc gcatcaggcg ccattcgcca ttcaggctgc
     4801 gcaactgttg ggaagggcga tcggtgcggg cctcttcgct attacgccag ctggcgaaag
     4861 ggggatgtgc tgcaaggcga ttaagttggg taacgccagg gttttcccag tcacgacgtt
     4921 gtaaaacgac ggccagtgcc aagctgttaa cagctttttg caaaagccta ggcctccaaa
     4981 aaagcctcct cactac
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
