质粒名称: | pGRG36 |
---|---|
出品公司: | 爱迪基因 |
目录编号: | 16666 |
存储实验室: | Nancy Craig |
载体骨架基本信息 | |
载体名称: | pGRG36 |
载体出品公司: | -- |
载体抗性: | 氨苄青霉素 |
空载体大小: | 12549 bp |
完整质粒大小: | -- |
载体修饰: | -- |
载体类型: | 细菌表达 |
筛选标记: | -- |
高拷贝/低拷贝: | 低拷贝 |
生长条件: | 30 ℃ |
插入基因信息 |
|
插入基因名称: | mTn7::MCS |
物种来源: | -- |
插入大小: | -- |
基因突变: | -- |
GenBank编号 | DQ460223 |
启动子 | -- |
标签/融合蛋白: | -- |
克隆方法: | 限制性内切酶 |
5' 克隆位点: | SmaI, AvrII, NotI, PacI, and XhoI(未破坏) |
3' 克隆位点: | SmaI, AvrII, NotI, PacI, and XhoI(未破坏) |
5' 测序引物 | -- |
3' 测序引物 | -- |
文献引用方法 |
|
材料和方法部分: | pGRG36 was a gift from Nancy Craig (Addgene plasmid # 16666 ; http://n2t.net/addgene:16666 ; RRID:Addgene_16666) |
参考文献部分: | Fast, easy and efficient: site-specific insertion of transgenes into enterobacterial chromosomes using Tn7 without need for selection of the insertion event. McKenzie GJ, Craig NL. BMC Microbiol. 2006 . 6():39. 10.1186/1471-2180-6-39 PubMed 16646962 |
买家导航
载体基本信息

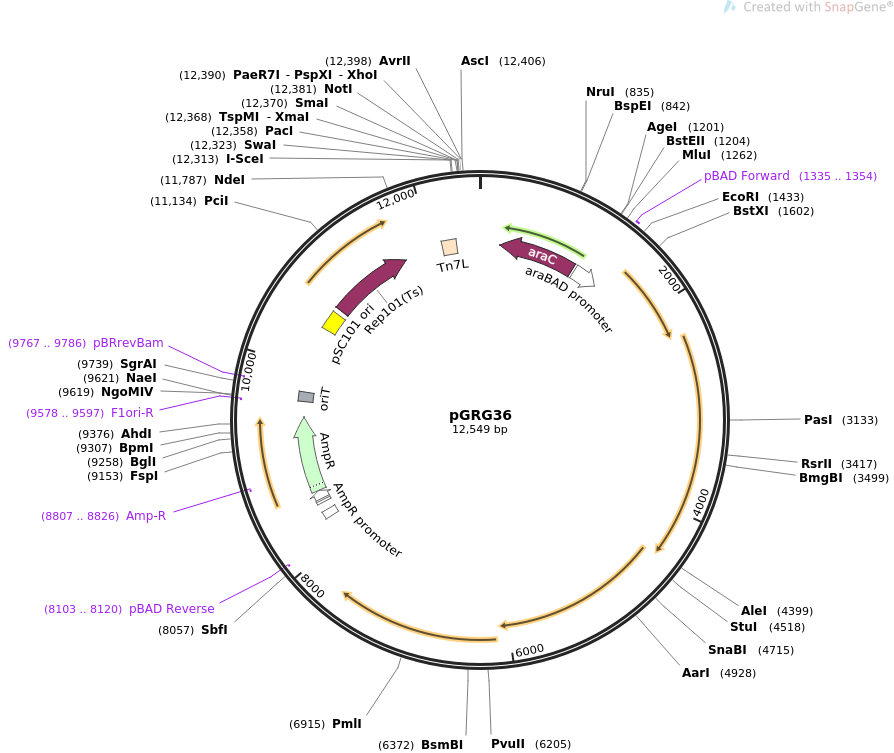

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pGRG36 12549 bp ds-DNA circular SYN 07-MAR-2019 DEFINITION synthetic circular DNA ACCESSION . VERSION . KEYWORDS pGRG36 SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 12549) AUTHORS McKenzie GJ, Craig NL TITLE Fast, easy and efficient: site-specific insertion of transgenes into enterobacterial chromosomes using Tn7 without need for selection of the insertion event. JOURNAL BMC Microbiol. 2006 . 6():39. PUBMED 16646962 REFERENCE 2 (bases 1 to 12549) AUTHORS . TITLE Direct Submission JOURNAL Exported Mar 7, 2019 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..12549 /organism="synthetic DNA construct" /mol_type="other DNA" CDS complement(223..1101) /codon_start=1 /gene="araC" /product="L-arabinose regulatory protein" /label=araC /translation="MAEAQNDPLLPGYSFNAHLVAGLTPIEANGYLDFFIDRPLGMKGY ILNLTIRGQGVVKNQGREFVCRPGDILLFPPGEIHHYGRHPEAREWYHQWVYFRPRAYW HEWLNWPSIFANTGFFRPDEAHQPHFSDLFGQIINAGQGEGRYSELLAINLLEQLLLRR MEAINESLHPPMDNRVREACQYISDHLADSNFDIASVAQHVCLSPSRLSHLFRQQLGIS VLSWREDQRISQAKLLLSTTRMPIATVGRNVGFDDQLYFSRVFKKCTGASPSEFRAGCE EKVNDVAVKLS" promoter 1128..1412 /gene="araBAD" /label=araBAD promoter /note="promoter of the L-arabinose operon of E. coli; the araC regulatory gene is transcribed in the opposite direction (Guzman et al., 1995)" primer_bind 1335..1354 /label=pBAD Forward /note="For vectors with E. coli araBAD promoter, forward primer" primer_bind complement(8103..8120) /label=pBAD Reverse /note="For vectors with E. coli araBAD promoter, reverse primer" terminator 8273..8359 /gene="Escherichia coli rrnB" /label=rrnB T1 terminator /note="transcription terminator T1 from the E. coli rrnB gene" terminator 8451..8478 /label=rrnB T2 terminator /note="transcription terminator T2 from the E. coli rrnB gene" promoter 8497..8588 /gene="bla" /label=AmpR promoter CDS 8589..9449 /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind complement(8807..8826) /label=Amp-R /note="Ampicillin resistance gene, reverse primer" primer_bind complement(9578..9597) /label=F1ori-R /note="F1 origin, reverse primer" oriT 9620..9729 /note="incP origin of transfer" primer_bind complement(9767..9786) /label=pBRrevBam /note="pBR322 vectors, tet region, downstream of BamHI, reverse primer" rep_origin 10469..10691 /label=pSC101 ori /note="low-copy replication origin that requires the Rep101 protein" CDS 10739..11689 /codon_start=1 /gene="rep101 encoding an A56V mutation" /product="temperature-sensitive version of the RepA protein needed for replication with the pSC101 origin (Armstrong et al., 1984)" /label=Rep101(Ts) /translation="MSELVVFKANELAISRYDLTEHETKLILCCVALLNPTIENPTRKE RTVSFTYNQYVQMMNISRENAYGVLAKATRELMTRTVEIRNPLVKGFEIFQWTNYAKFS SEKLELVFSEEILPYLFQLKKFIKYNLEHVKSFENKYSMRIYEWLLKELTQKKTHKANI EISLDEFKFMLMLENNYHEFKRLNQWVLKPISKDLNTYSNMKLVVDKRGRPTDTLIFQV ELDRQMDLVTELENNQIKMNGDKIPTTITSDSYLHNGLRKTLHDALTAKIQLTSFEAKF LSDMQSKYDLNGSFSWLTQKQRTTLENILAKYGRI" mobile_element 12122..12287 /mobile_element_type="transposon:Tn7" /note="mini-Tn7 element (left end of the Tn7 transposon)" ORIGIN 1 attctgtcta gtttaagact ttattgtcat agtttagatc tattttgttc agtttaagac 61 tttattgtcc gcccacaggc cacgatgcgt ccggcgtaga ggatctgctc atgtttgaca 121 gcttatcatc gatgcataat gtgcctgtca aatggacgaa gcagggattc tgcaaaccct 181 atgctactcc gtcaagccgt caattgtctg attcgttacc aattatgaca acttgacggc 241 tacatcattc actttttctt cacaaccggc acggaactcg ctcgggctgg ccccggtgca 301 ttttttaaat acccgcgaga aatagagttg atcgtcaaaa ccaacattgc gaccgacggt 361 ggcgataggc atccgggtgg tgctcaaaag cagcttcgcc tggctgatac gttggtcctc 421 gcgccagctt aagacgctaa tccctaactg ctggcggaaa agatgtgaca gacgcgacgg 481 cgacaagcaa acatgctgtg cgacgctggc gatatcaaaa ttgctgtctg ccaggtgatc 541 gctgatgtac tgacaagcct cgcgtacccg attatccatc ggtggatgga gcgactcgtt 601 aatcgcttcc atgcgccgca gtaacaattg ctcaagcaga tttatcgcca gcagctccga 661 atagcgccct tccccttgcc cggcgttaat gatttgccca aacaggtcgc tgaaatgcgg 721 ctggtgcgct tcatccgggc gaaagaaccc cgtattggca aatattgacg gccagttaag 781 ccattcatgc cagtaggcgc gcggacgaaa gtaaacccac tggtgatacc attcgcgagc 841 ctccggatga cgaccgtagt gatgaatctc tcctggcggg aacagcaaaa tatcacccgg 901 tcggcaaaca aattctcgtc cctgattttt caccaccccc tgaccgcgaa tggtgagatt 961 gagaatataa cctttcattc ccagcggtcg gtcgataaaa aaatcgagat aaccgttggc 1021 ctcaatcggc gttaaacccg ccaccagatg ggcattaaac gagtatcccg gcagcagggg 1081 atcattttgc gcttcagcca tacttttcat actcccgcca ttcagagaag aaaccaattg 1141 tccatattgc atcagacatt gccgtcactg cgtcttttac tggctcttct cgctaaccaa 1201 accggtaacc ccgcttatta aaagcattct gtaacaaagc gggaccaaag ccatgacaaa 1261 aacgcgtaac aaaagtgtct ataatcacgg cagaaaagtc cacattgatt atttgcacgg 1321 cgtcacactt tgctatgcca tagcattttt atccataaga ttagcggatc ctacctgacg 1381 ctttttatcg caactctcta ctgtttctcc atacccgttt ttttgggcta gcgaattcga 1441 gctcggtacc caagtcttaa actagacaga atagttgtaa actgaaatca gtccagttat 1501 gctgtgaaaa agcatactgg acttttgtta tggctaaagc aaactcttca ttttctgaag 1561 tgcaaattgc ccgtcgtatt aaagaggggc gtggccaagg gcatggtaaa gactatattc 1621 catggctaac agtacaagaa gttccttctt caggtcgttc ccaccgtatt tattctcata 1681 agacgggacg agtccatcat ttgctatctg acttagagct tgctgttttt ctcagtcttg 1741 agtgggagag cagcgtgcta gatatacgcg agcagttccc cttattacct agtgatacca 1801 ggcagattgc aatagatagt ggtattaagc atcctgttat tcgtggtgta gatcaggtta 1861 tgtctactga ttttttagtg gactgcaaag atggtccttt tgagcagttt gctattcaag 1921 tcaaacctgc agcagcctta caagacgagc gtaccttaga aaaactagaa ctagagcgtc 1981 gctattggca gcaaaagcaa attccttggt tcatttttac tgataaagaa ataaatcccg 2041 tagtaaaaga aaatattgaa tggctttatt cagtgaaaac agaagaagtt tctgcggagc 2101 ttttagcaca actatcccca ttggcccata tcctgcaaga aaaaggagat gaaaacatta 2161 tcaatgtctg taagcaggtt gatattgctt atgatttgga gttaggcaaa acattgagtg 2221 agatacgagc cttaaccgca aatggtttta ttaagttcaa tatttataag tctttcaggg 2281 caaataagtg tgcagatctc tgtattagcc aagtagtgaa tatggaggag ttgcgctatg 2341 tggcaaatta atgaggttgt gctatttgat aatgatccgt atcgcatttt ggctatagag 2401 gatggccaag ttgtctggat gcaaataagc gctgataaag gagttccaca agctagggct 2461 gagttgttgc taatgcagta tttagatgaa ggccgcttag ttagaactga tgacccttat 2521 gtacatcttg atttagaaga gccgtctgta gattctgtca gcttccagaa gcgcgaggag 2581 gattatcgaa aaattcttcc tattattaat agtaaggatc gtttcgaccc taaagtcaga 2641 agcgaactcg ttgagcatgt ggtccaagaa cataaggtta ctaaggctac agtttataag 2701 ttgttacgcc gttactggca gcgtggtcaa acgcctaatg cattaattcc tgactacaaa 2761 aacagcggtg caccagggga aagacgttca gcgacaggaa cagcaaagat tggccgagcc 2821 agagaatatg gtaagggtga aggaaccaag gtaacgcccg agattgaacg cctttttagg 2881 ttgaccatag aaaagcacct gttaaatcaa aaaggtacaa agaccaccgt tgcctataga 2941 cgatttgtgg acttgtttgc tcagtatttt cctcgcattc cccaagagga ttacccaaca 3001 ctacgtcagt ttcgttattt ttatgatcga gaatacccta aagctcagcg cttaaagtct 3061 agagttaaag caggggtata taaaaaagac gtacgaccct taagtagtac agccacttct 3121 caggcgttag gccctgggag tcgttatgag attgatgcca cgattgctga tatttattta 3181 gtggatcatc atgatcgcca aaaaatcata ggaagaccaa cgctttacat tgtgattgat 3241 gtgtttagtc ggatgatcac gggcttttat atcggctttg aaaatccgtc ttatgtggtg 3301 gcgatgcagg cttttgtaaa tgcttgctct gacaaaacgg ccatttgtgc ccagcatgat 3361 attgagatta gtagctcaga ctggccgtgt gtaggtttgc cagatgtgtt gctagcggac 3421 cgtggcgaat taatgagtca tcaggtcgaa gccttagttt ctagttttaa tgtgcgagtg 3481 gaaagtgctc cacctagacg tggcgatgct aaaggcatag tggaaagcac ttttagaaca 3541 ctacaagccg agtttaagtc ctttgcacct ggcattgtag agggcagtcg gatcaaaagc 3601 catggtgaaa cagactatag gttagatgca tctctgtcgg tatttgagtt cacacaaatt 3661 attttgcgta cgatcttatt cagaaataac catctggtga tggataaata cgatcgagat 3721 gctgattttc ctacagattt accgtctatt cctgtccagc tatggcaatg gggtatgcag 3781 catcgtacag gtagtttaag ggctgtggag caagagcagt tgcgagtagc gttactgcct 3841 cgccgaaagg tctctatttc ttcatttggc gttaatttgt ggggtttgta ttactcgggg 3901 tcagagattc tgcgtgaggg ttggttgcag cggagcactg atatagctag acctcaacat 3961 ttagaagcgg cttatgaccc agtgctggtt gatacgattt atttgtttcc gcaagttggc 4021 agccgtgtat tttggcgctg taatctgacg gaacgtagtc ggcagtttaa aggtctctca 4081 ttttgggagg tttgggatat acaagcacaa gaaaaacaca ataaagccaa tgcgaagcag 4141 gatgagttaa ctaaacgcag ggagcttgag gcgtttattc agcaaaccat tcagaaagcg 4201 aataagttaa cgcccagtac tactgagccc aaatcaacac gcattaagca gattaaaact 4261 aataaaaaag aagccgtgac ctcggagcgt aaaaaacgtg cggagcattt gaagccaagc 4321 tcttcaggtg atgaggctaa agttattcct ttcaacgcag tggaagcgga tgatcaagaa 4381 gattacagcc tacccacata cgtgcctgaa ttatttcagg atccaccaga aaaggatgag 4441 tcatgagtgc tacccggatt caagcagttt atcgtgatac gggggtagag gcttatcgtg 4501 ataatccttt tatcgaggcc ttaccaccat tacaagagtc agtgaatagt gctgcatcac 4561 tgaaatcctc tttacagctt acttcctctg acttgcaaaa gtcccgtgtt atcagagctc 4621 ataccatttg tcgtattcca gatgactatt ttcagccatt aggtacgcat ttgctactaa 4681 gtgagcgtat ttcggtcatg attcgaggtg gctacgtagg cagaaatcct aaaacaggag 4741 atttacaaaa gcatttacaa aatggttatg agcgtgttca aacgggagag ttggagacat 4801 ttcgctttga ggaggcacga tctacggcac aaagcttatt gttaattggt tgttctggta 4861 gtgggaagac gacctctctt catcgtattc tagccacgta tcctcaggtg atttaccatc 4921 gtgaactcaa tgtagagcag gtggtgtatt tgaaaataga ctgctcgcat aatggttcgc 4981 taaaagaaat ctgcttgaat tttttcagag cgttggatcg agccttgggc tcgaactatg 5041 agcgtcgtta tggcttaaaa cgtcatggta tagaaaccat gttggctttg atgtcgcaaa 5101 tagccaatgc acatgcttta gggttgttgg ttattgatga aattcagcat ttaagccgct 5161 ctcgttcggg tggatctcaa gagatgctga acttttttgt gacgatggtg aatattattg 5221 gcgtaccagt gatgttgatt ggtaccccta aagcacgaga gatttttgag gctgatttgc 5281 ggtctgcacg tagaggggca gggtttggag ctatattctg ggatcctata caacaaacgc 5341 aacgtggaaa gcccaatcaa gagtggatcg cttttacgga taatctttgg caattacagc 5401 ttttacaacg caaagatgcg ctgttatcgg atgaggtccg tgatgtgtgg tatgagctaa 5461 gccaaggagt gatggacatt gtagtaaaac tttttgtact cgctcagctc cgtgcgctag 5521 ctttaggcaa tgagcgtatt accgctggtt tattgcggca agtgtatcaa gatgagttaa 5581 agcctgtgca ccccatgcta gaggcattac gctcgggtat cccagaacgc attgctcgtt 5641 attctgatct agtcgttccc gagattgata aacggttaat ccaacttcag ctagatatcg 5701 cagcgataca agaacaaaca ccagaagaaa aagcccttca agagttagat accgaagatc 5761 agcgtcattt atatctgatg ctgaaagagg attacgattc aagcctgtta attcccacta 5821 ttaaaaaagc gtttagccag aatccaacga tgacaagaca aaagttactg cctcttgttt 5881 tgcagtggtt gatggaaggc gaaacggtag tgtcagaact agaaaagccc tccaagagta 5941 aaaaggtttc ggctataaag gtagtcaagc ccagcgactg ggatagcttg cctgatacgg 6001 atttacgtta tatctattca caacgccaac ctgaaaaaac catgcatgaa cggttaaaag 6061 ggaaaggggt aatagtggat atggcgagct tatttaaaca agcaggttag ccatgagaaa 6121 ctttcctgtt ccgtactcga atgagctgat ttatagcact attgcacggg caggcgttta 6181 tcaagggatt gttagtccta agcagctgtt ggatgaggtg tatggcaacc gcaaggtggt 6241 cgctacctta ggtctgccct cgcatttagg tgtgatagca agacatctac atcaaacagg 6301 acgttacgct gttcagcagc ttatttatga gcatacctta ttccctttat atgctccgtt 6361 tgtaggcaag gagcgccgag acgaagctat tcggttaatg gagtaccaag cgcaaggtgc 6421 ggtgcattta atgctaggag tcgctgcttc tagagttaag agcgataacc gctttagata 6481 ctgccctgat tgcgttgctc ttcagctaaa taggtatggg gaagcctttt ggcaacgaga 6541 ttggtatttg cccgctttgc catattgtcc aaaacacggt gctttagtct tctttgatag 6601 agctgtagat gatcaccgac atcaattttg ggctttgggt catactgagc tgctttcaga 6661 ctaccccaaa gactccctat ctcaattaac agcactagct gcttatatag cccctctgtt 6721 agatgctcca cgagcgcaag agctttcccc aagccttgag cagtggacgc tgttttatca 6781 gcgcttagcg caggatctag ggctaaccaa aagcaagcac attcgtcatg acttggtggc 6841 ggagagagtg aggcagactt ttagtgatga ggcactagag aaactggatt taaagttggc 6901 agagaacaag gacacgtgtt ggctgaaaag tatattccgt aagcatagaa aagcctttag 6961 ttatttacag catagtattg tgtggcaagc cttattgcca aaactaacgg ttatagaagc 7021 gctacagcag gcaagtgctc ttactgagca ctctataacg acaagacctg ttagccagtc 7081 tgtgcaacct aactctgaag atttatctgt taagcataaa gactggcagc aactagtgca 7141 taaataccaa ggaattaagg cggcaagaca gtctttagag ggtggggtgc tatacgcttg 7201 gctttaccga catgacaggg attggctagt tcactggaat caacagcatc aacaagagcg 7261 tctggcaccc gcccctagag ttgattggaa ccaaagagat cgaattgctg tacgacaact 7321 attaagaatc ataaagcgtc tagatagtag ccttgatcac ccaagagcga catcgagctg 7381 gctgttaaag caaactccta acggaacctc tcttgcaaaa aatctacaga aactgccttt 7441 ggtagcgctt tgcttaaagc gttactcaga gagtgtggaa gattatcaaa ttagacggat 7501 tagccaagct tttattaagc ttaaacagga agatgttgag cttaggcgct ggcgattatt 7561 aagaagtgca acgttatcta aagagcggat aactgaggaa gcacaaagat tcttggaaat 7621 ggtttatggg gaagagtgag tggttaggct agctacattt aatgacaatg tgcaggttgt 7681 acatattggt catttattcc gtaactcggg tcataaggag tggcgtattt ttgtttggtt 7741 taatccaatg caagaacgga aatggactcg atttactcat ttgcctttat taagtcgagc 7801 taaggtggtt aacagtacaa caaagcaaat aaataaggcg gatcgtgtga ttgagtttga 7861 agcatcggat cttcaacgag ccaaaataat cgattttcct aatctctcgt cctttgcttc 7921 cgtacgcaac aaggatggag cgcagagttc atttatttac gaagctgaaa caccatatag 7981 caagactcgt tatcacatcc cacagttaga gctagctcgg tcattatttt taggggatcc 8041 tctagagtcg acctgcaggc atgcaagctt ggctgttttg gcggatgaga gaagattttc 8101 agcctgatac agattaaatc agaacgcaga agcggtctga taaaacagaa tttgcctggc 8161 ggcagtagcg cggtggtccc acctgacccc atgccgaact cagaagtgaa acgccgtagc 8221 gccgatggta gtgtggggtc tccccatgcg agagtaggga actgccaggc atcaaataaa 8281 acgaaaggct cagtcgaaag actgggcctt tcgttttatc tgttgtttgt cggtgaacgc 8341 tctcctgagt aggacaaatc cgccgggagc ggatttgaac gttgcgaagc aacggcccgg 8401 agggtggcgg gcaggacgcc cgccataaac tgccaggcat caaattaagc agaaggccat 8461 cctgacggat ggcctttttg cgtttctaca aactcttttg tttatttttc taaatacatt 8521 caaatatgta tccgctcatg agacaataac cctgataaat gcttcaataa tattgaaaaa 8581 ggaagagtat gagtattcaa catttccgtg tcgcccttat tccctttttt gcggcatttt 8641 gccttcctgt ttttgctcac ccagaaacgc tggtgaaagt aaaagatgct gaagatcagt 8701 tgggtgcacg agtgggttac atcgaactgg atctcaacag cggtaagatc cttgagagtt 8761 ttcgccccga agaacgtttt ccaatgatga gcacttttaa agttctgcta tgtggcgcgg 8821 tattatcccg tgttgacgcc gggcaagagc aactcggtcg ccgcatacac tattctcaga 8881 atgacttggt tgagtactca ccagtcacag aaaagcatct tacggatggc atgacagtaa 8941 gagaattatg cagtgctgcc ataaccatga gtgataacac tgcggccaac ttacttctga 9001 caacgatcgg aggaccgaag gagctaaccg cttttttgca caacatgggg gatcatgtaa 9061 ctcgccttga tcgttgggaa ccggagctga atgaagccat accaaacgac gagcgtgaca 9121 ccacgatgcc tgcagcaatg gcaacaacgt tgcgcaaact attaactggc gaactactta 9181 ctctagcttc ccggcaacaa ttaatagact ggatggaggc ggataaagtt gcaggaccac 9241 ttctgcgctc ggcccttccg gctggctggt ttattgctga taaatctgga gccggtgagc 9301 gtgggtctcg cggtatcatt gcagcactgg ggccagatgg taagccctcc cgtatcgtag 9361 ttatctacac gacggggagt caggcaacta tggatgaacg aaatagacag atcgctgaga 9421 taggtgcctc actgattaag cattggtaac tgtcagacca agtttactca tatatacttt 9481 agattgattt acgcgccctg tagcggcgca ttaagcgcgg cgggtgtggt ggttacgcgc 9541 agcgtgaccg ctacacttgc cagcgcccta gcgcccgctc ctttcgcttt cttcccttcc 9601 tttctcgcca cgttcgccgc cggccagcct cgcagagcag gattcccgtt gagcaccgcc 9661 aggtgcgaat aagggacagt gaagaaggaa cacccgctcg cgggtgggcc tacttcacct 9721 atcctgcccg gcggcatcac cggcgccaca ggtgcggttg ctggcgccta tatcgccgac 9781 atcaccgatg gggaagatcg ggctcgccac ttcgggctca tgagcgcttg tttcggcgtg 9841 ggtatggtgg caggccccgt ggccggggga ctgttgggcg ccatctcctt gcatgcacca 9901 ttccttgcgg cggcggtgct caacggcctc aacctactac tgggctgctt cctaatgcag 9961 gagtcgcata agggagagcg tcgatccccg acagtaagac gggtaagcct gttgatgata 10021 ccgctgcctt actgggtgca ttagccagtc tgaatgacct gtcacgggat aatccgaagt 10081 ggtcagactg gaaaatcaga gggcaggaac tgctgaacag caaaaagtca gatagcacca 10141 catagcagac ccgccataaa acgccctgag aagcccgtga cgggcttttc ttgtattatg 10201 ggtagtttcc ttgcatgaat ccataaaagg cgcctgtagt gccatttacc cccattcact 10261 gccagagccg tgagcgcagc gaactgaatg tcacgaaaaa gacagcgact caggtgcctg 10321 atggtcggag acaaaaggaa tattcagcga tttgcccgag cttgcgaggg tgctacttaa 10381 gcctttaggg ttttaaggtc tgttttgtag aggagcaaac agcgtttgcg acatcctttt 10441 gtaatactgc ggaactgact aaagtagtga gttatacaca gggctgggat ctattctttt 10501 tatctttttt tattctttct ttattctata aattataacc acttgaatat aaacaaaaaa 10561 aacacacaaa ggtctagcgg aatttacaga gggtctagca gaatttacaa gttttccagc 10621 aaaggtctag cagaatttac agatacccac aactcaaagg aaaaggacta gtaattatca 10681 ttgactagcc catctcaatt ggtatagtga ttaaaatcac ctagaccaat tgagatgtat 10741 gtctgaatta gttgttttca aagcaaatga actagcgatt agtcgctatg acttaacgga 10801 gcatgaaacc aagctaattt tatgctgtgt ggcactactc aaccccacga ttgaaaaccc 10861 tacaaggaaa gaacggacgg tatcgttcac ttataaccaa tacgttcaga tgatgaacat 10921 cagtagggaa aatgcttatg gtgtattagc taaagcaacc agagagctga tgacgagaac 10981 tgtggaaatc aggaatcctt tggttaaagg ctttgagatt ttccagtgga caaactatgc 11041 caagttctca agcgaaaaat tagaattagt ttttagtgaa gagatattgc cttatctttt 11101 ccagttaaaa aaattcataa aatataatct ggaacatgtt aagtcttttg aaaacaaata 11161 ctctatgagg atttatgagt ggttattaaa agaactaaca caaaagaaaa ctcacaaggc 11221 aaatatagag attagccttg atgaatttaa gttcatgtta atgcttgaaa ataactacca 11281 tgagtttaaa aggcttaacc aatgggtttt gaaaccaata agtaaagatt taaacactta 11341 cagcaatatg aaattggtgg ttgataagcg aggccgcccg actgatacgt tgattttcca 11401 agttgaacta gatagacaaa tggatctcgt aaccgaactt gagaacaacc agataaaaat 11461 gaatggtgac aaaataccaa caaccattac atcagattcc tacctacata acggactaag 11521 aaaaacacta cacgatgctt taactgcaaa aattcagctc accagttttg aggcaaaatt 11581 tttgagtgac atgcaaagta agtatgatct caatggttcg ttctcatggc tcacgcaaaa 11641 acaacgaacc acactagaga acatactggc taaatacgga aggatctgag gttcttatgg 11701 ctcttgtatc tatcagtgaa gcatcaagac taacaaacaa aagtagaaca actgttcacc 11761 gttacatatc aaagggaaaa ctgtccatat gcacagatga aaacggtgta aaaaagatag 11821 atacatcaga gcttttacga gtttttggtg catttaaagc tgttcaccat gaacagatcg 11881 acaatgtaac agatgaacag catgtaacac ctaatagaac aggtgaaacc agtaaaacaa 11941 agcaactaga acatgaaatt gaacacctga gacaacttgt tacagctcaa cagtcacaca 12001 tagacagcct gaaacaggcg atgctgctta tcgaatcaaa gctgccgaca acacgggagc 12061 cagtgacgcc tcccgtgggg aaaaaatcat ggcaattctg gaagaaatag cgctttcagc 12121 ctgtgggcgg acaaaatagt tgggaactgg gaggggtgga aatggagttt ttaaggatta 12181 tttagggaag agtgacaaaa tagatgggaa ctgggtgtag cgtcgtaagc taatacgaaa 12241 attaaaaatg acaaaatagt ttggaactag atttcactta tctggttggt cgacactagt 12301 attaccctgt tatccctaga tttaaatgat atcggatcct agtaagccac gttttaatta 12361 atcagatccc gggtcaatag cggccgccac tcgagcacct aggaggcgcg ccacggccgc 12421 gtcgacccca cgcccctctt taatacgacg ggcaatttgc acttcagaaa atgaagagtt 12481 tgctttagcc ataacaaaag tccagtatgc tttttcacag cataactgga ctgatttcag 12541 tttacaact //
