载体基本信息

质粒名称: pMG36E
出品公司: Addgene
目录编号: 133853
存储实验室: Jan Kok, Gerard Venema

载体骨架基本信息
载体名称: pWV01
载体出品公司: Clontech
空载体大小: 1800 bp
完整质粒大小: 3600 bp
载体类型: Bacterial Expression
载体抗性: Erythromycin
生长温度: 30 ℃
宿主菌: E.coli MC100
拷贝数: 高拷贝

插入基因信息
基因突变: EmR; mcs; P32
克隆方法: 限制性内切酶

文献引用方法
材料和方法部分:
pMG36E was a gift from Jan Kok & Gerard Venema (Addgene plasmid # 133853 ; http://n2t.net/addgene:133853 ; RRID:Addgene_133853)

参考文献部分: Construction of a lactococcal expression vector: expression of hen egg white lysozyme in Lactococcus lactis subsp. lactis. van de Guchte M, van der Vossen JM, Kok J, Venema G. Appl Environ Microbiol. 1989 Jan;55(1):224-8. PubMed 2495760

载体图谱质粒图谱和多克隆位点信息

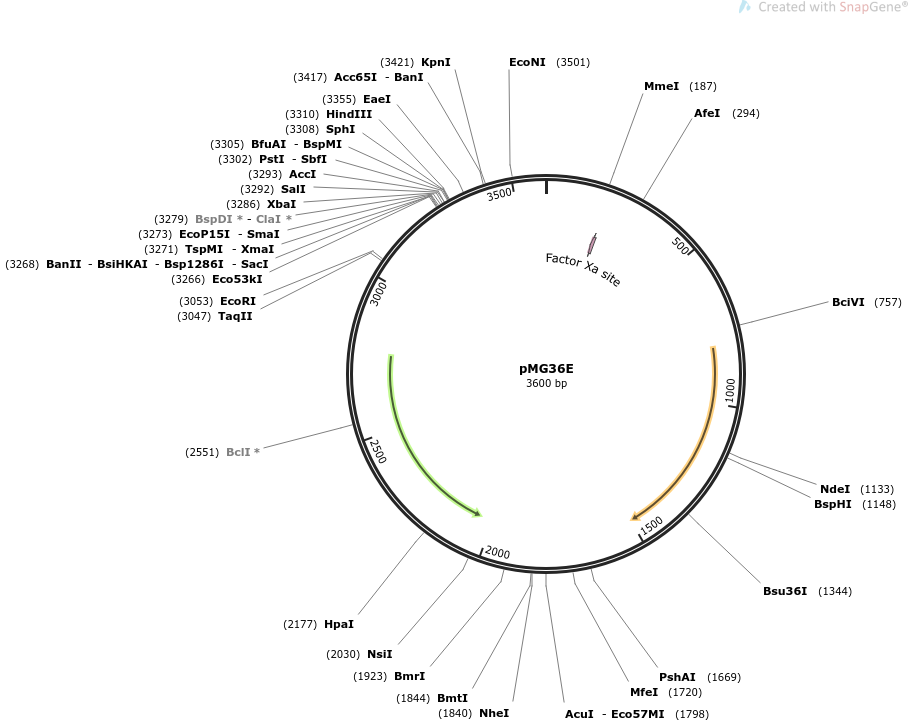

pMG36E载体图谱

载体简介

载体序列

LOCUS        pMG36E                3600 bp ds-DNA     circular SYN 22-AUG-2022
DEFINITION  Expression vector.
ACCESSION   .
VERSION     .
KEYWORDS    pMG36E
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 3600)
  AUTHORS   van de Guchte M, van der Vossen JM, Kok J, Venema G
  TITLE     Construction of a lactococcal expression vector: expression of hen
            egg white lysozyme in Lactococcus lactis subsp. lactis.
  JOURNAL   Appl Environ Microbiol. 1989 Jan;55(1):224-8.
  PUBMED    2495760
REFERENCE   2  (bases 1 to 3600)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 22, 2022 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..3600
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     CDS             complement(190..201)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
ORIGIN
        1 tcgatttttt attaaaacgt ctcaaaatcg tttctgagac gttttagcgt ttatttcgtt
       61 tagttatcgg cataatcgtt aaaacaggcg ttatcgtagc gtaaaagccc ttgagcgtag
      121 cgtggctttg caggaagatg ttgtctgtta gattatgaaa gccgatgact gaatgaaata
      181 ataagcgcag cgcccttcta tttcggttgg aggaggctca agggagtatg agggaatgaa
      241 attccctcat gggtttgatt ttaaaaattg cttgcaattt tgccgagcgg tagcgctgga
      301 aaatttttga aaaaaatttg gaatttggaa aaaaatgggg ggaaaggaag cgaattttgc
      361 ttccgtacta cgacccccca ttaagtgccg agtgccaatt tttgtgccaa aaacgctcta
      421 tcccaactgg ctcaagggtt taaggggttt ttcaatcgcc aacgaatcgc caacgttttc
      481 gccaacgttt tttataaatc tatatttaag tagctttatt gttgttttta tgattacaaa
      541 gcgatacact aactttataa aattatttga ttggagtttt ttaaatggtg atttcagaat
      601 cgaaaaaaag agttatgatt tctctgacaa aagagcaaga taaaaaatta acagatatgg
      661 cgaaacaaaa aggtttttca aaatctgcgg cgttagctat agaagaatat gcaagaaagg
      721 aatcagaaca aaaaaaataa gcgaaagctc gcgtttttag aaggatacga gttttcgcta
      781 cttgtttttg ataaggtaat tatatcatgg ctattaaaaa tactaaagct agaaattttg
      841 gatttttatt atatcctgac tcaattccta atgattggaa agaaaaatta gagagtttgg
      901 gcgtatctat ggctgtcagt cctttacacg atatggacga aaaaaaagat aaagatacat
      961 ggaatagtag tgatgttata cgaaatggaa agcactataa aaaaccacac tatcacgtta
     1021 tatatattgc acgaaatcct gtaacaatag aaagcgttag gaacaagatt aagcgaaaat
     1081 tggggaatag ttcagttgct catgttgaga tacttgatta tatcaaaggt tcatatgaat
     1141 atttgactca tgaatcaaag gacgctattg ctaagaataa acatatatac gacaaaaaag
     1201 atattttgaa cattaatgat tttgatattg actgctatat aacacttgat gaaagccaaa
     1261 aaagagaatt gaagaattta cttttagata tagtggatga ctataatttg gtaaatacaa
     1321 aagatttaat ggcttttatt cgccttaggg gagcggagtt tggaatttta aatacgaatg
     1381 atgtaaaaga tattgtttca acaaactcta gcgcctttag attatggttt gagggcaatt
     1441 atcagtgtgg atatagagca agttatgcaa aggttcttga tgctgaaacg ggggaaataa
     1501 aatgacaaac aaagaaaaag agttatttgc tgaaaatgag gaattaaaaa aagaaattaa
     1561 ggacttaaaa gagcgtattg aaagatacag agaaatggaa gttgaattaa gtacaacaat
     1621 agatttattg agaggaggga ttattgaata aataaaagcc ccctgacgaa agtcgaaggg
     1681 ggtttttatt ttggtttgat gttgcgatta atagcaatac aattgcaata aacaaaatga
     1741 tcgaccggac ccctatctag cgaactttta gaaaagatat aaaacatcag agtatggaca
     1801 gttgcggatg tacttcagaa aagattagat gtctaaaaag ctagcttttt agacatctaa
     1861 atctaggtac taaaacaatt catccagtaa aatataatat tttattttct cccaatcagg
     1921 cttgatcccc agtaagtcaa aaaatagctc gacatactgt tcttccccga tcgacccgat
     1981 tcacaaaaaa taggcacacg aaaaacaagt taagggatgc agtttatgca tcccttaact
     2041 tacttattaa ataatttata gctattgaaa agagataaga attgttcaaa gctaatattg
     2101 tttaaatcgt caattcctgc atgttttaag gaattgttaa attgattttt tgtaaatatt
     2161 ttcttgtatt ctttgttaac ccatttcata acgaaataat tatacttttg tttatctttg
     2221 tgtgatattc ttgatttttt tctacttaat ctgataagtg agctattcac tttaggttta
     2281 ggatgaaaat attctcttgg aaccatactt aatatagaaa tatcaacttc tgccattaaa
     2341 agtaatgcca atgagcgttt tgtatttaat aatcttttag caaacccgta ttccacgatt
     2401 aaataaatct cattagctat actatcaaaa acaattttgc gtattatatc cgtacttatg
     2461 ttataaggta tattaccata tattttatag gattggtttt taggaaattt aaactgcaat
     2521 atatccttgt ttaaaacttg gaaattatcg tgatcaacaa gtttattttc tgtagttttg
     2581 cataatttat ggtctatttc aatggcagtt acgaaattac acctctttac taattcaagg
     2641 gtaaaatggc cttttcctga gccgatttca aagatattat catgttcatt taatcttata
     2701 tttgtcatta ttttatctat attatgtttt gaagtaataa agttttgact gtgttttata
     2761 tttttctcgt tcattataac cctctttaat ttggttatat gaattttgct tattaacgat
     2821 tcattataac cacttatttt ttgtttggtt gataatgaac tgtgctgatt acaaaaatac
     2881 taaaaatgcc catatttttt cctccttata aaattagtat aattatagca cggtcgatct
     2941 tctatataaa agatatatta tcttatcagt attgtcaata tattcaaggc aatctgcctc
     3001 ctcatcctct tcatcctctt cgtcttggta gctttttaaa tatgggtcga tcgaattcgg
     3061 tcctcgggat atgataagat taatagtttt agctattaat ctttttttat ttttatttaa
     3121 gaatggctta ataaagcggt tactttggat ttttgtgagc ttggactaga aaaaaacttc
     3181 acaaaatgct atactaggta ggtaaaaaaa tattcggagg aattttgaaa tggcaatcgt
     3241 ttcagcagaa aaattcgtaa ttcgagctcg cccggggatc gatcctctag agtcgacctg
     3301 caggcatgca agctttgcaa agtctgaaaa cgaaggtggc agctgccgtt gaagcggcca
     3361 agacagttgg taaaggcgac ggtacaaccg gtactagcga caaaggcggc ggtcaaggta
     3421 ccccggcgct acgatatttg gagttgaggt tcaaagtcaa atggtactga tgaccggtaa
     3481 aatttaatat tttgaacctt gcttaggcag ctgacttcac attgttgaga tcagctgcct
     3541 tttgcttata gttcattgag tagaaacggt tctgttgcga agtttgaaaa tcaaacaagc
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例
