pBABE-puro

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pBABE-puro
出品公司: Addgene
目录编号: 1764
存储实验室: Hartmut Land, Jay Morgenstern, Bob Weinberg

载体骨架基本信息
载体名称: pBABE-puro
空载体大小: 5169 bp
完整质粒大小: 5086 bp
载体类型: 哺乳细胞表达, Retroviral
筛选标记: Puromycin
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: DH5a
拷贝数: 高拷贝

插入基因信息
插入基因名称:
克隆方法: 限制性内切酶
5’测序引物 BABE 5'
3’测序引物 BABE 3'

文献引用方法
材料和方法部分: pBABE-puro was a gift from Hartmut Land & Jay Morgenstern & Bob Weinberg (Addgene plasmid # 1764 ; http://n2t.net/addgene:1764 ; RRID:Addgene_1764)
参考文献部分: Advanced mammalian gene transfer: high titre retroviral vectors with multiple drug selection markers and a complementary helper-free packaging cell line. Morgenstern JP, Land H. Nucleic Acids Res. 1990 Jun 25;18(12):3587-96. PubMed 2194165

载体图谱质粒图谱和多克隆位点信息

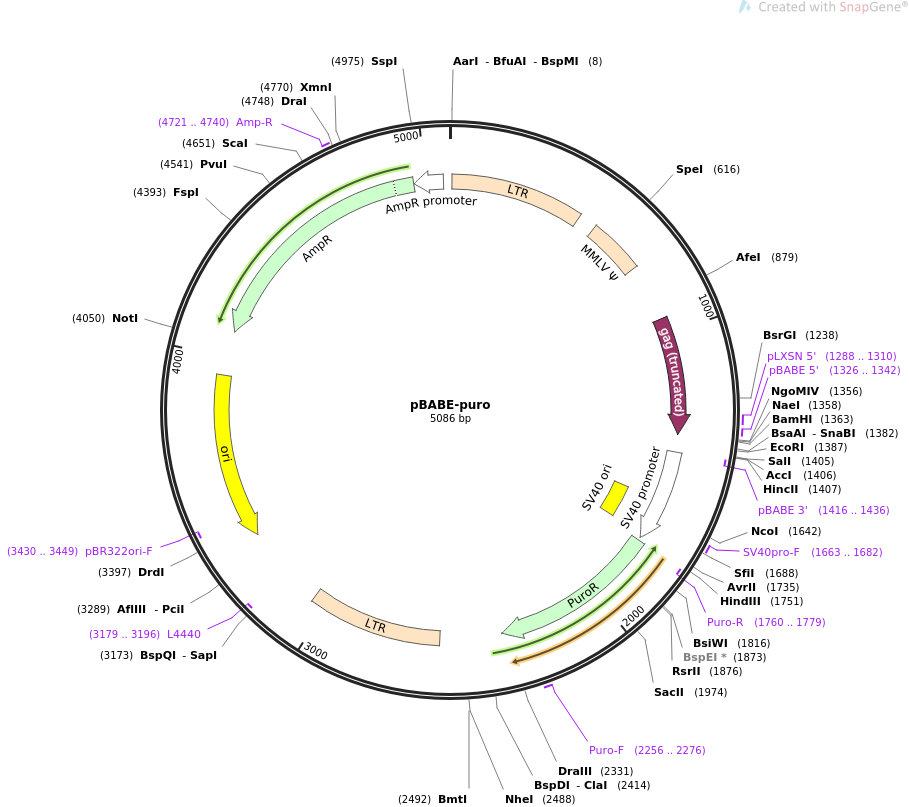

pBABE-puro载体图谱

载体简介

载体序列

LOCUS      pBABE-puro                5086 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Retroviral vector for cloning and expressing your gene of interest.
            Puromycin selection..
ACCESSION   .
VERSION     .
KEYWORDS    pBABE-puro
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5086)
  AUTHORS   Morgenstern JP, Land H
  TITLE     Advanced mammalian gene transfer: high titre retroviral vectors with
            multiple drug selection markers and a complementary helper-free
            packaging cell line.
  JOURNAL   Nucleic Acids Res. 1990 Jun 25;18(12):3587-96.
  PUBMED    2194165
REFERENCE   2  (bases 1 to 5086)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5086
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     LTR             8..477
                     /note="long terminal repeat from Moloney murine leukemia
                     virus"
     misc_feature    542..741
                     /label=MMLV Psi
                     /note="packaging signal of Moloney murine leukemia virus
                     (MMLV)"
     CDS             942..1358
                     /label=gag (truncated)
                     /note="truncated Moloney murine leukemia virus (MMLV) gag
                     gene lacking the start codon"
     primer_bind     1288..1310
                     /label=pLXSN 5'
                     /note="Murine stem cell virus, forward primer. Also called
                     MSCV"
     primer_bind     1326..1342
                     /label=pBABE 5'
                     /note="Psi packaging signal, forward primer for pBABE
                     vectors"
     primer_bind     complement(1416..1436)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        1421..1750
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      1601..1736
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     1663..1682
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             1760..2359
                     /codon_start=1
                     /gene="pac from Streptomyces alboniger"
                     /product="puromycin N-acetyltransferase"
                     /label=PuroR
                     /note="confers resistance to puromycin"
                     /translation="MTEYKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIER
                     VTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLA
                     AQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETS
                     APRNLPFYERLGFTVTADVEVPEGPRTWCMTRKPGA"
     primer_bind     complement(1760..1779)
                     /label=Puro-R
                     /note="Puromycin resistance gene, reverse primer. Also
                     called puro-variant-R"
     primer_bind     2256..2276
                     /label=Puro-F
                     /note="Puromycin resistance gene, forward primer"
     LTR             2580..3049
                     /note="long terminal repeat from Moloney murine leukemia
                     virus"
     primer_bind     complement(3179..3196)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(3350..3938)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(3430..3449)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(4098..4958)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     4721..4740
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(4959..5063)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 ctgcagcctg aatatgggcc aaacaggata tctgtggtaa gcagttcctg ccccggctca
       61 gggccaagaa cagatggaac agctgaatat gggccaaaca ggatatctgt ggtaagcagt
      121 tcctgccccg gctcagggcc aagaacagat ggtccccaga tgcggtccag ccctcagcag
      181 tttctagaga accatcagat gtttccaggg tgccccaagg acctgaaatg accctgtgcc
      241 ttatttgaac taaccaatca gttcgcttct cgcttctgtt cgcgcgcttc tgctccccga
      301 gctcaataaa agagcccaca acccctcact cggggcgcca gtcctccgat tgactgagtc
      361 gcccgggtac ccgtgtatcc aataaaccct cttgcagttg catccgactt gtggtctcgc
      421 tgttccttgg gagggtctcc tctgagtgat tgactacccg tcagcggggg tctttcattt
      481 gggggctcgt ccgggatcgg gagacccctg cccagggacc accgacccac caccgggagg
      541 caagctggcc agcaacttat ctgtgtctgt ccgattgtct agtgtctatg actgatttta
      601 tgcgcctgcg tcggtactag ttagctaact agctctgtat ctggcggacc cgtggtggaa
      661 ctgacgagtt ctgaacaccc ggccgcaacc ctgggagacg tcccagggac tttgggggcc
      721 gtttttgtgg cccgacctga ggaagggagt cgatgtggaa tccgaccccg tcaggatatg
      781 tggttctggt aggagacgag aacctaaaac agttcccgcc tccgtctgaa tttttgcttt
      841 cggtttggaa ccgaagccgc gcgtcttgtc tgctgcagcg ctgcagcatc gttctgtgtt
      901 gtctctgtct gactgtgttt ctgtatttgt ctgaaaatta gggccagact gttaccactc
      961 ccttaagttt gaccttaggt cactggaaag atgtcgagcg gatcgctcac aaccagtcgg
     1021 tagatgtcaa gaagagacgt tgggttacct tctgctctgc agaatggcca acctttaacg
     1081 tcggatggcc gcgagacggc acctttaacc gagacctcat cacccaggtt aagatcaagg
     1141 tcttttcacc tggcccgcat ggacacccag accaggtccc ctacatcgtg acctgggaag
     1201 ccttggcttt tgacccccct ccctgggtca agccctttgt acaccctaag cctccgcctc
     1261 ctcttcctcc atccgccccg tctctccccc ttgaacctcc tcgttcgacc ccgcctcgat
     1321 cctcccttta tccagccctc actccttctc taggcgccgg ccggatccca gtgtggtggt
     1381 acgtaggaat tcgccagcac agtggtcgac cctgtggaat gtgtgtcagt tagggtgtgg
     1441 aaagtcccca ggctccccag caggcagaag tatgcaaagc atgcatctca attagtcagc
     1501 aaccaggtgt ggaaagtccc caggctcccc agcaggcaga agtatgcaaa gcatgcatct
     1561 caattagtca gcaaccatag tcccgcccct aactccgccc atcccgcccc taactccgcc
     1621 cagttccgcc cattctccgc cccatggctg actaattttt tttatttatg cagaggccga
     1681 ggccgcctcg gcctctgagc tattccagaa gtagtgagga ggcttttttg gaggcctagg
     1741 cttttgcaaa aagcttacca tgaccgagta caagcccacg gtgcgcctcg ccacccgcga
     1801 cgacgtcccc agggccgtac gcaccctcgc cgccgcgttc gccgactacc ccgccacgcg
     1861 ccacaccgtc gatccggacc gccacatcga gcgggtcacc gagctgcaag aactcttcct
     1921 cacgcgcgtc gggctcgaca tcggcaaggt gtgggtcgcg gacgacggcg ccgcggtggc
     1981 ggtctggacc acgccggaga gcgtcgaagc gggggcggtg ttcgccgaga tcggcccgcg
     2041 catggccgag ttgagcggtt cccggctggc cgcgcagcaa cagatggaag gcctcctggc
     2101 gccgcaccgg cccaaggagc ccgcgtggtt cctggccacc gtcggcgtct cgcccgacca
     2161 ccagggcaag ggtctgggca gcgccgtcgt gctccccgga gtggaggcgg ccgagcgcgc
     2221 cggggtgccc gccttcctgg agacctccgc gccccgcaac ctccccttct acgagcggct
     2281 cggcttcacc gtcaccgccg acgtcgaggt gcccgaagga ccgcgcacct ggtgcatgac
     2341 ccgcaagccc ggtgcctgac gcccgcccca cgacccgcag cgcccgaccg aaaggagcgc
     2401 acgaccccat gcatcgataa aataaaagat tttatttagt ctccagaaaa aggggggaat
     2461 gaaagacccc acctgtaggt ttggcaagct agcttaagta acgccatttt gcaaggcatg
     2521 gaaaaataca taactgagaa tagagaagtt cagatcaagg tcaggaacag atggaacagc
     2581 tgaatatggg ccaaacagga tatctgtggt aagcagttcc tgccccggct cagggccaag
     2641 aacagatgga acagctgaat atgggccaaa caggatatct gtggtaagca gttcctgccc
     2701 cggctcaggg ccaagaacag atggtcccca gatgcggtcc agccctcagc agtttctaga
     2761 gaaccatcag atgtttccag ggtgccccaa ggacctgaaa tgaccctgtg ccttatttga
     2821 actaaccaat cagttcgctt ctcgcttctg ttcgcgcgct tctgctcccc gagctcaata
     2881 aaagagccca caacccctca ctcggggcgc cagtcctccg attgactgag tcgcccgggt
     2941 acccgtgtat ccaataaacc ctcttgcagt tgcatccgac ttgtggtctc gctgttcctt
     3001 gggagggtct cctctgagtg attgactacc cgtcagcggg ggtctttcac atgcagcatg
     3061 tatcaaaatt aatttggttt tttttcttaa gtatttacat taaatggcca tagttgcatt
     3121 aatgaatcgg ccaacgcgcg gggagaggcg gtttgcgtat tgggcgctct tccgcttcct
     3181 cgctcactga ctcgctgcgc tcggtcgttc ggctgcggcg agcggtatca gctcactcaa
     3241 aggcggtaat acggttatcc acagaatcag gggataacgc aggaaagaac atgtgagcaa
     3301 aaggccagca aaaggccagg aaccgtaaaa aggccgcgtt gctggcgttt ttccataggc
     3361 tccgcccccc tgacgagcat cacaaaaatc gacgctcaag tcagaggtgg cgaaacccga
     3421 caggactata aagataccag gcgtttcccc ctggaagctc cctcgtgcgc tctcctgttc
     3481 cgaccctgcc gcttaccgga tacctgtccg cctttctccc ttcgggaagc gtggcgcttt
     3541 ctcatagctc acgctgtagg tatctcagtt cggtgtaggt cgttcgctcc aagctgggct
     3601 gtgtgcacga accccccgtt cagcccgacc gctgcgcctt atccggtaac tatcgtcttg
     3661 agtccaaccc ggtaagacac gacttatcgc cactggcagc agccactggt aacaggatta
     3721 gcagagcgag gtatgtaggc ggtgctacag agttcttgaa gtggtggcct aactacggct
     3781 acactagaag aacagtattt ggtatctgcg ctctgctgaa gccagttacc ttcggaaaaa
     3841 gagttggtag ctcttgatcc ggcaaacaaa ccaccgctgg tagcggtggt ttttttgttt
     3901 gcaagcagca gattacgcgc agaaaaaaag gatctcaaga agatcctttg atcttttcta
     3961 cggggtctga cgctcagtgg aacgaaaact cacgttaagg gattttggtc atgagattat
     4021 caaaaaggat cttcacctag atccttttgc ggccgcaaat caatctaaag tatatatgag
     4081 taaacttggt ctgacagtta ccaatgctta atcagtgagg cacctatctc agcgatctgt
     4141 ctatttcgtt catccatagt tgcctgactc cccgtcgtgt agataactac gatacgggag
     4201 ggcttaccat ctggccccag tgctgcaatg ataccgcgag acccacgctc accggctcca
     4261 gatttatcag caataaacca gccagccgga agggccgagc gcagaagtgg tcctgcaact
     4321 ttatccgcct ccatccagtc tattaattgt tgccgggaag ctagagtaag tagttcgcca
     4381 gttaatagtt tgcgcaacgt tgttgccatt gctacaggca tcgtggtgtc acgctcgtcg
     4441 tttggtatgg cttcattcag ctccggttcc caacgatcaa ggcgagttac atgatccccc
     4501 atgttgtgca aaaaagcggt tagctccttc ggtcctccga tcgttgtcag aagtaagttg
     4561 gccgcagtgt tatcactcat ggttatggca gcactgcata attctcttac tgtcatgcca
     4621 tccgtaagat gcttttctgt gactggtgag tactcaacca agtcattctg agaatagtgt
     4681 atgcggcgac cgagttgctc ttgcccggcg tcaatacggg ataataccgc gccacatagc
     4741 agaactttaa aagtgctcat cattggaaaa cgttcttcgg ggcgaaaact ctcaaggatc
     4801 ttaccgctgt tgagatccag ttcgatgtaa cccactcgtg cacccaactg atcttcagca
     4861 tcttttactt tcaccagcgt ttctgggtga gcaaaaacag gaaggcaaaa tgccgcaaaa
     4921 aagggaataa gggcgacacg gaaatgttga atactcatac tcttcctttt tcaatattat
     4981 tgaagcattt atcagggtta ttgtctcatg agcggataca tatttgaatg tatttagaaa
     5041 aataaacaaa taggggttcc gcgcacattt ccccgaaaag tgccac
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例
