质粒名称: | pHAGE-EFS-N22p-3XRFPnls |
---|---|
出品公司: | 爱迪基因 |
目录编号: | 75387 |
存储实验室: | Thoru Pederson |
载体骨架基本信息 |
|
载体名称: | pHAGE-DEST |
载体出品公司: | -- |
载体抗性: | 氨苄青霉素 |
空载体大小: | 6000 bp |
完整质粒大小: | 8440 bp |
载体修饰: | -- |
载体类型: | 哺乳动物表达,慢病毒 |
筛选标记: | -- |
高拷贝/低拷贝: | 高拷贝 |
生长条件: | 37 ℃ |
插入基因信息 |
|
插入基因名称: | N22p |
物种来源: | Synthetic |
插入大小: | 69 bp |
基因突变: | -- |
GenBank编号 | -- |
启动子 | EFS |
标签/融合蛋白: | 3XmCherry(插入件上的C端子) |
克隆方法: | 限制性内切酶 |
5' 克隆位点: | Mlu I(未破坏) |
3' 克隆位点: | BamH I(未破坏) |
5' 测序引物 | cgaaggaatagaagaagaaggtgga |
3' 测序引物 | CCAAAGGGAGATCCGACTCG |
文献引用方法 |
|
材料和方法部分: | pHAGE-EFS-N22p-3XRFPnls was a gift from Thoru Pederson (Addgene plasmid # 75387 ; http://n2t.net/addgene:75387 ; RRID:Addgene_75387) |
参考文献部分: | Multiplexed labeling of genomic loci with dCas9 and engineered sgRNAs using CRISPRainbow. Ma H, Tu LC, Naseri A, Huisman M, Zhang S, Grunwald D, Pederson T. Nat Biotechnol. 2016 Apr 18. doi: 10.1038/nbt.3526. 10.1038/nbt.3526 PubMed 27088723 |
买家导航
载体基本信息

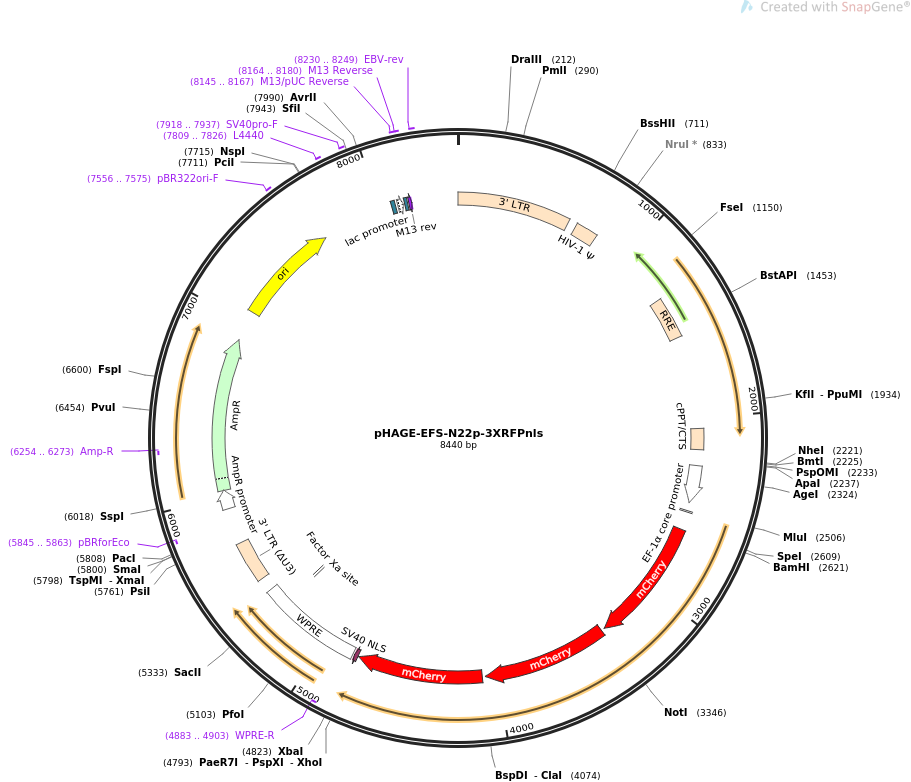

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pHAGE-EFS-N22p-3XRFPnls 8440 bp ds-DNA circular SYN 06-AUG-2018 DEFINITION N22p-3XRFPnls. ACCESSION . VERSION . KEYWORDS pHAGE-EFS-N22p-3XRFPnls SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 8440) AUTHORS Ma H, Tu LC, Naseri A, Huisman M, Zhang S, Grunwald D, Pederson T TITLE Multiplexed labeling of genomic loci with dCas9 and engineered sgRNAs using CRISPRainbow. JOURNAL Nat Biotechnol. 2016 Apr 18. doi: 10.1038/nbt.3526. PUBMED 27088723 REFERENCE 2 (bases 1 to 8440) AUTHORS . TITLE Direct Submission JOURNAL Exported Aug 6, 2018 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..8440 /organism="synthetic DNA construct" /mol_type="other DNA" LTR 1..634 /label=3' LTR /note="3' long terminal repeat (LTR) from HIV-1" misc_feature 681..806 /label=HIV-1 Psi /note="packaging signal of human immunodeficiency virus type 1" misc_feature 1303..1536 /label=RRE /note="The Rev response element (RRE) of HIV-1 allows for Rev-dependent mRNA export from the nucleus to the cytoplasm." misc_feature 2058..2175 /label=cPPT/CTS /note="central polypurine tract and central termination sequence of HIV-1" promoter 2265..2476 /label=EF-1-alpha core promoter /note="core promoter for human elongation factor EF-1-alpha" regulatory 2522..2531 /regulatory_class="other" /note="vertebrate consensus sequence for strong initiation of translation (Kozak, 1987)" CDS 2633..3340 /codon_start=1 /product="monomeric derivative of DsRed fluorescent protein (Shaner et al., 2004)" /label=mCherry /note="mammalian codon-optimized" /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA EGRHSTGGMDELYK" CDS 3359..4066 /codon_start=1 /product="monomeric derivative of DsRed fluorescent protein (Shaner et al., 2004)" /label=mCherry /note="mammalian codon-optimized" /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA EGRHSTGGMDELYK" CDS 4085..4792 /codon_start=1 /product="monomeric derivative of DsRed fluorescent protein (Shaner et al., 2004)" /label=mCherry /note="mammalian codon-optimized" /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA EGRHSTGGMDELYK" CDS 4799..4819 /codon_start=1 /product="nuclear localization signal of SV40 (simian virus 40) large T antigen" /label=SV40 NLS /translation="PKKKRKV" misc_feature 4830..5418 /label=WPRE /note="woodchuck hepatitis virus posttranscriptional regulatory element" primer_bind complement(4883..4903) /label=WPRE-R /note="WPRE, reverse primer" CDS complement(5301..5312) /codon_start=1 /product="Factor Xa recognition and cleavage site" /label=Factor Xa site /translation="IEGR" LTR 5493..5726 /label=3' LTR (Delta-U3) /note="self-inactivating 3' long terminal repeat (LTR) from HIV-1" primer_bind complement(5845..5863) /label=pBRforEco /note="pBR322 vectors, upsteam of EcoRI site, forward primer" promoter 5931..6035 /gene="bla" /label=AmpR promoter CDS 6036..6896 /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind complement(6254..6273) /label=Amp-R /note="Ampicillin resistance gene, reverse primer" rep_origin 7067..7655 /direction=RIGHT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind 7556..7575 /label=pBR322ori-F /note="pBR322 origin, forward primer" primer_bind 7809..7826 /label=L4440 /note="L4440 vector, forward primer" primer_bind 7918..7937 /label=SV40pro-F /note="SV40 promoter/origin, forward primer" protein_bind 8066..8087 /label=CAP binding site /bound_moiety="E. coli catabolite activator protein" /note="CAP binding activates transcription in the presence of cAMP." promoter 8102..8132 /label=lac promoter /note="promoter for the E. coli lac operon" protein_bind 8140..8156 /label=lac operator /bound_moiety="lac repressor encoded by lacI" /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." primer_bind 8145..8167 /label=M13/pUC Reverse /note="In lacZ gene" primer_bind 8164..8180 /label=M13 rev /note="common sequencing primer, one of multiple similar variants" primer_bind 8164..8180 /label=M13 Reverse /note="In lacZ gene. Also called M13-rev" primer_bind 8230..8249 /label=EBV-rev /note="SV40 polyA terminator, reverse primer" ORIGIN 1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca 61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac 121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca 181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg 241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag 301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg 361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat 421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga 481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct 541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc 601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag 661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg 721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga 781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg 841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg 901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct 961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat 1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca 1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc 1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag 1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc 1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg 1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc 1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc 1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct 1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa 1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca 1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt 1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt 1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta 1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt 1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct 1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga 1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccgaa ttgacaaatg 2041 gcagtattca tccacaattt taaaagaaaa ggggggattg gggggtacag tgcaggggaa 2101 agaatagtag acataatagc aacagacata caaactaaag aattacaaaa acaaattaca 2161 aaaattcaaa attttcgggt ttattacagg gacagcagag atccagtttg gactagcgat 2221 gctagctgat gcgggccctt cgagtggctc cggtgcccgt cagtgggcag agcgcacatc 2281 gcccacagtc cccgagaagt tggggggagg ggtcggcaat tgaaccggtg cctagagaag 2341 gtggcgcggg gtaaactggg aaagtgatgt cgtgtactgg ctccgccttt ttcccgaggg 2401 tgggggagaa ccgtatataa gtgcagtagt cgccgtgaac gttctttttc gcaacgggtt 2461 tgccgccaga acacaggtgt cgtgacgcgg ttccggttaa ggtgaacgcg tgcaggctgg 2521 cgccaccatg ggtaatgctc ggacccggcg aagagagagg cgggctgaga agcaggcaca 2581 gtggaaggct gcaaacggtg gcggaggtac tagtggctct ggatccggaa gtatggtgag 2641 caagggcgag gaggataaca tggccatcat caaggagttc atgcgcttca aggtgcacat 2701 ggagggctcc gtgaacggcc acgagttcga gatcgagggc gagggcgagg gccgccccta 2761 cgagggcacc cagaccgcca agctgaaggt gaccaagggt ggccccctgc ccttcgcctg 2821 ggacatcctg tcccctcagt tcatgtacgg ctccaaggcc tacgtgaagc accccgccga 2881 catccccgac tacttgaagc tgtccttccc cgagggcttc aagtgggagc gcgtgatgaa 2941 cttcgaggac ggcggcgtgg tgaccgtgac ccaggactcc tcactgcagg acggcgagtt 3001 catctacaag gtgaagctgc gcggcaccaa cttcccctcc gacggccccg taatgcagaa 3061 gaagaccatg ggctgggagg cctcctccga gcggatgtac cccgaggacg gcgccctgaa 3121 gggcgagatc aagcagaggc tgaagctgaa ggacggcggc cactacgacg ctgaggtcaa 3181 gaccacctac aaggccaaga agcccgtgca gctgcccggc gcctacaacg tcaacatcaa 3241 gttggacatc acctcccaca acgaggacta caccatcgtg gaacagtacg aacgcgctga 3301 gggccgccac tccaccggcg gcatggacga gctgtacaag tctggcggcc gctctggcat 3361 ggtgagcaag ggcgaggagg ataacatggc catcatcaag gagttcatgc gcttcaaggt 3421 gcacatggag ggctccgtga acggccacga gttcgagatc gagggcgagg gcgagggccg 3481 cccctacgag ggcacccaga ccgccaagct gaaggtgacc aagggtggcc ccctgccctt 3541 cgcctgggac atcctgtccc ctcagttcat gtacggctcc aaggcctacg tgaagcaccc 3601 cgccgacatc cccgactact tgaagctgtc cttccccgag ggcttcaagt gggagcgcgt 3661 gatgaacttc gaggacggcg gcgtggtgac cgtgacccag gactcctcac tgcaggacgg 3721 cgagttcatc tacaaggtga agctgcgcgg caccaacttc ccctccgacg gccccgtaat 3781 gcagaagaag accatgggct gggaggcctc ctccgagcgg atgtaccccg aggacggcgc 3841 cctgaagggc gagatcaagc agaggctgaa gctgaaggac ggcggccact acgacgctga 3901 ggtcaagacc acctacaagg ccaagaagcc cgtgcagctg cccggcgcct acaacgtcaa 3961 catcaagttg gacatcacct cccacaacga ggactacacc atcgtggaac agtacgaacg 4021 cgctgagggc cgccactcca ccggcggcat ggacgagctg tacaagggta gcatcgatgg 4081 tagcatggtg agcaagggcg aggaggataa catggccatc atcaaggagt tcatgcgctt 4141 caaggtgcac atggagggct ccgtgaacgg ccacgagttc gagatcgagg gcgagggcga 4201 gggccgcccc tacgagggca cccagaccgc caagctgaag gtgaccaagg gtggccccct 4261 gcccttcgcc tgggacatcc tgtcccctca gttcatgtac ggctccaagg cctacgtgaa 4321 gcaccccgcc gacatccccg actacttgaa gctgtccttc cccgagggct tcaagtggga 4381 gcgcgtgatg aacttcgagg acggcggcgt ggtgaccgtg acccaggact cctcactgca 4441 ggacggcgag ttcatctaca aggtgaagct gcgcggcacc aacttcccct ccgacggccc 4501 cgtaatgcag aagaagacca tgggctggga ggcctcctcc gagcggatgt accccgagga 4561 cggcgccctg aagggcgaga tcaagcagag gctgaagctg aaggacggcg gccactacga 4621 cgctgaggtc aagaccacct acaaggccaa gaagcccgtg cagctgcccg gcgcctacaa 4681 cgtcaacatc aagttggaca tcacctccca caacgaggac tacaccatcg tggaacagta 4741 cgaacgcgct gagggccgcc actccaccgg cggcatggac gagctgtaca agctcgagcc 4801 aaagaaaaag cggaaagtgt aatctagata atcaacctct ggattacaaa atttgtgaaa 4861 gattgactgg tattcttaac tatgttgctc cttttacgct atgtggatac gctgctttaa 4921 tgcctttgta tcatgctatt gcttcccgta tggctttcat tttctcctcc ttgtataaat 4981 cctggttgct gtctctttat gaggagttgt ggcccgttgt caggcaacgt ggcgtggtgt 5041 gcactgtgtt tgctgacgca acccccactg gttggggcat tgccaccacc tgtcagctcc 5101 tttccgggac tttcgctttc cccctcccta ttgccacggc ggaactcatc gccgcctgcc 5161 ttgcccgctg ctggacaggg gctcggctgt tgggcactga caattccgtg gtgttgtcgg 5221 ggaaatcatc gtcctttcct tggctgctcg cctgtgttgc cacctggatt ctgcgcggga 5281 cgtccttctg ctacgtccct tcggccctca atccagcgga ccttccttcc cgcggcctgc 5341 tgccggctct gcggcctctt ccgcgtcttc gccttcgccc tcagacgagt cggatctccc 5401 tttgggccgc ctccccgcct gagatccttt aagaccaatg acttacaagg cagctgtaga 5461 tcttagccac tttttaaaag aaaagggggg actggaaggg ctaattcact cccaacgaag 5521 acaagatctg ctttttgctt gtactgggtc tctctggtta gaccagatct gagcctggga 5581 gctctctggc taactaggga acccactgct taagcctcaa taaagcttgc cttgagtgct 5641 tcaagtagtg tgtgcccgtc tgttgtgtga ctctggtaac tagagatccc tcagaccctt 5701 ttagtcagtg tggaaaatct ctagcagtag tagttcatgt catcttatta ttcagtattt 5761 ataacttgca aagaaatgaa tatcagagag tgagaggccc gggttaatta aggaaagggc 5821 tagatcattc ttgaagacga aagggcctcg tgatacgcct atttttatag gttaatgtca 5881 tgataataat ggtttcttag acgtcaggtg gcacttttcg gggaaatgtg cgcggaaccc 5941 ctatttgttt atttttctaa atacattcaa atatgtatcc gctcatgaga caataaccct 6001 gataaatgct tcaataatat tgaaaaagga agagtatgag tattcaacat ttccgtgtcg 6061 cccttattcc cttttttgcg gcattttgcc ttcctgtttt tgctcaccca gaaacgctgg 6121 tgaaagtaaa agatgctgaa gatcagttgg gtgcacgagt gggttacatc gaactggatc 6181 tcaacagcgg taagatcctt gagagttttc gccccgaaga acgttttcca atgatgagca 6241 cttttaaagt tctgctatgt ggcgcggtat tatcccgtgt tgacgccggg caagagcaac 6301 tcggtcgccg catacactat tctcagaatg acttggttga gtactcacca gtcacagaaa 6361 agcatcttac ggatggcatg acagtaagag aattatgcag tgctgccata accatgagtg 6421 ataacactgc ggccaactta cttctgacaa cgatcggagg accgaaggag ctaaccgctt 6481 ttttgcacaa catgggggat catgtaactc gccttgatcg ttgggaaccg gagctgaatg 6541 aagccatacc aaacgacgag cgtgacacca cgatgcctgt agcaatggca acaacgttgc 6601 gcaaactatt aactggcgaa ctacttactc tagcttcccg gcaacaatta atagactgga 6661 tggaggcgga taaagttgca ggaccacttc tgcgctcggc ccttccggct ggctggttta 6721 ttgctgataa atctggagcc ggtgagcgtg ggtctcgcgg tatcattgca gcactggggc 6781 cagatggtaa gccctcccgt atcgtagtta tctacacgac ggggagtcag gcaactatgg 6841 atgaacgaaa tagacagatc gctgagatag gtgcctcact gattaagcat tggtaactgt 6901 cagaccaagt ttactcatat atactttaga ttgatttaaa acttcatttt taatttaaaa 6961 ggatctaggt gaagatcctt tttgataatc tcatgaccaa aatcccttaa cgtgagtttt 7021 cgttccactg agcgtcagac cccgtagaaa agatcaaagg atcttcttga gatccttttt 7081 ttctgcgcgt aatctgctgc ttgcaaacaa aaaaaccacc gctaccagcg gtggtttgtt 7141 tgccggatca agagctacca actctttttc cgaaggtaac tggcttcagc agagcgcaga 7201 taccaaatac tgttcttcta gtgtagccgt agttaggcca ccacttcaag aactctgtag 7261 caccgcctac atacctcgct ctgctaatcc tgttaccagt ggctgctgcc agtggcgata 7321 agtcgtgtct taccgggttg gactcaagac gatagttacc ggataaggcg cagcggtcgg 7381 gctgaacggg gggttcgtgc acacagccca gcttggagcg aacgacctac accgaactga 7441 gatacctaca gcgtgagcta tgagaaagcg ccacgcttcc cgaagggaga aaggcggaca 7501 ggtatccggt aagcggcagg gtcggaacag gagagcgcac gagggagctt ccagggggaa 7561 acgcctggta tctttatagt cctgtcgggt ttcgccacct ctgacttgag cgtcgatttt 7621 tgtgatgctc gtcagggggg cggagcctat ggaaaaacgc cagcaacgcg gcctttttac 7681 ggttcctggc cttttgctgg ccttttgctc acatgttctt tcctgcgtta tcccctgatt 7741 ctgtggataa ccgtattacc gcctttgagt gagctgatac cgctcgccgc agccgaacga 7801 ccgagcgcag cgagtcagtg agcgaggaag cggaagagcg cccaatacgc aaaccgcctc 7861 tccccgcgcg ttggccgatt cattaatgca gcaagctcat ggctgactaa ttttttttat 7921 ttatgcagag gccgaggccg cctcggcctc tgagctattc cagaagtagt gaggaggctt 7981 ttttggaggc ctaggctttt gcaaaaagct ccccgtggca cgacaggttt cccgactgga 8041 aagcgggcag tgagcgcaac gcaattaatg tgagttagct cactcattag gcaccccagg 8101 ctttacactt tatgcttccg gctcgtatgt tgtgtggaat tgtgagcgga taacaatttc 8161 acacaggaaa cagctatgac atgattacga atttcacaaa taaagcattt ttttcactgc 8221 attctagttg tggtttgtcc aaactcatca atgtatctta tcatgtctgg atcaactgga 8281 taactcaagc taaccaaaat catcccaaac ttcccacccc ataccctatt accactgcca 8341 attacctgtg gtttcattta ctctaaacct gtgattcctc tgaattattt tcattttaaa 8401 gaaattgtat ttgttaaata tgtactacaa acttagtagt //
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
