pHAGE-TO-dCas9-3XGFP

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pHAGE-TO-dCas9-3XGFP
出品公司: Addgene
目录编号: 64107
存储实验室: Thoru Pederson

载体骨架基本信息
载体名称: pHAGE-DEST
载体出品公司: Clontech
空载体大小: 6000bp
完整质粒大小: 12980bp
载体类型: 哺乳细胞表达, Lentiviral
筛选标记: GFP
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: Stbl3
拷贝数: 高拷贝

插入基因信息
插入基因名称: Sp dCas9
物种来源: Synthetic
插入大小: 4101bp
启动子: CMV-TO
标签/融合蛋白: 3XsfGFP (C terminal on insert)
克隆方法: 限制性内切酶
5’克隆位点: EcoRI (not destroyed)
3’克隆位点: XbaI (not destroyed)
5’测序引物 cgaaggaatagaagaagaaggtgga
3’测序引物 CCAAAGGGAGATCCGACTCG

文献引用方法
材料和方法部分:
pHAGE-TO-dCas9-3XGFP was a gift from Thoru Pederson (Addgene plasmid # 64107 ; http://n2t.net/addgene:64107 ; RRID:Addgene_64107)

参考文献部分: Multicolor CRISPR labeling of chromosomal loci in human cells. Ma H, Naseri A, Reyes-Gutierrez P, Wolfe SA, Zhang S, Pederson T. Proc Natl Acad Sci U S A. 2015 Mar 10;112(10):3002-7. doi: 10.1073/pnas.1420024112. Epub 2015 Feb 23. 10.1073/pnas.1420024112 PubMed 25713381

载体图谱质粒图谱和多克隆位点信息

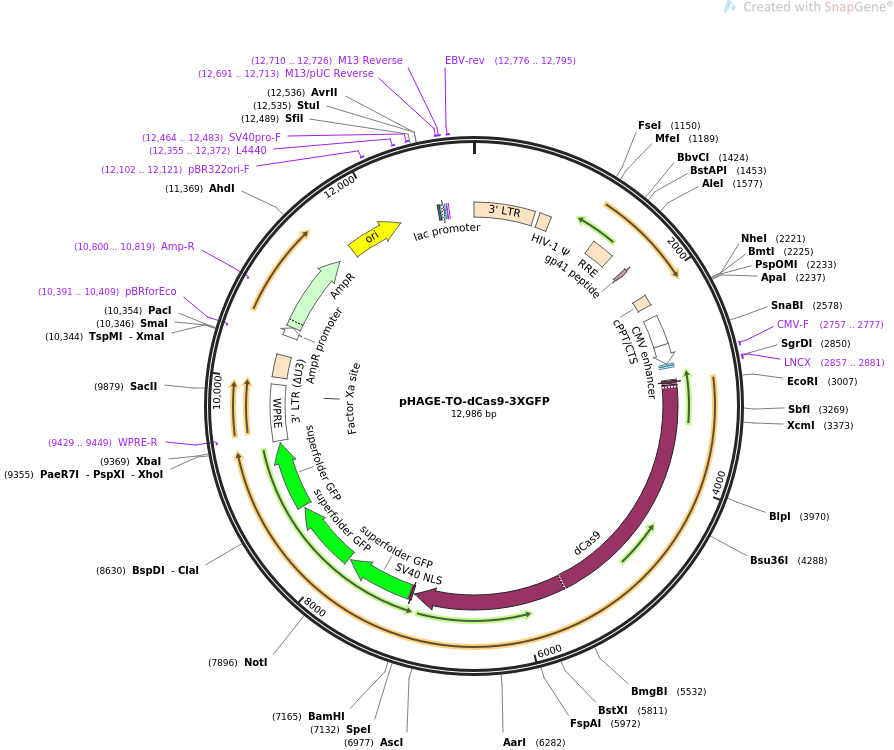

pHAGE-TO-dCas9-3XGFP载体图谱

载体简介

载体序列

LOCUS       pHAGE-TO-dCas9-3XGFP              12986 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Expression of Sp dCas9-3XGFP in mammalian cells.
ACCESSION   .
VERSION     .
KEYWORDS    pHAGE-TO-dCas9-3XGFP
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 12986)
  AUTHORS   Ma H, Naseri A, Reyes-Gutierrez P, Wolfe SA, Zhang S, Pederson T
  TITLE     Multicolor CRISPR labeling of chromosomal loci in human cells.
  JOURNAL   Proc Natl Acad Sci U S A. 2015 Mar 10;112(10):3002-7. doi:
            10.1073/pnas.1420024112. Epub 2015 Feb 23.
  PUBMED    25713381
REFERENCE   2  (bases 1 to 12986)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..12986
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     LTR             1..634
                     /label=3' LTR
                     /note="3' long terminal repeat (LTR) from HIV-1"
     misc_feature    681..806
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1303..1536
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     CDS             1721..1765
                     /codon_start=1
                     /product="antigenic peptide corresponding to amino acids
                     655 to 669 of the HIV envelope protein gp41 (Lutje Hulsik
                     et al., 2013)"
                     /label=gp41 peptide
                     /note="recognized by the 2H10 single-chain llama nanobody"
                     /translation="KNEQELLELDKWASL"
     misc_feature    2058..2175
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     enhancer        2299..2602
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2603..2806
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     2757..2777
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     protein_bind    2808..2826
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    2829..2847
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     primer_bind     2857..2881
                     /label=LNCX
                     /note="Human CMV promoter, forward primer"
     regulatory      2974..2983
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             2986..3006
                     /codon_start=1
                     /product="nuclear localization signal of SV40 (simian virus
                     40) large T antigen"
                     /label=SV40 NLS
                     /translation="PKKKRKV"
     CDS             3025..7125
                     /codon_start=1
                     /product="catalytically dead mutant of the Cas9
                     endonuclease from the Streptococcus pyogenes Type II
                     CRISPR/Cas system"
                     /label=dCas9
                     /note="RNA-guided DNA-binding protein that lacks
                     endonuclease activity due to the D10A mutation in the RuvC
                     catalytic domain and the H840A mutation in the HNH
                     catalytic domain"
                     /translation="DKKYSIGLAIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKN
                     LIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESF
                     LVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKF
                     RGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLE
                     NLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQI
                     GDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQ
                     QLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLR
                     KQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGN
                     SRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYF
                     TVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDS
                     VEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERL
                     KTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQ
                     LIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRH
                     KPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYL
                     YYLQNGRDMYVDQELDINRLSDYDVDAIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPS
                     EEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHV
                     AQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLN
                     AVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTE
                     ITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGFSKE
                     SILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELLGIT
                     IMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKGNEL
                     ALPSKYVNFLYLASHYEKLKGSPEDNEQKQLFVEQHKHYLDEIIEQISEFSKRVILADA
                     NLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKEVLD
                     ATLIHQSITGLYETRIDLSQLGGD"
     CDS             7144..7164
                     /codon_start=1
                     /product="nuclear localization signal of SV40 (simian virus
                     40) large T antigen"
                     /label=SV40 NLS
                     /translation="PKKKRKV"
     CDS             7177..7890
                     /codon_start=1
                     /product="GFP variant that folds robustly even when fused
                     to poorly folded proteins (Pedelacq et al., 2006)"
                     /label=superfolder GFP
                     /translation="MRKGEELFTGVVPILVELDGDVNGHKFSVRGEGEGDATNGKLTLK
                     FICTTGKLPVPWPTLVTTLTYGVQCFARYPDHMKQHDFFKSAMPEGYVQERTISFKDDG
                     TYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNFNSHNVYITADKQKNGIKA
                     NFKIRHNVEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSVLSKDPNEKRDHMVLLE
                     FVTAAGITHGMDELYK"
     CDS             7909..8622
                     /codon_start=1
                     /product="GFP variant that folds robustly even when fused
                     to poorly folded proteins (Pedelacq et al., 2006)"
                     /label=superfolder GFP
                     /translation="MRKGEELFTGVVPILVELDGDVNGHKFSVRGEGEGDATNGKLTLK
                     FICTTGKLPVPWPTLVTTLTYGVQCFARYPDHMKQHDFFKSAMPEGYVQERTISFKDDG
                     TYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNFNSHNVYITADKQKNGIKA
                     NFKIRHNVEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSVLSKDPNEKRDHMVLLE
                     FVTAAGITHGMDELYK"
     CDS             8641..9354
                     /codon_start=1
                     /product="GFP variant that folds robustly even when fused
                     to poorly folded proteins (Pedelacq et al., 2006)"
                     /label=superfolder GFP
                     /translation="MRKGEELFTGVVPILVELDGDVNGHKFSVRGEGEGDATNGKLTLK
                     FICTTGKLPVPWPTLVTTLTYGVQCFARYPDHMKQHDFFKSAMPEGYVQERTISFKDDG
                     TYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNFNSHNVYITADKQKNGIKA
                     NFKIRHNVEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSVLSKDPNEKRDHMVLLE
                     FVTAAGITHGMDELYK"
     misc_feature    9376..9964
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(9429..9449)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(9847..9858)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             10039..10272
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     primer_bind     complement(10391..10409)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        10477..10581
                     /gene="bla"
                     /label=AmpR promoter
     CDS             10582..11442
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(10800..10819)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      11613..12201
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     12102..12121
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     12355..12372
                     /label=L4440
                     /note="L4440 vector, forward primer"
     primer_bind     12464..12483
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     protein_bind    12612..12633
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        12648..12678
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    12686..12702
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     12691..12713
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     primer_bind     12710..12726
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     12710..12726
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     12776..12795
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccgaa ttgacaaatg
     2041 gcagtattca tccacaattt taaaagaaaa ggggggattg gggggtacag tgcaggggaa
     2101 agaatagtag acataatagc aacagacata caaactaaag aattacaaaa acaaattaca
     2161 aaaattcaaa attttcgggt ttattacagg gacagcagag atccagtttg gactagcgat
     2221 gctagctgat gcgggcccta gttattaata gtaatcaatt acggggtcat tagttcatag
     2281 cccatatatg gagttccgcg ttacataact tacggtaaat ggcccgcctg gctgaccgcc
     2341 caacgacccc cgcccattga cgtcaataat gacgtatgtt cccatagtaa cgccaatagg
     2401 gactttccat tgacgtcaat gggtggagta tttacggtaa actgcccact tggcagtaca
     2461 tcaagtgtat catatgccaa gtacgccccc tattgacgtc aatgacggta aatggcccgc
     2521 ctggcattat gcccagtaca tgaccttatg ggactttcct acttggcagt acatctacgt
     2581 attagtcatc gctattacca tggtgatgcg gttttggcag tacatcaatg ggcgtggata
     2641 gcggtttgac tcacggggat ttccaagtct ccaccccatt gacgtcaatg ggagtttgtt
     2701 ttggcaccaa aatcaacggg actttccaaa atgtcgtaac aactccgccc cattgacgca
     2761 aatgggcggt aggcgtgtac ggtgggaggt ctatataagc agagctctcc ctatcagtga
     2821 tagagatctc cctatcagtg atagagatcg tcgacgagct cgtttagtga accgtcagat
     2881 cgcctggaga cgccatccac gctgttttga cctccataga agacaccggg accgatccag
     2941 cctaccggtt aaggtgaacg cgtgcaggct ggcgccacca tggcccctaa aaagaaacgc
     3001 aaggtcgaat tcggaagcgg aagcgacaag aagtactcca ttgggctcgc tatcggtacc
     3061 aacagcgtcg gctgggccgt cattacggac gagtacaagg tgccgagcaa aaaattcaaa
     3121 gttctgggca ataccgatcg ccacagcata aagaagaacc tcattggagc cctcctgttc
     3181 gactccgggg agacggccga agccacgcgg ctcaaaagaa cagcacggcg cagatatacc
     3241 cgcagaaaga atcggatctg ctacctgcag gagatcttta gtaatgagat ggctaaggtg
     3301 gatgactctt tcttccatag gctggaggag tcctttttgg tggaggagga taaaaagcac
     3361 gagcgccacc caatctttgg caatatcgtg gacgaggtgg cgtaccatga aaagtaccca
     3421 accatatatc atctgaggaa gaagctggta gacagtactg ataaggctga cttgcggttg
     3481 atctatctcg cgctggcgca catgatcaaa tttcggggac acttcctcat cgagggggac
     3541 ctgaacccag acaacagcga tgtcgacaaa ctctttatcc aactggttca gacttacaat
     3601 cagcttttcg aggagaaccc gatcaacgca tccggcgttg acgccaaagc aatcctgagc
     3661 gctaggctgt ccaaatcccg gcggctcgaa aacctcatcg cacagctccc tggggagaag
     3721 aagaacggcc tgtttggtaa tcttatcgcc ctgtcactcg ggctgacccc caactttaaa
     3781 tctaacttcg acctggccga agatgccaag ctgcaactga gcaaagacac ctacgatgat
     3841 gatctcgaca atctgctggc ccagatcggc gaccagtacg cagacctttt tttggcggca
     3901 aagaacctgt cagacgccat tctgctgagt gatattctgc gagtgaacac ggagatcacc
     3961 aaagctccgc tgagcgctag tatgatcaag cgctatgatg agcaccacca agacttgact
     4021 ttgctgaagg cccttgtcag acagcaactg cctgagaagt acaaggaaat tttcttcgat
     4081 cagtctaaaa atggctacgc cggatacatt gacggcggag caagccagga ggaattttac
     4141 aaatttatta agcccatctt ggaaaaaatg gacggcaccg aggagctgct ggtaaagctg
     4201 aacagagaag atctgttgcg caaacagcgc actttcgaca atggaagcat cccccaccag
     4261 attcacctgg gcgaactgca cgctatcctc aggcggcaag aggatttcta cccctttttg
     4321 aaagataaca gggaaaagat tgagaaaatc ctcacatttc ggatacccta ctatgtaggc
     4381 cccctcgctc ggggaaattc cagattcgcg tggatgactc gcaaatcaga agagaccatc
     4441 actccctgga acttcgagga agtcgtggat aagggggcct ctgcccagtc cttcatcgaa
     4501 aggatgacta actttgataa aaatctgcct aacgaaaagg tgcttcctaa acactctctg
     4561 ctgtacgagt acttcacagt ttataacgag ctcaccaagg tcaaatacgt cacagaaggg
     4621 atgagaaagc cagcattcct gtctggagag cagaagaaag ctatcgtgga cctcctcttc
     4681 aagacgaacc ggaaagttac cgtgaaacag ctcaaagaag actatttcaa aaagattgaa
     4741 tgtttcgact ctgttgaaat cagcggagtg gaggatcgct tcaacgcatc cctgggaacg
     4801 tatcacgatc tcctgaaaat cattaaagac aaggacttcc tggacaatga ggagaacgag
     4861 gacattcttg aggacattgt cctcaccctt acgttgtttg aagataggga gatgattgaa
     4921 gaacgcttga aaacttacgc tcatctcttc gacgacaaag tcatgaaaca gctcaagaga
     4981 cgccgatata caggatgggg gcggctgtca agaaaactga tcaatggcat ccgagacaag
     5041 cagagtggaa agacaatcct ggattttctt aagtccgatg gatttgccaa ccggaacttc
     5101 atgcagttga tccatgatga ctctctcacc tttaaggagg acatccagaa agcacaagtt
     5161 tctggccagg gggacagtct tcacgagcac atcgctaatc ttgcaggtag cccagctatc
     5221 aaaaagggaa tactgcagac cgttaaggtc gtggatgaac tcgtcaaagt aatgggaagg
     5281 cataagcccg agaatatcgt tatcgagatg gcccgagaga accaaactac ccagaaggga
     5341 cagaagaaca gtagggaaag gatgaagagg attgaagagg gtataaaaga actggggtcc
     5401 caaatcctta aggaacaccc agttgaaaac acccagcttc agaatgagaa gctctacctg
     5461 tactacctgc agaacggcag ggacatgtac gtggatcagg aactggacat caaccggttg
     5521 tccgactacg acgtggatgc tatcgtgccc caaagctttc tcaaagatga ttctattgat
     5581 aataaagtgt tgacaagatc cgataaaaat agagggaaga gtgataacgt cccctcagaa
     5641 gaagttgtca agaaaatgaa aaattattgg cggcagctgc tgaacgccaa actgatcaca
     5701 caacggaagt tcgataatct gactaaggct gaacgaggtg gcctgtctga gttggataaa
     5761 gccggcttca tcaaaaggca gcttgttgag acacgccaga tcaccaagca cgtggcccaa
     5821 attctcgatt cacgcatgaa caccaagtac gatgaaaatg acaaactgat tcgagaggtg
     5881 aaagttatta ctctgaagtc taagctggtc tcagatttca gaaaggactt tcagttttat
     5941 aaggtgagag agatcaacaa ttaccaccat gcgcatgatg cctacctgaa tgcagtggta
     6001 ggcactgcac ttatcaaaaa atatcccaag ctggaatctg aatttgttta cggagactat
     6061 aaagtgtacg atgttaggaa aatgatcgca aagtctgagc aggaaatagg caaggccacc
     6121 gctaagtact tcttttacag caatattatg aattttttca agaccgagat tacactggcc
     6181 aatggagaga ttcggaagcg accacttatc gaaacaaacg gagaaacagg agaaatcgtg
     6241 tgggacaagg gtagggattt cgcgacagtc cgcaaggtcc tgtccatgcc gcaggtgaac
     6301 atcgttaaaa agaccgaagt acagaccgga ggcttctcca aggaaagtat cctcccgaaa
     6361 aggaacagcg acaagctgat cgcacgcaaa aaagattggg accccaagaa atacggcgga
     6421 ttcgattctc ctacagtcgc ttacagtgta ctggttgtgg ccaaagtgga gaaagggaag
     6481 tctaaaaaac tcaaaagcgt caaggaactg ctgggcatca caatcatgga gcgatccagc
     6541 ttcgagaaaa accccatcga ctttctcgaa gcgaaaggat ataaagaggt caaaaaagac
     6601 ctcatcatta agctgcccaa gtactctctc tttgagcttg aaaacggccg gaaacgaatg
     6661 ctcgctagtg cgggcgagct gcagaaaggt aacgagctgg cactgccctc taaatacgtt
     6721 aatttcttgt atctggccag ccactatgaa aagctcaaag ggtctcccga agataatgag
     6781 cagaagcagc tgttcgtgga acaacacaaa cactaccttg atgagatcat cgagcaaata
     6841 agcgagttct ccaaaagagt gatcctcgcc gacgctaacc tcgataaggt gctttctgct
     6901 tacaataagc acagggataa gcccatcagg gagcaggcag aaaacattat ccacttgttt
     6961 actctgacca acttgggcgc gcctgcagcc ttcaagtact tcgacaccac catagacaga
     7021 aagcggtaca cctctacaaa ggaggtcctg gacgccacac tgattcatca gtcaattacg
     7081 gggctctatg aaacaagaat cgacctctct cagctcggtg gagacggctc tactagtggc
     7141 tctcccaaga agaagaggaa ggtaggatcc ggaagtatgc gtaaaggcga agagctgttc
     7201 actggtgtcg tccctattct ggtggaactg gatggtgatg tcaacggtca taagttttcc
     7261 gtgcgtggcg agggtgaagg tgacgcaact aatggtaaac tgacgctgaa gttcatctgt
     7321 actactggta aactgccggt accttggccg actctggtaa cgacgctgac ttatggtgtt
     7381 cagtgctttg ctcgttatcc ggaccatatg aagcagcatg acttcttcaa gtccgccatg
     7441 ccggaaggct atgtgcagga acgcacgatt tcctttaagg atgacggcac gtacaaaacg
     7501 cgtgcggaag tgaaatttga aggcgatacc ctggtaaacc gcattgagct gaaaggcatt
     7561 gactttaaag aagacggcaa tatcctgggc cataagctgg aatacaattt taacagccac
     7621 aatgtttaca tcaccgccga taaacaaaaa aatggcatta aagcgaattt taaaattcgc
     7681 cacaacgtgg aggatggcag cgtgcagctg gctgatcact accagcaaaa cactccaatc
     7741 ggtgatggtc ctgttctgct gccagacaat cactatctga gcacgcaaag cgttctgtct
     7801 aaagatccga acgagaaacg cgatcatatg gttctgctgg agttcgtaac cgcagcgggc
     7861 atcacgcatg gtatggatga actgtacaaa tctggcggcc gctctggcat gcgtaaaggc
     7921 gaagagctgt tcactggtgt cgtccctatt ctggtggaac tggatggtga tgtcaacggt
     7981 cataagtttt ccgtgcgtgg cgagggtgaa ggtgacgcaa ctaatggtaa actgacgctg
     8041 aagttcatct gtactactgg taaactgccg gtaccttggc cgactctggt aacgacgctg
     8101 acttatggtg ttcagtgctt tgctcgttat ccggaccata tgaagcagca tgacttcttc
     8161 aagtccgcca tgccggaagg ctatgtgcag gaacgcacga tttcctttaa ggatgacggc
     8221 acgtacaaaa cgcgtgcgga agtgaaattt gaaggcgata ccctggtaaa ccgcattgag
     8281 ctgaaaggca ttgactttaa agaagacggc aatatcctgg gccataagct ggaatacaat
     8341 tttaacagcc acaatgttta catcaccgcc gataaacaaa aaaatggcat taaagcgaat
     8401 tttaaaattc gccacaacgt ggaggatggc agcgtgcagc tggctgatca ctaccagcaa
     8461 aacactccaa tcggtgatgg tcctgttctg ctgccagaca atcactatct gagcacgcaa
     8521 agcgttctgt ctaaagatcc gaacgagaaa cgcgatcata tggttctgct ggagttcgta
     8581 accgcagcgg gcatcacgca tggtatggat gaactgtaca aaggtagcat cgatggtagc
     8641 atgcgtaaag gcgaagagct gttcactggt gtcgtcccta ttctggtgga actggatggt
     8701 gatgtcaacg gtcataagtt ttccgtgcgt ggcgagggtg aaggtgacgc aactaatggt
     8761 aaactgacgc tgaagttcat ctgtactact ggtaaactgc cggtaccttg gccgactctg
     8821 gtaacgacgc tgacttatgg tgttcagtgc tttgctcgtt atccggacca tatgaagcag
     8881 catgacttct tcaagtccgc catgccggaa ggctatgtgc aggaacgcac gatttccttt
     8941 aaggatgacg gcacgtacaa aacgcgtgcg gaagtgaaat ttgaaggcga taccctggta
     9001 aaccgcattg agctgaaagg cattgacttt aaagaagacg gcaatatcct gggccataag
     9061 ctggaataca attttaacag ccacaatgtt tacatcaccg ccgataaaca aaaaaatggc
     9121 attaaagcga attttaaaat tcgccacaac gtggaggatg gcagcgtgca gctggctgat
     9181 cactaccagc aaaacactcc aatcggtgat ggtcctgttc tgctgccaga caatcactat
     9241 ctgagcacgc aaagcgttct gtctaaagat ccgaacgaga aacgcgatca tatggttctg
     9301 ctggagttcg taaccgcagc gggcatcacg catggtatgg atgaactgta caaactcgag
     9361 tagggtaatc tagataatca acctctggat tacaaaattt gtgaaagatt gactggtatt
     9421 cttaactatg ttgctccttt tacgctatgt ggatacgctg ctttaatgcc tttgtatcat
     9481 gctattgctt cccgtatggc tttcattttc tcctccttgt ataaatcctg gttgctgtct
     9541 ctttatgagg agttgtggcc cgttgtcagg caacgtggcg tggtgtgcac tgtgtttgct
     9601 gacgcaaccc ccactggttg gggcattgcc accacctgtc agctcctttc cgggactttc
     9661 gctttccccc tccctattgc cacggcggaa ctcatcgccg cctgccttgc ccgctgctgg
     9721 acaggggctc ggctgttggg cactgacaat tccgtggtgt tgtcggggaa atcatcgtcc
     9781 tttccttggc tgctcgcctg tgttgccacc tggattctgc gcgggacgtc cttctgctac
     9841 gtcccttcgg ccctcaatcc agcggacctt ccttcccgcg gcctgctgcc ggctctgcgg
     9901 cctcttccgc gtcttcgcct tcgccctcag acgagtcgga tctccctttg ggccgcctcc
     9961 ccgcctgaga tcctttaaga ccaatgactt acaaggcagc tgtagatctt agccactttt
    10021 taaaagaaaa ggggggactg gaagggctaa ttcactccca acgaagacaa gatctgcttt
    10081 ttgcttgtac tgggtctctc tggttagacc agatctgagc ctgggagctc tctggctaac
    10141 tagggaaccc actgcttaag cctcaataaa gcttgccttg agtgcttcaa gtagtgtgtg
    10201 cccgtctgtt gtgtgactct ggtaactaga gatccctcag acccttttag tcagtgtgga
    10261 aaatctctag cagtagtagt tcatgtcatc ttattattca gtatttataa cttgcaaaga
    10321 aatgaatatc agagagtgag aggcccgggt taattaagga aagggctaga tcattcttga
    10381 agacgaaagg gcctcgtgat acgcctattt ttataggtta atgtcatgat aataatggtt
    10441 tcttagacgt caggtggcac ttttcgggga aatgtgcgcg gaacccctat ttgtttattt
    10501 ttctaaatac attcaaatat gtatccgctc atgagacaat aaccctgata aatgcttcaa
    10561 taatattgaa aaaggaagag tatgagtatt caacatttcc gtgtcgccct tattcccttt
    10621 tttgcggcat tttgccttcc tgtttttgct cacccagaaa cgctggtgaa agtaaaagat
    10681 gctgaagatc agttgggtgc acgagtgggt tacatcgaac tggatctcaa cagcggtaag
    10741 atccttgaga gttttcgccc cgaagaacgt tttccaatga tgagcacttt taaagttctg
    10801 ctatgtggcg cggtattatc ccgtgttgac gccgggcaag agcaactcgg tcgccgcata
    10861 cactattctc agaatgactt ggttgagtac tcaccagtca cagaaaagca tcttacggat
    10921 ggcatgacag taagagaatt atgcagtgct gccataacca tgagtgataa cactgcggcc
    10981 aacttacttc tgacaacgat cggaggaccg aaggagctaa ccgctttttt gcacaacatg
    11041 ggggatcatg taactcgcct tgatcgttgg gaaccggagc tgaatgaagc cataccaaac
    11101 gacgagcgtg acaccacgat gcctgtagca atggcaacaa cgttgcgcaa actattaact
    11161 ggcgaactac ttactctagc ttcccggcaa caattaatag actggatgga ggcggataaa
    11221 gttgcaggac cacttctgcg ctcggccctt ccggctggct ggtttattgc tgataaatct
    11281 ggagccggtg agcgtgggtc tcgcggtatc attgcagcac tggggccaga tggtaagccc
    11341 tcccgtatcg tagttatcta cacgacgggg agtcaggcaa ctatggatga acgaaataga
    11401 cagatcgctg agataggtgc ctcactgatt aagcattggt aactgtcaga ccaagtttac
    11461 tcatatatac tttagattga tttaaaactt catttttaat ttaaaaggat ctaggtgaag
    11521 atcctttttg ataatctcat gaccaaaatc ccttaacgtg agttttcgtt ccactgagcg
    11581 tcagaccccg tagaaaagat caaaggatct tcttgagatc ctttttttct gcgcgtaatc
    11641 tgctgcttgc aaacaaaaaa accaccgcta ccagcggtgg tttgtttgcc ggatcaagag
    11701 ctaccaactc tttttccgaa ggtaactggc ttcagcagag cgcagatacc aaatactgtt
    11761 cttctagtgt agccgtagtt aggccaccac ttcaagaact ctgtagcacc gcctacatac
    11821 ctcgctctgc taatcctgtt accagtggct gctgccagtg gcgataagtc gtgtcttacc
    11881 gggttggact caagacgata gttaccggat aaggcgcagc ggtcgggctg aacggggggt
    11941 tcgtgcacac agcccagctt ggagcgaacg acctacaccg aactgagata cctacagcgt
    12001 gagctatgag aaagcgccac gcttcccgaa gggagaaagg cggacaggta tccggtaagc
    12061 ggcagggtcg gaacaggaga gcgcacgagg gagcttccag ggggaaacgc ctggtatctt
    12121 tatagtcctg tcgggtttcg ccacctctga cttgagcgtc gatttttgtg atgctcgtca
    12181 ggggggcgga gcctatggaa aaacgccagc aacgcggcct ttttacggtt cctggccttt
    12241 tgctggcctt ttgctcacat gttctttcct gcgttatccc ctgattctgt ggataaccgt
    12301 attaccgcct ttgagtgagc tgataccgct cgccgcagcc gaacgaccga gcgcagcgag
    12361 tcagtgagcg aggaagcgga agagcgccca atacgcaaac cgcctctccc cgcgcgttgg
    12421 ccgattcatt aatgcagcaa gctcatggct gactaatttt ttttatttat gcagaggccg
    12481 aggccgcctc ggcctctgag ctattccaga agtagtgagg aggctttttt ggaggcctag
    12541 gcttttgcaa aaagctcccc gtggcacgac aggtttcccg actggaaagc gggcagtgag
    12601 cgcaacgcaa ttaatgtgag ttagctcact cattaggcac cccaggcttt acactttatg
    12661 cttccggctc gtatgttgtg tggaattgtg agcggataac aatttcacac aggaaacagc
    12721 tatgacatga ttacgaattt cacaaataaa gcattttttt cactgcattc tagttgtggt
    12781 ttgtccaaac tcatcaatgt atcttatcat gtctggatca actggataac tcaagctaac
    12841 caaaatcatc ccaaacttcc caccccatac cctattacca ctgccaatta cctgtggttt
    12901 catttactct aaacctgtga ttcctctgaa ttattttcat tttaaagaaa ttgtatttgt
    12961 taaatatgta ctacaaactt agtagt
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
