DR274

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pDR274载体基本信息

质粒名称: DR274 ,pDR274
出品公司: 爱迪基因
目录编号: 42250
存储实验室: Keith Joung

载体骨架基本信息
载体名称: Zebrafish-gRNA-ExpressionVector
载体出品公司: Joung lab DR274
载体抗性: 卡那霉素
空载体大小: --
完整质粒大小: 2147 bp
载体修饰: --
载体类型: 蠕虫表达式
筛选标记: 新霉素G418
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: --
物种来源: --
插入大小: --
基因突变: --
GenBank编号 --
启动子 --
标签/融合蛋白: --
克隆方法: --
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 --
3' 测序引物 --

文献引用方法
材料和方法部分: DR274 was a gift from Keith Joung (Addgene plasmid # 42250 ; http://n2t.net/addgene:42250 ; RRID:Addgene_42250)
参考文献部分: Efficient genome editing in zebrafish using a CRISPR-Cas system. Hwang WY, Fu Y, Reyon D, Maeder ML, Tsai SQ, Sander JD, Peterson RT, Yeh JR, Joung JK. Nat Biotechnol. 2013 Jan 29. doi: 10.1038/nbt.2501. 10.1038/nbt.2501 PubMed 23360964

pDR274载体图谱质粒图谱和多克隆位点信息

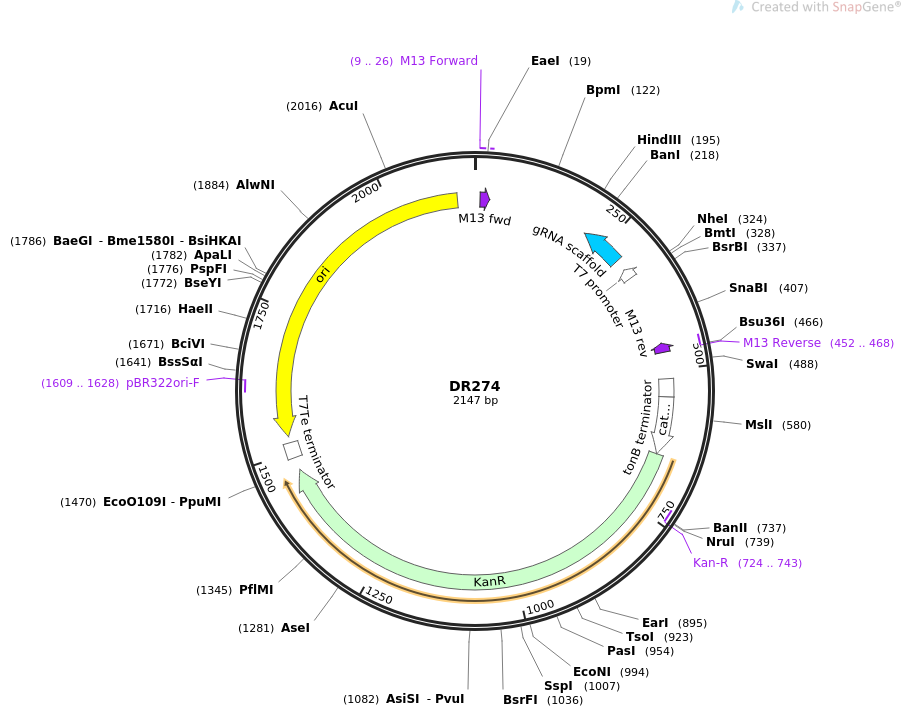

DR274质粒图谱

pDR274载体简介

pDR274载体序列

LOCUS       DR274                2147 bp ds-DNA     circular SYN 23-AUG-2019
DEFINITION  guide RNA (gRNA) expression vector used to create a gRNA to a
            specific sequence; uses T7 promoter for in vitro transcription.
ACCESSION   .
VERSION     .
KEYWORDS    DR274
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 2147)
  AUTHORS   Hwang WY, Fu Y, Reyon D, Maeder ML, Tsai SQ, Sander JD, Peterson RT,
            Yeh JR, Joung JK
  TITLE     Efficient genome editing in zebrafish using a CRISPR-Cas system.
  JOURNAL   Nat Biotechnol. 2013 Jan 29. doi: 10.1038/nbt.2501.
  PUBMED    23360964
REFERENCE   2  (bases 1 to 2147)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 23, 2019 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..2147
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     9..26
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     10..26
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     misc_RNA        complement(208..283)
                     /label=gRNA scaffold
                     /note="guide RNA scaffold for the Streptococcus pyogenes
                     CRISPR/Cas9 system"
     promoter        complement(305..323)
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(452..468)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(452..468)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     terminator      516..547
                     /label=tonB terminator
                     /note="bidirectional E. coli tonB-P14 transcription
                     terminator"
     promoter        548..650
                     /label=cat promoter
                     /note="promoter of the E. coli cat gene encoding
                     chloramphenicol acetyltransferase"
     CDS             651..1466
                     /codon_start=1
                     /gene="aph(3')-Ia"
                     /product="aminoglycoside phosphotransferase"
                     /label=KanR
                     /note="confers resistance to kanamycin in bacteria or G418
                     (Geneticin(R)) in eukaryotes"
                     /translation="MSHIQRETSCLKPRLNSNMDADLYGYKWARDNVGQSGATIYRLYG
                     KPDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIPGK
                     TAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNGDRVFRLAQAQSRMNNGLVGA
                     SDFDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVGRVGI
                     ADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF"
     primer_bind     complement(724..743)
                     /label=Kan-R
                     /note="Kanamycin resistance gene, reverse primer"
     terminator      1490..1517
                     /label=T7Te terminator
                     /note="phage T7 early transcription terminator"
     rep_origin      complement(1529..2116)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(1609..1628)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 cccacccgtg taaaacgacg gccagtttat ctagtcagct tgattctagc tgatcgtgga
       61 ccggaaggtg agccagtgag ttgattgcag tccagttacg ctggagtctg aggctcgtcc
      121 tgaatgatat gcgaccgccg gagggttgcg tttgagacgg gcgacagatc cagtcgcgct
      181 gctctcgtcg atccaagctt tttaaaagca ccgactcggt gccacttttt caagttgata
      241 acggactagc cttattttaa cttgctattt ctagctctaa aactgagacc ctctctcggt
      301 ctctcctata gtgagtcgta ttagctagcg gtgcgagcgg atcgagcagt gtcgatcact
      361 actggaccgc gagctgtgct gcgacccgtg atcttacggc attatacgta tgatcggtcc
      421 acgatcagct agattatcta gtcagcttga tgtcatagct gtttcctgag gctcaatact
      481 gaccatttaa atcatacctg acctccatag cagaaagtca aaagcctccg accggaggct
      541 tttgacttga tcggcacgta agaggttcca actttcacca taatgaaata agatcactac
      601 cgggcgtatt ttttgagtta tcgagatttt caggagctaa ggaagctaaa atgagccata
      661 ttcaacggga aacgtcttgc ttgaagccgc gattaaattc caacatggat gctgatttat
      721 atgggtataa atgggctcgc gataatgtcg ggcaatcagg tgcgacaatc tatcgattgt
      781 atgggaagcc cgatgcgcca gagttgtttc tgaaacatgg caaaggtagc gttgccaatg
      841 atgttacaga tgagatggtc aggctaaact ggctgacgga atttatgcct cttccgacca
      901 tcaagcattt tatccgtact cctgatgatg catggttact caccactgcg atcccaggga
      961 aaacagcatt ccaggtatta gaagaatatc ctgattcagg tgaaaatatt gttgatgcgc
     1021 tggcagtgtt cctgcgccgg ttgcattcga ttcctgtttg taattgtcct tttaacggcg
     1081 atcgcgtatt tcgtctcgct caggcgcaat cacgaatgaa taacggtttg gttggtgcga
     1141 gtgattttga tgacgagcgt aatggctggc ctgttgaaca agtctggaaa gaaatgcata
     1201 aactcttgcc attctcaccg gattcagtcg tcactcatgg tgatttctca cttgataacc
     1261 ttatttttga cgaggggaaa ttaataggtt gtattgatgt tggacgagtc ggaatcgcag
     1321 accgatacca ggatcttgcc atcctatgga actgcctcgg tgagttttct ccttcattac
     1381 agaaacggct ttttcaaaaa tatggtattg ataatcctga tatgaataaa ttgcagtttc
     1441 acttgatgct cgatgagttt ttctaatgag gacctaaatg taatcacctg gctcaccttc
     1501 gggtgggcct ttctgcgttg ctggcgtttt tccataggct ccgcccccct gacgagcatc
     1561 acaaaaatcg atgctcaagt cagaggtggc gaaacccgac aggactataa agataccagg
     1621 cgtttccccc tggaagctcc ctcgtgcgct ctcctgttcc gaccctgccg cttaccggat
     1681 acctgtccgc ctttctccct tcgggaagcg tggcgctttc tcatagctca cgctgtaggt
     1741 atctcagttc ggtgtaggtc gttcgctcca agctgggctg tgtgcacgaa ccccccgttc
     1801 agcccgaccg ctgcgcctta tccggtaact atcgtcttga gtccaacccg gtaagacacg
     1861 acttatcgcc actggcagca gccactggta acaggattag cagagcgagg tatgtaggcg
     1921 gtgctacaga gttcttgaag tggtggccta actacggcta cactagaaga acagtatttg
     1981 gtatctgcgc tctgctgaag ccagttacct cggaaaaaga gttggtagct cttgatccgg
     2041 caaacaaacc accgctggta gcggtggttt ttttgtttgc aagcagcaga ttacgcgcag
     2101 aaaaaaagga tctcaagaag atcctttgat tttctaccga agaaagg
//

pDR274载体图谱质粒图谱pdf版和相关资料下载

pDR274载体质粒应用举例
